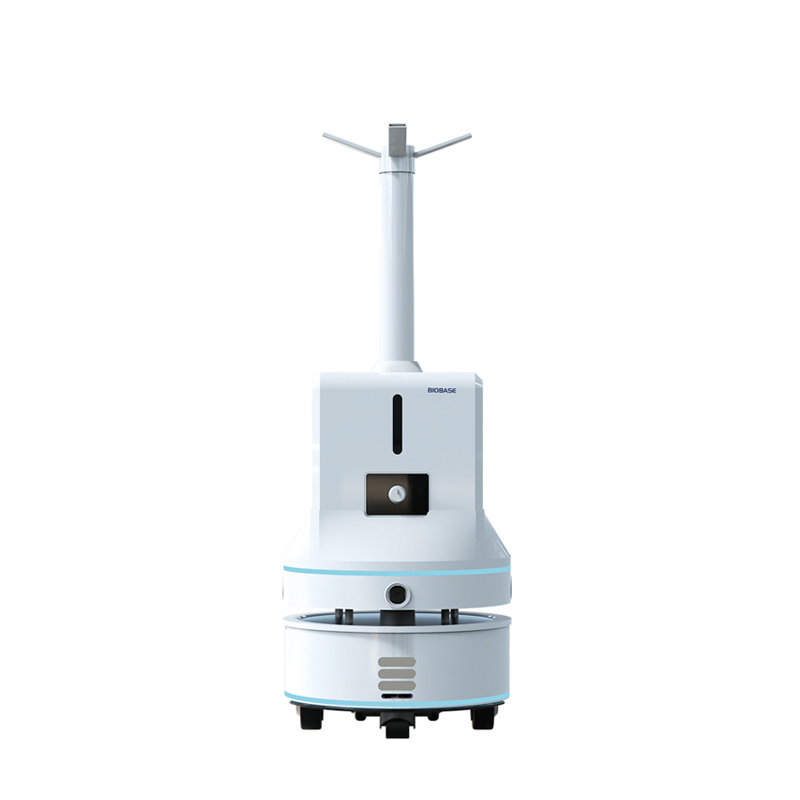

Biobase China Customized Distillers Medical UV Disinfection Robots Intelligent Efficient Air Purification

Still deciding? Get samples of $ !
Request Sample

Product Description

Overview & Basic Info
Model NO.BKS-Y
LCD DisplayWith LCD Display
Atomization Efficiency2L~3L/H (Adjustable)
Disinfectant Capacity16L
Spray Diameter5-6m
Spray MethodFour-Direction Spray, Large Opening
Moving WayAutonomous Path Planning and Automatic
Moving Speed0~1m/S
Safety SystemLidar Obstacle Avoidance, Power-off
Consumption150W
Operating Time5~6h
Noise≤50dB
Gradeability≤8°
Product Features

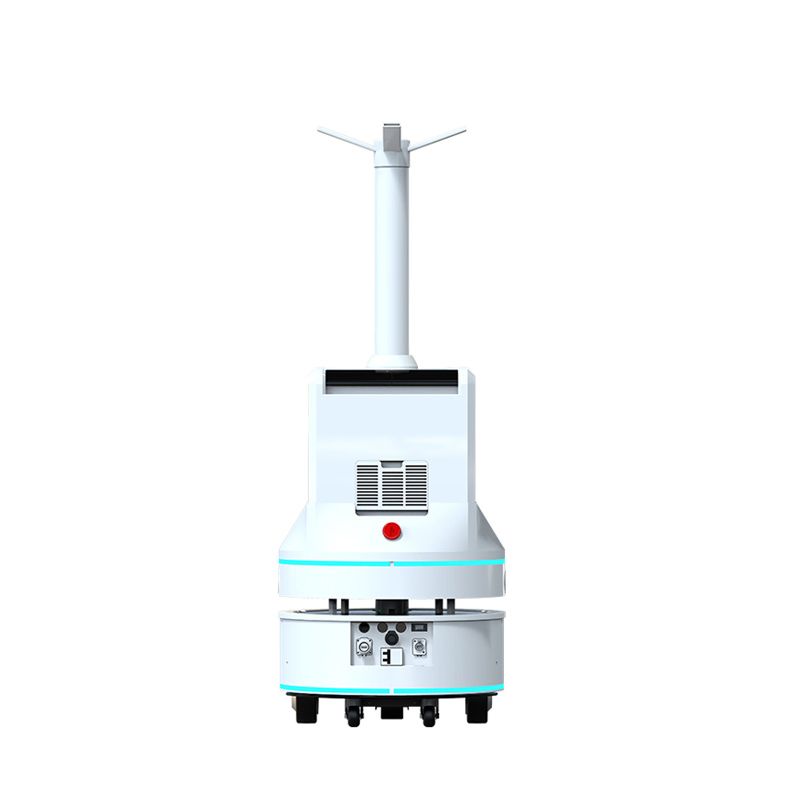

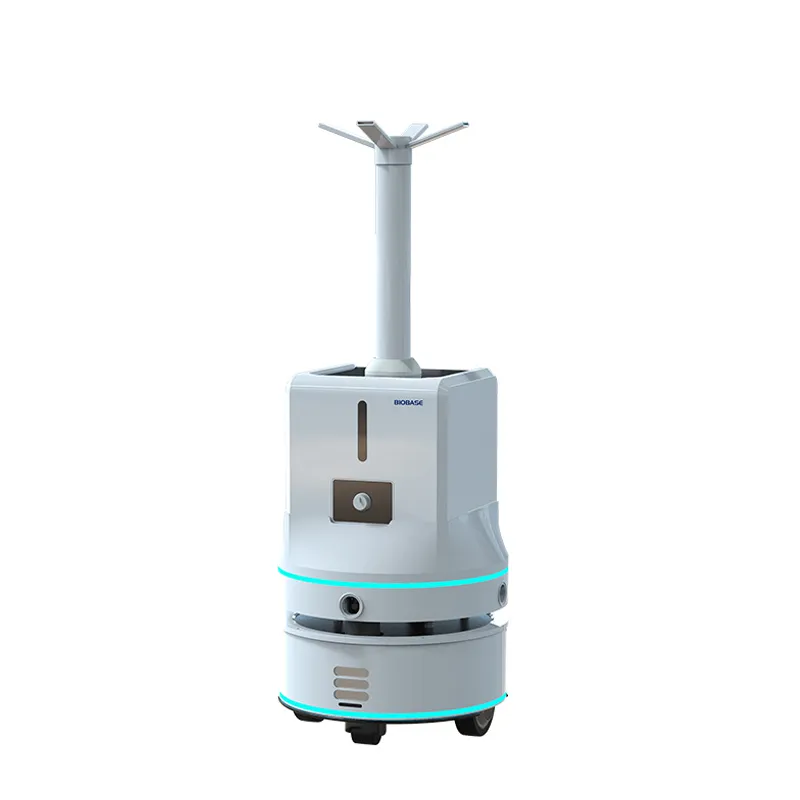

Medical UV Disinfection Robot
1
The large-capacity 16L disinfectant tank can continuously disinfect for more than 5 ~ 6 hours, and the disinfection coverage is up to 4000 ~ 5000 m2.
2
Support APP control, no-touch automated disinfection greatly improve the safety of use in the disinfection process.
3
Two disinfection modes: timed disinfection and immediate disinfection.
4
With autonomous navigation function, lidar obstacle avoidance, can fully cover the required area.
5
Support automatic return to charge, human assistance isn't required.
6
When the disinfectant is below the warning position, it will return to the waiting area and turn off the spray device automatically.

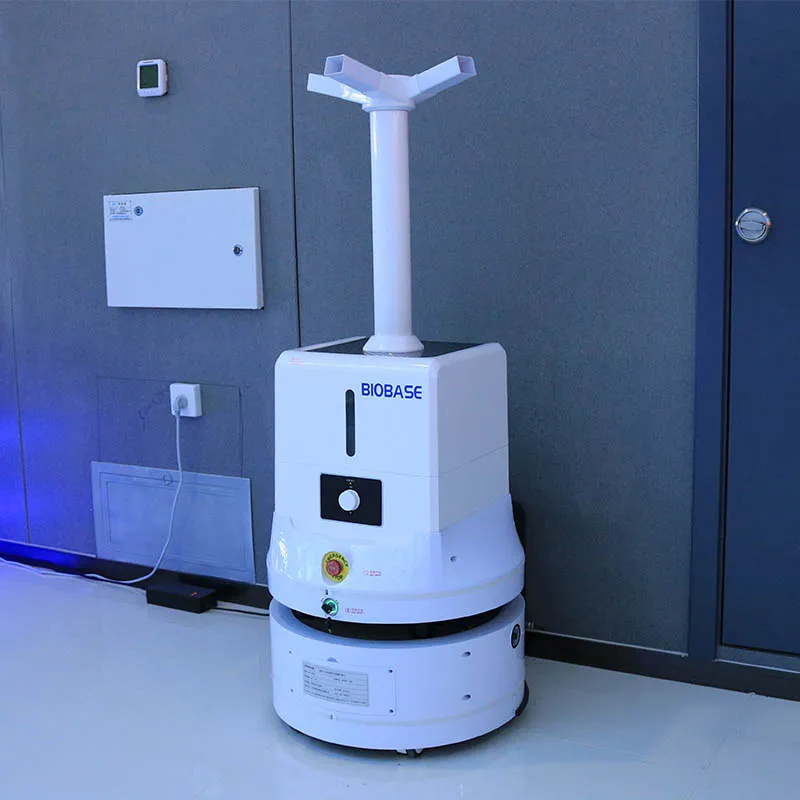

Robot Display 1

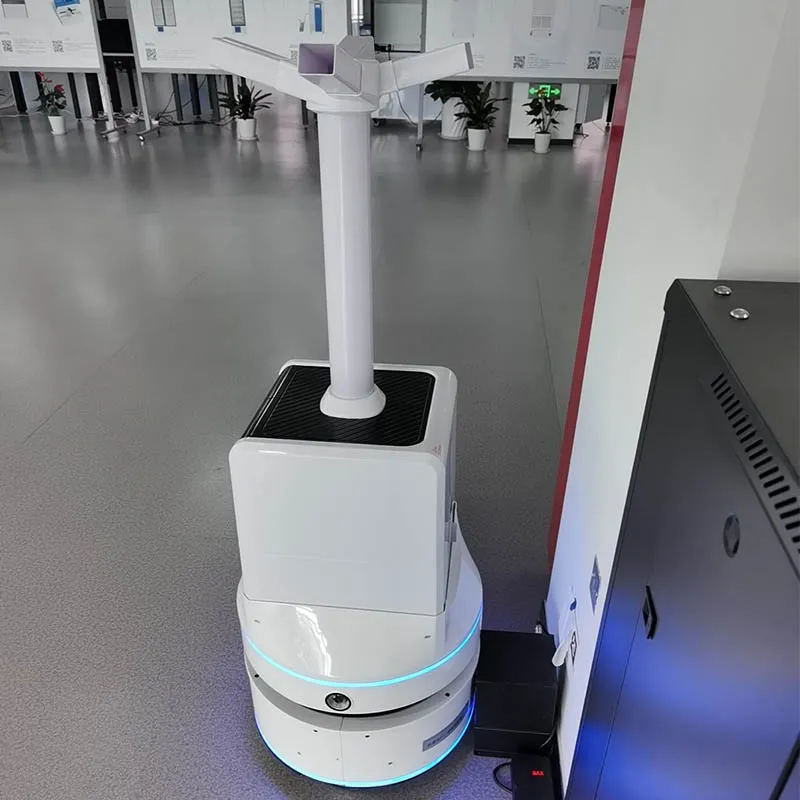

Robot Display 2

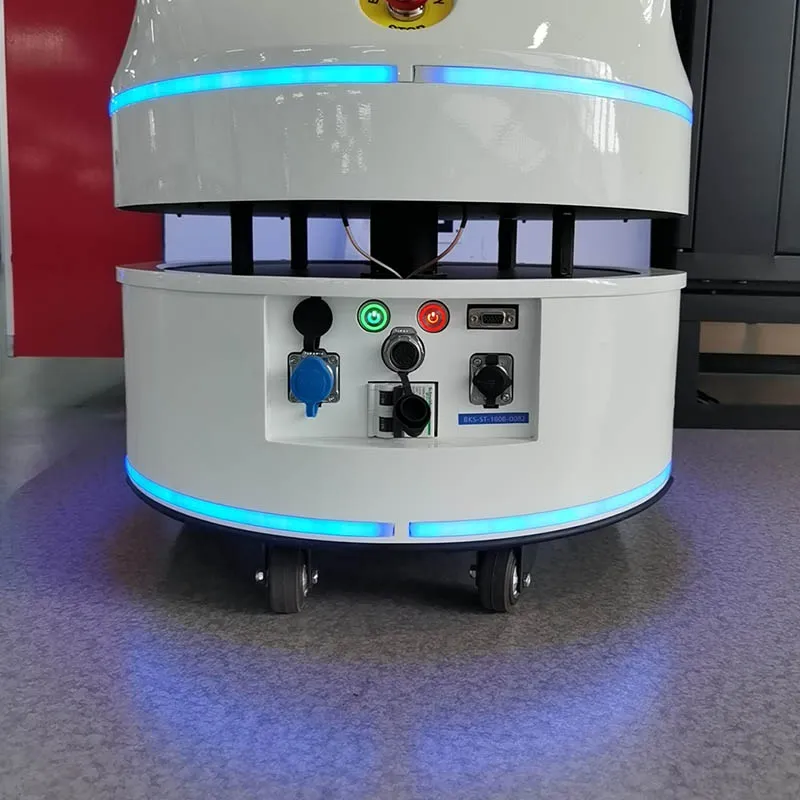

Robot Display 3
Product Parameters
External Size(mm)φ500*1335
Disinfection MediumHypochlorous acid, Chlorine dioxide, Hydrogen peroxide, Peroxyacetic acid, etc.
Drive MethodDifferential drive
Ability to Cross Obstacles±10mm
Driving Channel Width≥700mm
BatteryLithium battery 28AH 24V, rechargeable 10,000 times
Charging Time3~4h
Power SupplyAC110/220V, 50/60Hz
Gross Weight (Main Body)10kg
Gross Weight (Chassis)62kg
Dimensions and Structure
Application & Details

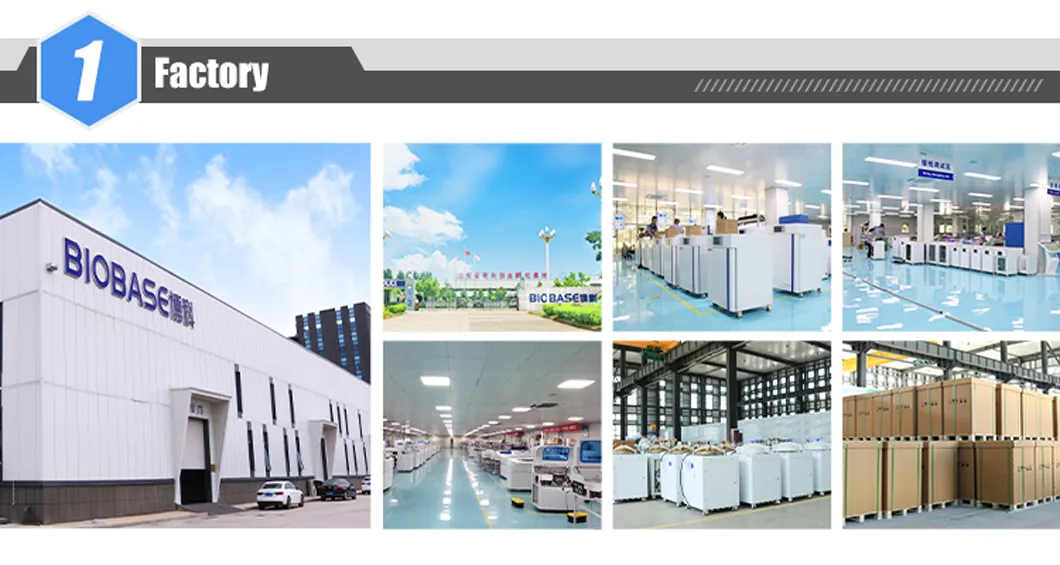

Internal Factory View

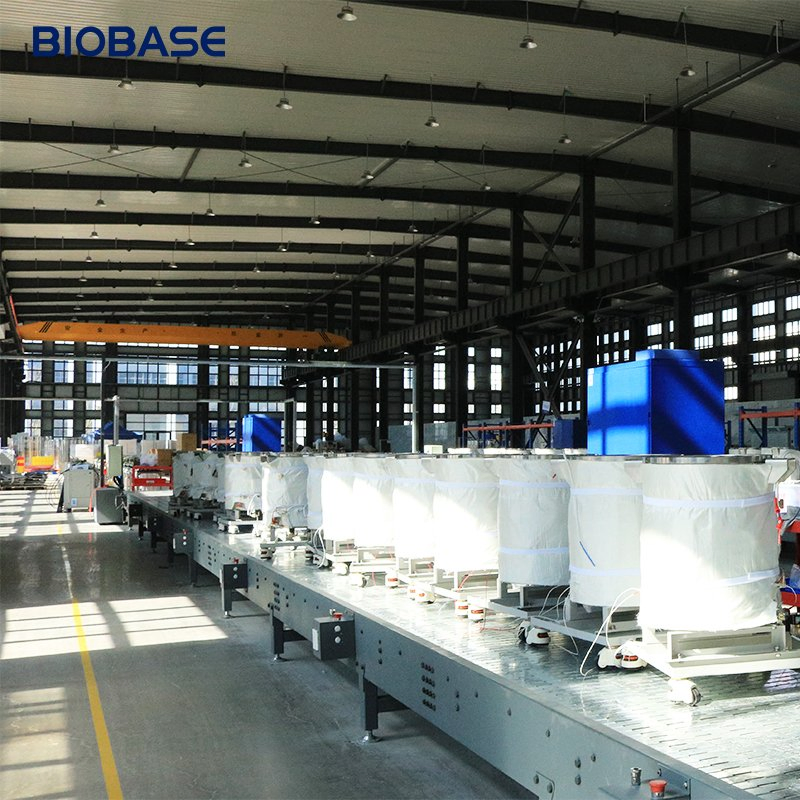

Production Line
Robot Testing
Quality Control
Logistics Center
Frequently Asked Questions
How long can the robot operate on a single charge?
The robot features a high-capacity lithium battery providing 5 to 6 hours of continuous operation.
What is the total disinfection coverage area?
With its 16L tank, the robot can cover a disinfection area of approximately 4000 to 5000 square meters.
Does the robot require manual charging?
No, it supports an automatic return-to-charge function, ensuring it stays powered without human assistance.
What types of disinfectants are compatible with this device?
It is compatible with Hypochlorous acid, Chlorine dioxide, Hydrogen peroxide, and Peroxyacetic acid.
How does the robot avoid obstacles in crowded environments?
It utilizes a Lidar-based obstacle avoidance system and autonomous path planning for safe navigation.
Can the spray efficiency be adjusted?
Yes, the atomization efficiency is adjustable between 2L and 3L per hour.
