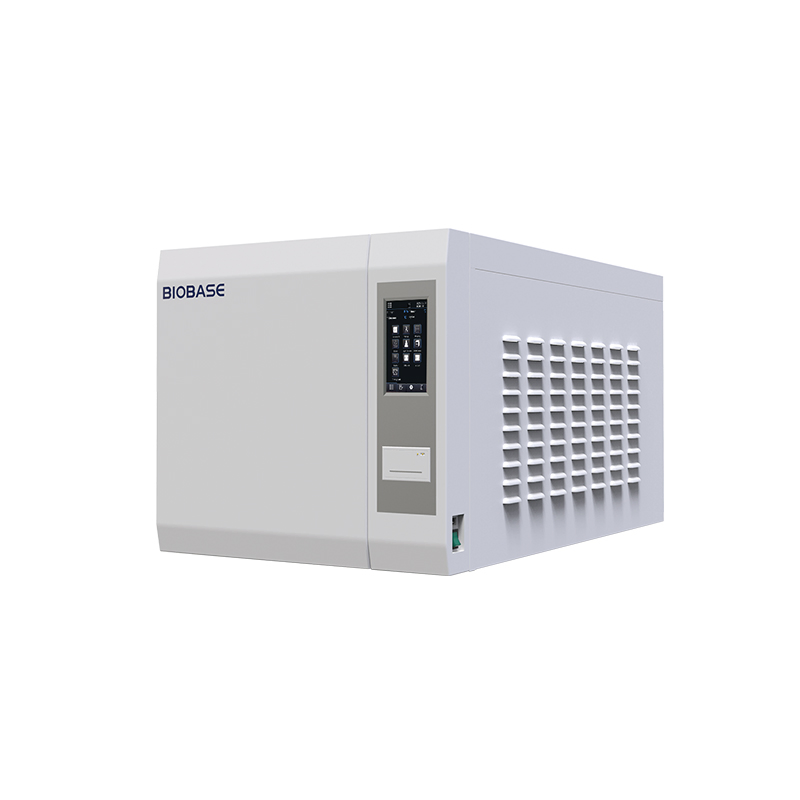

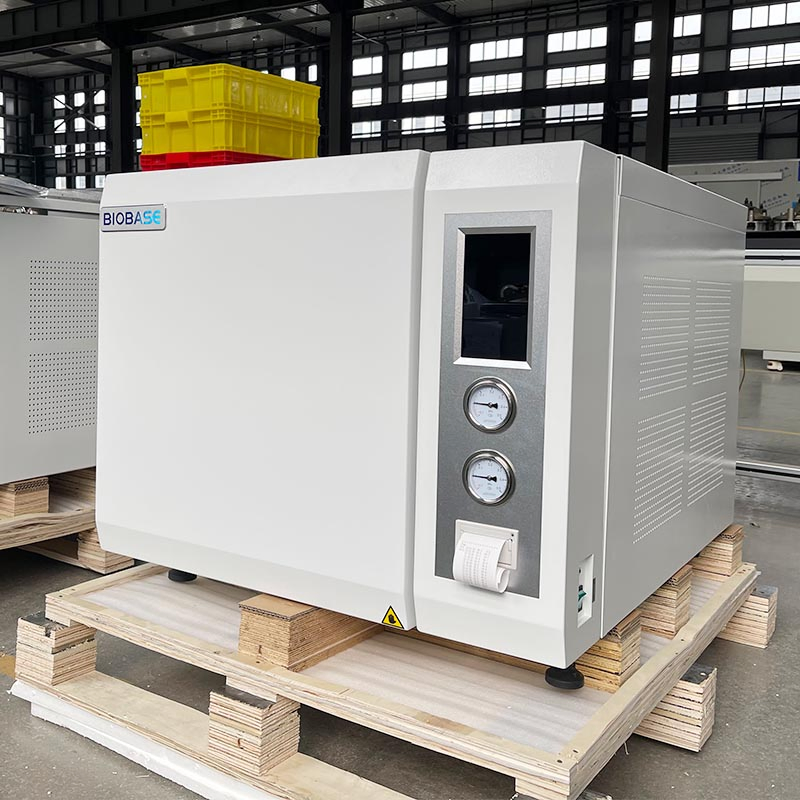

Biobase Class B Dental Autoclave Steam Sterilizer High Quality Autoclave

1 / 5

Biobase Class B Dental Autoclave Steam Sterilizer High Quality Autoclave

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Overview - Basic Info

Model NO.	BKM-Z18B
Certification	CE, ISO13485
Electric Tension	110/220V±10%, 60/50Hz
LCD Display	LED Display
Ultra High Temperature Alarm	Supported
Sterilization Recording	Information Recording and Printing
Material	Stainless Steel
Capacity	18L
Door	Manual
Max Designed Pressure	0.28MPa
Water Tank Volume	3.5L
Working Temp.	105~134°C
Vacuum System	High Efficiency Vacuum Pump
Chamber Material	S304 08
Atmospheric Pressure	76-106kpa
Ambient Temp.	5~40°C
Standard Accessories	USB / Printer
Power Consumption	3kVA
External Size(WDH)mm	580485450
Transport Package	Wooden Packing
Origin	China

🔬

Product Description

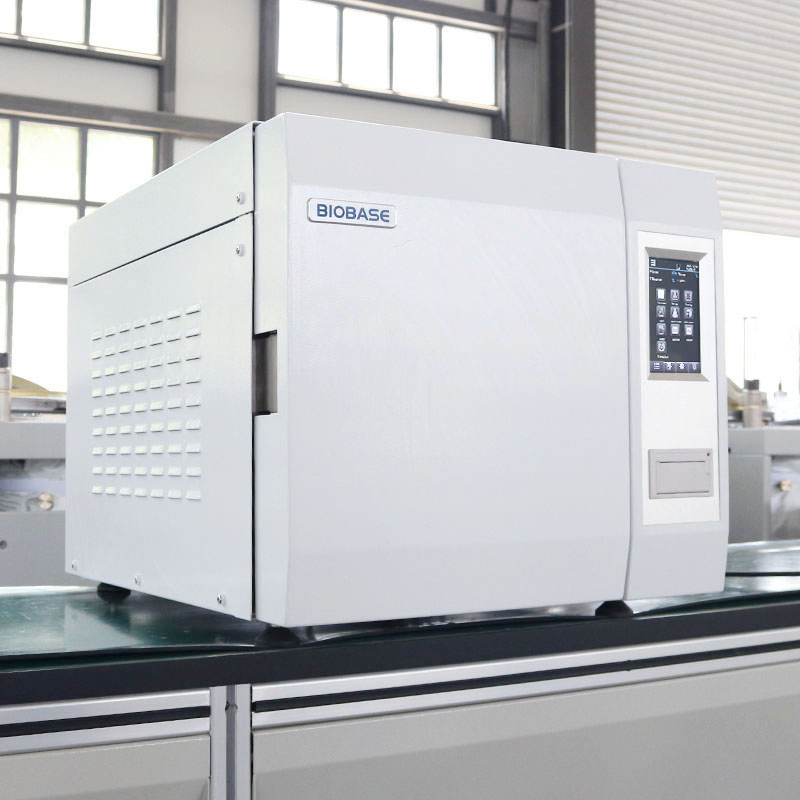

🌟 Brand-new Operation Interface The LCD touch screen displays real-time data: temperature, pressure, time, operating status, and fault alarms. The equipment operating curve makes sterilization information intuitive and easy to observe.

🛡️ Multiple Safety Protection Equipped with automatic over-temperature protection, evaporator control, door safety interlock, and double over-pressure protection devices for maximum safety.

🚪 Advanced Door Structure BKM-K series adopts a manual door, while BKM-Z series features an automatic door structure. Both are designed for quick operation and thermal protection.

🌀 Efficient Vacuum System High-efficiency vacuum pump with low noise. Ultimate vacuum can reach -80KPa, ensuring fast pumping, excellent dryness, and thorough sterilization.

⚙️ Diversified Procedures Includes fast, encapsulation, rubber, dressing, and liquid programs. Supports customization, media sterilization, B&D testing, and vacuum testing.

💨 High-efficiency Air Filter A 0.22µm sterilizing filter with 99.5% efficiency ensures that vacuum-breaking air is sterile, preventing re-contamination of materials.

📊 Recording Device Standard thermal printer and USB interface allow real-time recording of the entire sterilization process data.

🔄 Fully Automatic Operation Manages the entire cycle: preheating, replacement, heating, sterilization, exhaust steam, and vacuum drying automatically.

📊

Product Parameters

Model	BKM-K18B	BKM-Z18B	BKM-K23B	BKM-Z23B
Capacity	18L		23L
Door	Manual	Automatic	Manual	Automatic
Max Pressure	0.28MPa
Water Tank	3.5L
Working Temp.	105~134°C
Vacuum Pump	High efficiency vacuum pump
Chamber Material	S304 08
Power Supply	220V, 50/60HZ (Standard); 110V,60Hz (Optional)
External Size (mm)	580485450		680485450
Chamber Size (mm)	250*360		250*450
Gross Weight (kg)	50		55

📦

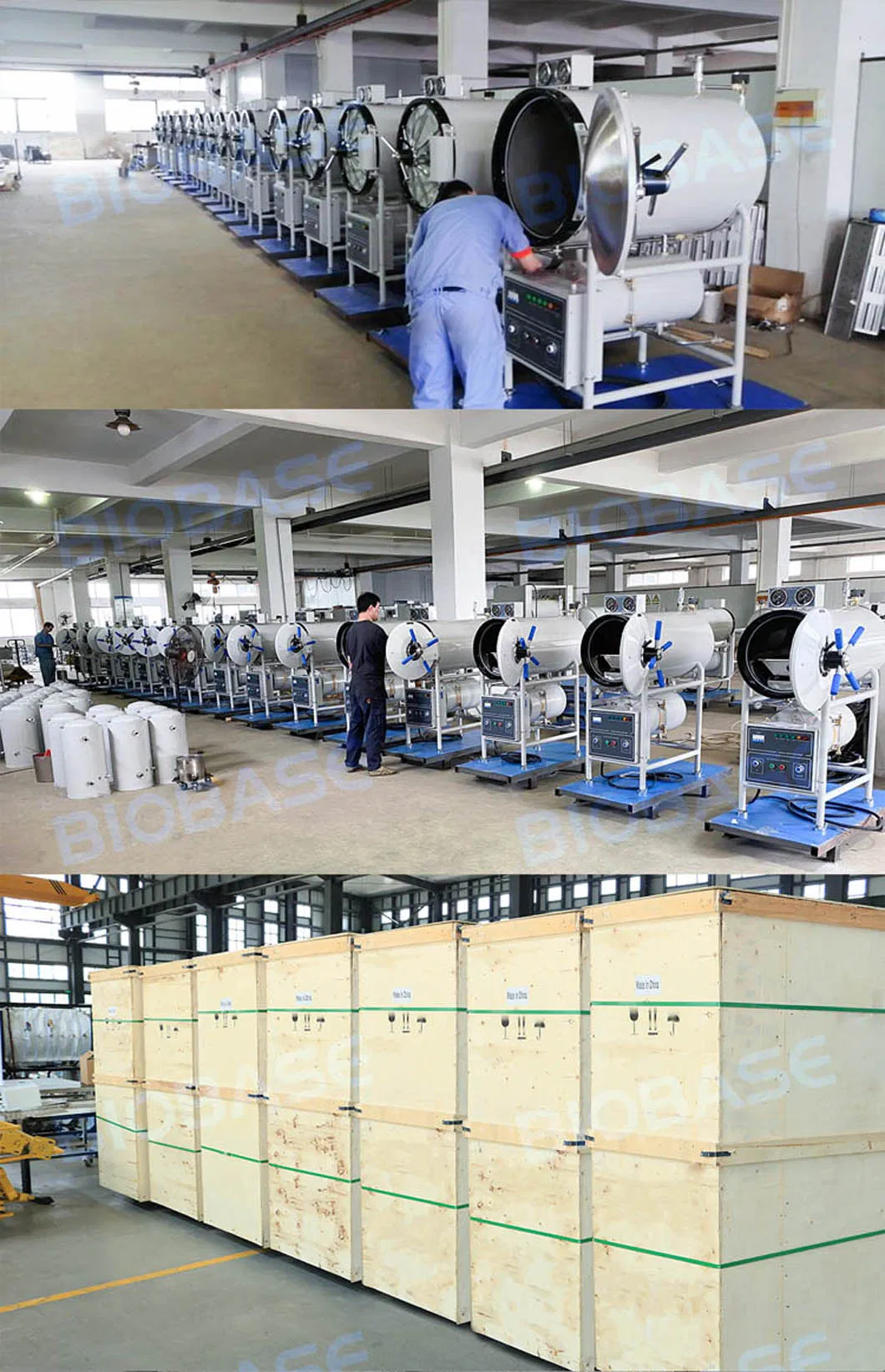

Packaging & Shipping

🏢

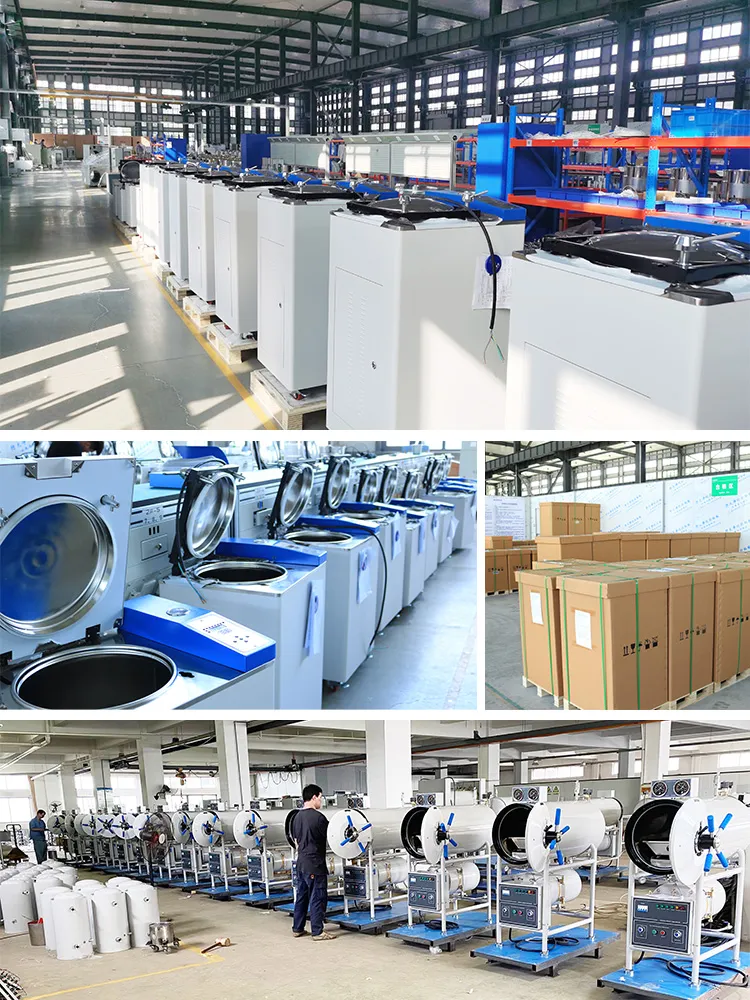

Company Profile & Advantages

🛠️

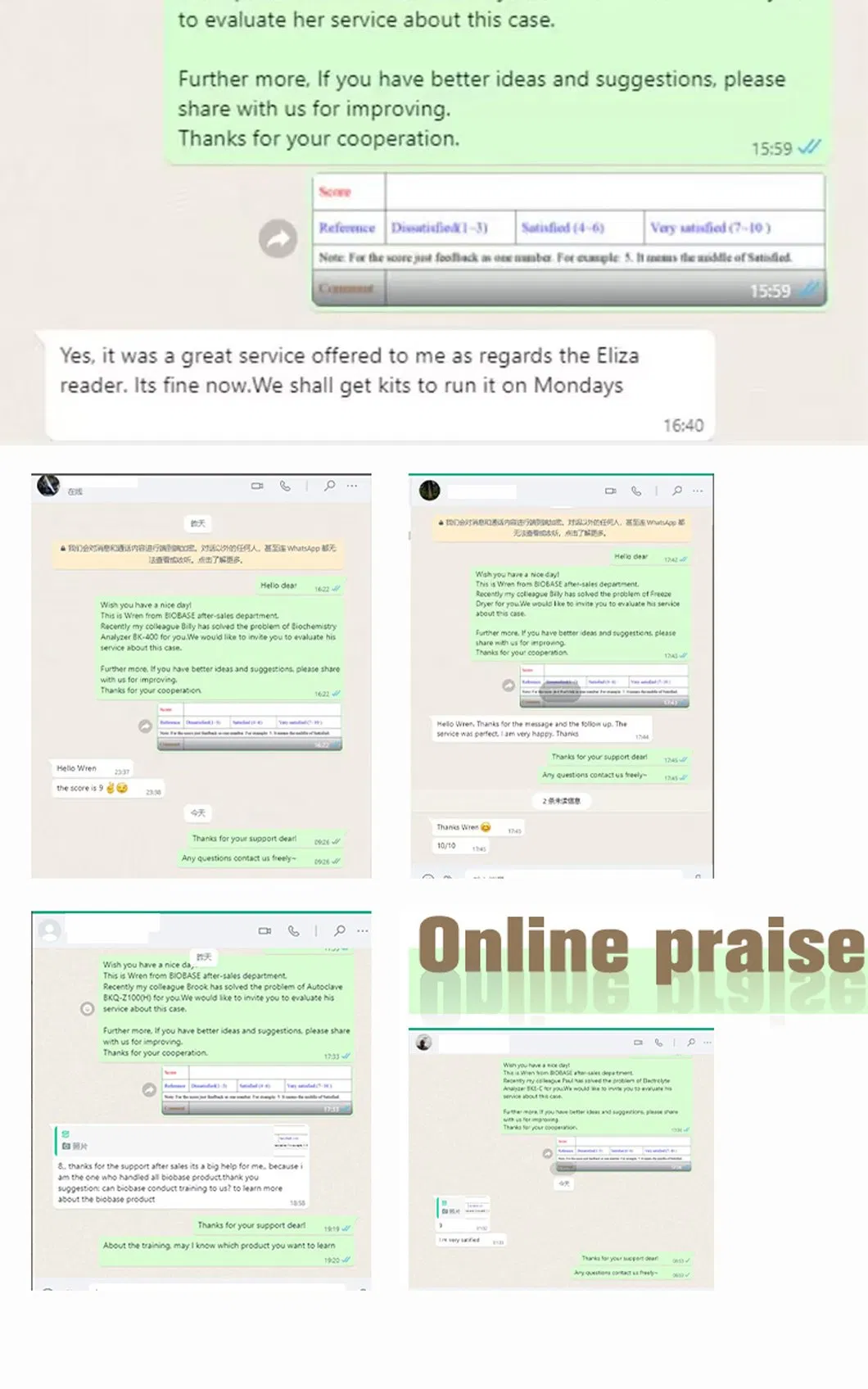

After Sales Service

✉️

Contact Us

Frequently Asked Questions

What is the difference between Class B and other autoclaves?

Class B autoclaves use a vacuum pump to remove air completely from the chamber, allowing steam to penetrate porous loads and hollow instruments, which ensures more thorough sterilization compared to Class N or S.

Does this autoclave come with a data recording system?

Yes, it is equipped with both a thermal printer and a USB interface as standard to record all sterilization process data in real time.

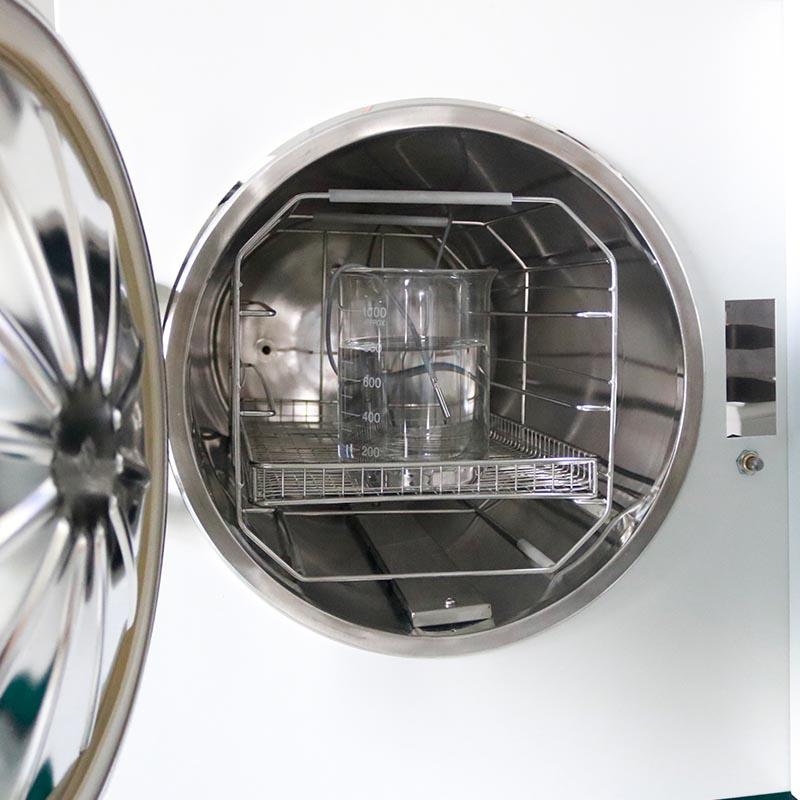

What materials are used for the sterilization chamber?

The chamber is made of high-quality S304 08 stainless steel for durability and corrosion resistance.

Can I sterilize rubber and liquid materials?

Yes, the device features diversified procedures including specific settings for rubber, dressing, and liquid materials, as well as customizable programs.

Is the vacuum system noisy during operation?

No, it adopts a high-efficiency vacuum system designed for low working noise while maintaining ultimate vacuum levels of more than -80KPa.

What safety features are included?

It includes automatic over-temperature protection, door safety interlock protection, and a double over-pressure protection device to ensure user safety.
