| Model | Dimension (mm) | Weight (kg) | Capacity (pcs) | Door Type | Storage Method | Power Supply |
|---|---|---|---|---|---|---|

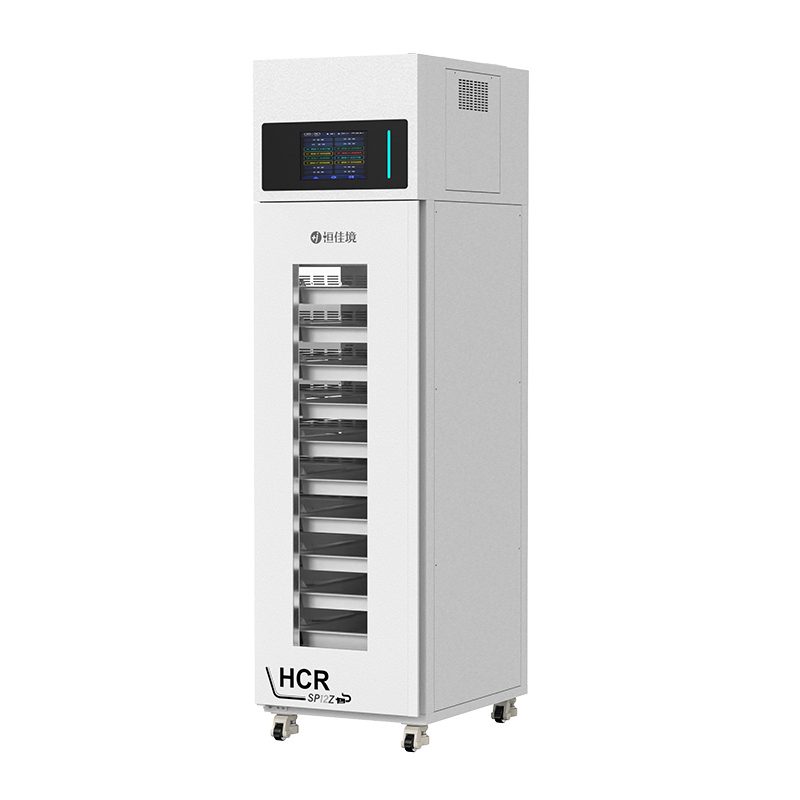

| HCR-SP12Z | 530*735*1980 | 135 | 12 | Manual / Single | Horizontal storage | 220V 50Hz / 110V 60Hz |

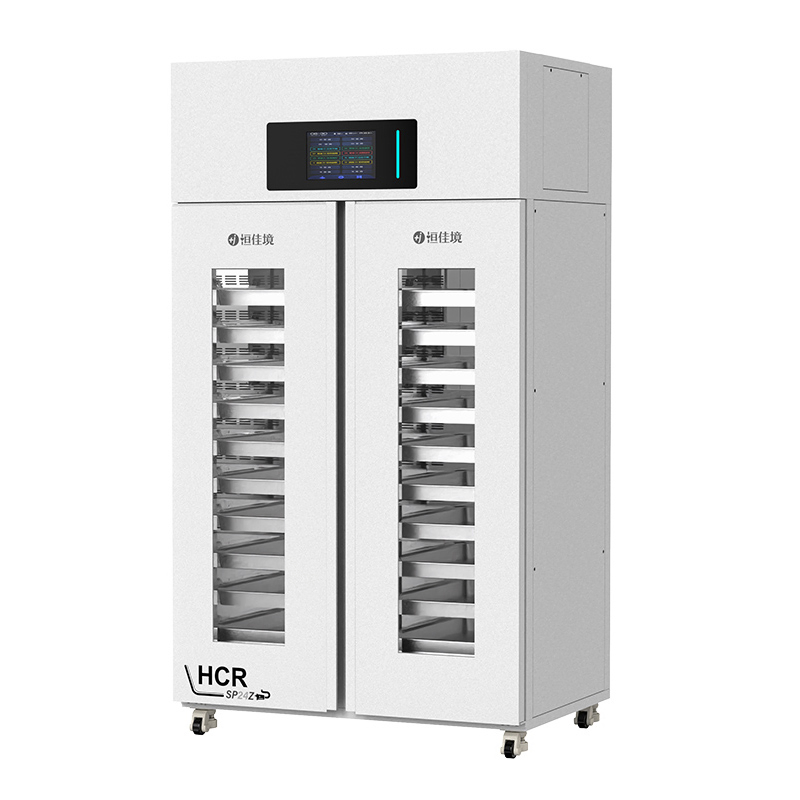

| HCR-SP24ZS | 1090*735*1980 | 235 | 24 | Manual / Double |

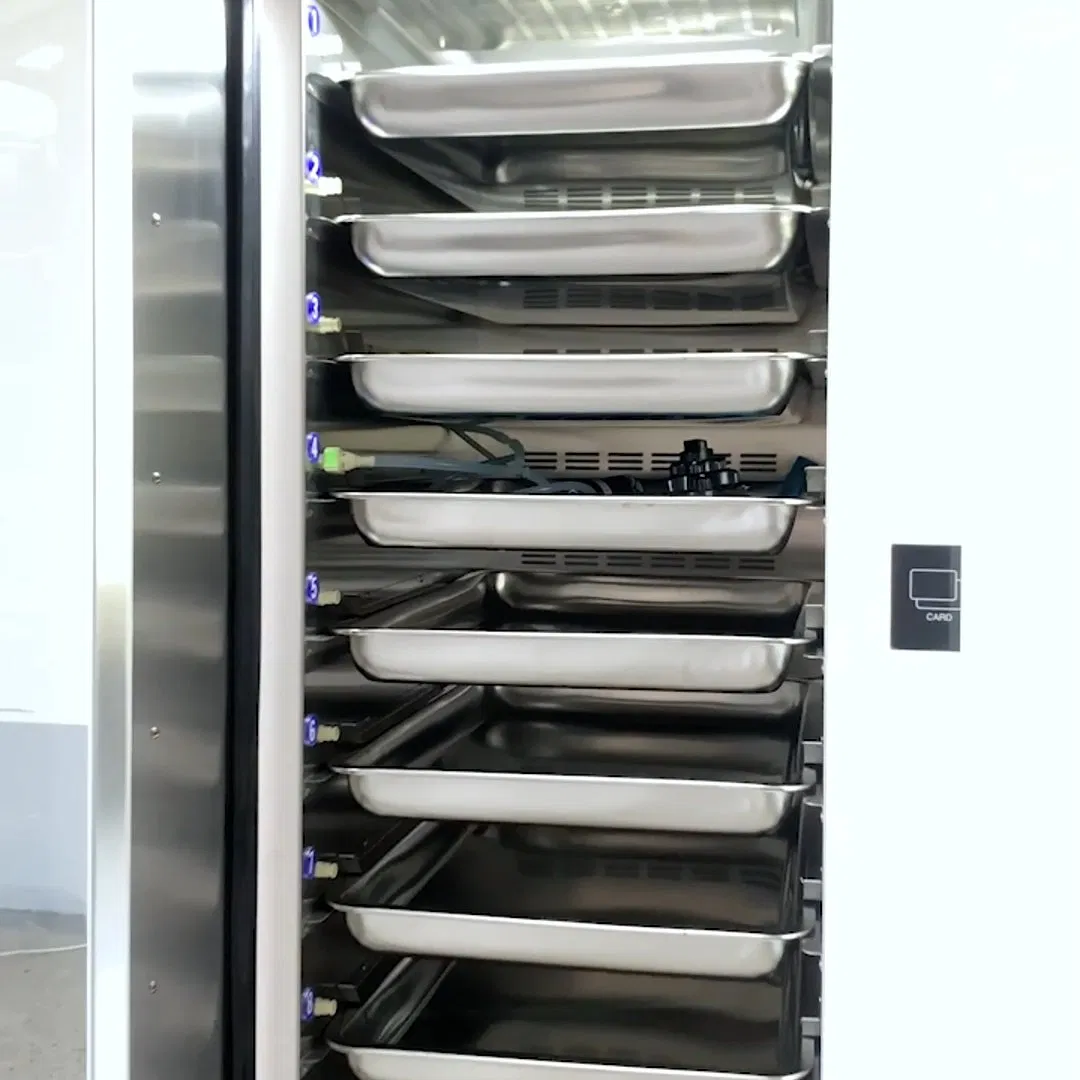

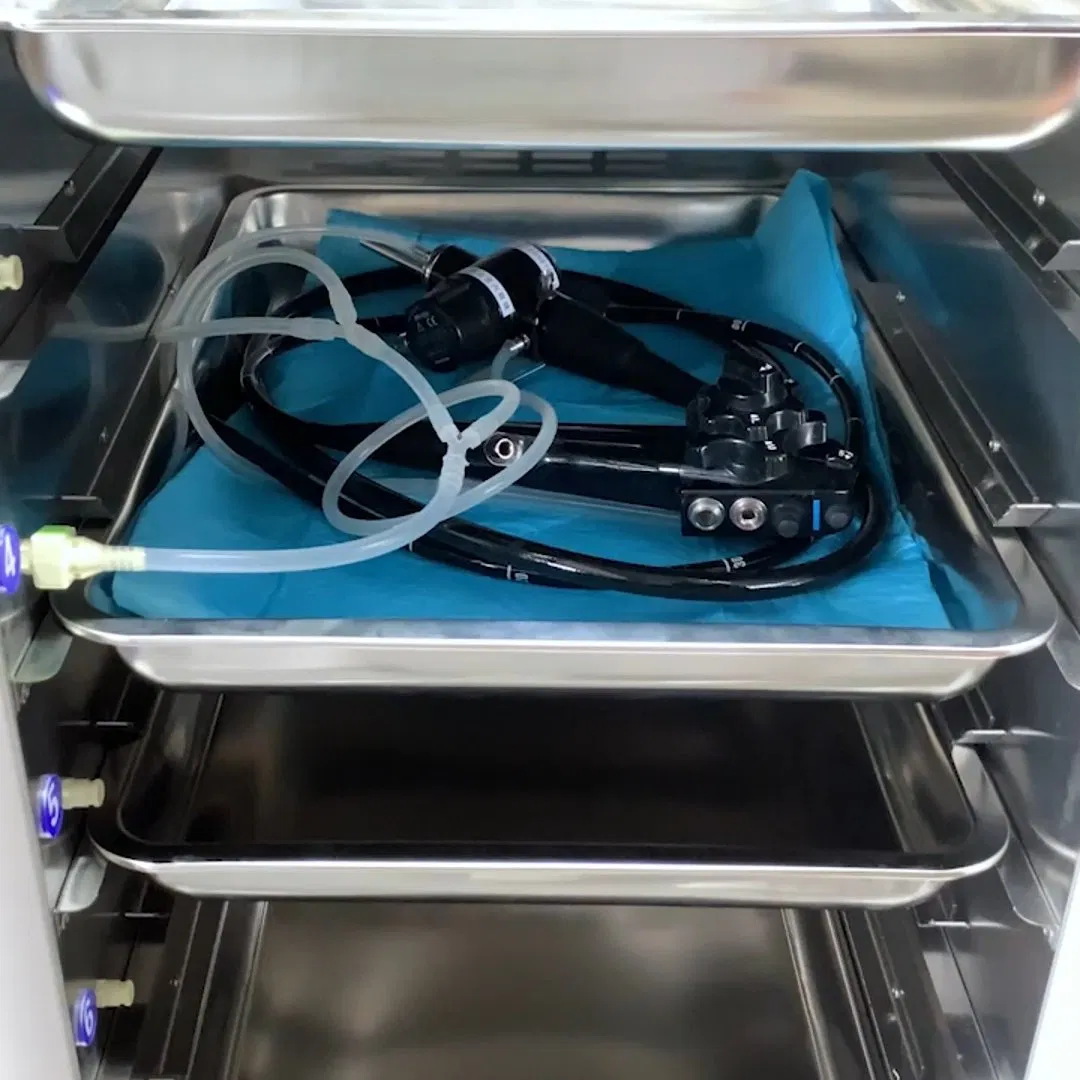

Chamber made of SUS304 is corrosion resistant and easy to clean. Each slot includes a dedicated hose for drying the channels of flexible endoscopes.
Specializing in the field of medical infection control, the manufacturer operates core product lines including air disinfection, dental infection control, endoscope reprocessing, and laboratory biosafety protection. With a professional R&D team holding over 10 years of industry experience, the technology drives continuous innovation in medical safety.
The manufacturing systems are certified under ISO 9001, ISO 14001, and ISO 45001. Medical devices meet ISO 13485 standards and have obtained relevant regulatory approvals including CE certification for international markets. Serving over 1,000 medical institutions globally, the products are exported to Germany, South Korea, Italy, and many other regions.
A1: The system uses H14 HEPA filtration which removes 99.99% of particles as small as 0.3μm, ensuring the chamber air meets ISO5 cleanliness standards.
A2: Yes, the storage cabinet is designed to be compatible with all major brands of flexible endoscopes.

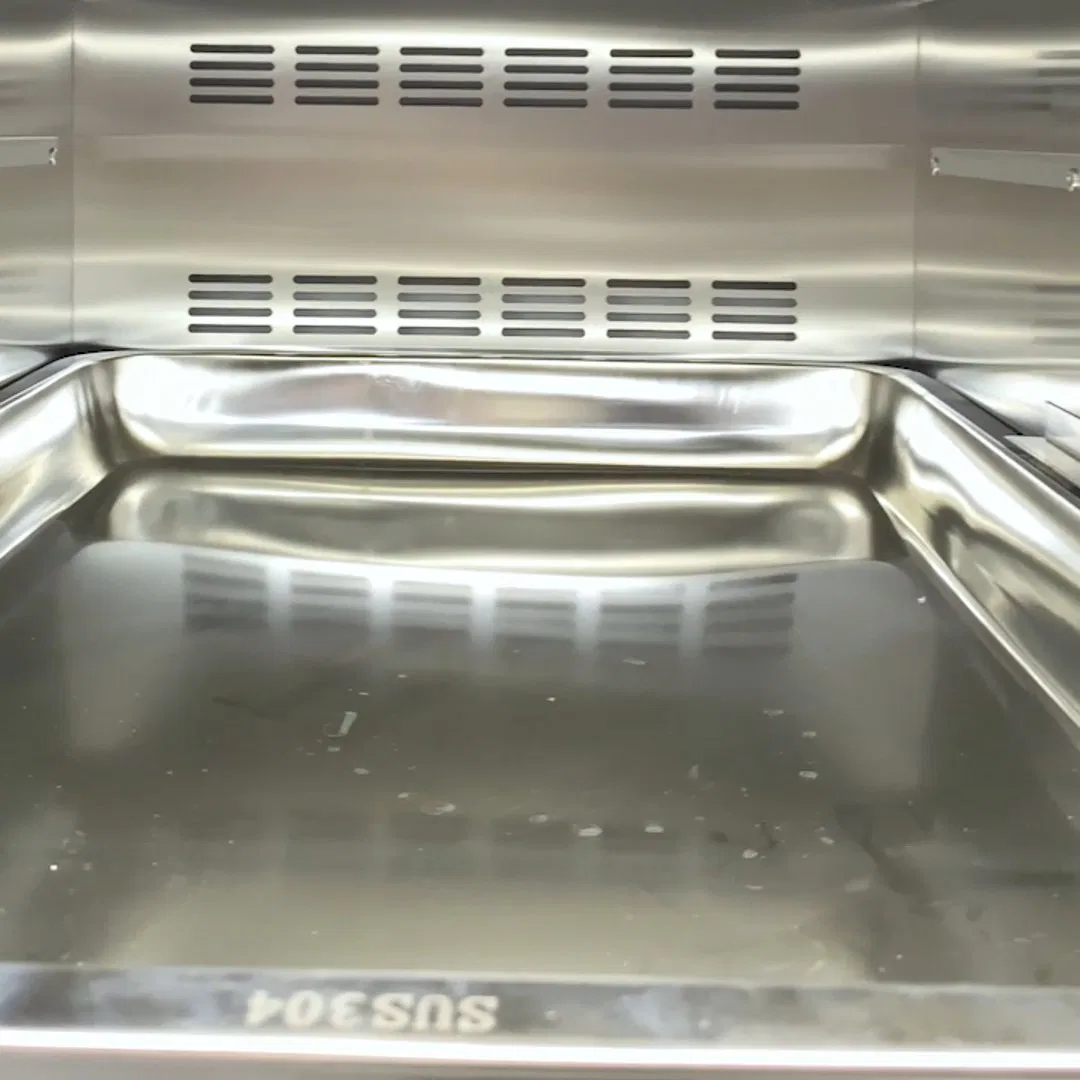

A3: The chamber is constructed from SUS304 stainless steel, which is highly corrosion-resistant and easy to sanitize.
A4: It utilizes a combination of air heating and vacuum drying. The endoscope channels are maintained at negative pressure to facilitate water evaporation even at lower temperatures.
A5: Yes, the unit features an intelligent traceability system. User and endoscope profiles can be created, and storage history can be recorded and exported via the built-in printer or Ethernet port.
A6: The device features real-time monitoring with alarms for prolonged door opening, abnormal temperature, and pressure fluctuations.
