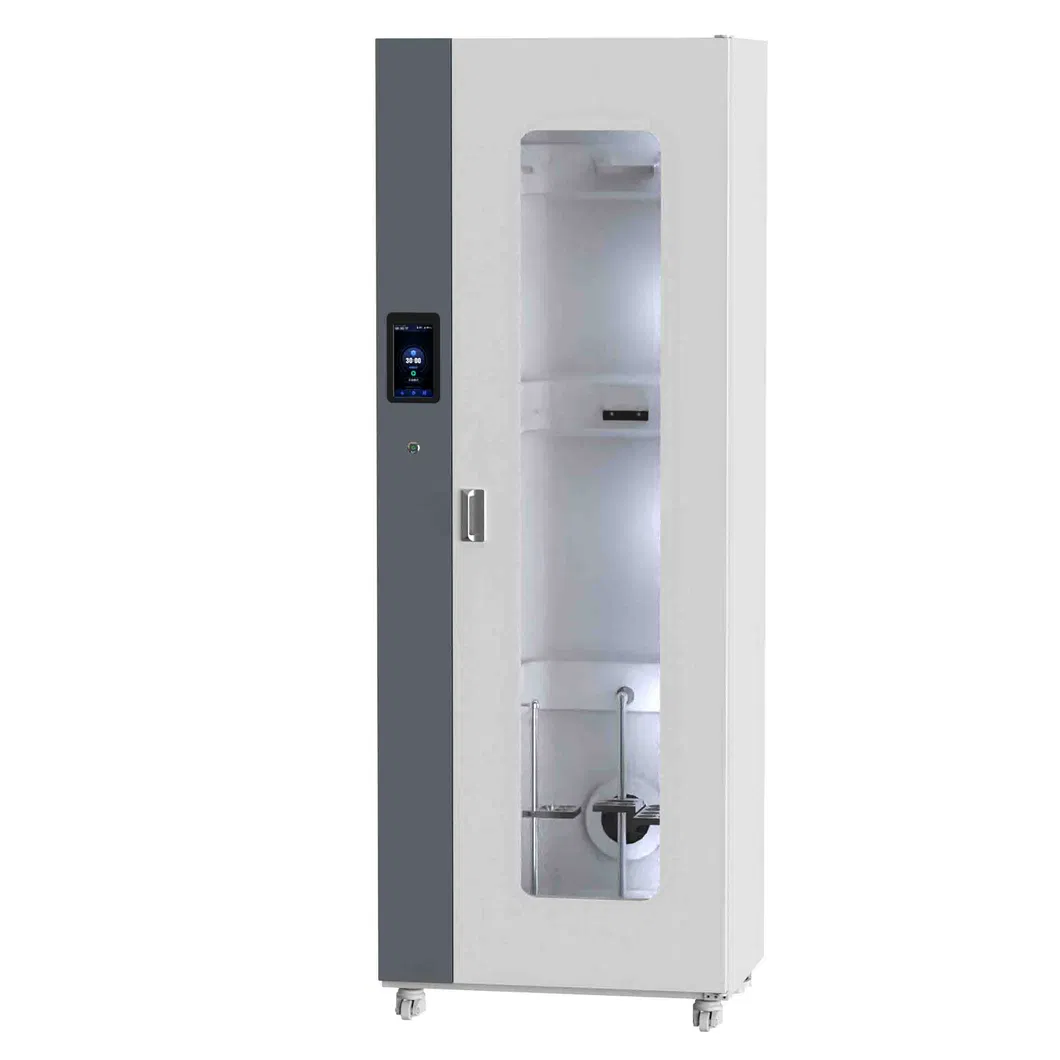

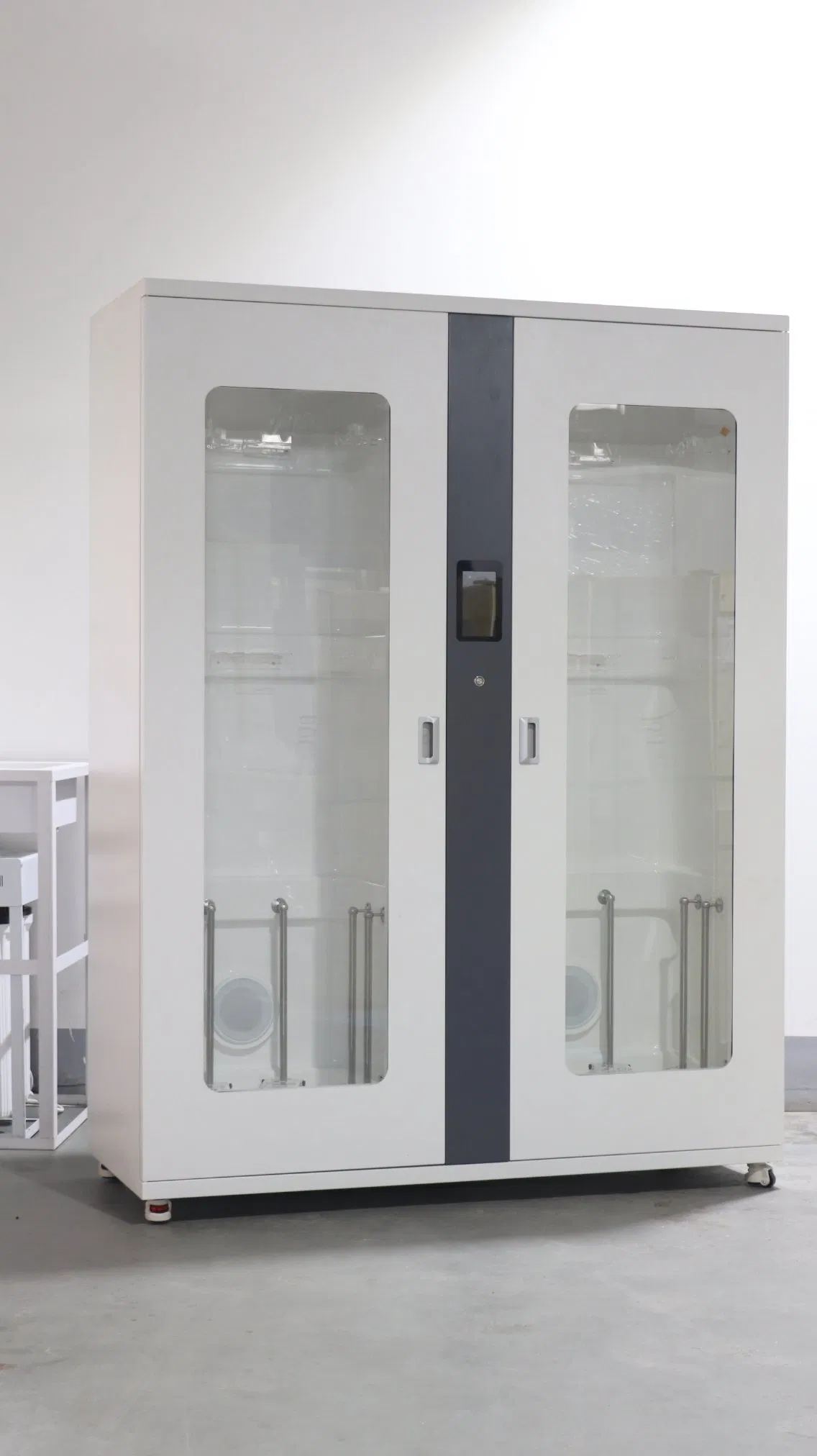

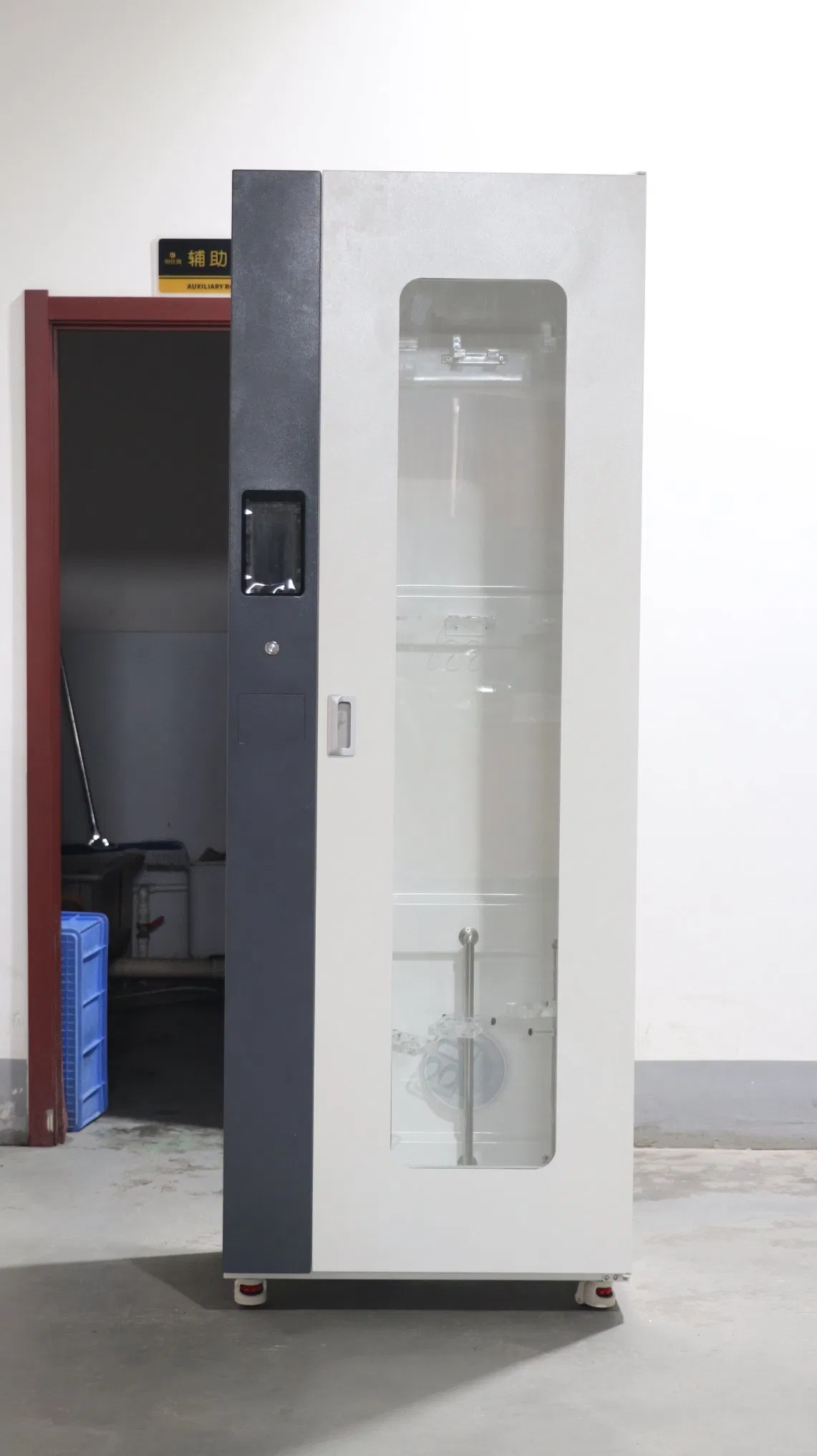

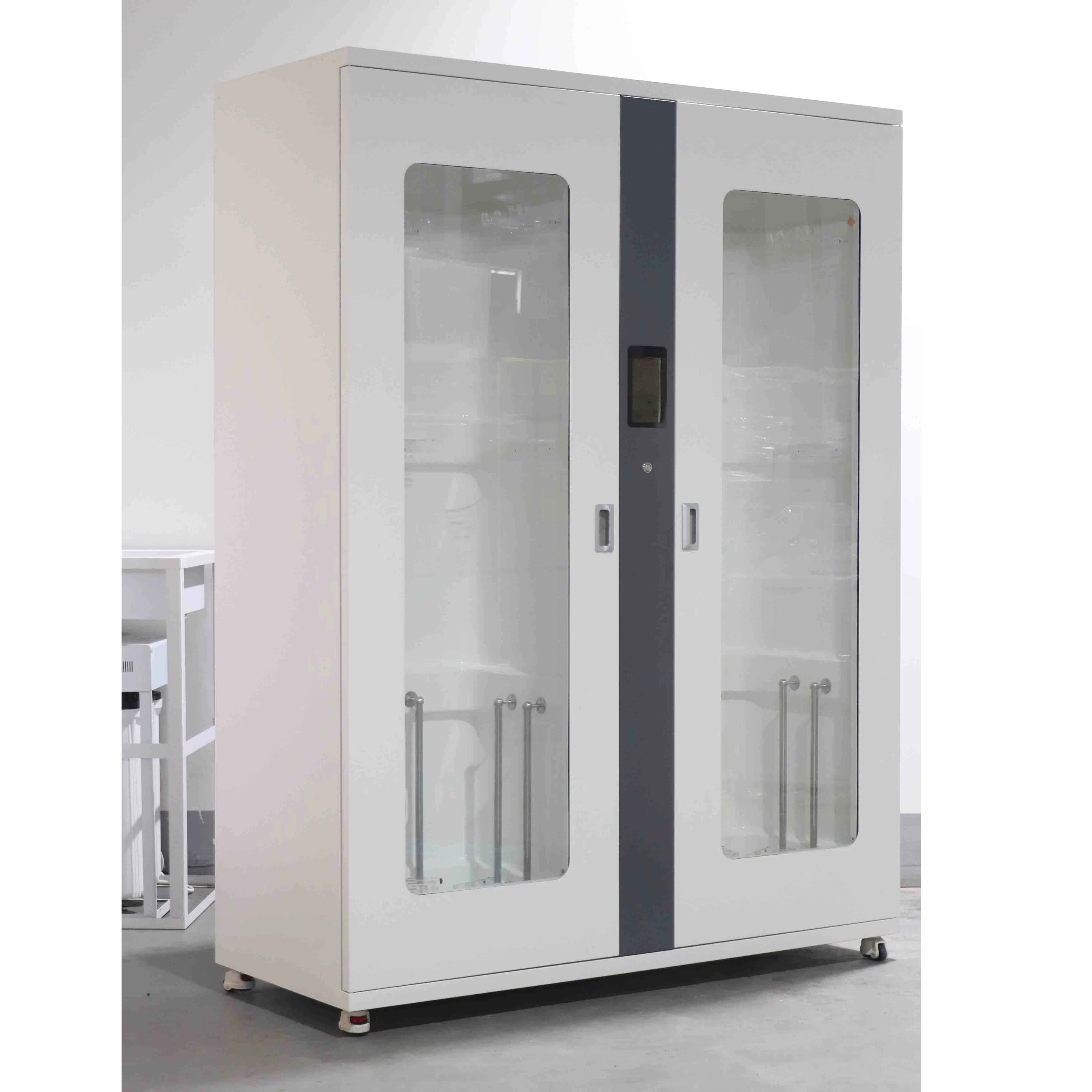

The HCR-DX flexible endoscope storage cabinet is a specialized device designed for medical facilities. It provides vertical suspension storage for endoscopes after disinfection, featuring circulating ventilation and ultraviolet (UV) disinfection systems to maintain a sterile environment.
Smart Control System: 7-inch High-Definition English Interface for real-time monitoring and control.
| Model | HCR-DX04 | HCR-DX06 | HCR-DX08 | HCR-DX12 |
|---|---|---|---|---|
| Functions | Endoscope storage, ultraviolet disinfection and air circulation | |||
| Storage Capacity | 4 pcs | 6 pcs | 8 pcs | 12 pcs |
| Width (mm) | 740 | 880 | 1320 | 1600 |
| Thickness (mm) | 545 | 630 | 545 | 630 |
| Height (mm) | 2070 | 2080 | 2070 | 2080 |
| Weight (kg) | 80 | 100 | 135 | 155 |
| Power Supply | AC 220V/50Hz | |||
| Power | 100W | 100W | 160W | 160W |

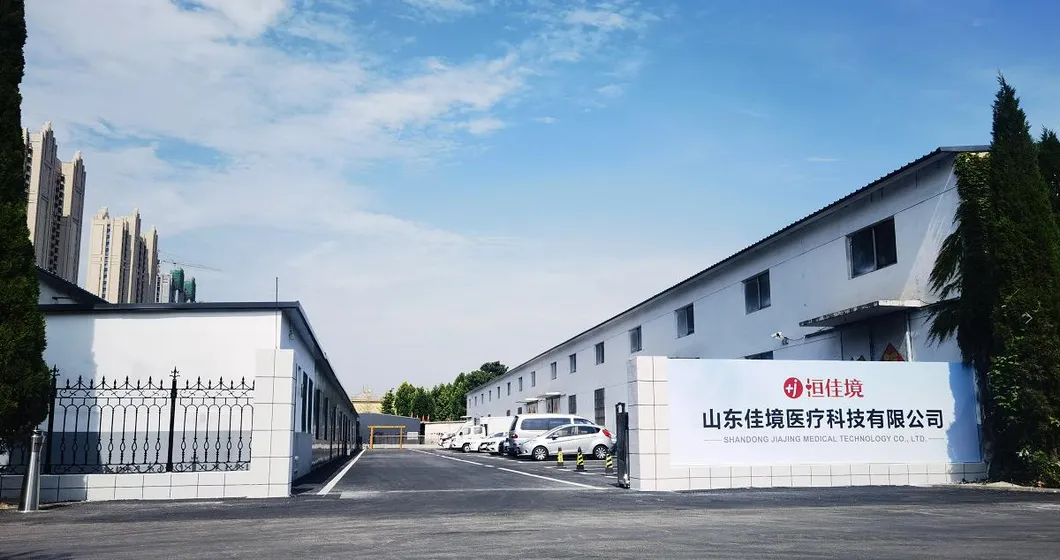

Established as a leader in infection control, our team brings 15 years of R&D experience to the medical field. We focus on "Innovation as the driving force for enterprise development," holding multiple Invention Patents and Utility Model Patents. Our facility is certified with ISO9001 Quality System, ISO14001 Environmental System, and ISO18001 Occupational Health System.
Our core product range includes air disinfection and purification machines, medical sealing machines, autoclaves, and endoscope cleaning equipment. Our products carry CE certification and are trusted by over 1,000 top-tier hospitals and medical centers internationally.
Depending on the specific model chosen (DX04 to DX12), the cabinet can store between 4 and 12 flexible endoscopes simultaneously.
The cabinet utilizes ultraviolet (UV) disinfection combined with an air circulation system to maintain a sterile storage environment.

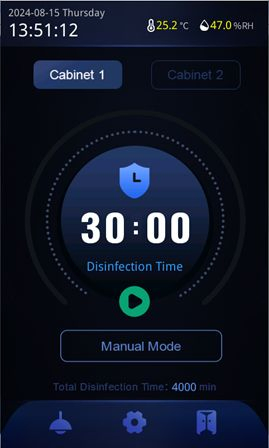

Yes, the cabinet is equipped with a 7-inch high-definition touch screen with a full English control interface for easy global operation.

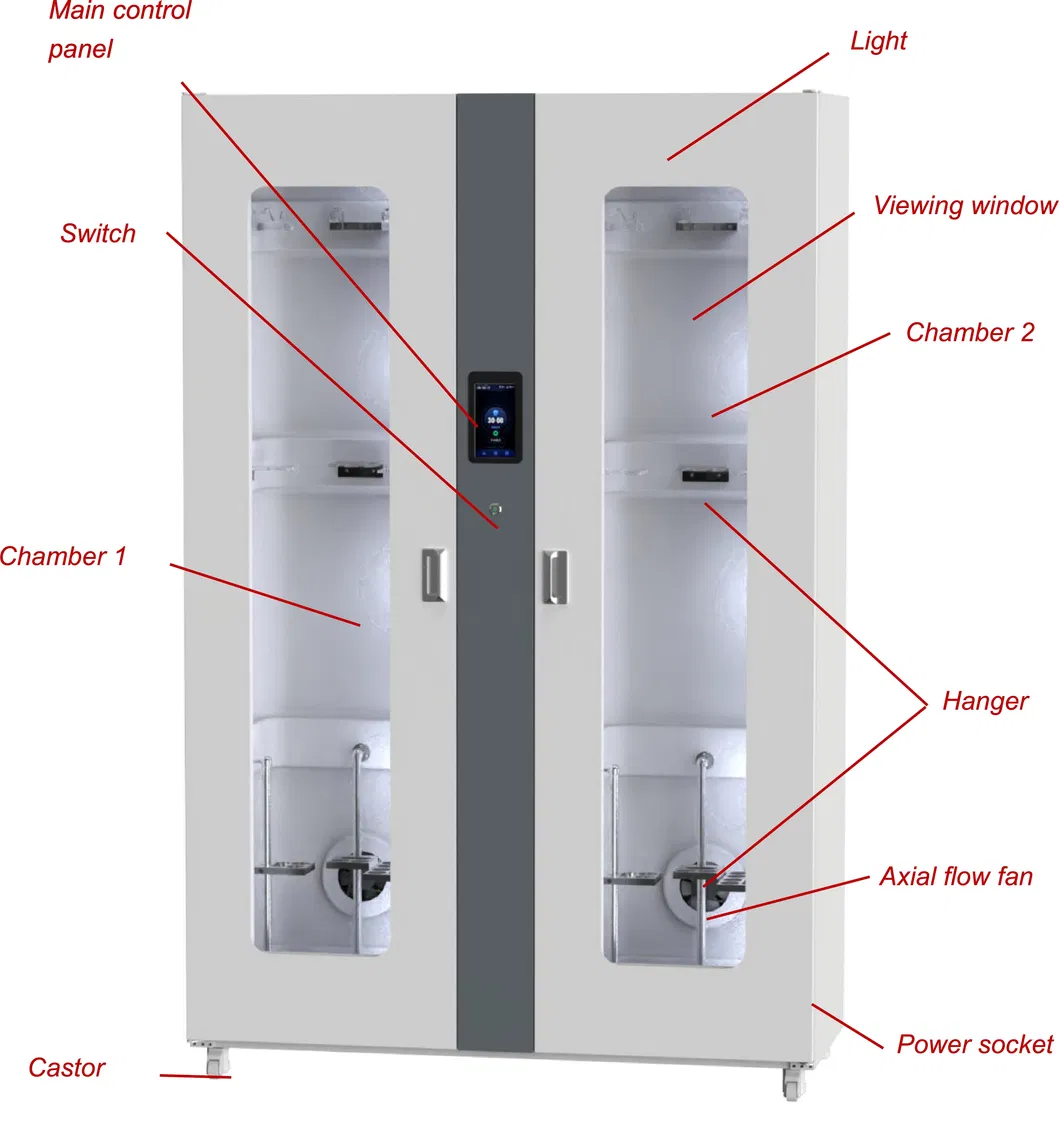

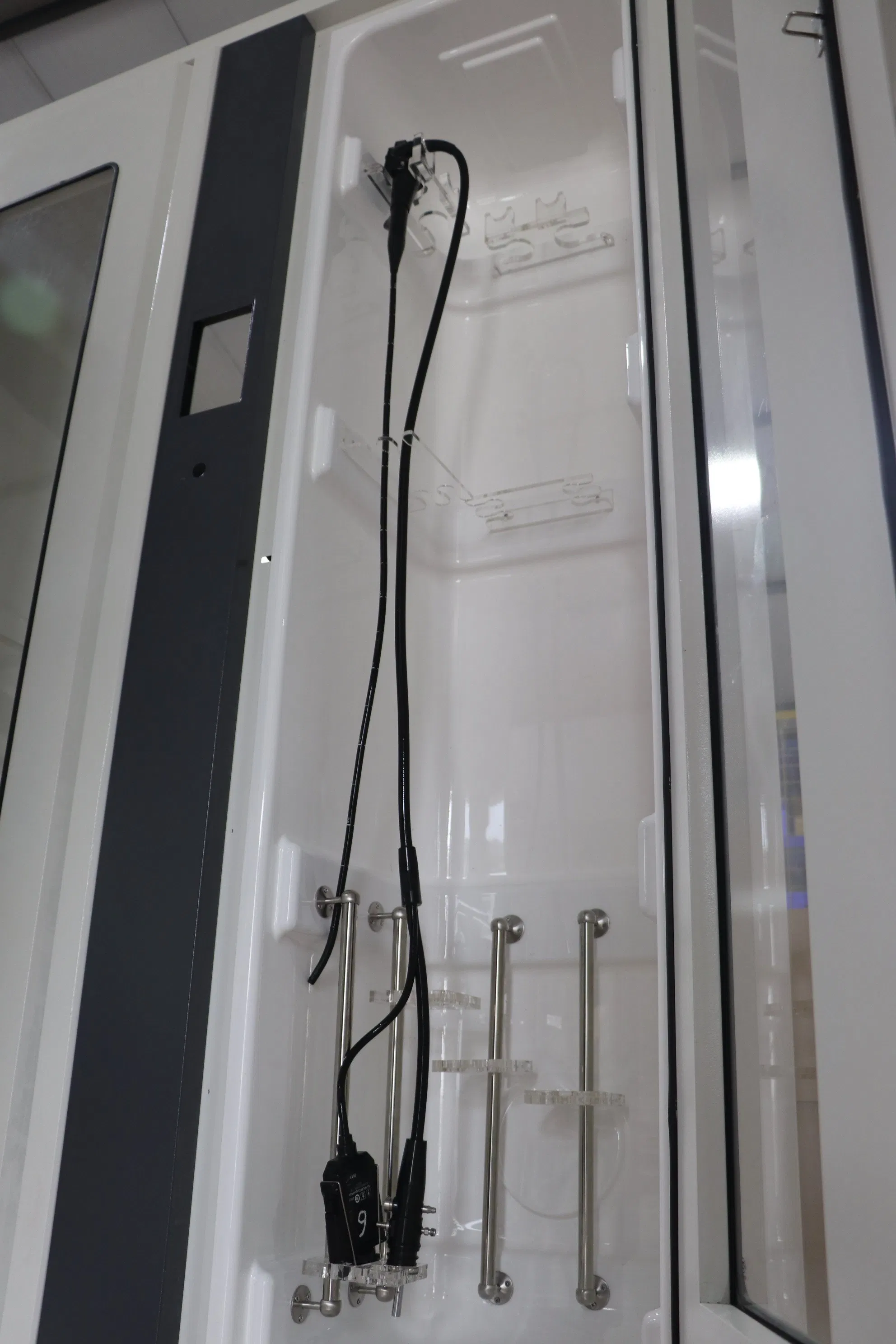

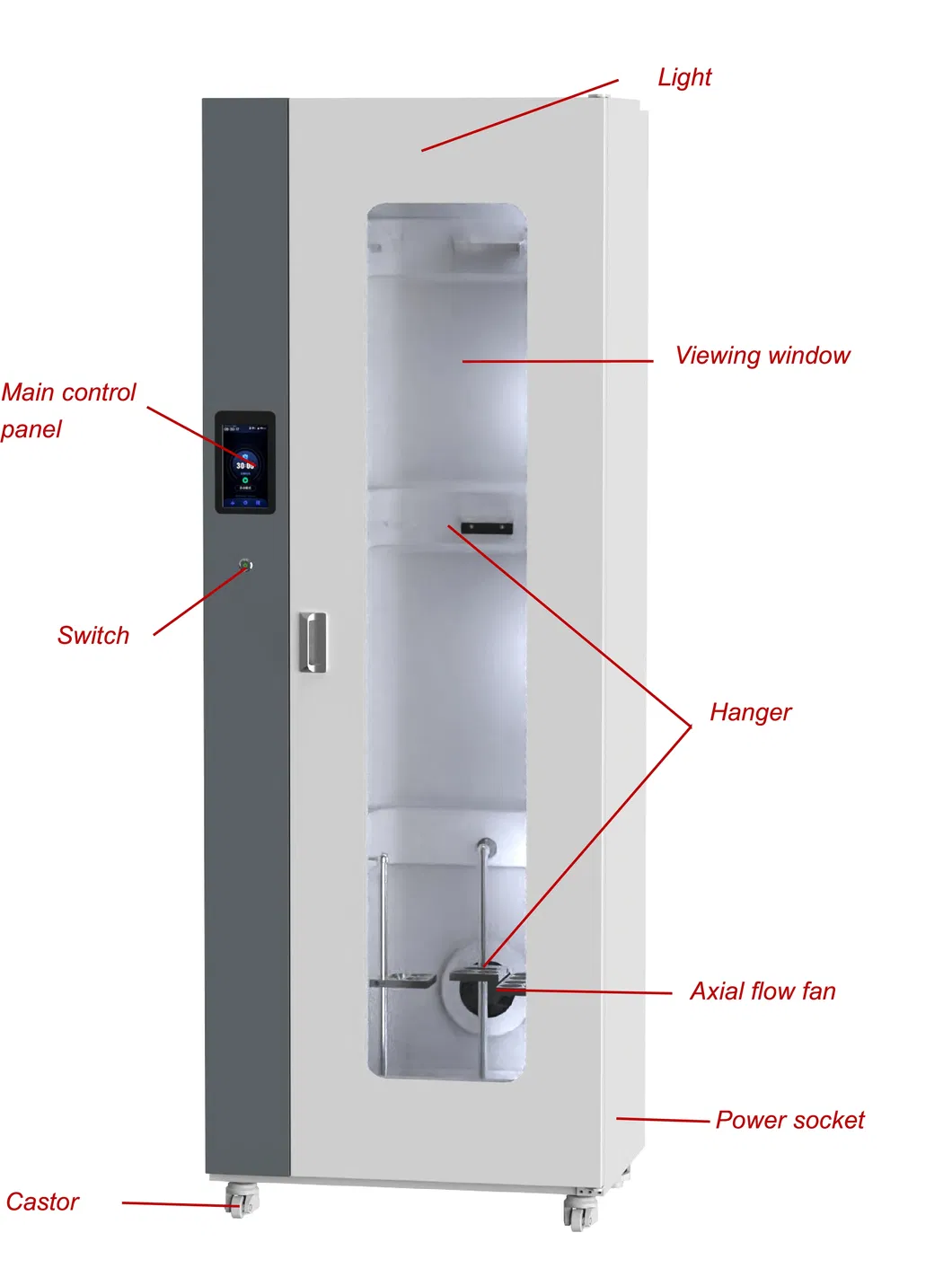

Endoscopes are stored via vertical suspension. The cabinet includes three sets of brackets (top, middle, and bottom) to ensure the scopes do not touch the inner walls or each other.
Yes, the system allows for customized disinfection duration and timing functions to improve efficiency and save energy.
The cabinet features glass windows for easy inspection, and an internal LED bulb illuminates automatically when the door is opened.
