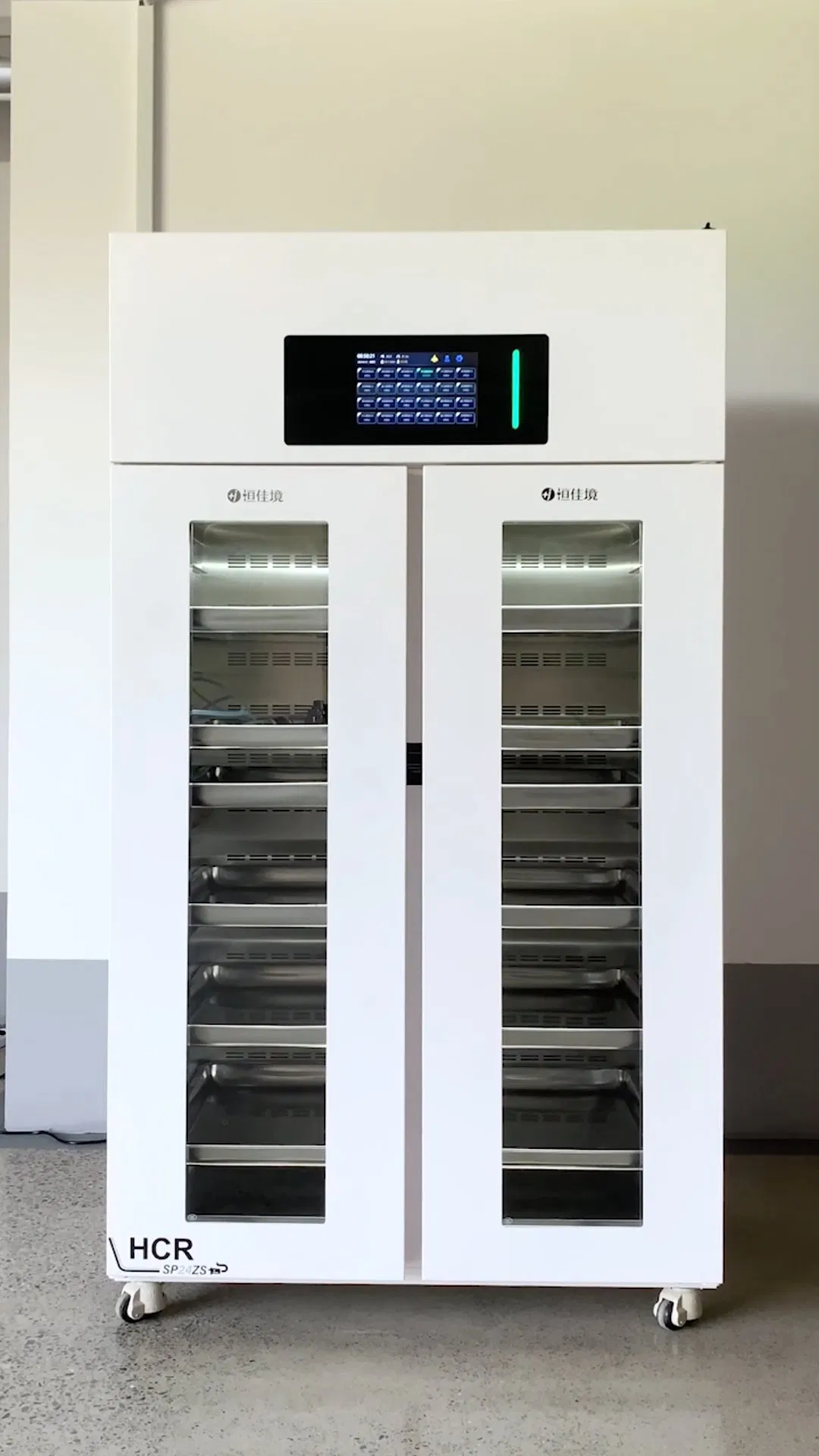

24 Slots Flexible Endoscope Horizontal and Dry Storage Cabinet

Customization: Available
Theory: UVC & HEPA
Type: PTC Hot Combination Disinfection

Product Description

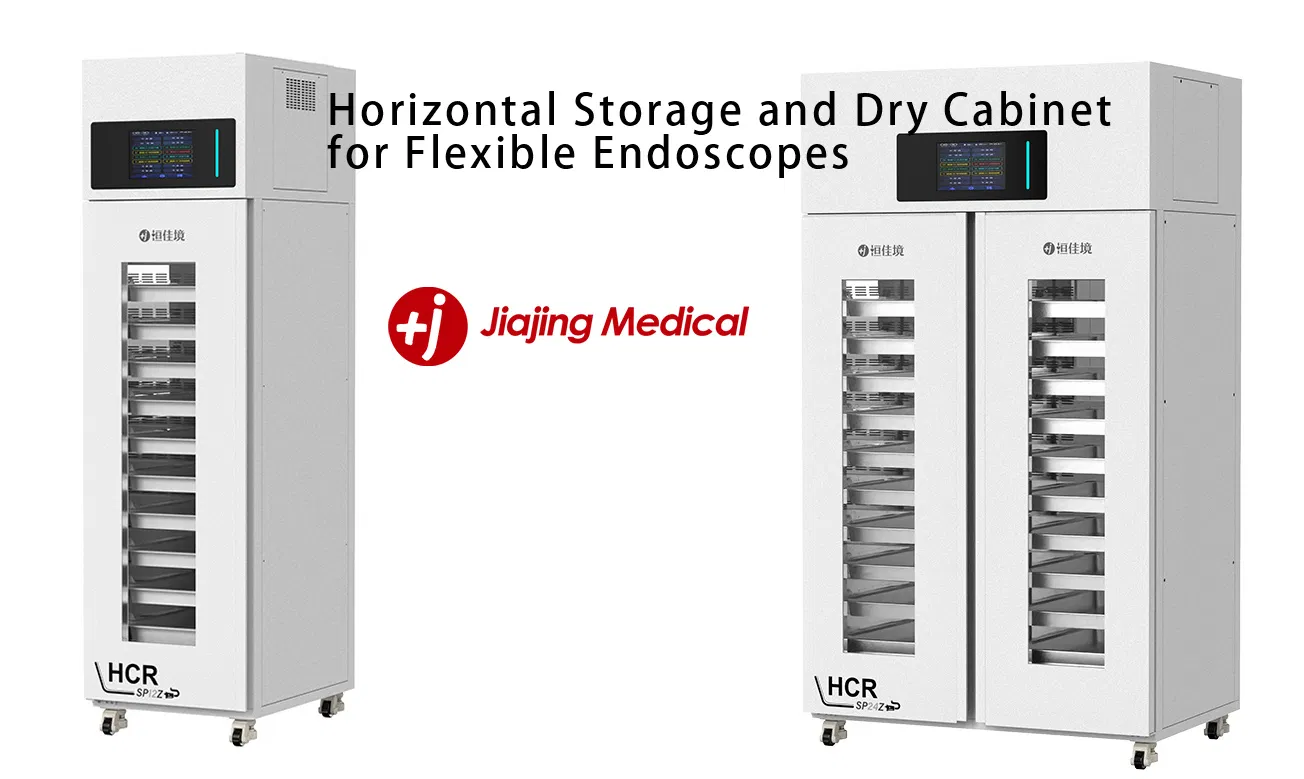

Flexible Endoscope Horizontal and Dry Storage Cabinet
📋 Basic Information
Model NO.
HCR-SP24Z
Certification
ISO9001
Electric Tension
220V
LCD Display
With LCD Display
Temperature Alarm
Ultra High Temperature Alarm
Recording
Print Storage History
Material
Stainless Steel
Storage Capacity
24 Pieces
Power Supply
220V 50Hz / 110V 60Hz
HS Code
9402900000
📊 Specifications
Model Dimension (mm) Weight (kg) Capacity (pcs) Door Type Storage Power Supply

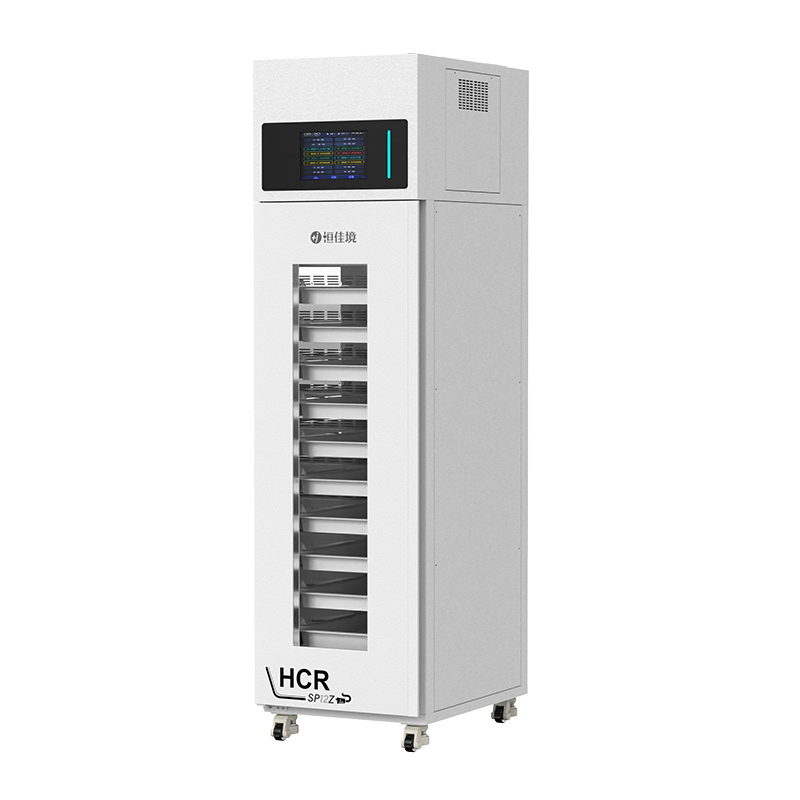

HCR-SP12Z 530*735*1980 135 12 Manual door / Single Horizontal storage 220V 50Hz / 110V 60Hz

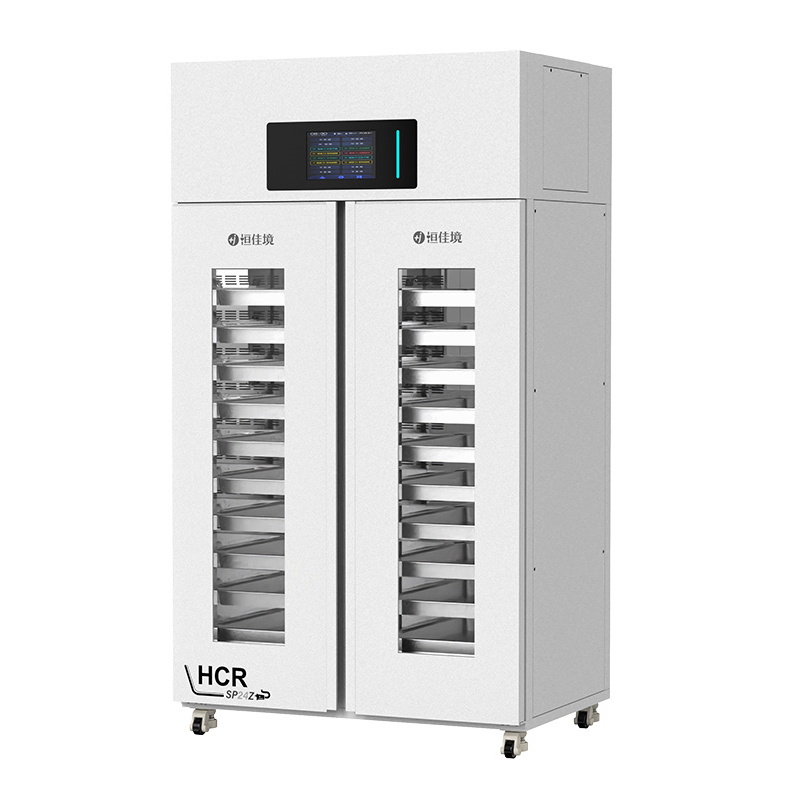

HCR-SP24ZS 1090*735*1980 235 24 Manual door / Double Horizontal storage 220V 50Hz / 110V 60Hz
⚙️ Key Features
H14 HEPA filtration: Removes 99.99% of particulate at 0.3μm, maintaining ISO5 cleanliness.
Air heating system: Heated air intake enhances evaporation on scope surfaces and channels.
Dehumidification system: Airborne moisture is actively circulated and removed.
Vacuum drying: Endoscope channels are maintained at negative pressure for low-temperature evaporation.
High airflow: Internal air changes per hour >100 for thorough drying.
Intelligent pressure control: Maintains positive pressure (>=20Pa) to prevent cross-infection.
10-inch touch screen: Displays detailed status of each endoscope with precise control.
Traceability system: Exportable profiles and history for both endoscopes and users.
Dual Disinfection: Built-in UVC and plasma modules effectively inactivate microorganisms.
Compatibility: Fully compatible with all brands of endoscopes.
🔍 Interior & Design

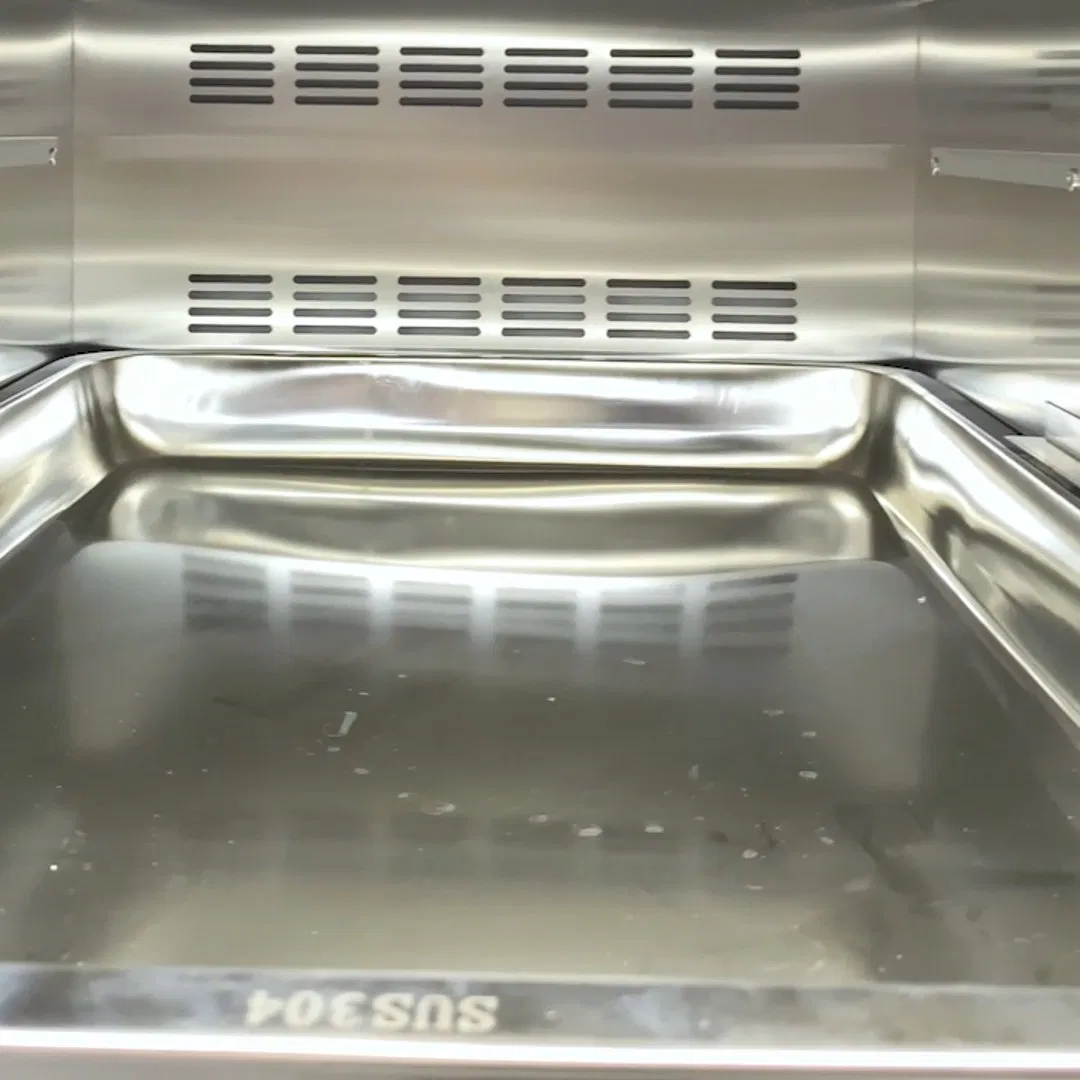

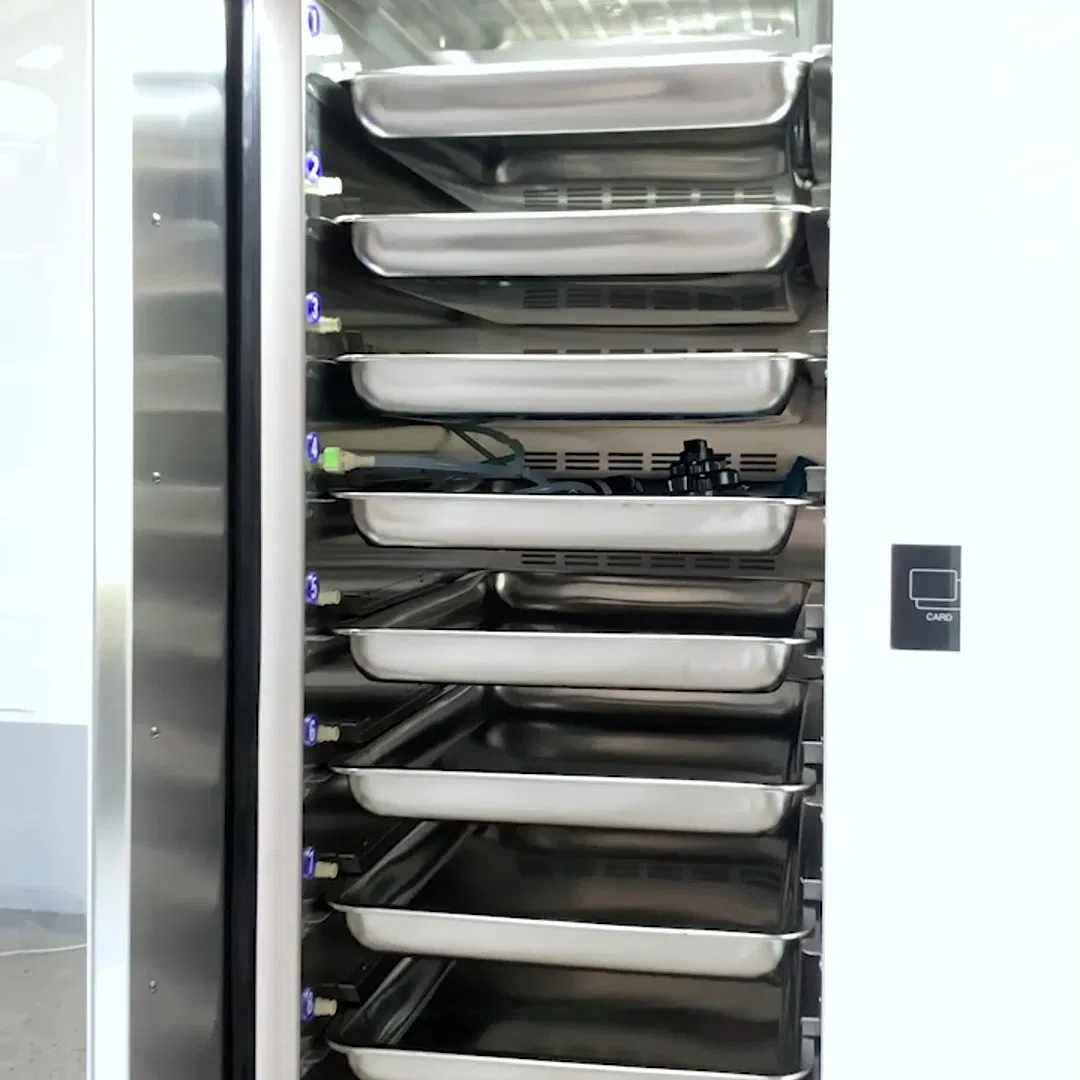

The chamber is constructed from SUS304 stainless steel, ensuring it is corrosion-resistant and easy to clean. Each storage slot is equipped with a specialized hose dedicated to drying the narrow channels of flexible endoscopes.

Endoscope Storage Detail 1
Endoscope Storage Detail 2

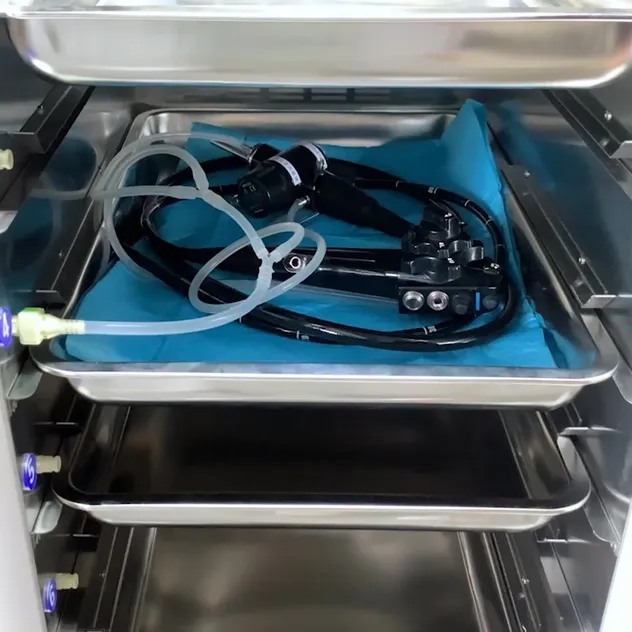

Endoscope Storage Detail 3
🏢 About the Reprocessing Technology

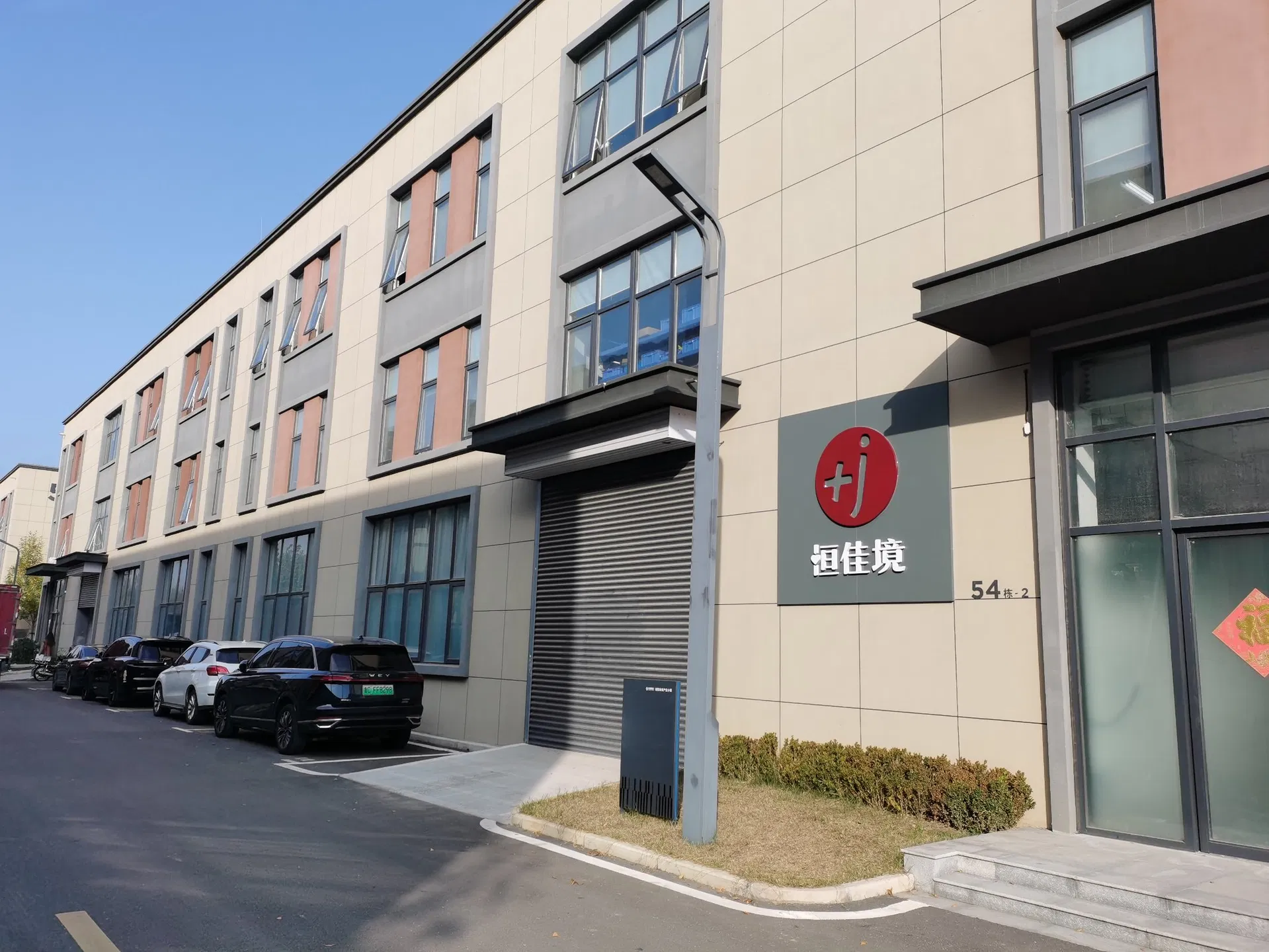

Medical Technology Facility

Specializing in the field of medical infection control, the manufacturer operates core product lines including air disinfection, dental infection control, endoscope reprocessing, and laboratory biosafety. Driven by technological innovation, the R&D team possesses over 10 years of industry experience.

With certifications under ISO 9001, ISO 14001, and ISO 45001, the systems meet rigorous international standards. The equipment is designed to help over 1,000 medical institutions globally to reduce the risk of healthcare-associated infections.

Frequently Asked Questions
1. What is the air filtration efficiency of the storage cabinet?
The cabinet utilizes H14 HEPA filtration, which is capable of removing 99.99% of particulate matter as small as 0.3μm, maintaining an ISO5 cleanliness level inside the chamber.
2. How does the vacuum drying system benefit endoscope maintenance?
The vacuum drying system maintains endoscope channels at negative pressure. This enhances water evaporation at low temperatures, ensuring narrow channels are thoroughly dried without heat damage.
3. Is this cabinet compatible with all endoscope brands?
Yes, the horizontal storage system and connection hosing are designed to be compatible with all major brands of flexible endoscopes.
4. How is the storage environment monitored?
The system provides real-time continuous monitoring of temperature and pressure. It includes alarms for abnormal parameters or if the door is left open for too long.
5. What materials are used in the construction of the cabinet?
The internal chamber is made of SUS304 stainless steel, which provides excellent corrosion resistance and ensures a surface that is easy to disinfect and clean.
6. Does the cabinet support data traceability?
Yes, it features a comprehensive traceability system. Profiles for endoscopes and users can be created, and storage history for each unit can be recorded and exported via an Ethernet port.
