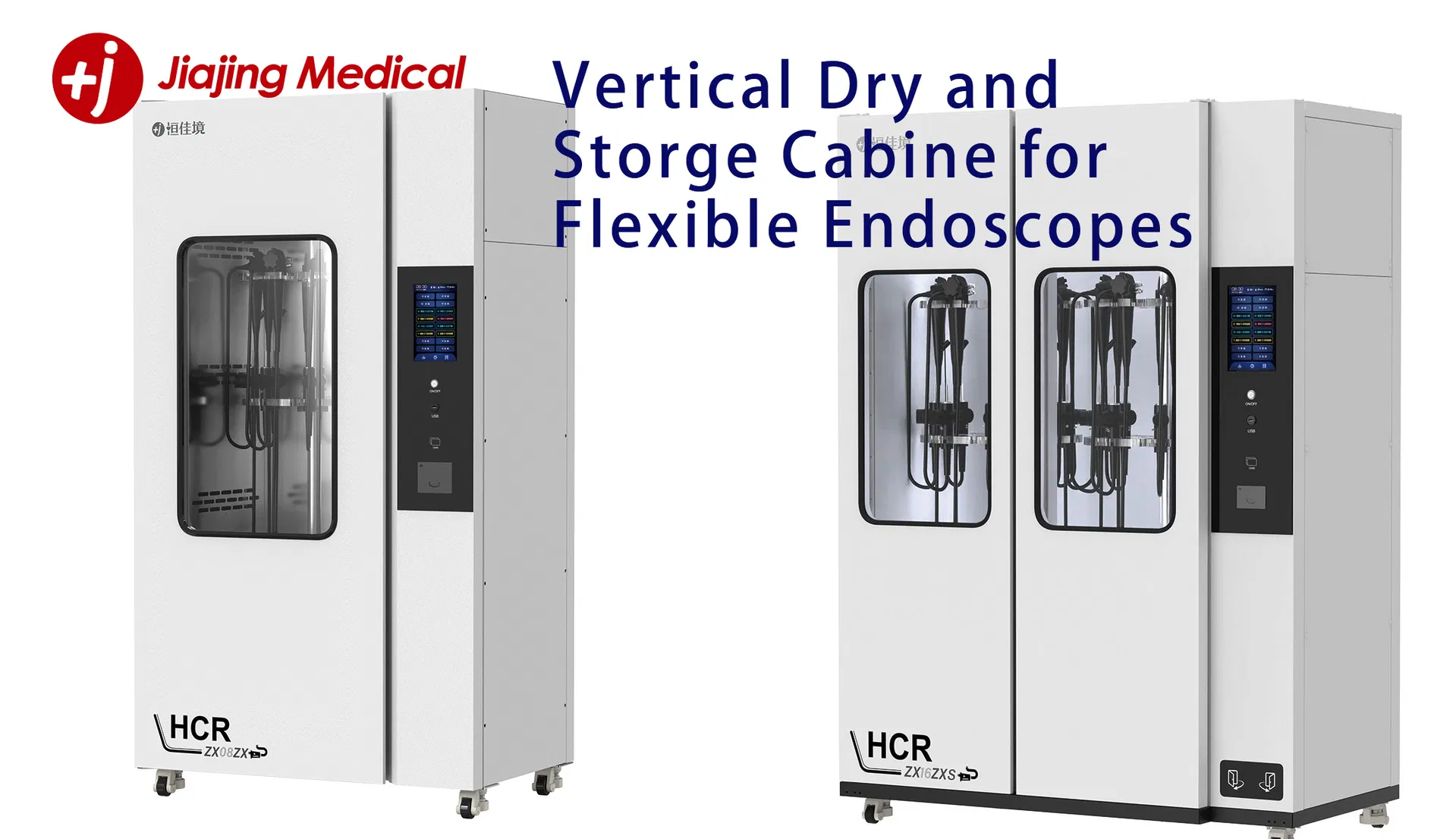

Low Humidity ISO 5 Cleanliness Endoscope Storage Dry Cabinet

1 / 5

Low Humidity ISO 5 Cleanliness Endoscope Storage Dry Cabinet

Customization:	Available
Theory:	UVC & HEPA
Type:	PTC Hot Combination Disinfection

Send Inquiry

Product Description

Basic Info.

Model NO.

HCR-ZX-16XZS

Certification

ISO9001

Electric Tension

220V

LCD Display

With LCD Display

High Temp Alarm

Ultra High Temperature Alarm

Recording/Printing

Print Storage History

Material

Stainless Steel

Weight

295kg

Storage Capacity

16 Scopes

Power Supply

220V 50Hz / 110V 60Hz

Control Screen

10 Inch Touch Screen

Specification

1400*700*1970mm

Product Specification

Model	Dimension (mm)	Weight (kg)	Capacity	Door Type	Storage	Power

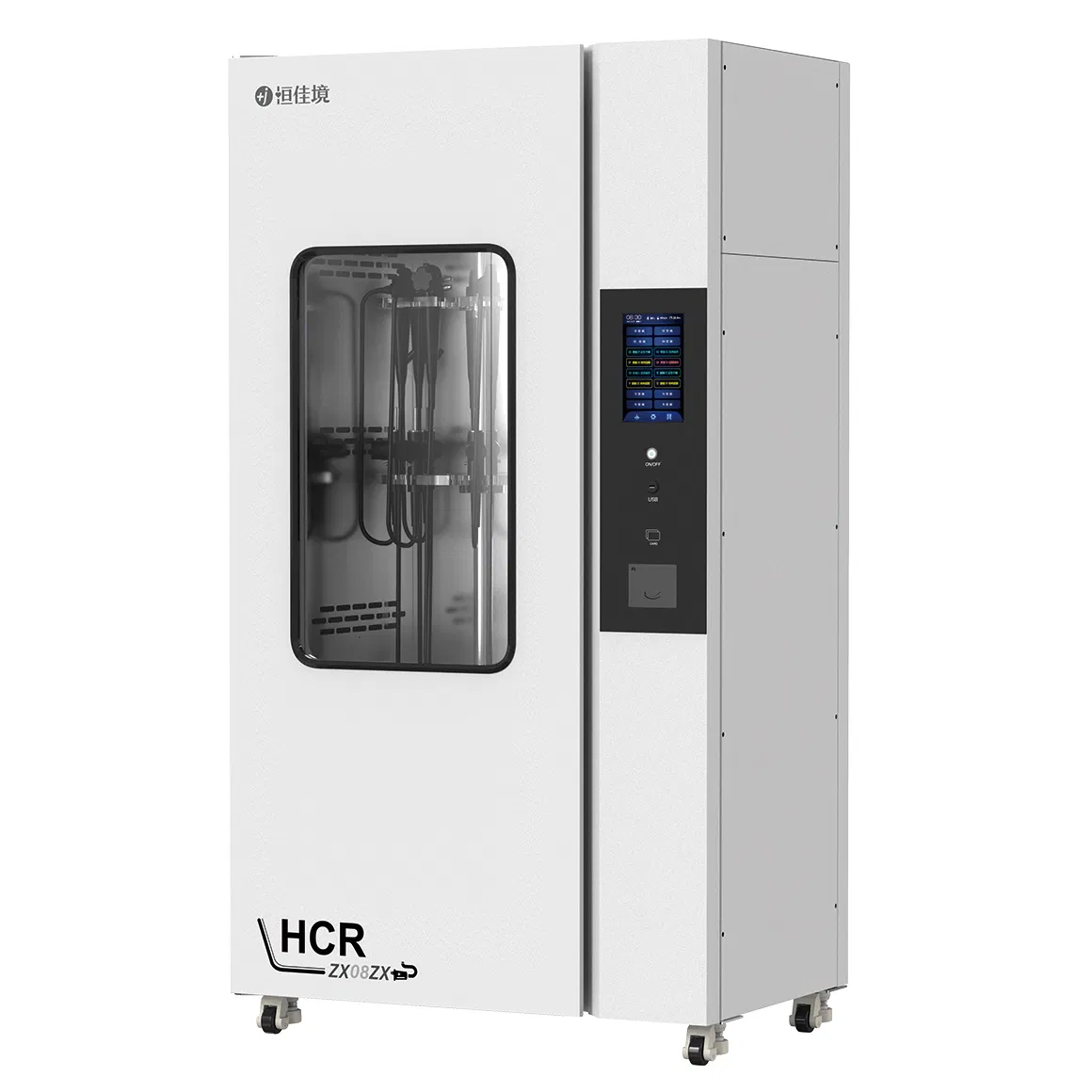

HCR-ZX-08XZ	9407001970	215	8 pieces	Single Auto Door	Vertical Storage	220V 50Hz / 110V 60Hz

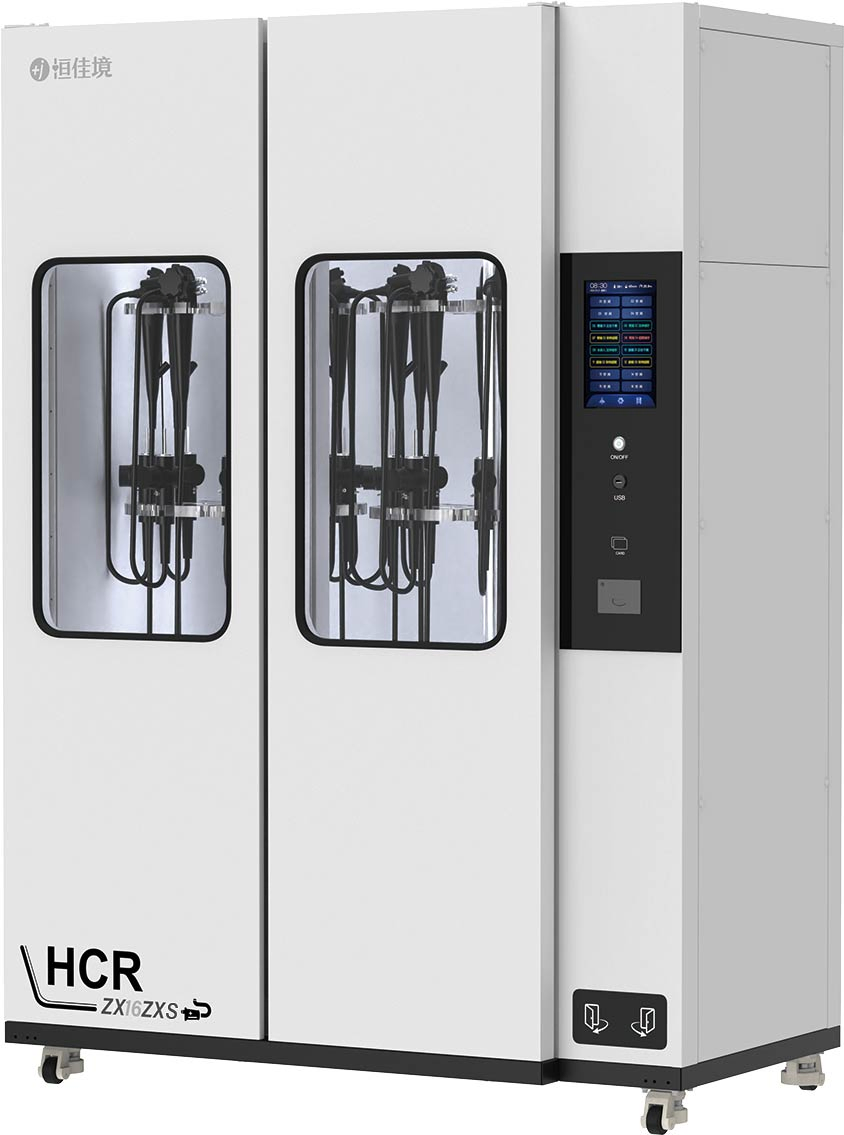

HCR-ZX-16XZS	14007001970	295	16 pieces	Double Auto Door	Vertical Storage	220V 50Hz / 110V 60Hz

Key Features & Advantages

🛡️

H14 HEPA Filtration Removes 99.99% of particulate at 0.3μm, maintaining chamber air cleanliness at ISO5 level.

🔥

Advanced Drying System Combined air heating and dehumidification system enhances evaporation on scope surfaces and channels.

🌀

Vacuum Channel Drying Endoscope channels are maintained at negative pressure to enhance water evaporation at low temperatures.

📊

Intelligent Pressure Control Maintains positive pressure (>=20Pa) to effectively prevent cross-infection from the ambient environment.

📱

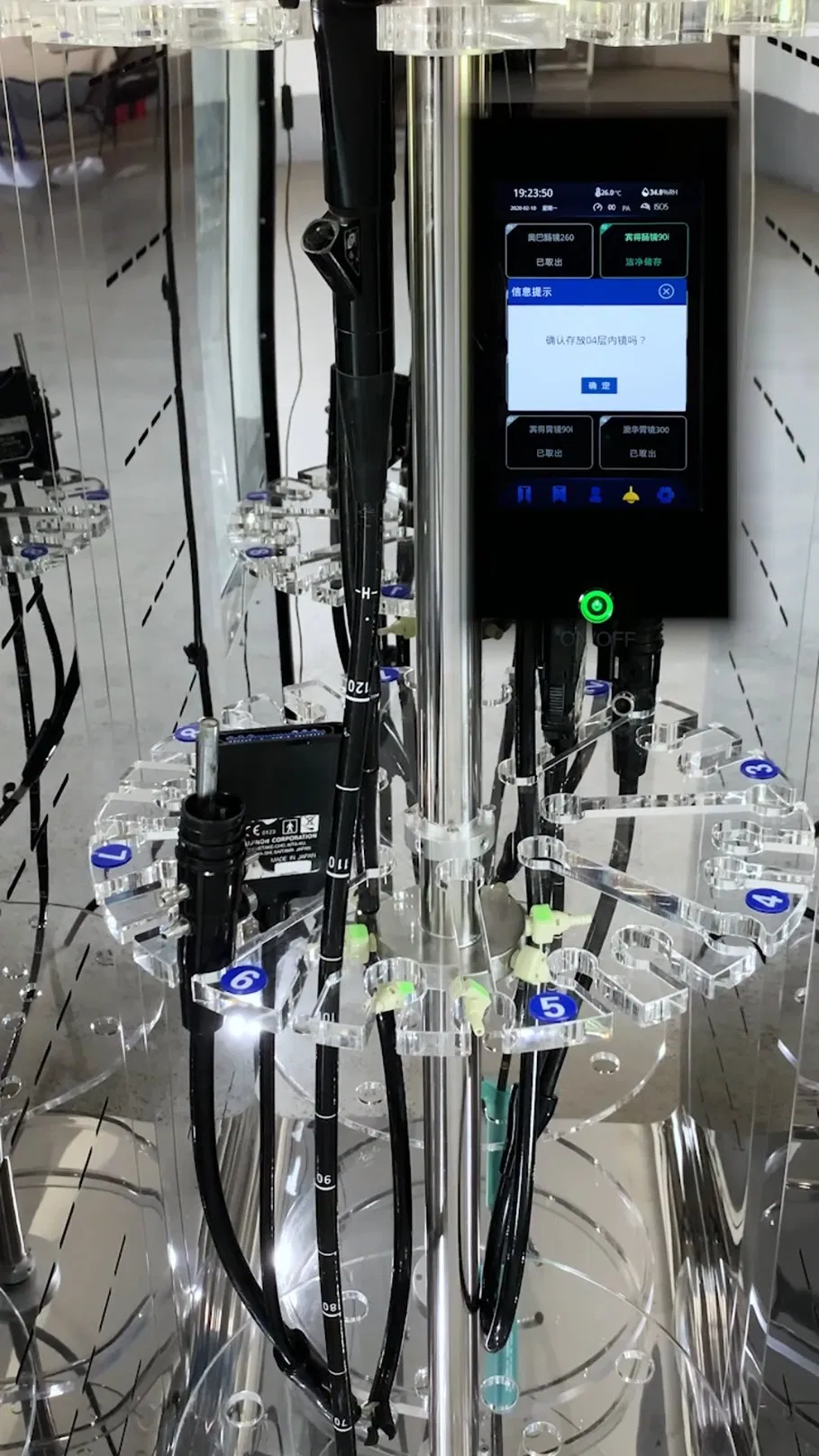

10-Inch Touch Screen Clearly displays detailed status and allows precise control of each endoscope's storage parameters.

🧪

UVC & Plasma Disinfection Built-in dual disinfection modules effectively inactivate microorganisms for maximum safety.

Premium Interior Design

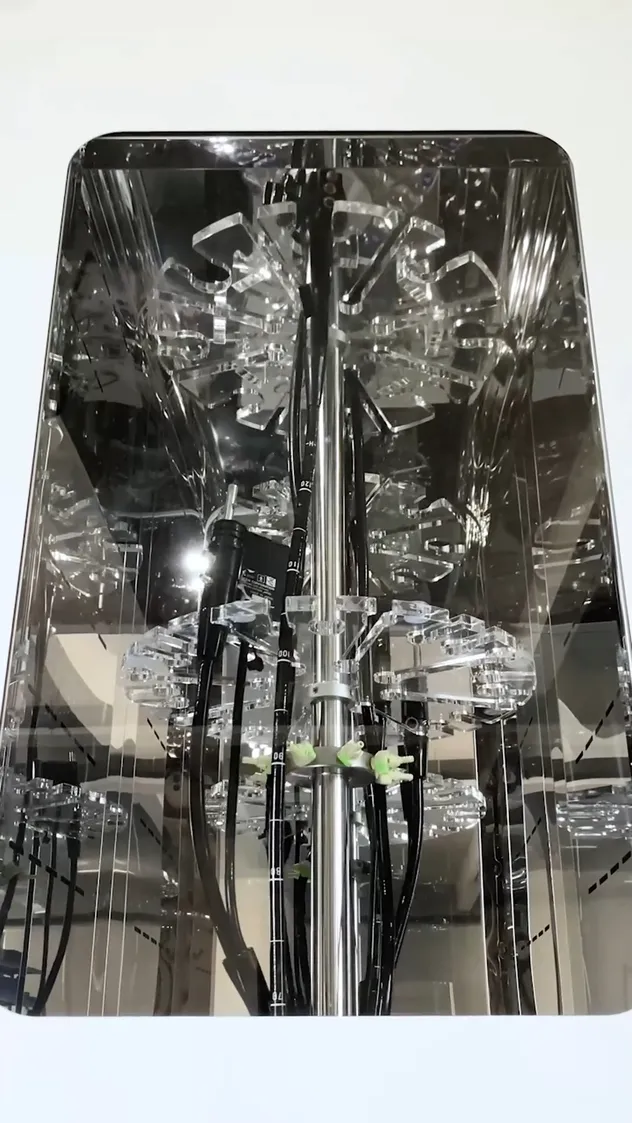

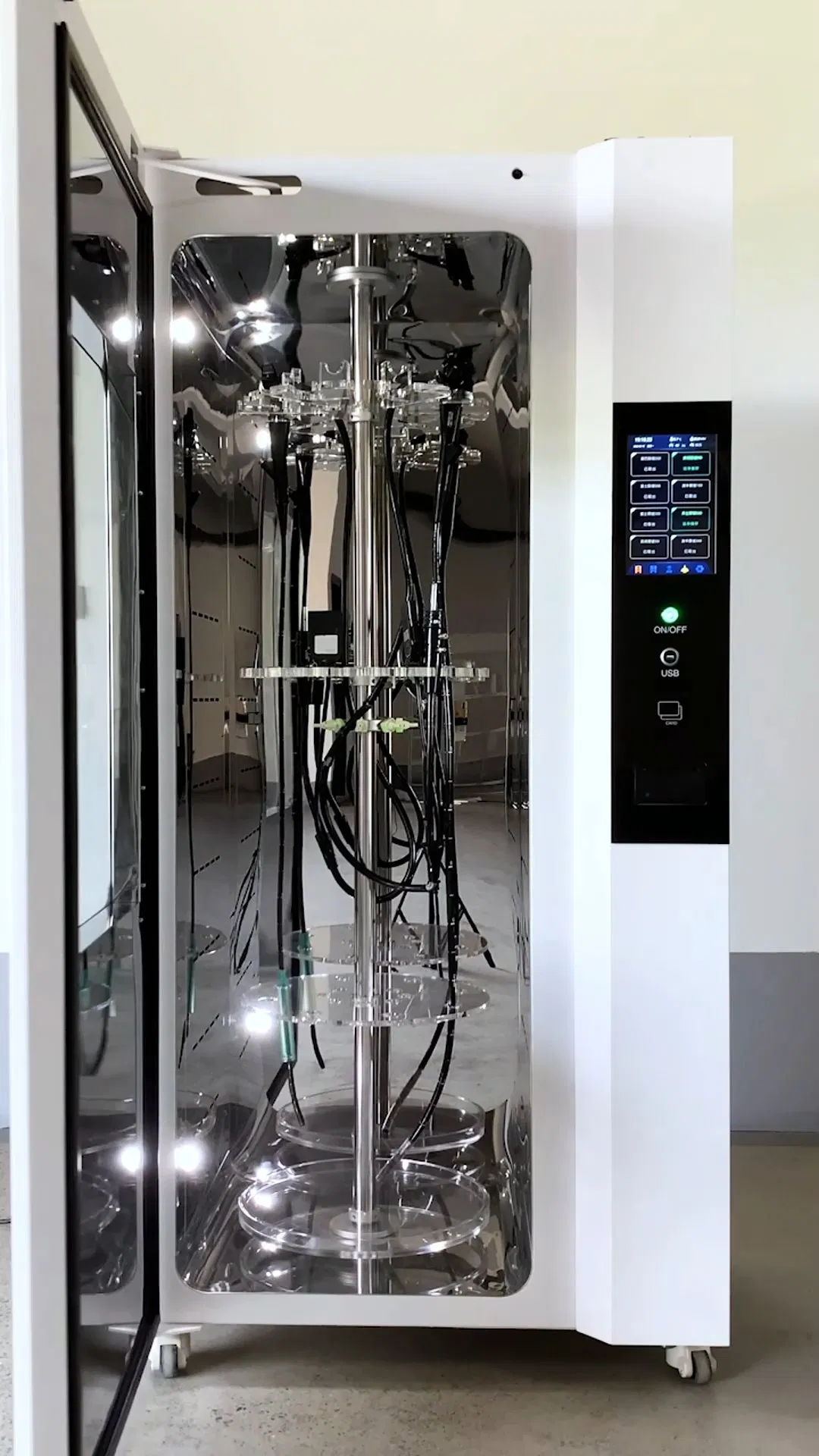

The chamber is constructed from SUS304 stainless steel, ensuring it is corrosion-resistant and easy to clean. Each storage slot is equipped with dedicated hoses for thorough drying of flexible endoscope channels.

Industry Excellence

We specialize in medical infection control, focusing on air disinfection, endoscope reprocessing, and laboratory safety. With ISO 9001, 14001, and 45001 management certifications, our equipment meets international medical standards including ISO 13485 and CE certification. Our solutions are utilized in over 1,000 medical institutions globally, helping to reduce healthcare-associated infections through technological innovation.

Frequently Asked Questions

What is the air cleanliness level inside the storage cabinet?

The cabinet utilizes H14 HEPA filtration to remove 99.99% of particulates, maintaining an internal air cleanliness level of ISO 5.

How many endoscopes can the HCR-ZX-16XZS model hold?

The HCR-ZX-16XZS model is designed for high-capacity storage, accommodating up to 16 endoscopes simultaneously.

How does the cabinet ensure the internal channels of the endoscopes are dry?

It uses a combination of air heating, dehumidification, and a unique channel vacuum drying system to ensure both external surfaces and narrow internal channels are thoroughly dried.

Does the system provide any protection against cross-infection?

Yes, it maintains a constant positive pressure (>=20Pa) to block ambient air and includes built-in UVC and plasma disinfection modules to inactivate microorganisms.

Is the storage status traceable for medical records?

Absolutely. The system features a built-in traceability module that records storage history and status, which can be exported via the 10-inch touch screen or Ethernet port.

What brands of endoscopes are compatible with this cabinet?

The cabinet is designed to be universal and is compatible with all major brands of flexible endoscopes for vertical hanging storage.
