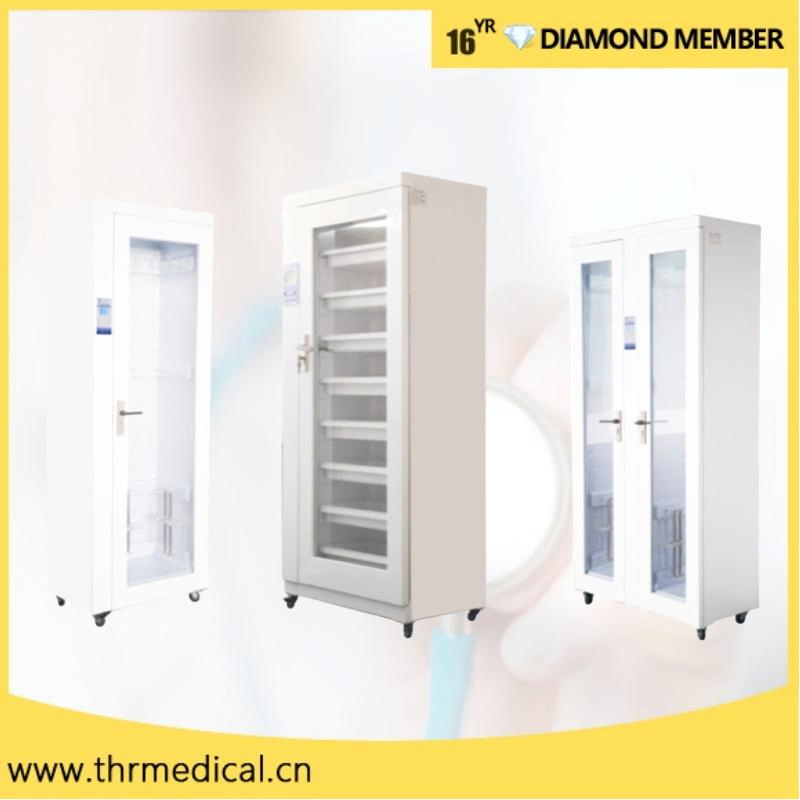

Medical Flexible Soft or Hard Endoscope Sterilization Storage Cabinet (THR-EC)
Medical Flexible Soft or Hard Endoscope Sterilization Storage Cabinet (THR-EC)
Medical Flexible Soft or Hard Endoscope Sterilization Storage Cabinet (THR-EC)
Medical Flexible Soft or Hard Endoscope Sterilization Storage Cabinet (THR-EC)
Medical Flexible Soft or Hard Endoscope Sterilization Storage Cabinet (THR-EC)
1 / 5
Medical Flexible Soft or Hard Endoscope Sterilization Storage Cabinet (THR-EC)
Medical Flexible Soft or Hard Endoscope Sterilization Storage Cabinet (THR-EC)
Medical Flexible Soft or Hard Endoscope Sterilization Storage Cabinet (THR-EC)
Medical Flexible Soft or Hard Endoscope Sterilization Storage Cabinet (THR-EC)
Medical Flexible Soft or Hard Endoscope Sterilization Storage Cabinet (THR-EC)

Medical Flexible Soft or Hard Endoscope Sterilization Storage Cabinet (THR-EC)

Customization: Available
Theory: Ultraviolet Disinfection System
Type: Endoscope Storage Cabinet
Send Inquiry

Product Description

Basic Information
Model NO.
THR-EC Series
Certification
CE, ISO13485
Electric Tension
220V
LCD Display
Equipped
Safety Alarm
Ultra High Temperature Alarm
Recording
Info Recording and Printing
Material
High-grade Metal
Usage
Disinfection Endoscope Cabinet
Weight
60kg / 55kg / 75kg
Control System
Microcomputer LCD
Disinfection Model
Intelligent System
Capacity
6PCS / 10PCS / 8 Salvers
Product Overview

THR-EC Series Endoscope Storage Cabinet

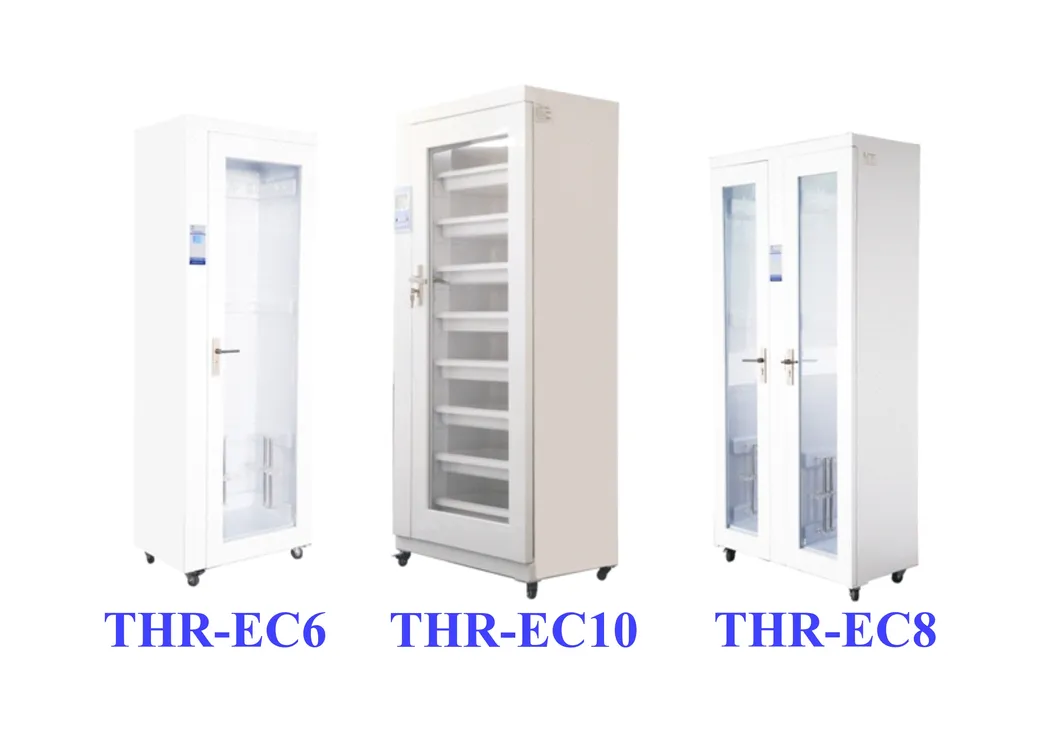

THR-EC Endoscope Cabinet
Scope of Application

Widely used in hospital Endoscope Rooms, Bronchoscopy Rooms, Cystoscopy Rooms, and ENT Departments. Designed specifically for the secure storage and disinfection of both soft and hard endoscopes.

Key Advantages
  • Superior Construction: Features a polymer composite inner tank, one-piece formed for maximum hygiene.

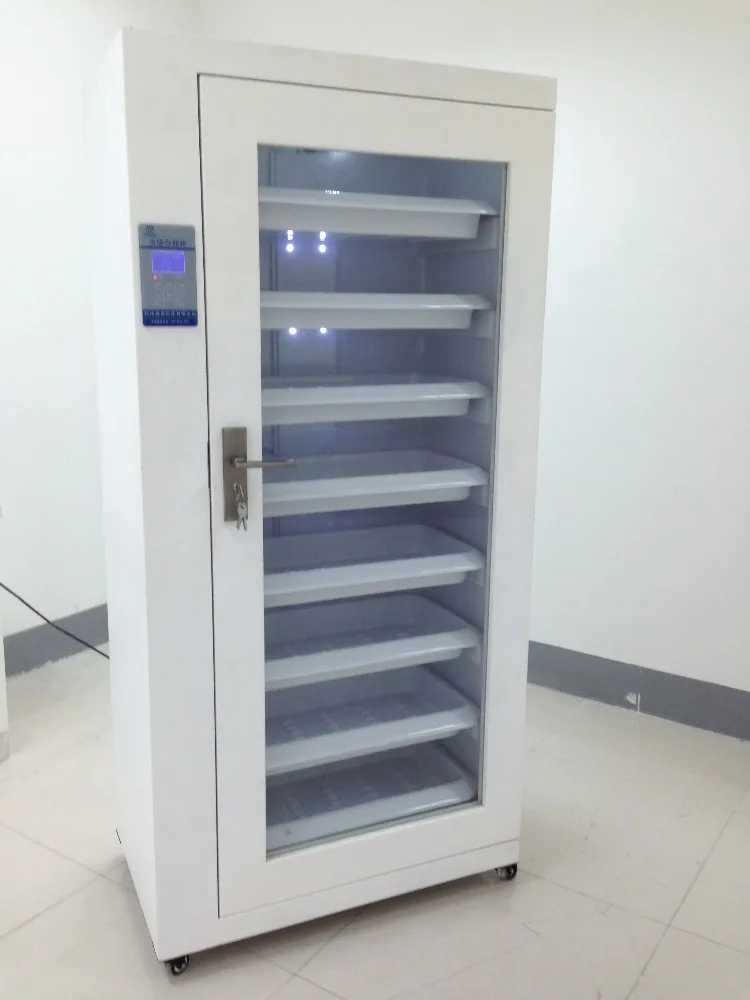

  • Optimized for Hard Endoscopes: Includes 8 one-piece formed salvers with a steel-plastic composite outer refill for a perfect seal and appearance.
  • Intelligent Control: 8 disinfection modes under auto-control ultraviolet system including automatic timing, lighting, and drying.

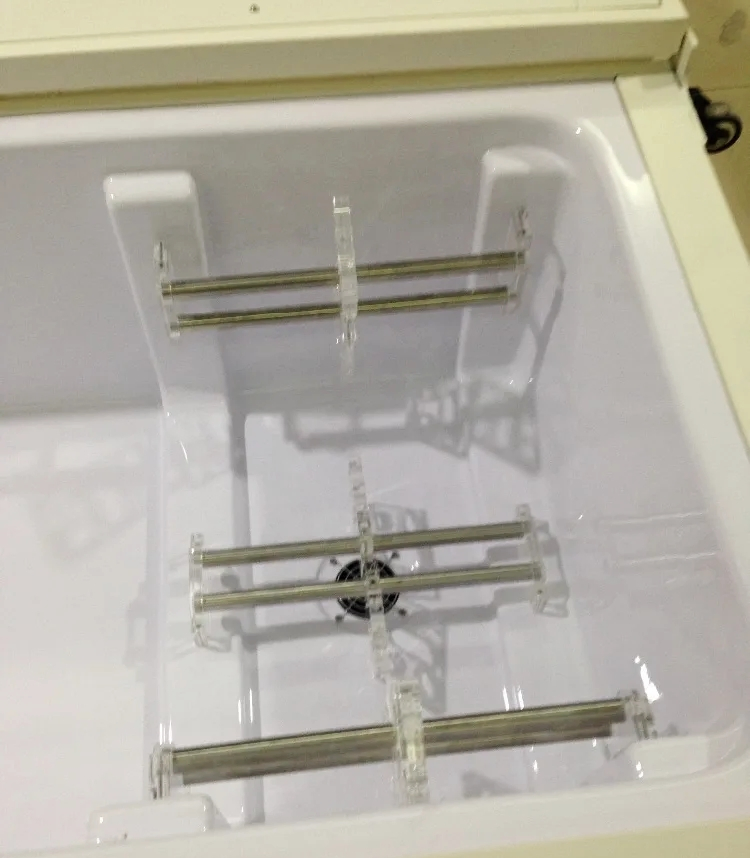

  • Protection Design: 3-section hanging racks made from transparent PMMA in soft endoscope units to prevent collisions.
  • Flexible Storage: Removable bottom hanging rack to accommodate various endoscope sizes, strictly following health guidelines.

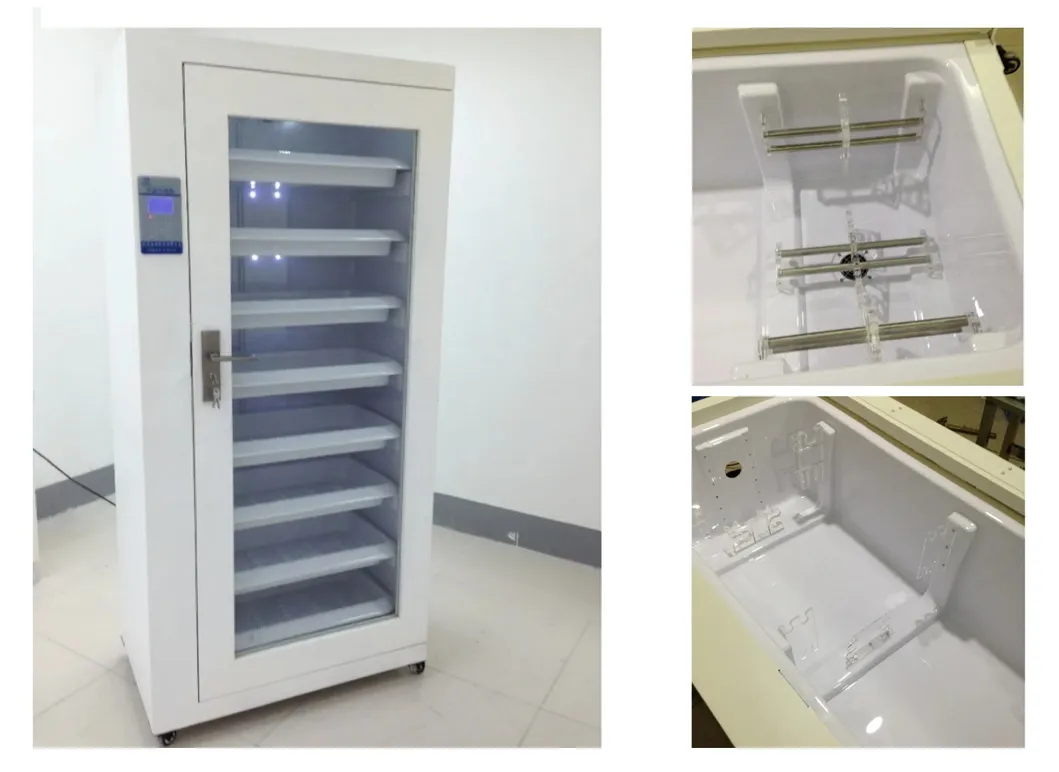

Endoscope Storage Detail

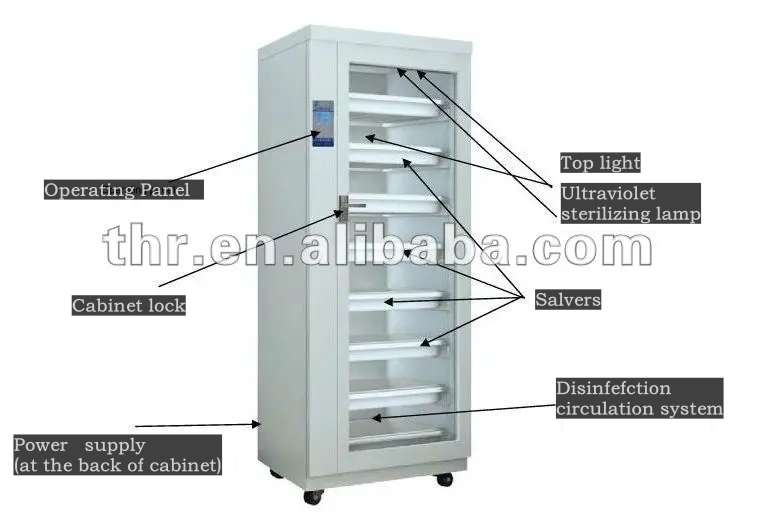

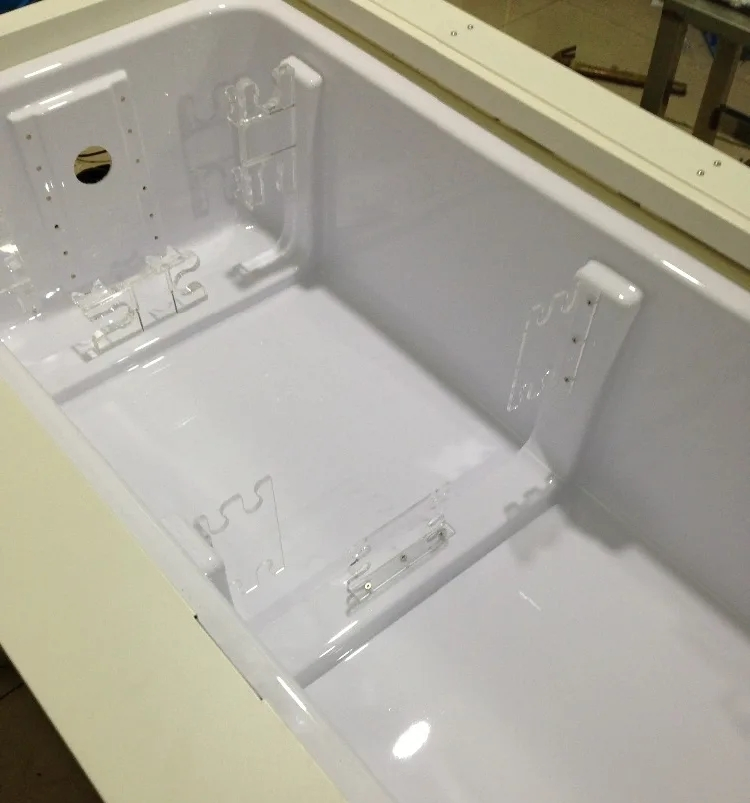

Internal Structure
Technical Specifications
Specifications Single Door (Soft) Double Door (Soft) Single Door (Hard)
Model THR-EC6 THR-EC10 THR-EC8
Dimensions (mm) 745×550×2060 1120×550×2060 856×550×1750
Weight (kg) 60 75 55
Storage Capacity 6 pieces 10 pieces 8 salvers
Power Supply 200V 50Hz 80W 200V 50Hz 100W 200V 50Hz 80W
Disinfection Mode Ultraviolet & Circulation air
Control Method Microcomputer LED display / Adjustable timing
Model Comparison
Packaging & Shipping
Professional Packaging
Production Facility
Factory View
Workshop
Manufacturing Process
Certificates
Frequently Asked Questions
1. What departments are these storage cabinets suitable for?
The THR-EC series is ideal for hospital Endoscope Rooms, Bronchoscopy Rooms, Cystoscopy Rooms, and ENT Departments to store and disinfect instruments.
2. How does the disinfection system work?
It utilizes an intelligent ultraviolet system and circulation air. It includes 8 different disinfection modes with automatic timing for drying and lighting.
3. What are the material specifications for the cabinet?
The inner tank is made of a one-piece formed polymer composite, while the exterior uses a durable steel-plastic composite for a perfect seal and long-term durability.
4. Can I adjust the disinfection time?
Yes, the disinfection time is fully adjustable via the integrated microcomputer LCD/LED control system.
5. What is the difference between the Soft and Hard endoscope models?
Soft endoscope models (like EC6/EC10) feature specialized PMMA hanging racks to prevent collisions, while hard endoscope models (EC8) utilize specialized salvers for organized storage.
6. What certifications do these medical cabinets hold?
The THR-EC series cabinets are fully certified with CE and ISO13485, meeting international medical storage standards.
