| Model NO. | LDF-300 |
| Condition | New |
| Certification | ISO, CE |
| Automation | Semi-Automatic |
| Number of Combustion Chambers | 3 |
| Temperature Resistance | 1700°C |
| Fuel | Oil / Gas |
| Capacity | 20-500kgs/Batch |
| Specification | 1800mm * 1300mm * 3000mm |
| Origin | China |
The Garbage Incinerator is a state-of-the-art waste treatment solution developed using advanced international technology. It is designed to be fully enclosed, compact, and highly efficient, providing a high degree of harmless waste disposal.

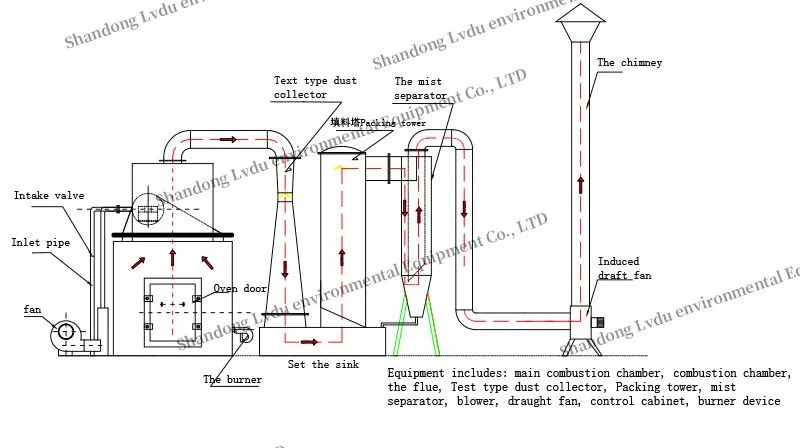

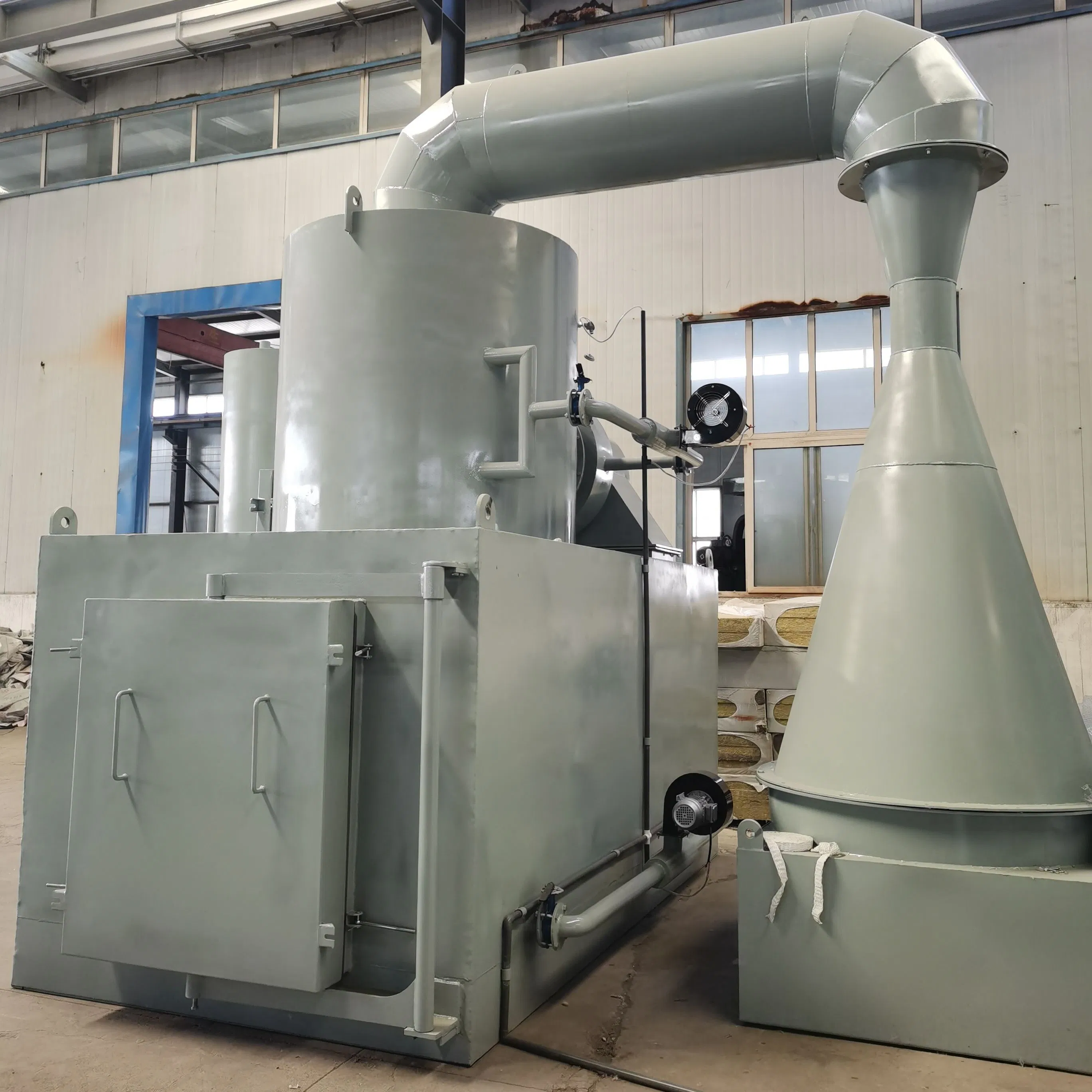

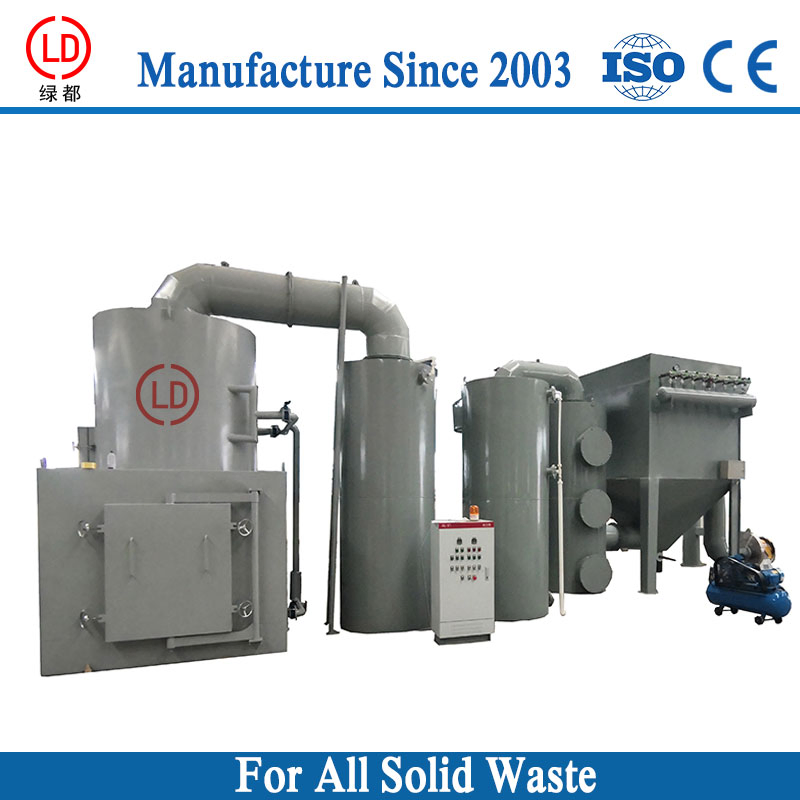

Specially equipped with a Venturi dust removal system, the flue gas is purified through a spray system, Paar ring packing tower, and cyclone dust removal equipment to ensure maximum environmental protection.
| Technical Specifications (LDF-300) | |
|---|---|
| Incineration Capacity | 200-300kg/times (3-6 times per day) |
| Incineration Size (L×H×B) | 2400 * 1600 * 3800 mm |
| Garbage Inlet Size | 900 * 1100 mm |
| Chimney Diameter | Ø400 mm |
| Blower Power | 1.1kw |
| Burner #1 | 0.18kw (Consumption 10-20kg/h) |
| Burner #2 | 0.25kw (Consumption 15-25kg/h) |
| Voltage | 220V |
| Weight | Approx. 9000 kg |

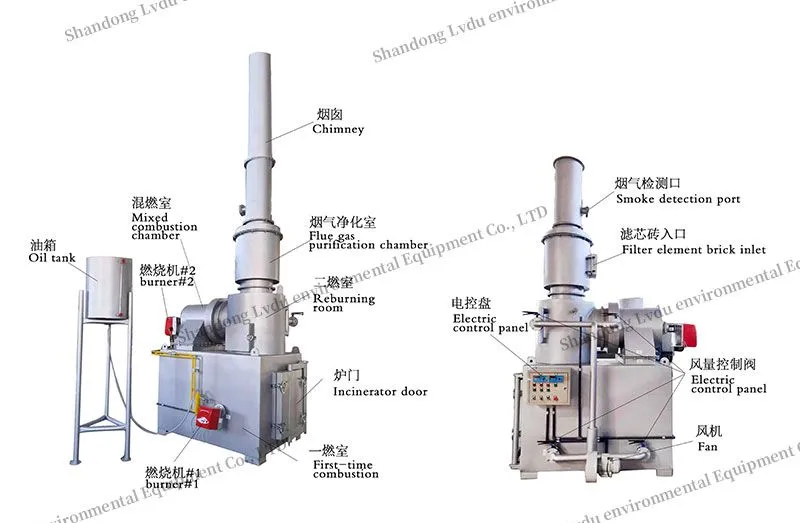

This equipment utilizes high-temperature combustion to treat medical, domestic, and animal waste. By burning diesel or gas fuel, the carbon within the waste is oxidized at high temperatures, achieving thorough disinfection and volume reduction.
Interior withstands 1700ºC; outer thermal insulation saves fuel.

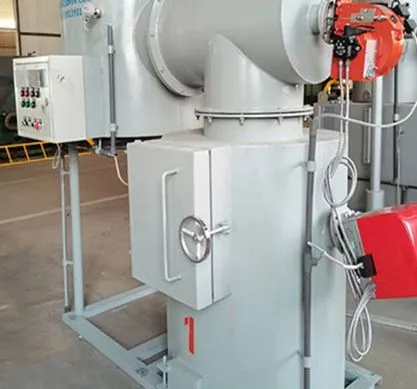

Thick, hard steel plates with strict corrosion resistance processes.

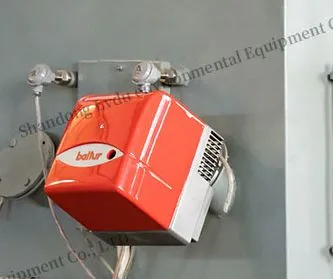

Equipped with Italian Baltur burners for long-term durability.
Ideal for waste treatment stations, hospitals, hotels, large commercial institutions, and industrial enterprises. Applicable to:
With over 20 years of expertise in the environmental equipment industry, our facility covers 20,000 square meters. We focus on high-tech innovation, production, and quality control.
A: It is suitable for medical waste, domestic garbage, general industrial waste, and animal carcass disposal.

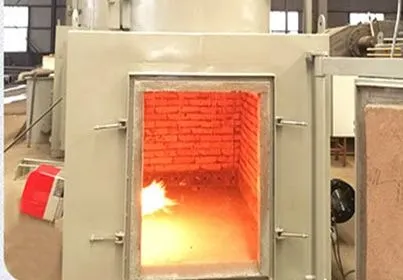

A: The interior is lined with high-temperature firebricks that can withstand temperatures up to 1700°C.
A: Yes, it is equipped with a Venturi dust removal system and cyclone equipment to purify flue gas effectively.
A: Yes, users can choose between fuel oil (diesel) and fuel gas burners based on their local availability and needs.

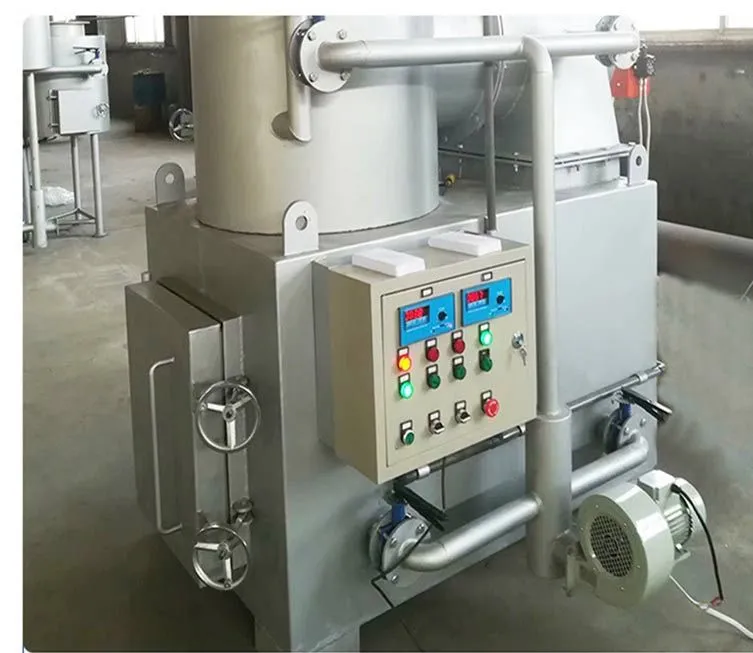

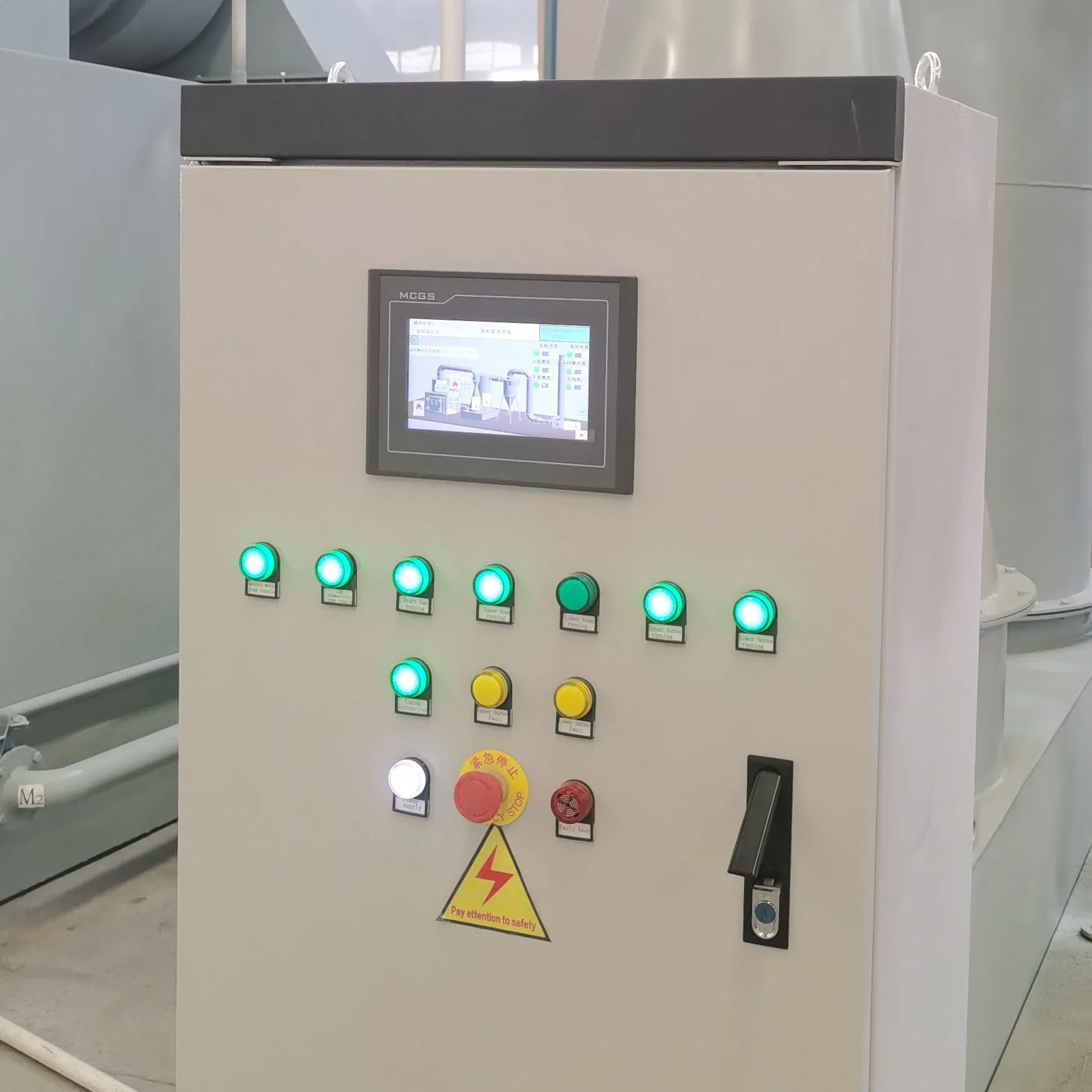

A: The system features a high level of automation, making it easy to operate with minimal labor requirements.
A: The equipment is compact and designed for efficiency; it requires a stable foundation and proper ventilation for the chimney system.
