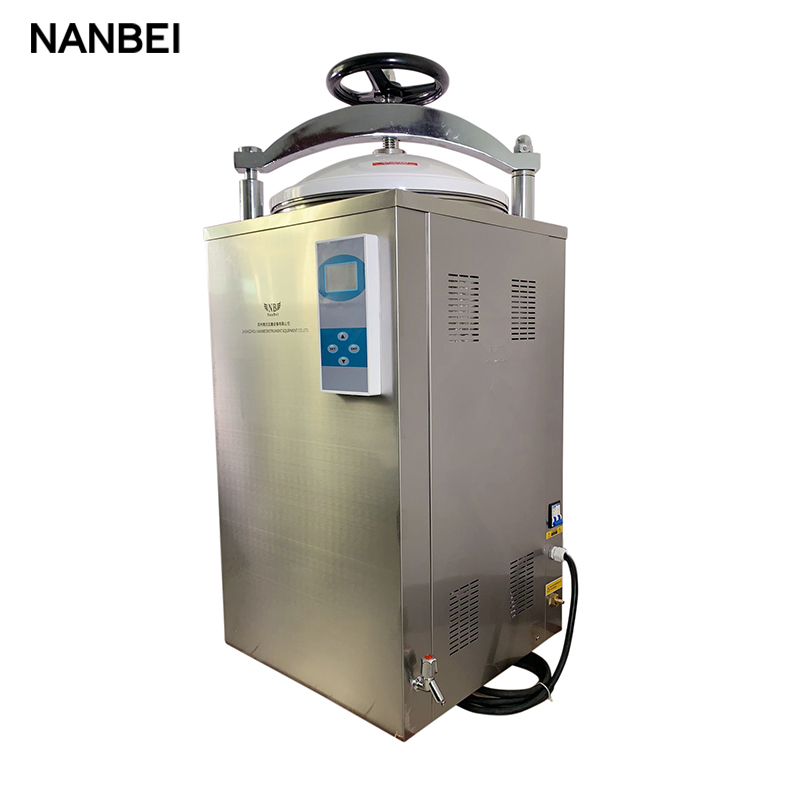

Nanbei Instrumets LCD Display Automation Vertical Pressure Steam Sterilizers

1 / 5

Nanbei Instrumets LCD Display Automation Vertical Pressure Steam Sterilizers

Customization:	Available
After-sales Service:	Online Support, Video Technical Support
Warranty:	One Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

LS-35HD(automatic)

Structure

Desktop

Material

Stainless Steel

Application

School, Hospital, Lab

Type

Sterilization

Chamber Volume

35L(318X450)mm

Working Pressure

0.22MPa

Working Temp

134°C

Timer Range

0-99min / 0-99hour59min

Power Supply

3kw/AC220V.50Hz

Certification

ISO

Origin

China

Product Description

LCD Display Automation Vertical Pressure Steam Sterilizers are assembled with advanced heating systems, microcomputer-controlled interfaces, and multi-layer safety protection. They provide reliable sterilization effects with high energy efficiency and ease of operation. These units are ideal for medical clinics, scientific research institutes, and laboratories for sterilizing surgical instruments, glassware, culture media, and fabrics.

Key Advantages

✓Fully stainless steel robust structure.

✓Automatic discharge for cool air and post-sterilization steam.

✓Hand wheel quick-open door mechanism for safety.

✓Integrated drying system and water-lack protection.

✓LCD status display with touch-sensitive keys.

✓Over-temperature & over-pressure auto-protection.

Technical Parameters

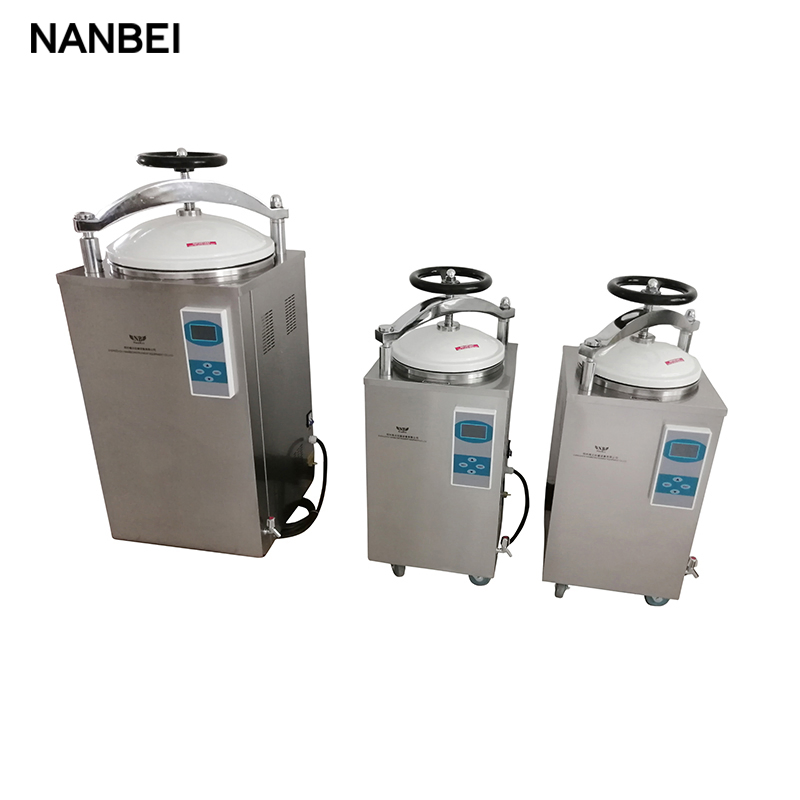

MODEL	LS-35HD	LS-50HD	LS-75HD	LS-100HD
Chamber Volume	35L (φ318×450mm)	50L (φ340×550mm)	75L (φ400×600mm)	100L (φ440×650mm)
Working Pressure	0.22Mpa
Working Temp	134ºC
Heat Average	≤±1ºC
Timer Range	0-99min or 0-99hour59min
Power	2.5KW/AC220V	3KW/AC220V	4.5KW/AC220V
G.W / N.W	72Kg/56Kg	88Kg/68Kg	100Kg/80Kg	110Kg/85Kg

Detailed Photos

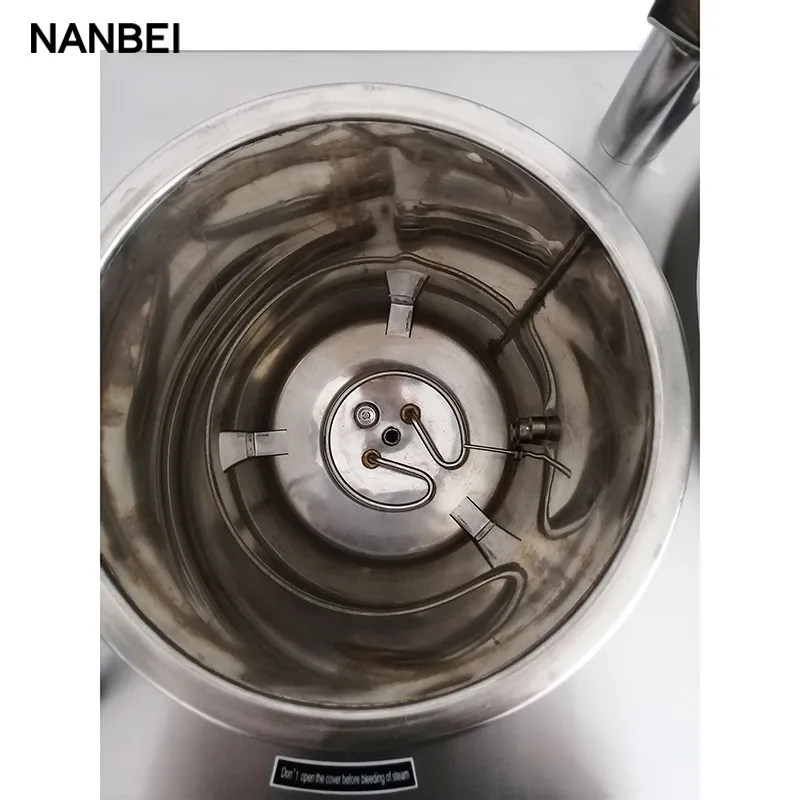

LCD Display Automation Vertical Pressure Steam Sterilizer View 1

LCD Display Automation Vertical Pressure Steam Sterilizer View 2

Packaging & Shipping

Production Standards

Frequently Asked Questions

1. How do I choose the most suitable model?

Please consider your required capacity (from 35L to 100L) and specific sterilization items. We recommend models based on your volume requirements and laboratory space.

2. Is the price competitive for this quality?

Yes, we prioritize providing high-grade stainless steel construction and advanced microcomputer control systems at a highly competitive factory-direct price level.

3. What payment methods do you accept?

We accept various professional payment terms, including T/T (Bank Transfer) and Western Union, to ensure a smooth transaction process.

4. What is the typical lead time?

Standard models are usually ready for dispatch within 5-7 working days. Transport time varies depending on your specific global location.

5. How is the product delivered safely?

We utilize standard export-grade wooden case packaging to prevent damage during transport. Delivery can be arranged via Express, Sea, or Air freight.

6. What is the warranty policy?

We offer a 12-month comprehensive warranty (excluding wear parts). Technical support and replacement parts are available even after the warranty period.
