Basic Information
LCD Display
With LCD Display
Storage Capacity
16 Scopes
Power Supply
220V 50Hz / 110V 60Hz
Specification
1400*700*1970
Production Capacity
500 Units/Year
Technical Specifications
| Model |
Dimension/mm |
Weight/kg |
Capacity/pcs |
Door Type |
Storage |
Power |

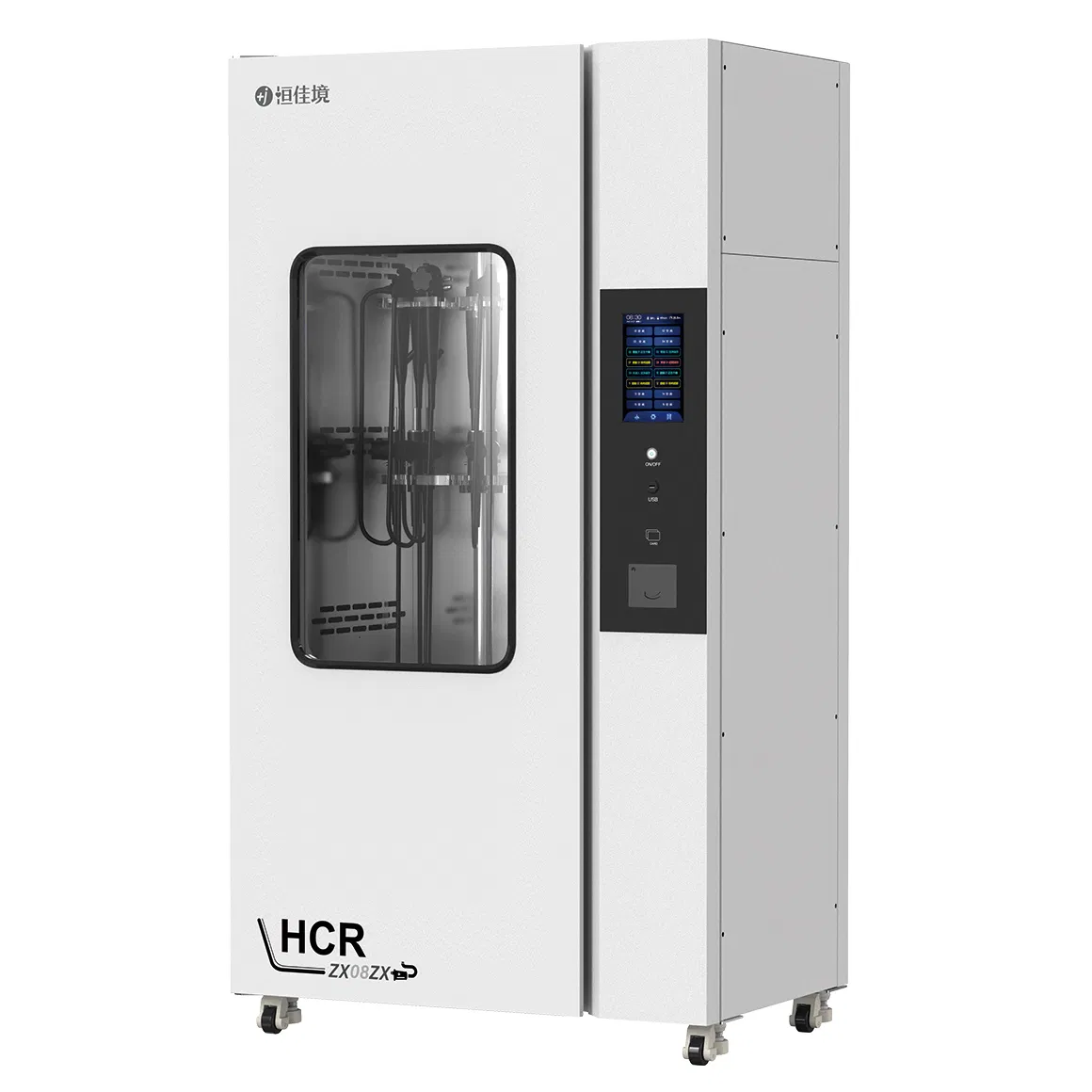

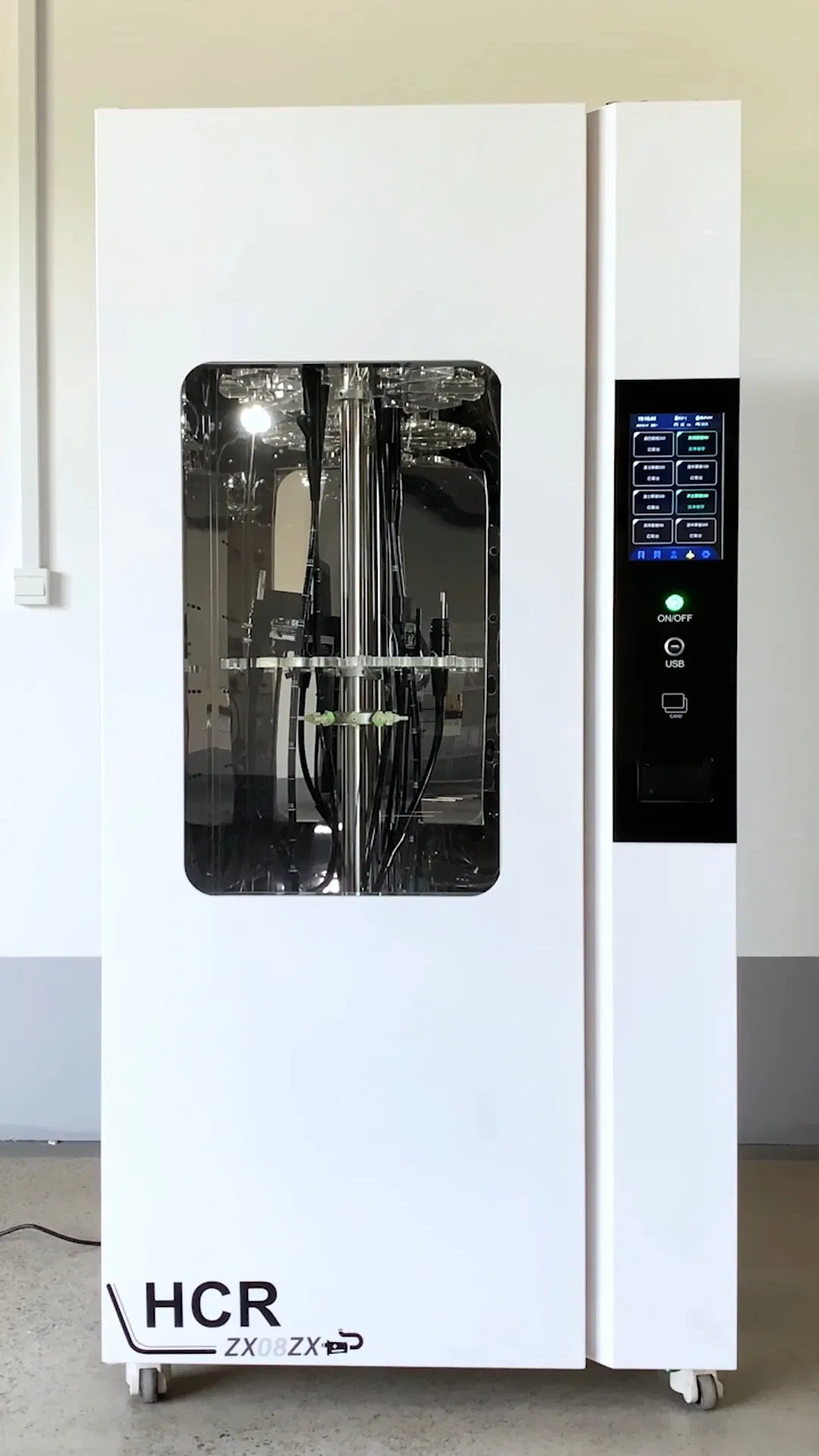

| HCR-ZX-08XZ |
940*700*1970 |
215 |
8 |
Automatic / Single |
Vertical |
220V 50Hz/110V 60Hz |

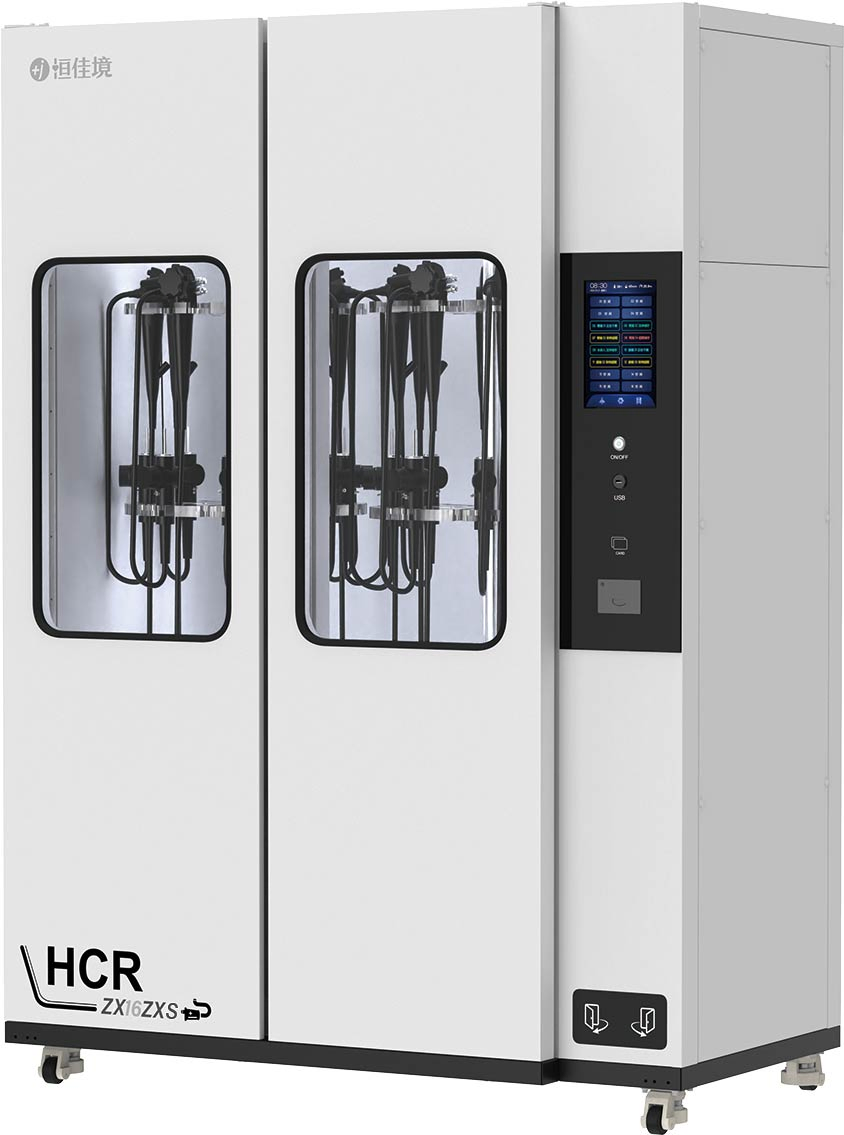

| HCR-ZX-16XZS |
1400*700*1970 |
295 |
16 |
Automatic / Double |
Vertical |
220V 50Hz/110V 60Hz |
Product Key Features
1
H14 HEPA Filtration: Removes 99.99% of particulate at 0.3μm, maintaining chamber air cleanliness at ISO5.
2
Advanced Air Heating: Intake air is heated to enhance evaporation on the scope surface and within channels.
3
Dehumidification System: Features a circulation system to remove airborne moisture with user-controllable settings.
4
Endoscope Channel Vacuum Drying: Maintains negative pressure to enhance water evaporation at low temperatures.
5
Positive Pressure Control: System ensures pressure >=20Pa to prevent cross-infection from the ambient environment.
6

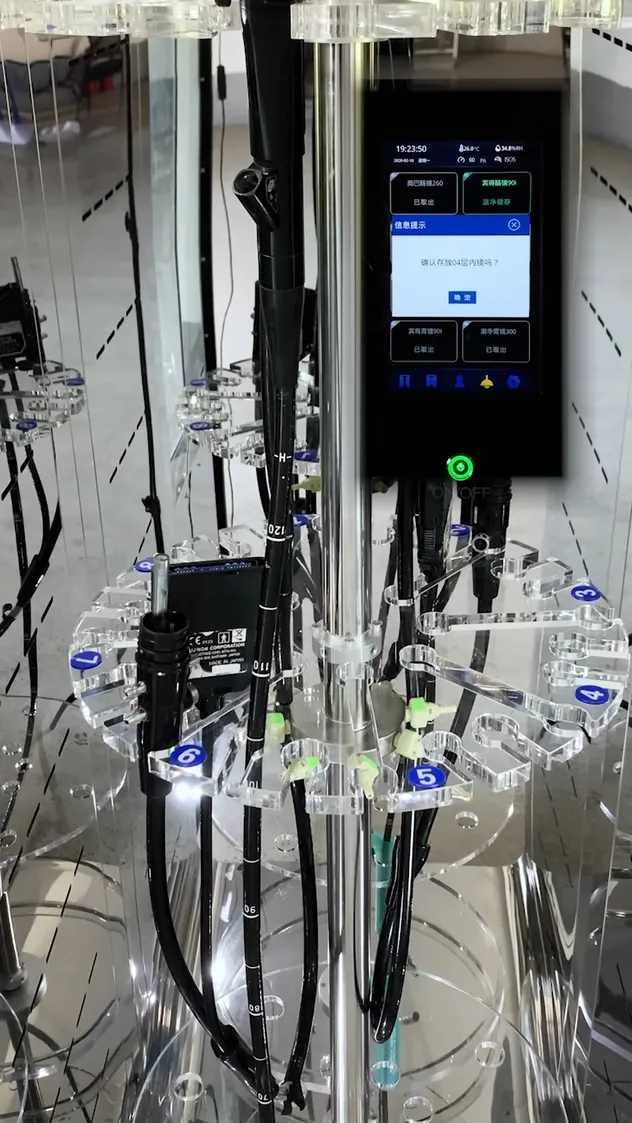

10-Inch Touch Screen: Provides real-time monitoring and precise control over each scope's status.
7
UVC and Plasma Disinfection: Built-in modules effectively inactivate microorganisms during storage.

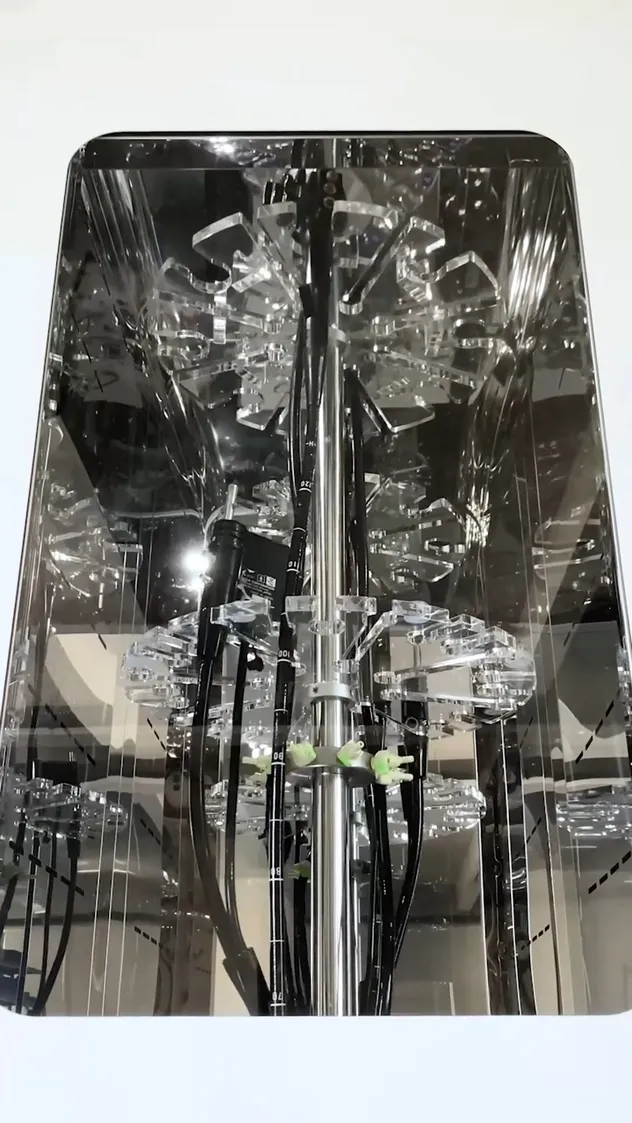

Interior and Structure

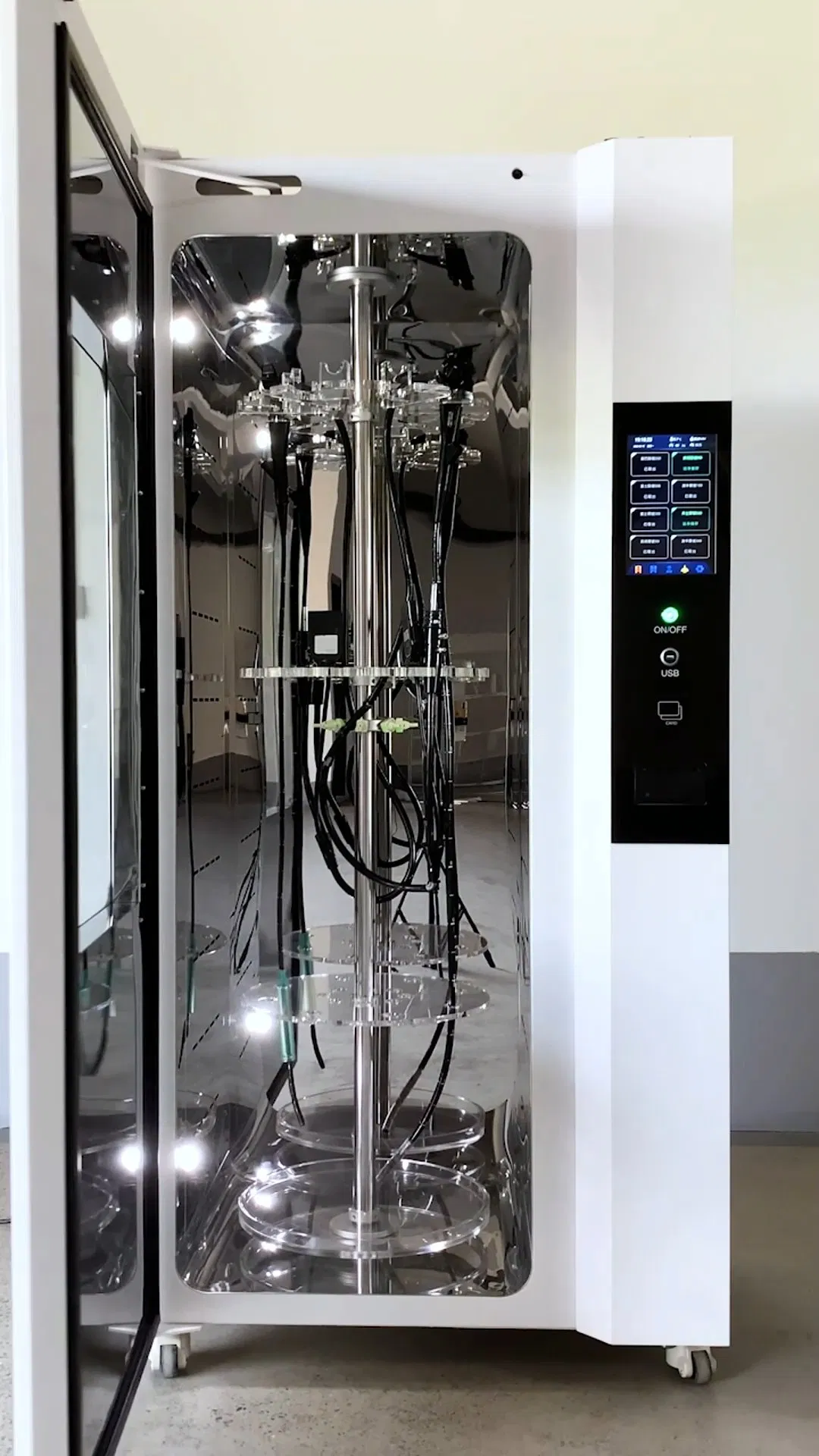

The chamber is constructed from SUS304 stainless steel, ensuring it is corrosion-resistant and easy to clean. Each slot includes a dedicated hose for drying flexible endoscope channels.

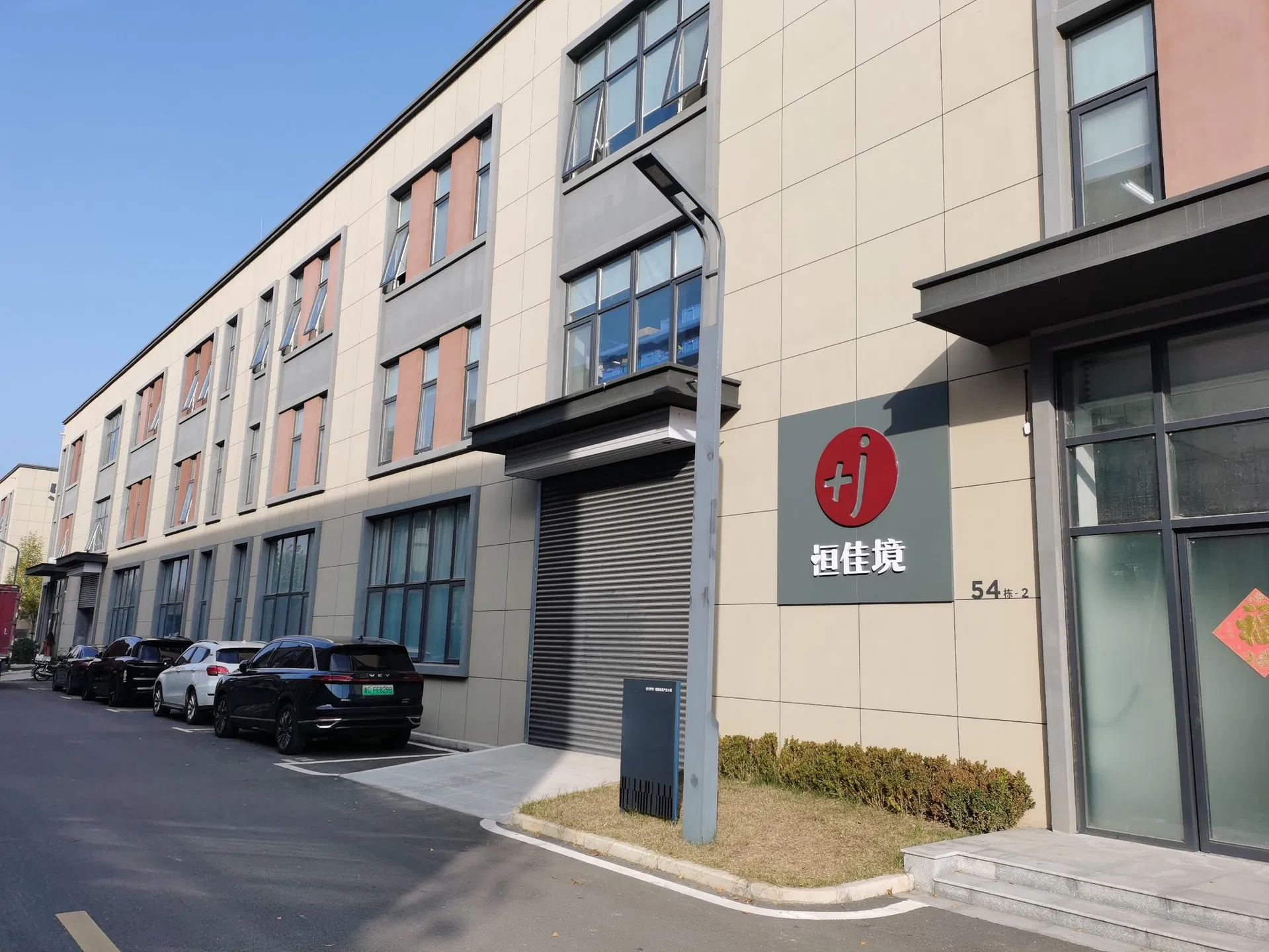

About Manufacturing & Quality
With a professional R&D team possessing over 10 years of industry experience, we specialize in medical infection control, including air disinfection, dental infection control, and endoscope reprocessing. Our manufacturing processes are certified under ISO 9001, ISO 14001, ISO 45001, and ISO 13485 systems. Our products serve medical institutions globally, meeting local quality and safety requirements through continuous technological innovation.
Frequently Asked Questions (FAQ)
Q1: How does the vacuum drying system benefit endoscope storage?
A: It maintains endoscope channels at negative pressure, which allows water to evaporate more quickly at low temperatures, ensuring thorough drying of narrow internal channels.
Q2: What level of air cleanliness is maintained inside the cabinet?
A: The H14 HEPA filtration system removes 99.99% of particles down to 0.3μm, maintaining an ISO Class 5 air cleanliness environment.
Q3: Can this cabinet store different brands of endoscopes?
A: Yes, the storage system is designed to be compatible with all major brands of endoscopes.
Q4: How is cross-infection prevented?
A: The cabinet utilizes an intelligent pressure control system to maintain positive pressure (>=20Pa) and features built-in UVC and plasma disinfection modules.
Q5: Is the storage data traceable?
A: Yes, it includes a traceability system where profiles can be created and exported, and storage history for each endoscope is recorded.
Q6: What material is used for the cabinet interior?
A: The chamber is made of high-quality SUS304 stainless steel, which provides excellent corrosion resistance and is easy to sanitize.
