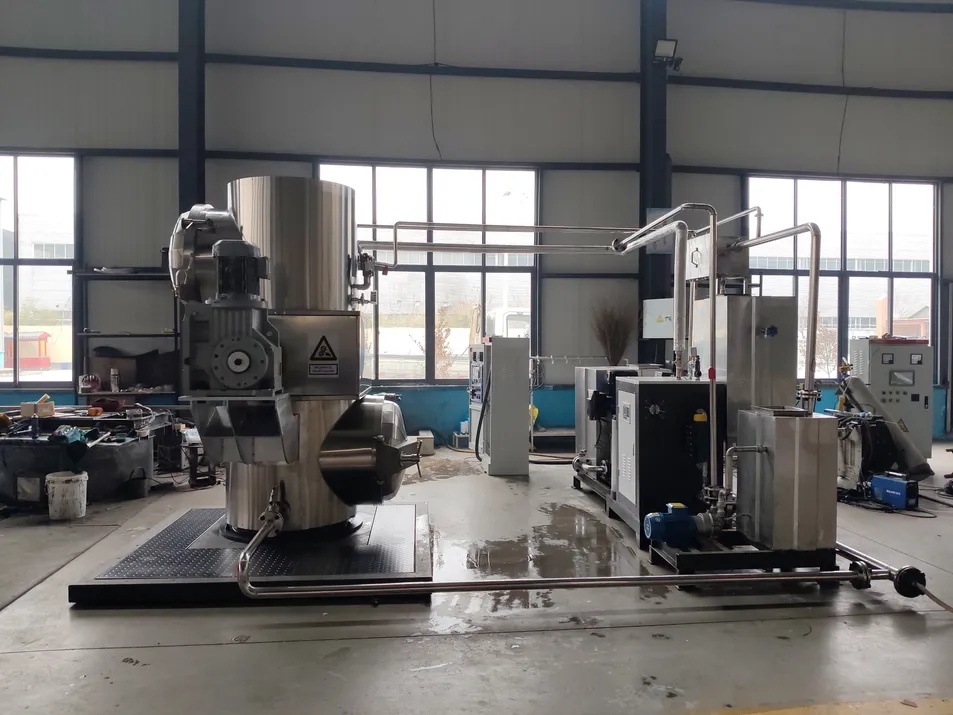

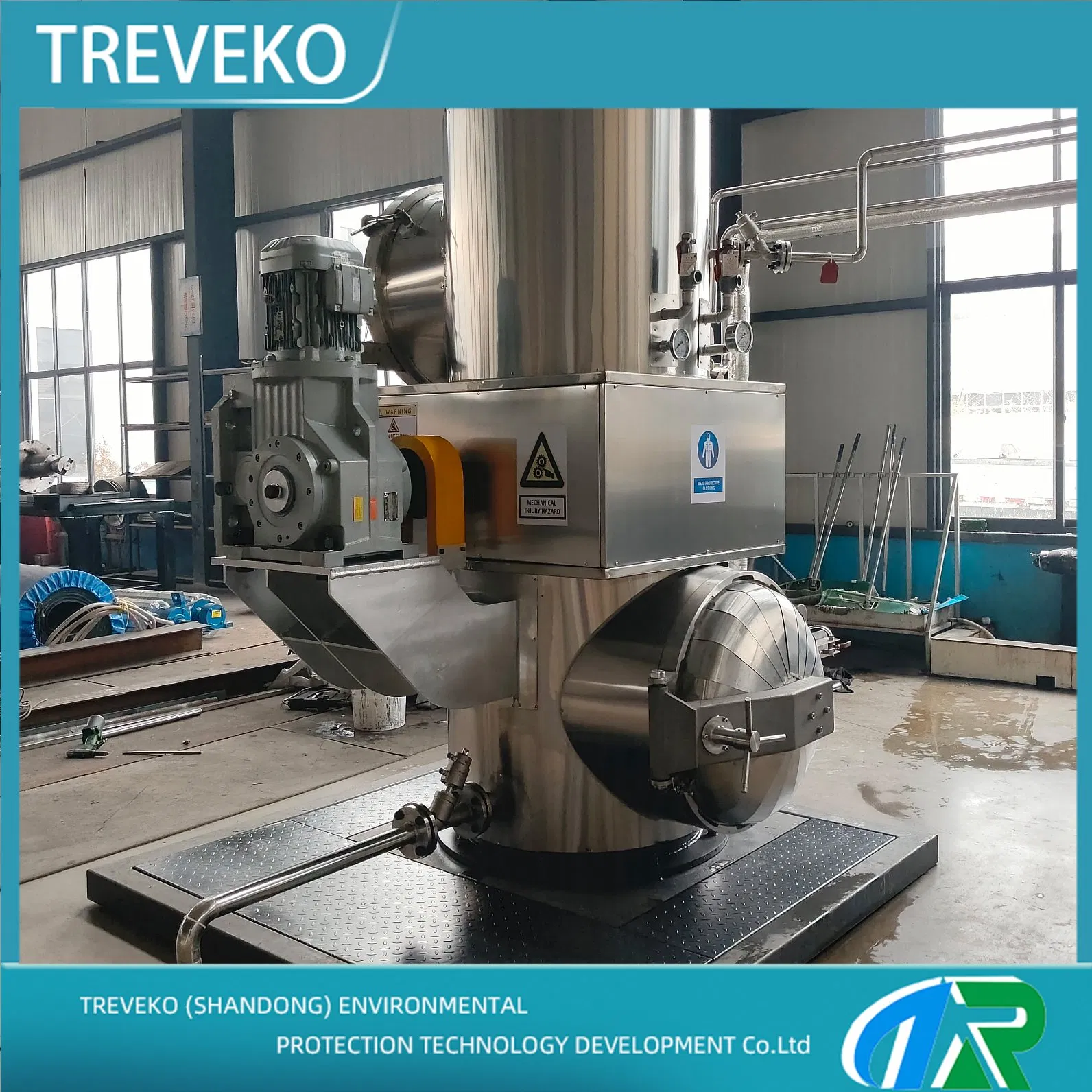

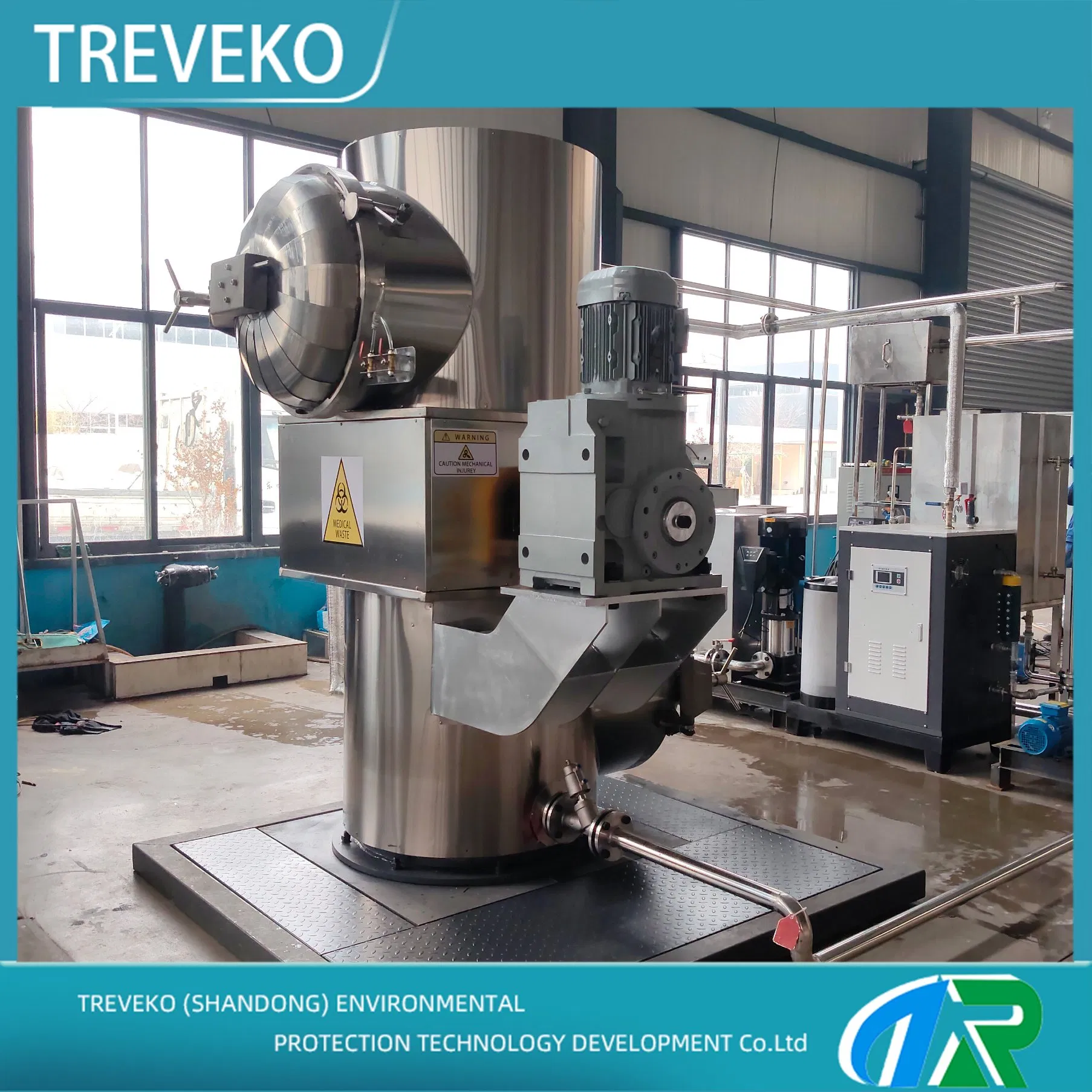

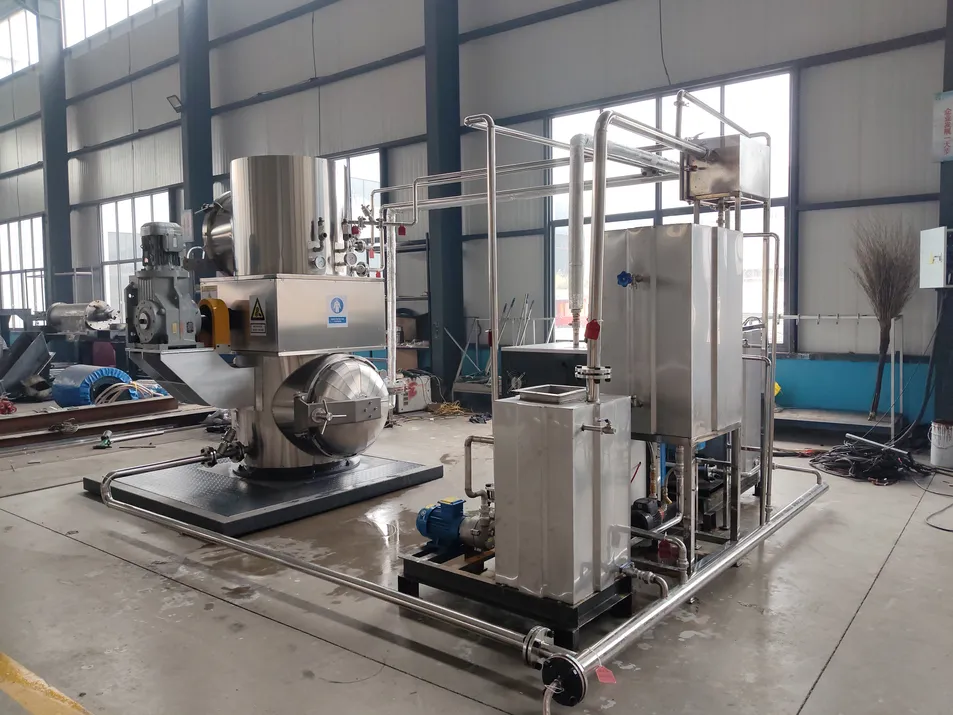

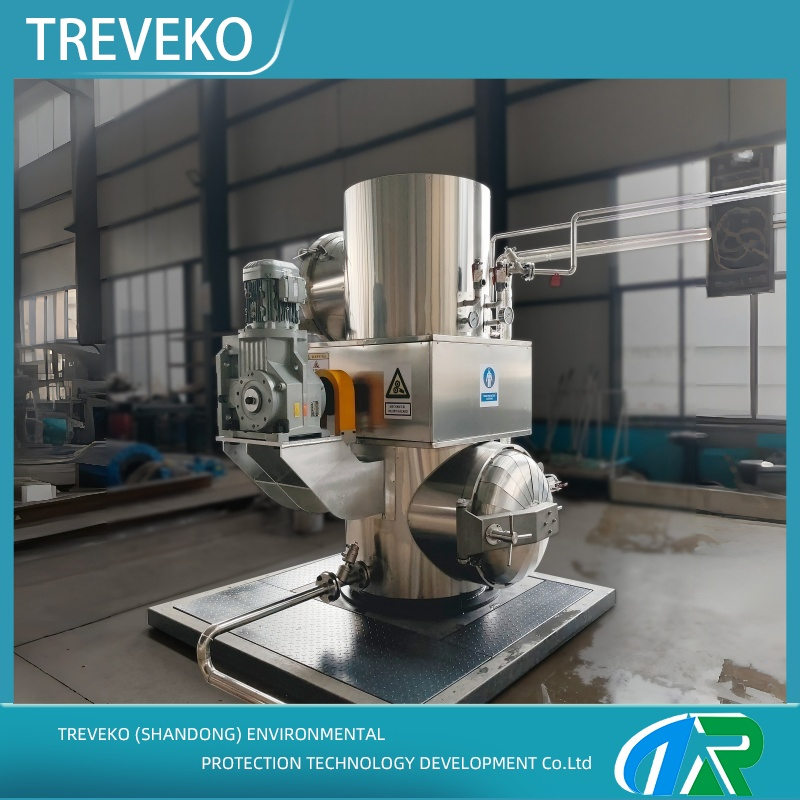

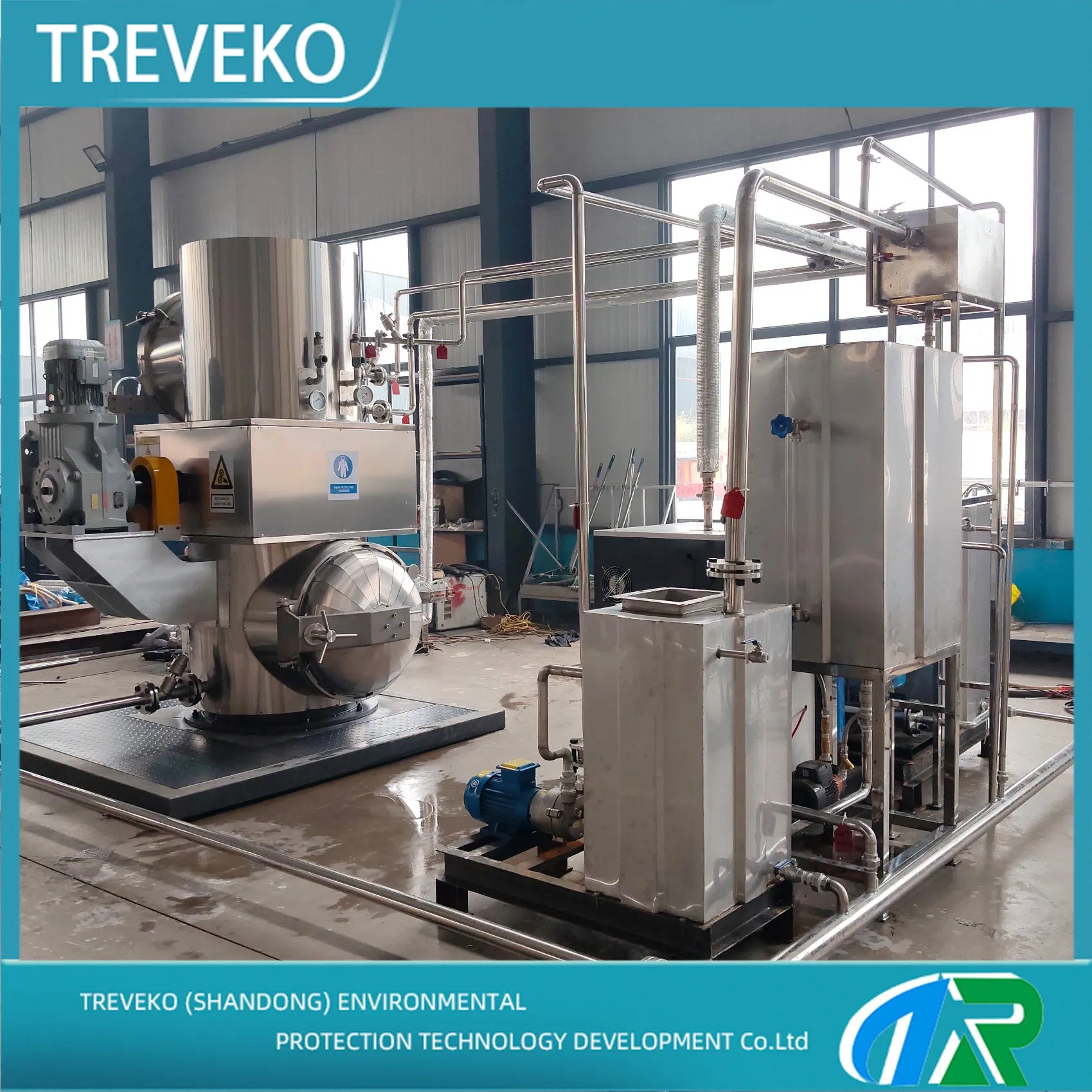

1. This vertical steam sterilizer for medical waste is a highly efficient and compliant medical waste treatment device specifically designed for clinics, community hospitals, outpatient departments, small laboratories, and veterinary clinics. Based on saturated steam sterilization technology and a compact vertical design, the device precisely addresses the core needs of small facilities with limited space and low waste generation.
2. It enables on-site, rapid, and thorough sterilization of solid medical waste, effectively preventing the spread of pathogenic microorganisms at the source. The single processing cycle takes 60-90 minutes, and operating parameters can be flexibly adjusted. It features automatic exhaust and drying functions, significantly reducing moisture content after sterilization.

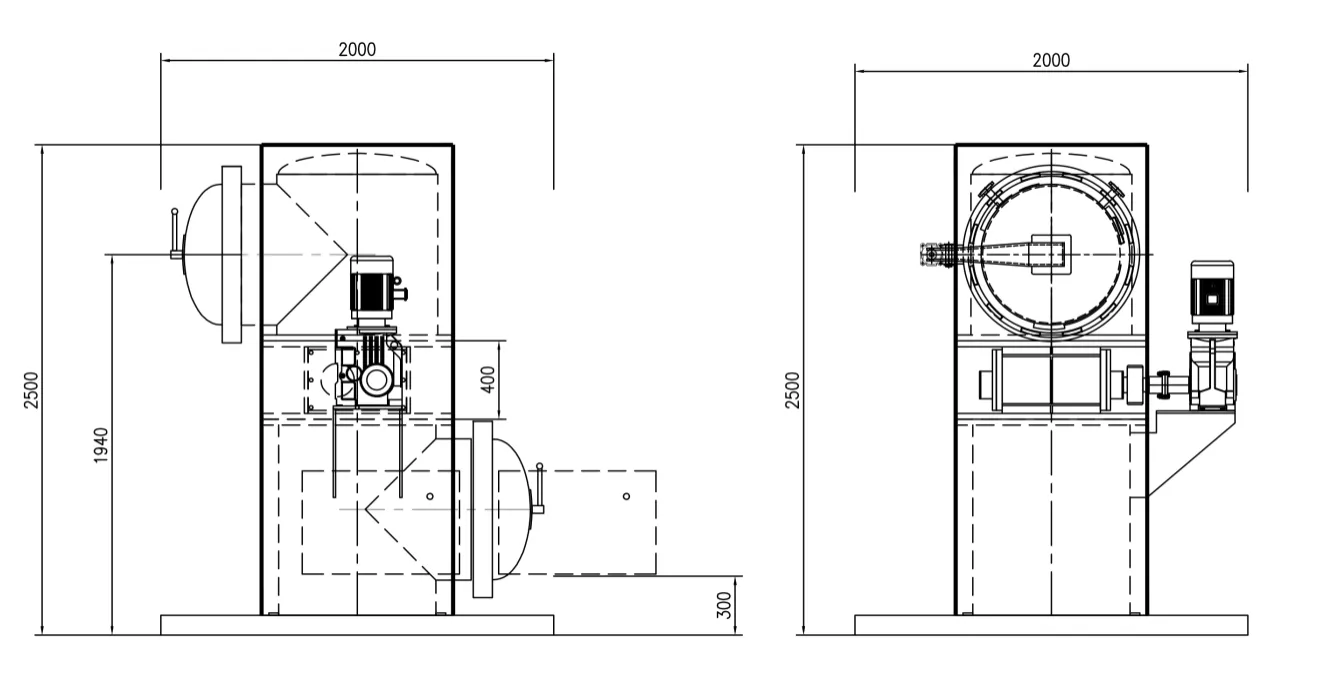

1. Space Efficiency: The structural design adopts a vertical layout, resulting in a small footprint and high utilization of vertical space. It can be flexibly placed in confined areas such as medical waste temporary storage rooms.
2. Durable Material: The machine body is made of 304 stainless steel, which is high-temperature resistant, corrosion-resistant, and easy to clean, ensuring a long service life.
3. Intelligent Operation: Equipped with built-in standardized sterilization programs and a one-button start-up. It includes a comprehensive safety protection system: a door interlock device, a triple alarm system for over-temperature/over-pressure, and core components meeting medical safety standards.
| System Unit | Project | Technical Parameters | Remark |
|---|---|---|---|
| Processor Parameters | Processing Volume | 60 kg/h | Density 0.1 |
| Sterilization Method | High-temperature steam | - | |
| Final Effect | Spore microbial inactivation level 8 Log10 | - | |
| Capacity Reduction | 85% | Weight reduction 15% | |
| Vertical Container | Volume | 420L | Stainless Steel |
| Work Pressure | 0.3MPa | Design 0.4MPa | |
| Operating Temperature | 134℃ | Design 152℃ | |
| Crushing System | Power | 7.5kw | KA-107 Reducer |
| Blade Material | Imported high strength material | PLC-controlled reverse | |
| Control System | Electrical Control | PLC with user-friendly interface | Mobile App support |
Step 1: Feeding & Shredding
Medical waste is manually fed into the sterilizer. The shredding system breaks the waste into small particles for better steam penetration.
Step 2: Pre-vacuum & Sterilization
A pre-vacuum method purges air. High-temperature, high-pressure saturated steam is then introduced to kill all pathogens.
Step 3: Post-vacuum & Discharge
A post-treatment vacuum removes remaining air and moisture. The sterilized waste is then safe to be treated as ordinary household waste.
Safe operations, meeting all standards and regulations:
1. The equipment is manufactured in accordance with national regulations and fully complies with technical specifications for high-temperature steam disinfection treatment of medical waste.
2. We provide comprehensive after-sales service, including video operation training. Core components (steam generator, control system) have a 1-3 year warranty with lifetime repair and spare parts supply services.
