Home > Medical Sealing Machine > Cssd Dental Clinics ISO11607 Automatic Tyvek Medical Pouches 10m/Min Sealing Speed Printer Continuous Medical Sealing Machine

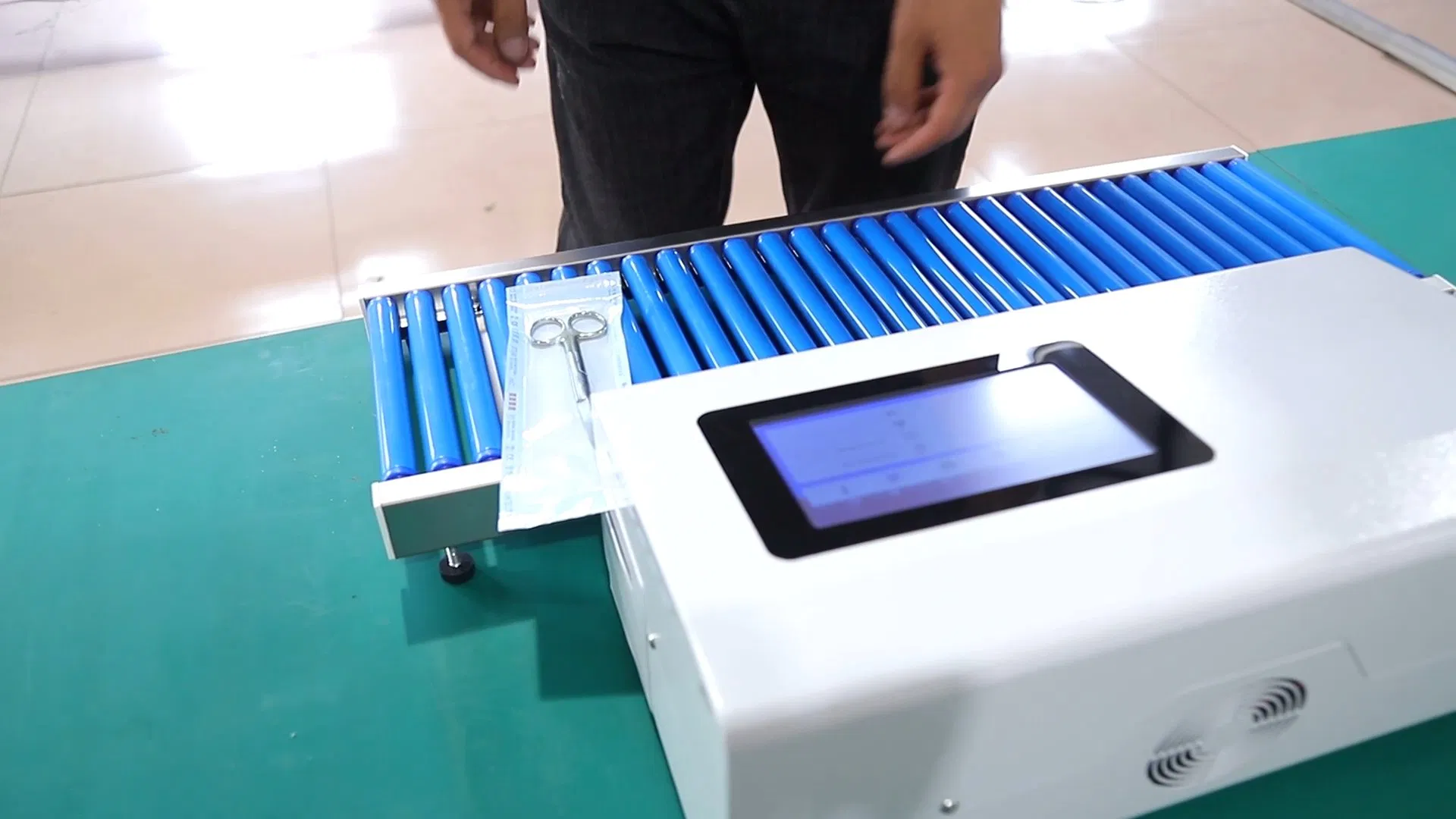

Cssd Dental Clinics ISO11607 Automatic Tyvek Medical Pouches 10m/Min Sealing Speed Printer Continuous Medical Sealing Machine
Cssd Dental Clinics ISO11607 Automatic Tyvek Medical Pouches 10m/Min Sealing Speed Printer Continuous Medical Sealing Machine
Cssd Dental Clinics ISO11607 Automatic Tyvek Medical Pouches 10m/Min Sealing Speed Printer Continuous Medical Sealing Machine
Cssd Dental Clinics ISO11607 Automatic Tyvek Medical Pouches 10m/Min Sealing Speed Printer Continuous Medical Sealing Machine
Cssd Dental Clinics ISO11607 Automatic Tyvek Medical Pouches 10m/Min Sealing Speed Printer Continuous Medical Sealing Machine
1 / 5
Cssd Dental Clinics ISO11607 Automatic Tyvek Medical Pouches 10m/Min Sealing Speed Printer Continuous Medical Sealing Machine
Cssd Dental Clinics ISO11607 Automatic Tyvek Medical Pouches 10m/Min Sealing Speed Printer Continuous Medical Sealing Machine
Cssd Dental Clinics ISO11607 Automatic Tyvek Medical Pouches 10m/Min Sealing Speed Printer Continuous Medical Sealing Machine
Cssd Dental Clinics ISO11607 Automatic Tyvek Medical Pouches 10m/Min Sealing Speed Printer Continuous Medical Sealing Machine
Cssd Dental Clinics ISO11607 Automatic Tyvek Medical Pouches 10m/Min Sealing Speed Printer Continuous Medical Sealing Machine

Cssd Dental Clinics ISO11607 Automatic Tyvek Medical Pouches 10m/Min Sealing Speed Printer Continuous Medical Sealing Machine

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.
HCRseal-30
Packaging
Cartons
Automatic Grade
Automatic
Application
Paper & Plastic
Type
Sealing Machine
Power
400W
Temperature
~220°c
Sealing Speed
10m/Min
Weight
6kg / 11kg
Printer
DOT Matrix Printer
Screen
7-Inch Color Screen
Shell
Coated Carbon Steel

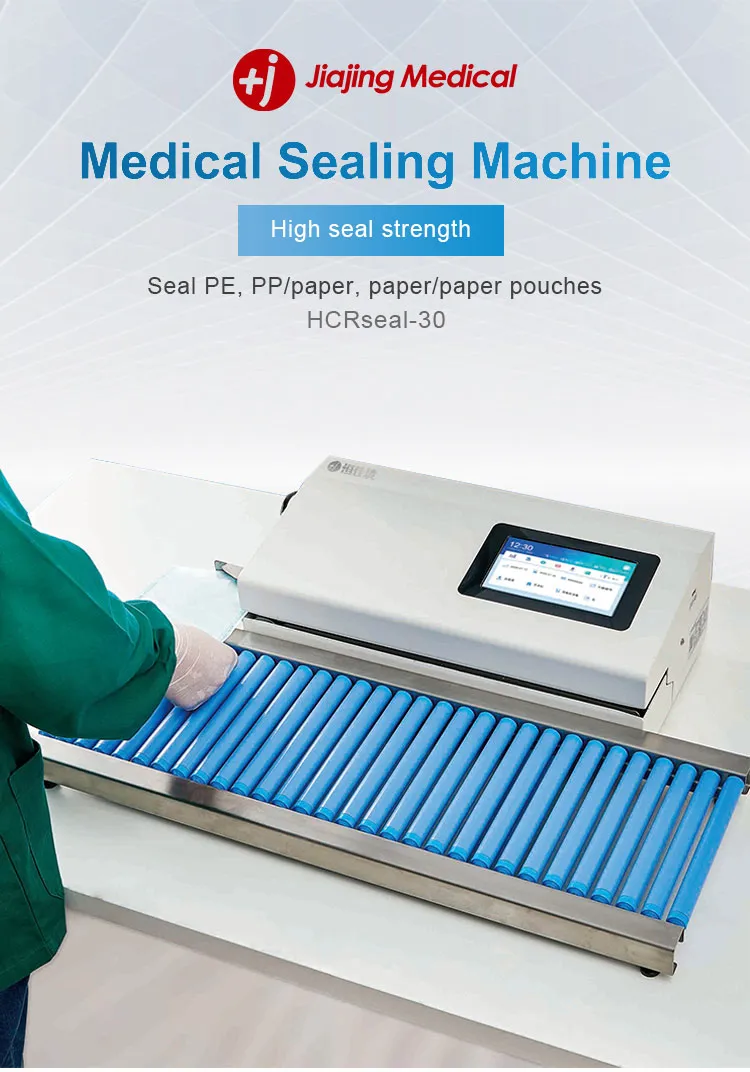

Medical Sealing Machine

Key Features

Built-in dot matrix printer for manufacturing date, expiry date, and operator info.
Microprocessor temperature control; compatible with Tyvek pouches.

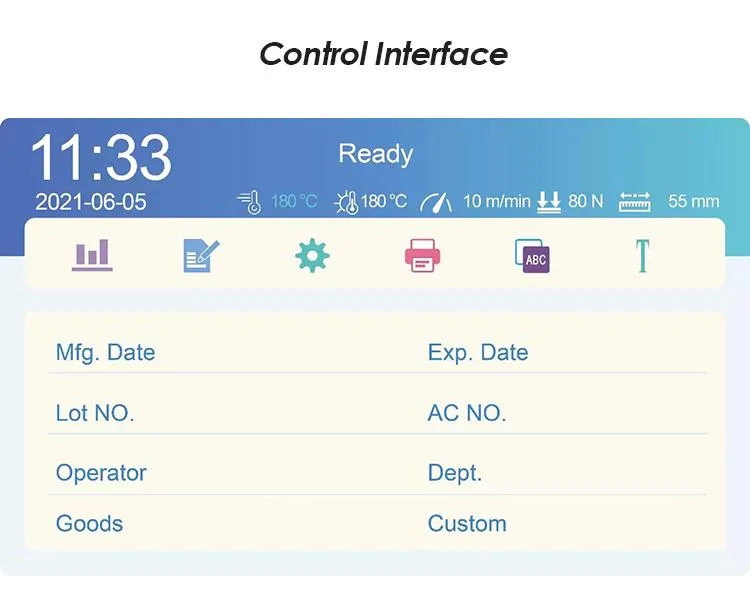

7" color touch screen for intuitive temperature and status display.
Automatic standby mode to prolong machine element life.

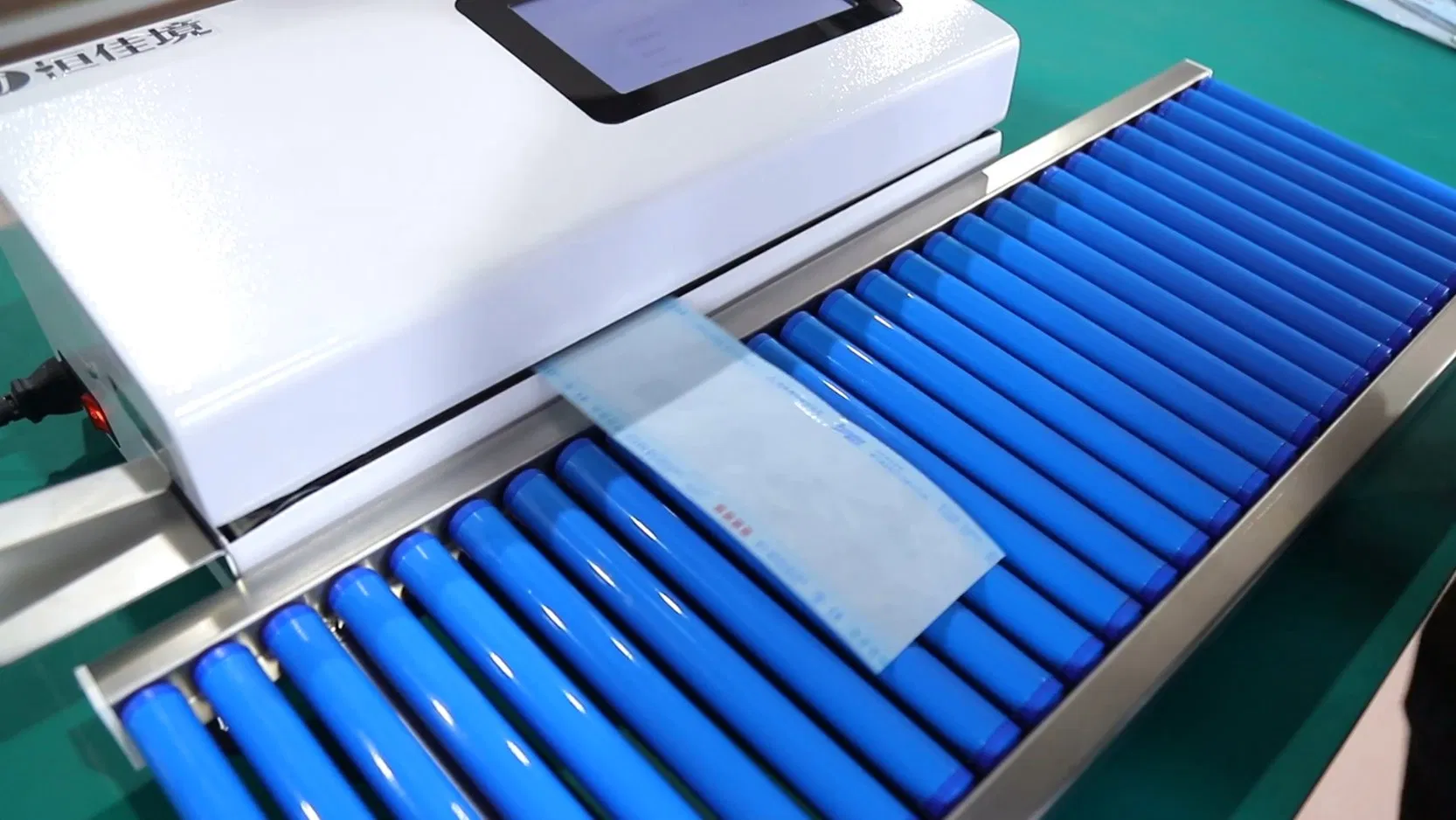

Fast 10m/min sealing speed with optic sensor automatic in-feed.
Fully conform to ISO 11607 and EN 868-5 standards.

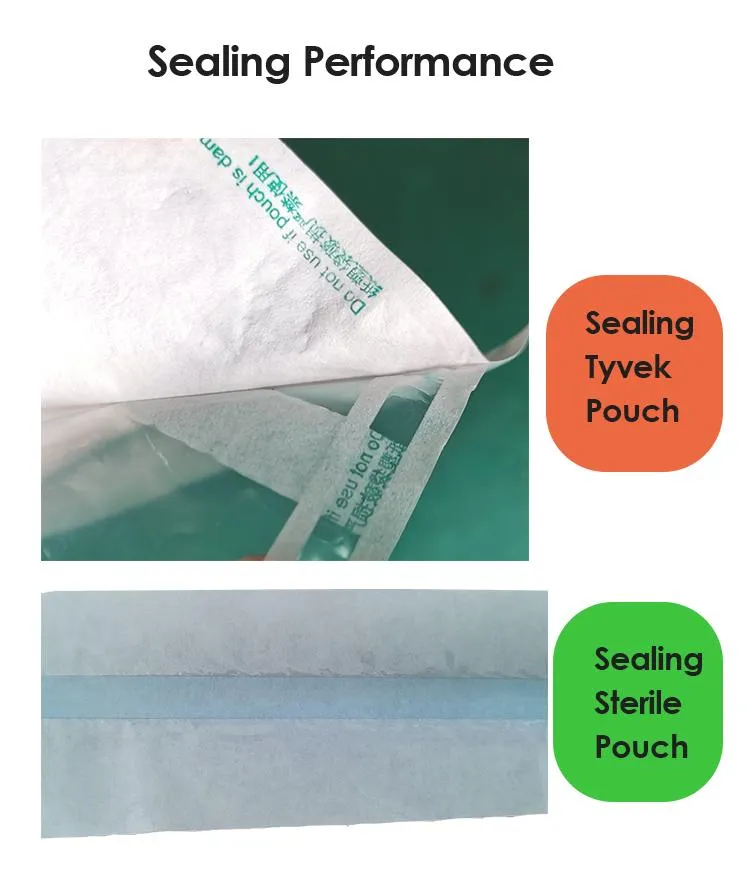

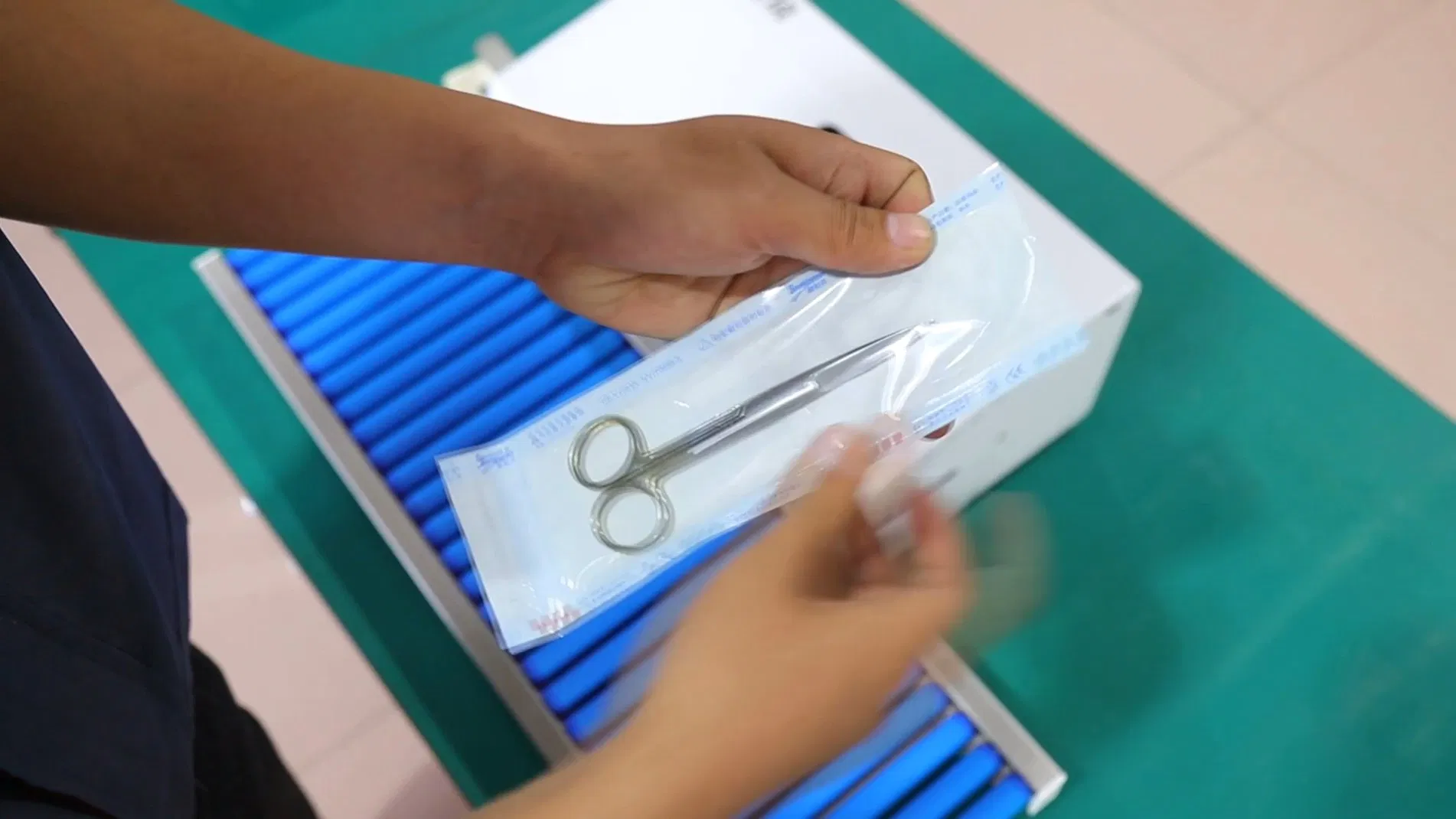

Sealing Sample
Machine Detail 1
Machine Detail 2
Control Panel
Rear View

Technical Specifications

Parameter Specification Details
ModelHCRseal-30
Manipulation PatternAutomatic & continuous
Dimension450×230×175 mm
Weight11kg
Rated Power400W
Housing MaterialCoated carbon steel
Temperature RangeMax. 220°C
Heating Rate180°C/40s
Seal Width12 mm
Sealing Speed≥ 10m/min
Distance from Edge0~40 mm
Screen Size7" color touch screen
Printing SystemDot-matrix printing (single line)

Frequently Asked Questions

What materials can this machine seal?

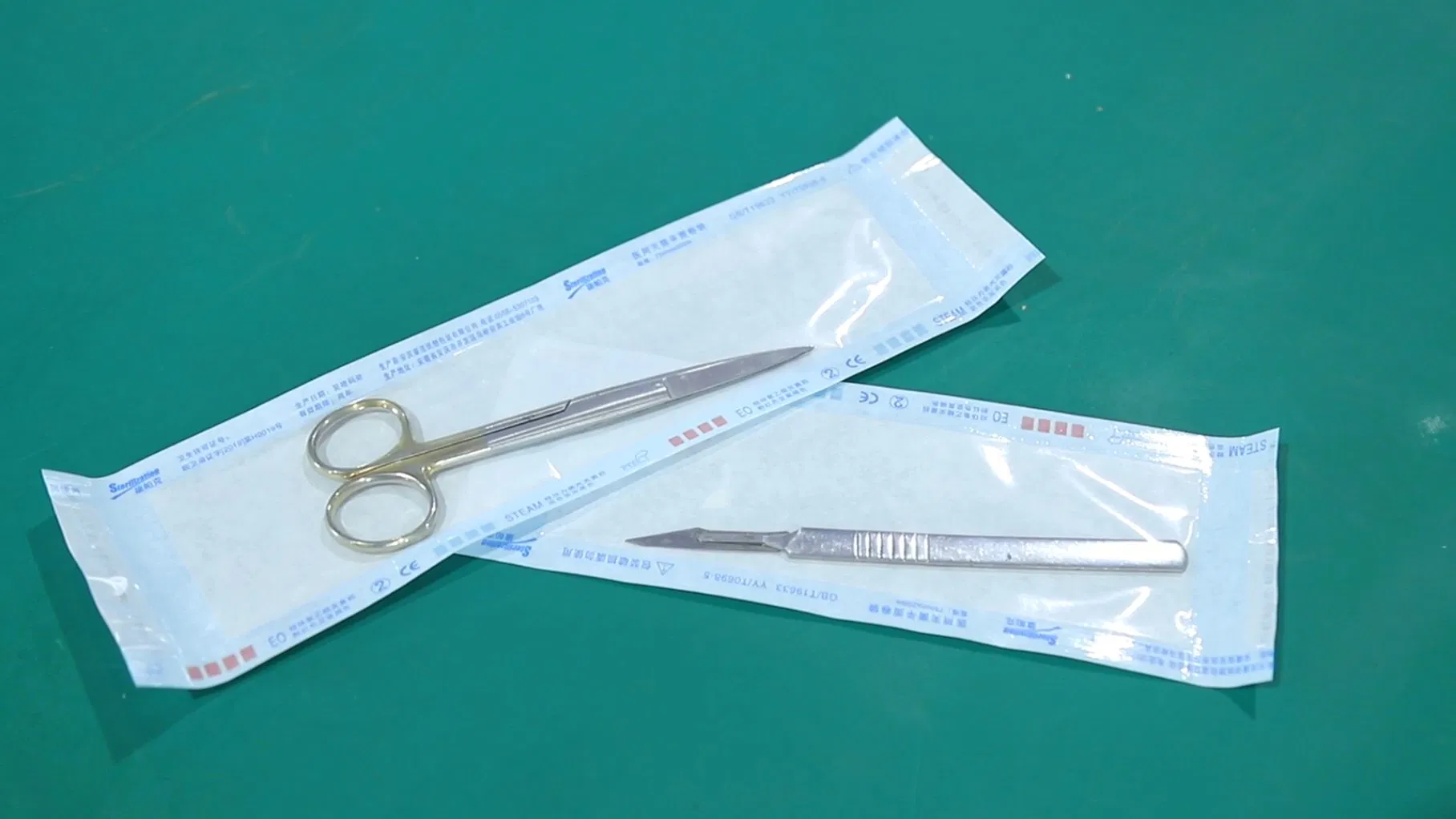

The HCRseal-30 is designed for paper-plastic pouches and is specifically capable of sealing Tyvek pouches, making it ideal for medical and dental clinic use.
How fast is the sealing process?
The machine offers a continuous sealing speed of 10 meters per minute, which significantly improves efficiency for high-volume sterilization tasks.
What information can the built-in printer record?

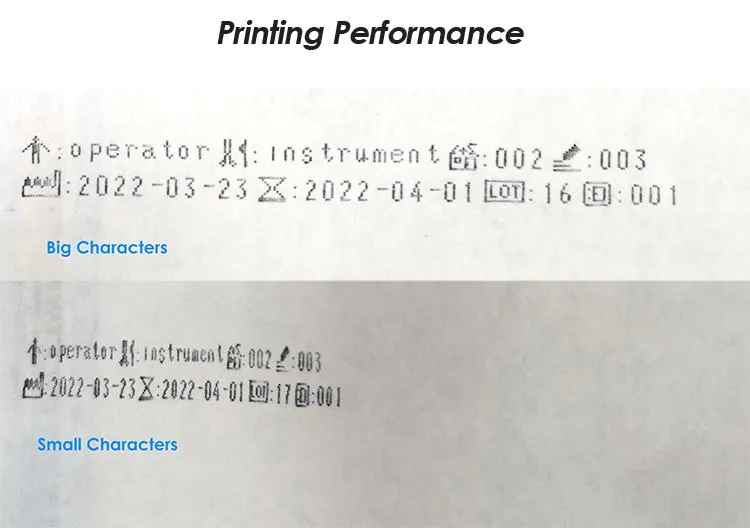

The integrated dot-matrix printer can print essential tracking information directly on the pouch, including manufacturing date, expiry date, lot number, and operator identity.
Is the temperature control accurate?
Yes, the machine features microprocessor-based temperature control with a tolerance of only ±1%, ensuring consistent seal quality up to 220°C.
Does this machine meet international medical standards?
Yes, the HCRseal-30 fully conforms to ISO 11607 and EN 868-5 standards for medical packaging sterilization.
How does the automatic in-feed work?
The machine is equipped with an optic sensor that detects the pouch and automatically starts the feeding and sealing process for hands-free operation.
