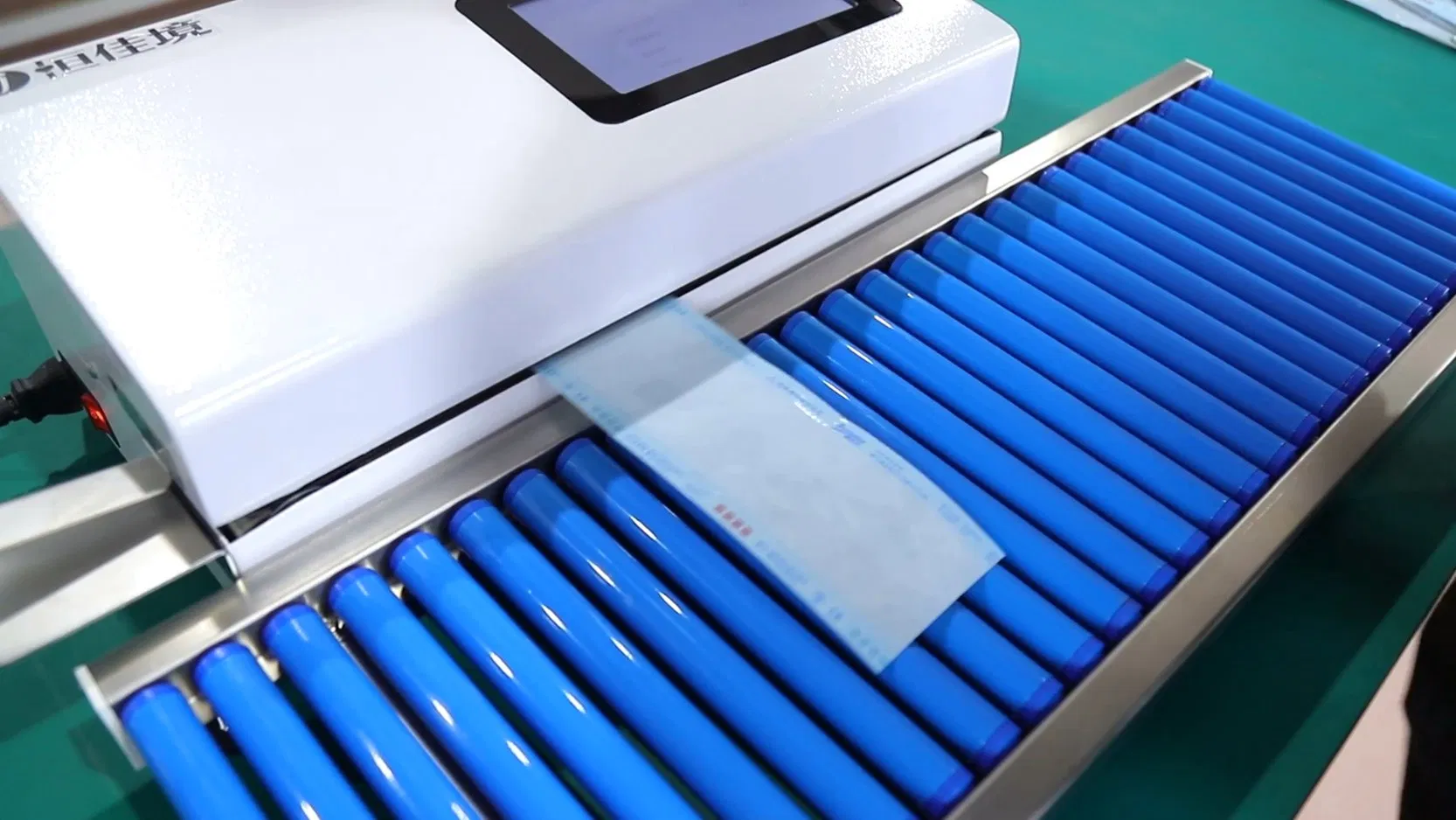

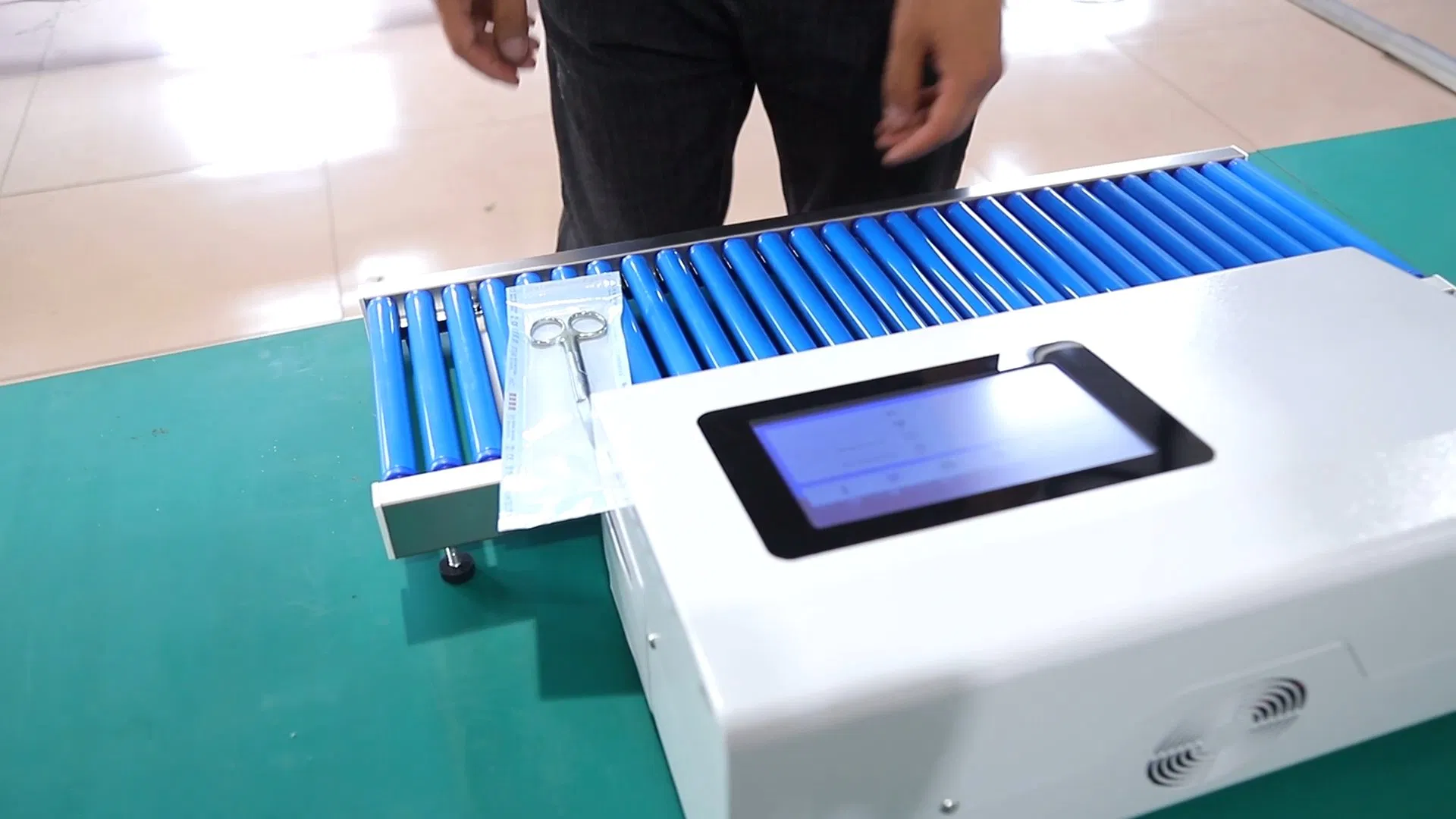

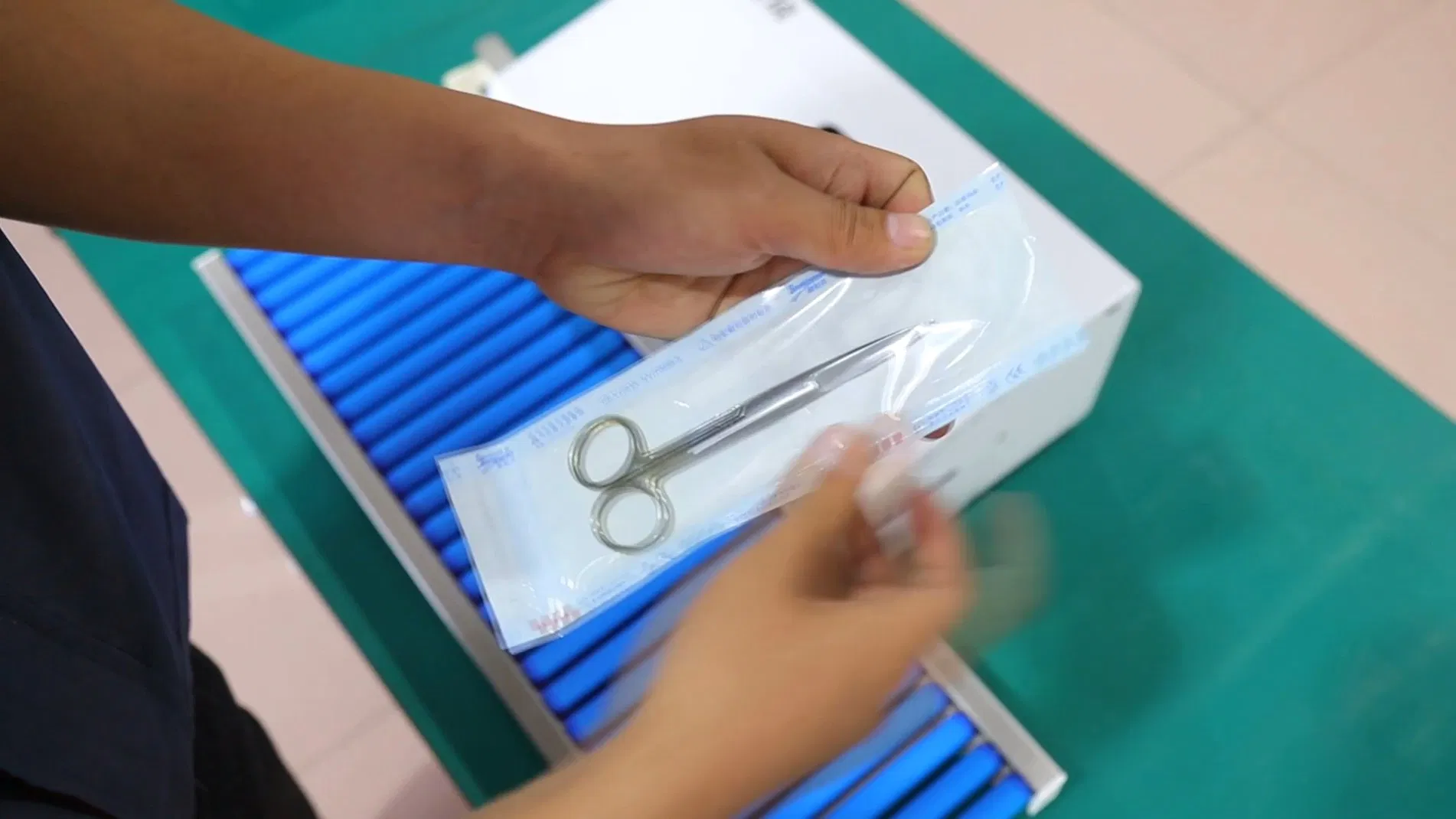

ISO11607 Cssd Tyvek Medical Pouches Sealing Speed 10m/Min Printer Continuous Automatic Medical Sealing Machine
ISO11607 Cssd Tyvek Medical Pouches Sealing Speed 10m/Min Printer Continuous Automatic Medical Sealing Machine
ISO11607 Cssd Tyvek Medical Pouches Sealing Speed 10m/Min Printer Continuous Automatic Medical Sealing Machine
ISO11607 Cssd Tyvek Medical Pouches Sealing Speed 10m/Min Printer Continuous Automatic Medical Sealing Machine
ISO11607 Cssd Tyvek Medical Pouches Sealing Speed 10m/Min Printer Continuous Automatic Medical Sealing Machine
1 / 5
ISO11607 Cssd Tyvek Medical Pouches Sealing Speed 10m/Min Printer Continuous Automatic Medical Sealing Machine
ISO11607 Cssd Tyvek Medical Pouches Sealing Speed 10m/Min Printer Continuous Automatic Medical Sealing Machine
ISO11607 Cssd Tyvek Medical Pouches Sealing Speed 10m/Min Printer Continuous Automatic Medical Sealing Machine
ISO11607 Cssd Tyvek Medical Pouches Sealing Speed 10m/Min Printer Continuous Automatic Medical Sealing Machine
ISO11607 Cssd Tyvek Medical Pouches Sealing Speed 10m/Min Printer Continuous Automatic Medical Sealing Machine

ISO11607 Cssd Tyvek Medical Pouches Sealing Speed 10m/Min Printer Continuous Automatic Medical Sealing Machine

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.HCRseal-30
PackagingCartons
Automatic GradeAutomatic
ApplicationPaper & Plastic
TypeSealing Machine
Power400W
Temperature~220°C
Sealing Speed10m/Min
Weight6kg / 11kg
Screen7-Inch Color Screen
ShellCoated Carbon Steel
OriginChina
★

Features & Highlights

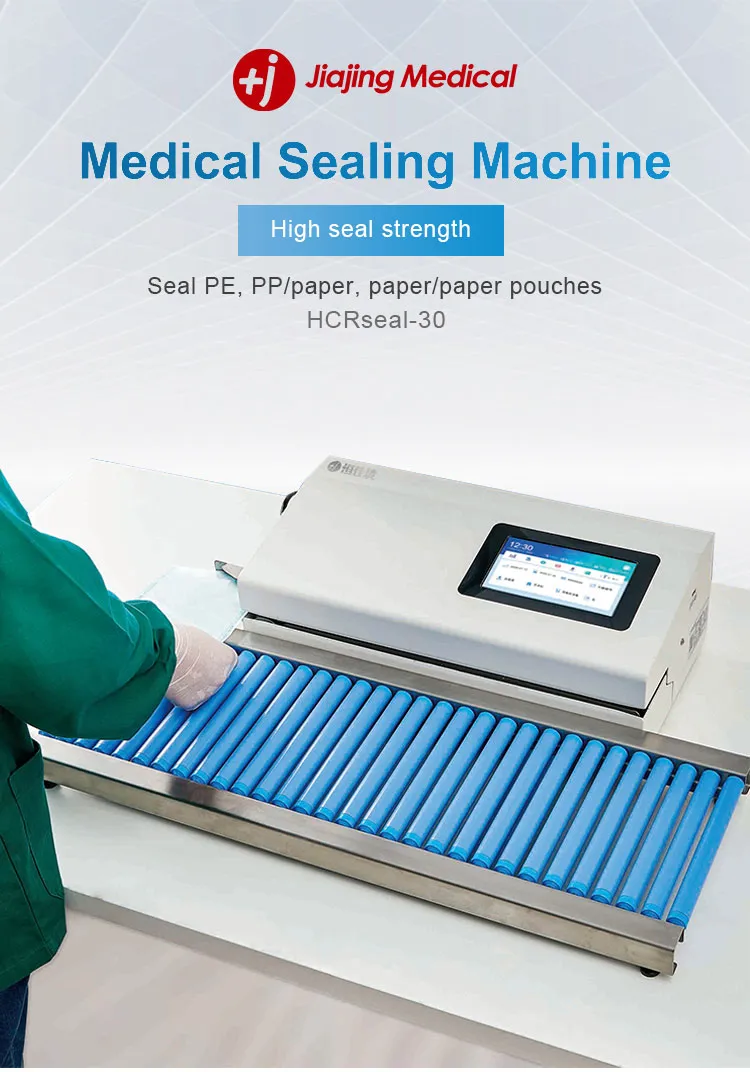

Medical Sealing Machine
  • Built-in dot matrix printer: Prints manufacturing date, expiry date, operator info, etc.
  • Microprocessor temperature control for high precision.
  • Versatile Compatibility: Tyvek pouches can be sealed effectively.
  • 7" color touch screen displays temperature and parameters intuitively.
  • Temperature tolerance: ±1%.
  • Automatic in-feed equipped with an optic sensor.
  • Adjustable temperature settings up to 220°C.
  • High-speed operation: 10m/min sealing speed.
  • Adjustable seal distance from the edge for various pouch sizes.
  • Automatic standby mode to prolong the lifespan of machine elements.
  • Full compliance with ISO 11607 and EN 868-5 standards.
  • Compact design: Lightweight (11kg) and small footprint (450×230×175 mm).
Print vital information such as manufacturing date, expiry date, lot number, and operator details directly on the pouch to facilitate sterilization operations.
📋

Technical Specifications

Product Specifications
ModelHCRseal-30
Manipulation PatternAutomatic & continuous
Dimension450×230×175 mm
Weight11kg
Rated Power400W
Housing MaterialCoated carbon steel
Temperature RangeMax. 220°C
Heating Rate180°C / 40s
Seal Width12 mm
Sealing Speed≥ 10m/min
Distance from Edge0~40 mm
Screen Size7" color touch screen
Operation SystemBuilt-in OS
Pressure MonitoringSupported (√)
Printing SystemDot-matrix printing (single line)
📷

Product Display

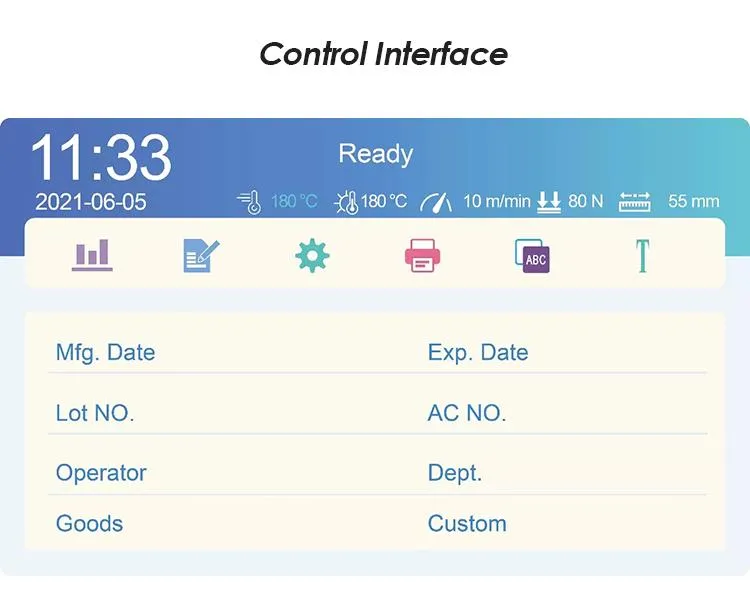

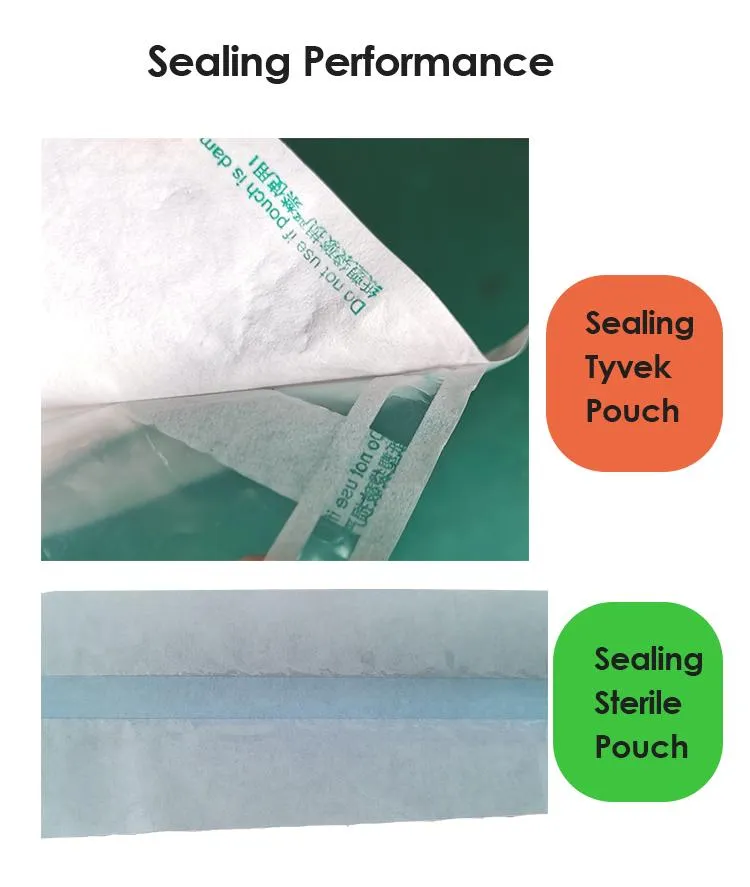

Display 1 Display 2 Display 3

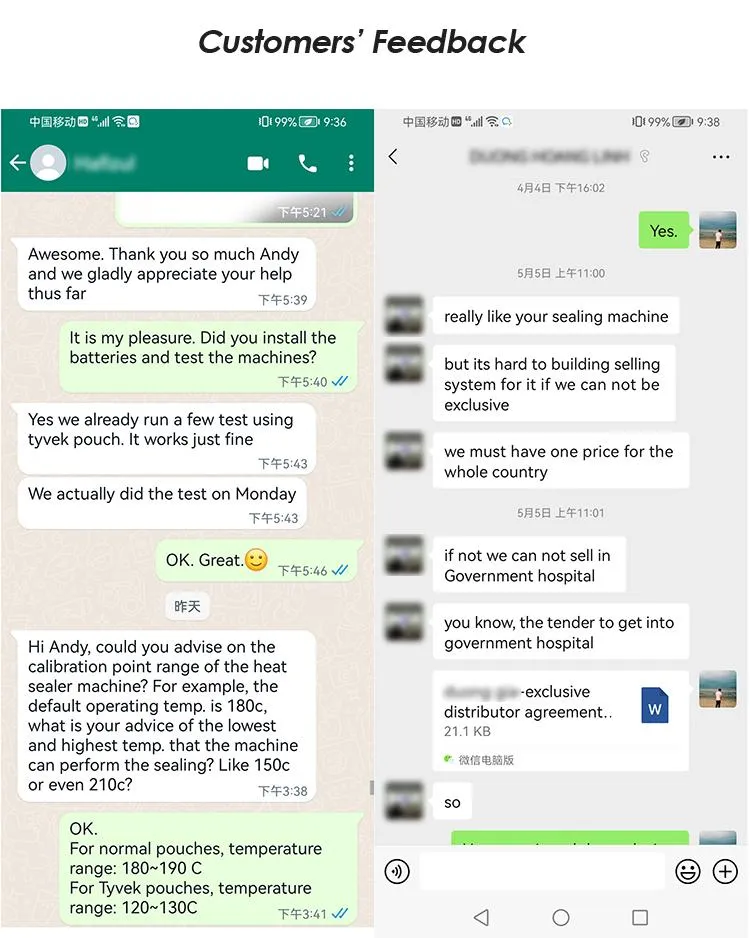

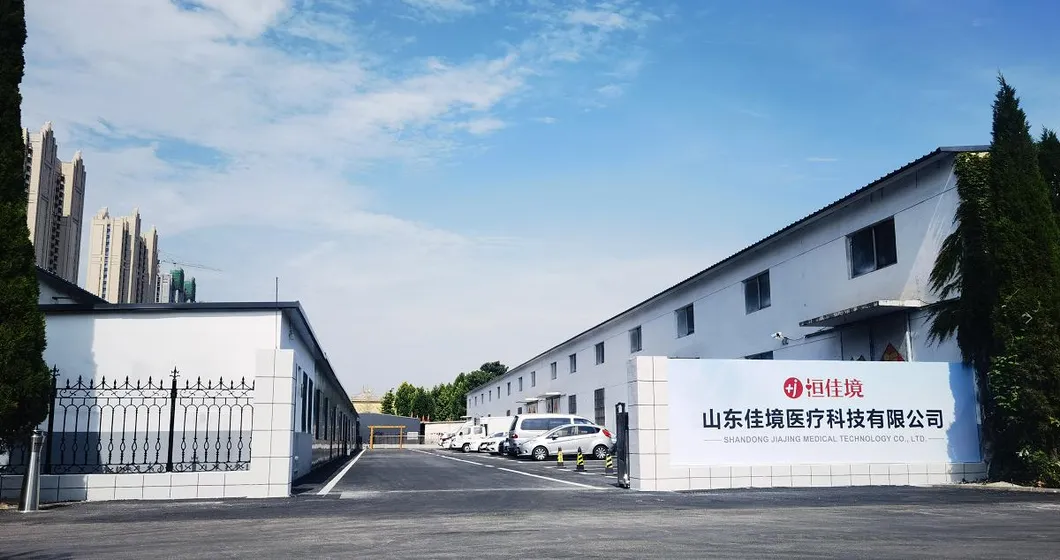

Display 4 Display 5 Display 6
?

Frequently Asked Questions

Q1: Can this machine seal Tyvek medical pouches? Yes, the HCRseal-30 is specifically designed to handle Tyvek pouches as well as standard paper and plastic medical packaging.
Q2: What information can the built-in printer generate? The built-in dot matrix printer can print the manufacturing date, expiry date, lot number, and operator identification directly onto the pouch.
Q3: How fast is the sealing process? The machine offers an automatic and continuous sealing speed of approximately 10 meters per minute.
Q4: Is the sealing temperature adjustable? Yes, the temperature is controlled by a microprocessor and can be adjusted up to a maximum of 220°C with a tolerance of ±1%.
Q5: Does it comply with international medical standards? Yes, the machine conforms to ISO 11607 and EN 868-5 standards for medical packaging.
Q6: What are the main benefits of the 7-inch color screen? The touch screen allows for intuitive operation, real-time temperature monitoring, and easy adjustment of sealing parameters.
