Basic Information
| Model NO. | PVC Bag Sealing Automatic High Frequency Welding |
| Voltage | 380V |
| Seals Mode | Trilateral Seals |
| Speed | High |
| Continuous-Rolled | Yes |
| Sealing & Cutting | Heat-Sealing Heat-Cutting |
| Layer | Double |
| Machine Type | Bag Forming Machine |
| Computerized | Computerized |
| Type | Plastic Bag Making Machine |
| Machine | High Frequency Welding Machine |
| Welding | PVC Bag Sealing Machine |
| Transport Package | Wooden Case |
Product Description

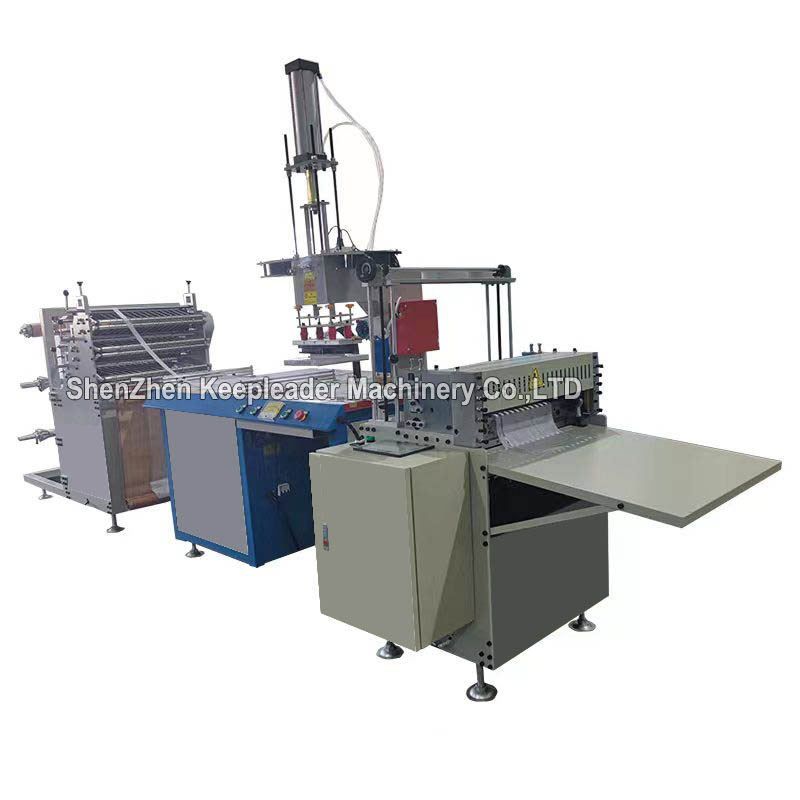

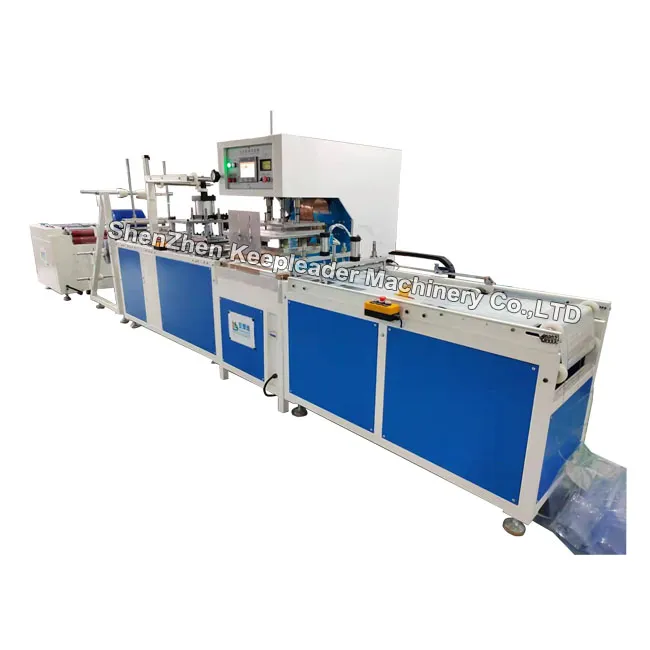

The PVC Bag Sealing Automatic High Frequency Welding Machine belongs to the high-frequency equipment designed for automatic PVC bag production from film rolls. By utilizing an electronic oscillation tube, the machine produces high-frequency electromagnetic fields. Processing PVC film between the upper and lower electrodes in an automatic motorized roll material feeding system, it exerts a precise process of cutting, welding, and edge trimming.
Technology Principle: The internal friction molecules generate heat through polarization and mutual movement under the HF/RF electromagnetic field. Under mold pressure, a seamless welding bond is achieved. Due to the localized heating and pressure, the resulting PVC bags offer exceptional tear resistance and a clean appearance.
Technical Parameters
| Model | KLR-8000G |
| HF Power | 8000w |
| Voltage | 380v, 3p, 50/60HZ |
| Installed Power | 10KVA |
| Electrode Size | 500*700mm |
| Temperature Range | 30~200℃ adjustable |
| Welding Time | 0~10s adjustable |
| Productivity | ≤ 6500 times / 8h |
| Frequency | 27.12MHZ ± 0.6% |
| Anti-spark System | NL-5557 |
| Press Operation | Pneumatic |
| Available Materials | PVC, PEVA, APET, GAG, TPR, MPE, EVA, PET, TPU, PU |
Key Characters & Features
- Simultaneous welding and cutting process
- Automatic roll material feeding and edge trimming
- PLC and HMI touch screen operation for ease of use
- High sensitivity 5557 anti-spark device for mold protection
- Servo-motor automated feeding system for compact footprint
- European model square high frequency vibration barrel
- Support for quick-change welding molds for versatile shapes
- High frequency stabilizer and interference shielding enclosure
Detailed Photos

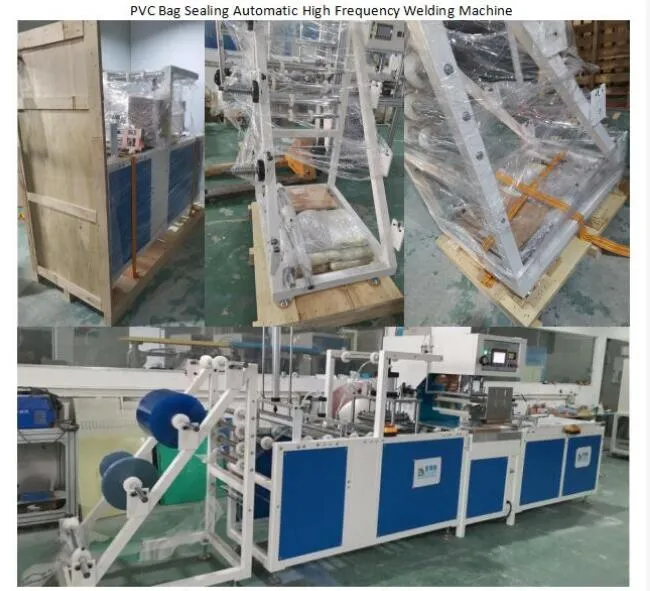

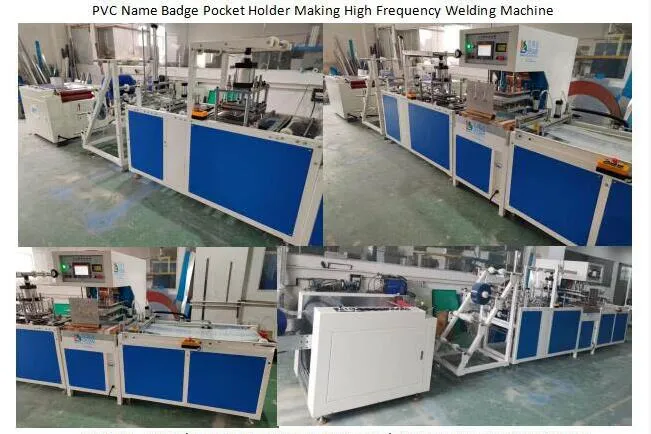

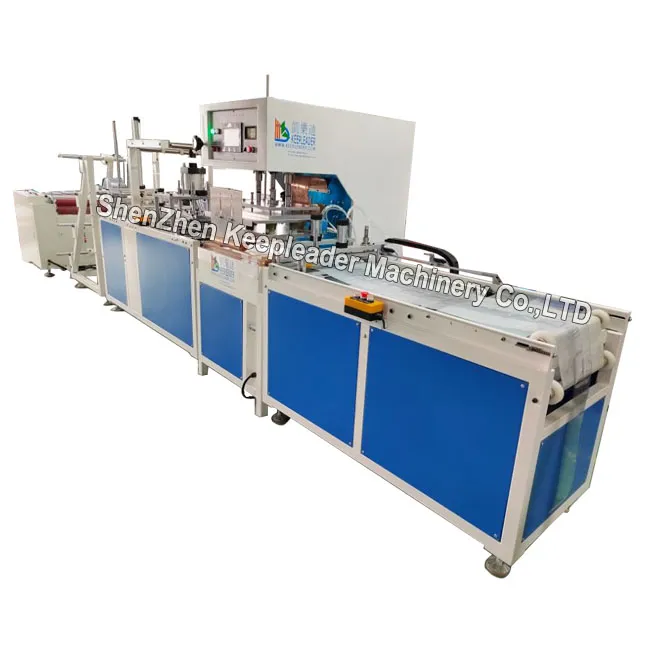

The machine configuration includes units for automatic transferring, flattening, punching, high-frequency sealing, and a collecting system for a fully integrated production line.
Machine Uses & Applications

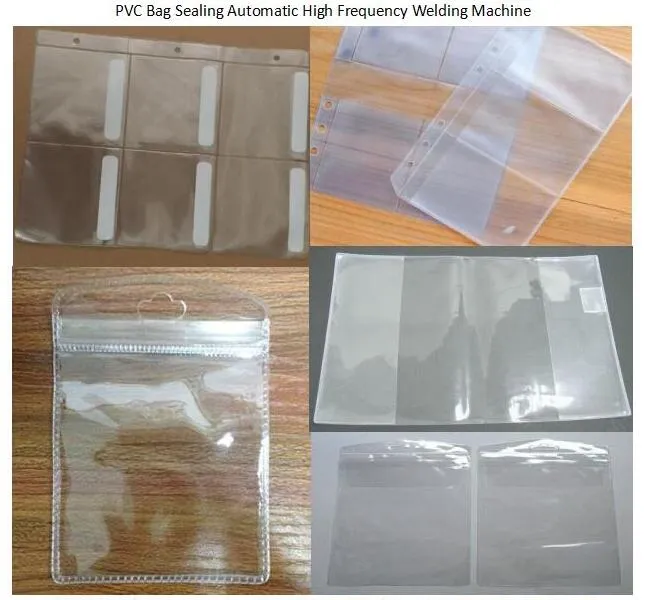

This high-frequency welding machine is widely used for medical bags, urine bags, blood bags, and various shaped lamination seam sealing bags. It is compatible with materials including polyurethane, PVC, and polymers like PET, EVA, and some ABS.
Frequently Asked Questions
1. What materials are suitable for this high frequency welding machine?
The machine is designed for thermoplastic materials such as PVC, PU, EVA, PETG, APET, and various laminated films commonly used in medical and industrial bag making.
2. Can the machine handle welding and cutting at the same time?
Yes, the equipment is designed to perform high frequency welding and edge trimming/cutting simultaneously, which ensures a clean finish and higher efficiency.
3. How does the anti-spark system protect the machine?
It utilizes a high-sensitivity NL-5557 anti-spark device that detects sparks instantly and cuts off the high-frequency power to prevent damage to the welding mold and the material.
4. Is the feeding system fully automatic?
Yes, the machine features a servo-motor automated feeding system that manages roll materials through the flattening, punching, and sealing stages automatically.
5. Is the welding temperature adjustable?
The machine allows for adjustable welding times and can include mold heating functions to ensure the melting process is optimized for different material thicknesses.
6. What type of control system does the machine use?
It is equipped with a PLC and HMI (Human Machine Interface) touch screen, which makes the operation simple, time-saving, and highly precise.
