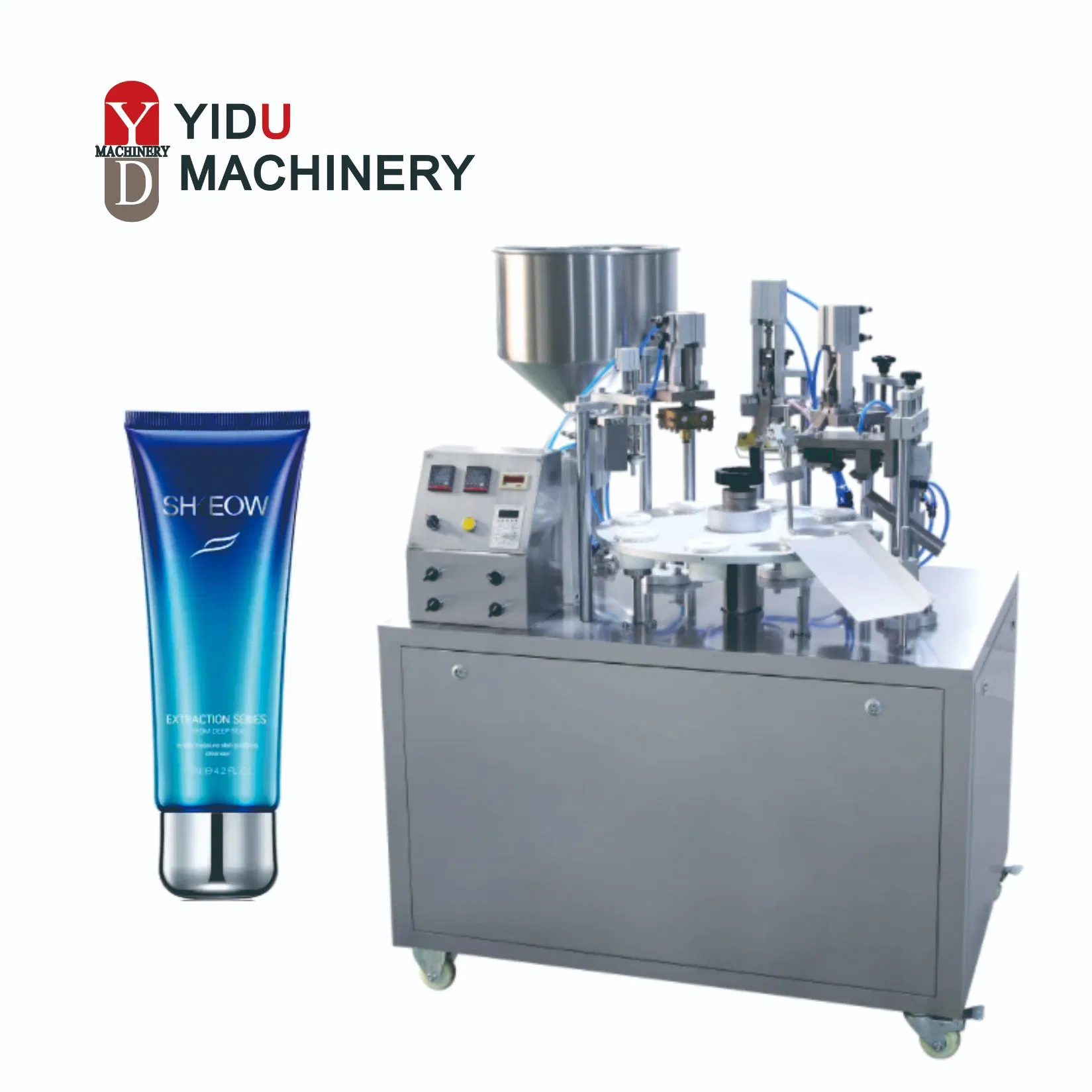

Semi Automatic Medical Tube Cream Lotion Toothpaste Plastic Tube Cosmetic Cream Filling and Sealing Machine for Tube Sealer
Semi Automatic Medical Tube Cream Lotion Toothpaste Plastic Tube Cosmetic Cream Filling and Sealing Machine for Tube Sealer
Semi Automatic Medical Tube Cream Lotion Toothpaste Plastic Tube Cosmetic Cream Filling and Sealing Machine for Tube Sealer
Semi Automatic Medical Tube Cream Lotion Toothpaste Plastic Tube Cosmetic Cream Filling and Sealing Machine for Tube Sealer
Semi Automatic Medical Tube Cream Lotion Toothpaste Plastic Tube Cosmetic Cream Filling and Sealing Machine for Tube Sealer
1 / 5
Semi Automatic Medical Tube Cream Lotion Toothpaste Plastic Tube Cosmetic Cream Filling and Sealing Machine for Tube Sealer
Semi Automatic Medical Tube Cream Lotion Toothpaste Plastic Tube Cosmetic Cream Filling and Sealing Machine for Tube Sealer
Semi Automatic Medical Tube Cream Lotion Toothpaste Plastic Tube Cosmetic Cream Filling and Sealing Machine for Tube Sealer
Semi Automatic Medical Tube Cream Lotion Toothpaste Plastic Tube Cosmetic Cream Filling and Sealing Machine for Tube Sealer
Semi Automatic Medical Tube Cream Lotion Toothpaste Plastic Tube Cosmetic Cream Filling and Sealing Machine for Tube Sealer

Semi Automatic Medical Tube Cream Lotion Toothpaste Plastic Tube Cosmetic Cream Filling and Sealing Machine for Tube Sealer

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Info

Type
Piston Filling Machine
Automatic Grade
Automatic
Material Type
Paste
Filling Valve Head
Multi-Head
Feed Cylinder Structure
Multi-Room Feeding
Dosing Device
Rotor
Filling Principle
Pressure
Packaging Container Lifting
Pneumatic Lifting
Structure
Rotary
Packaging Material
Plastic
Transport Package
Plywood Case Packing
Production Capacity
100 Set/ Year
HS Code
8422303090

Application

It adopts with PLC controller, automatically operating from liquid or high velocity material filling till batch number printing (include manufacture date). It's an ideal equipment for ALU tube, plastic tube and multiple tube filling and sealing in cosmetic, pharmacy, foodstuff, adhesives etc industries.

Key Features

  • ✓ The transmission part is closed below the platform, safe, reliable and pollution-free.

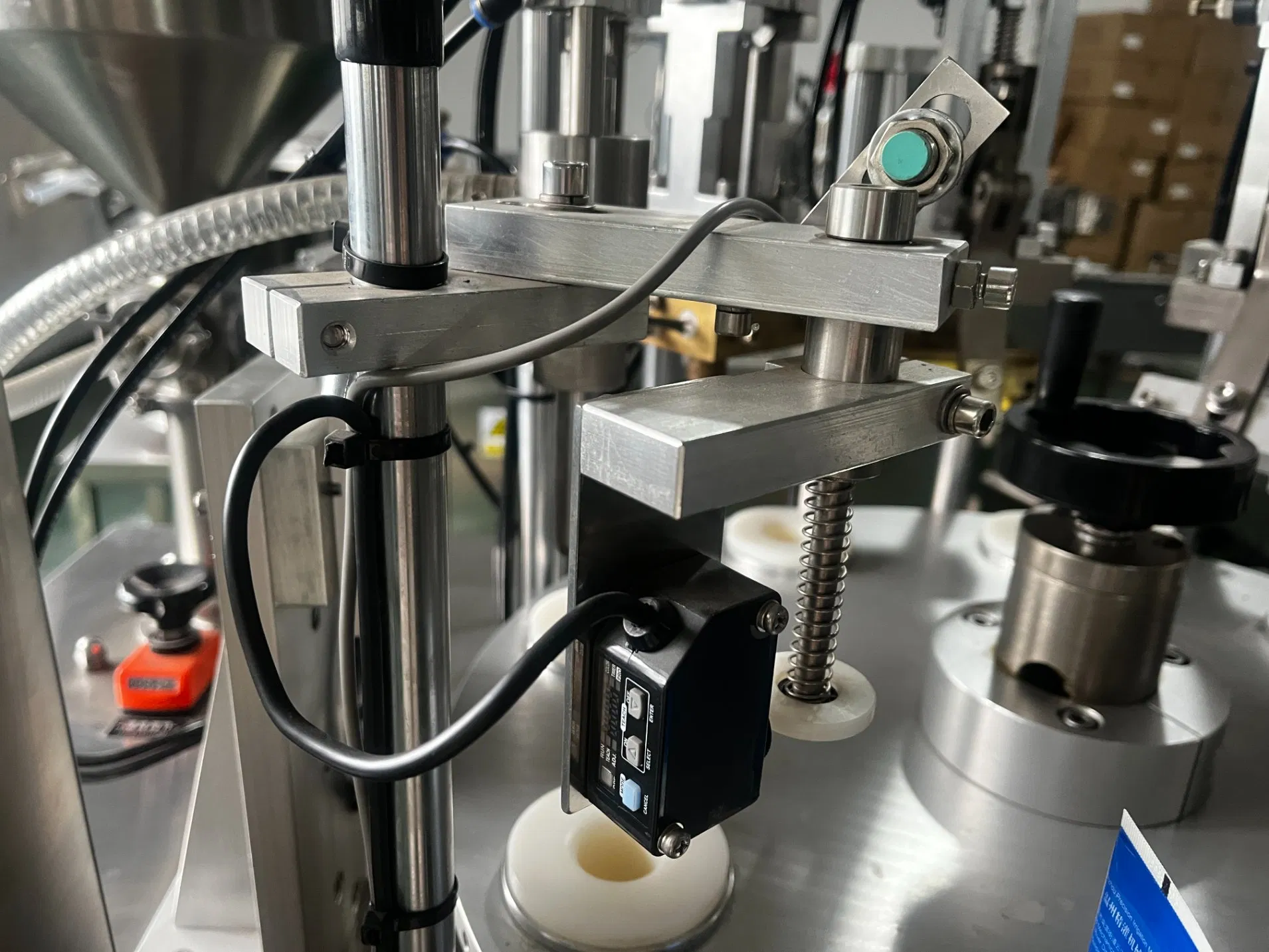

  • ✓ Manual tube loading, photoelectric benchmarking workstation for automatic benchmarking, using high-precision color mark detectors and stepping motors to control pattern position.
  • ✓ Filling nozzles determined by material characteristics; types include blow-off, cut-off, and combined blow-cut types.
  • ✓ Equipped with a photoelectric detection device to ensure "no tube, no filling."

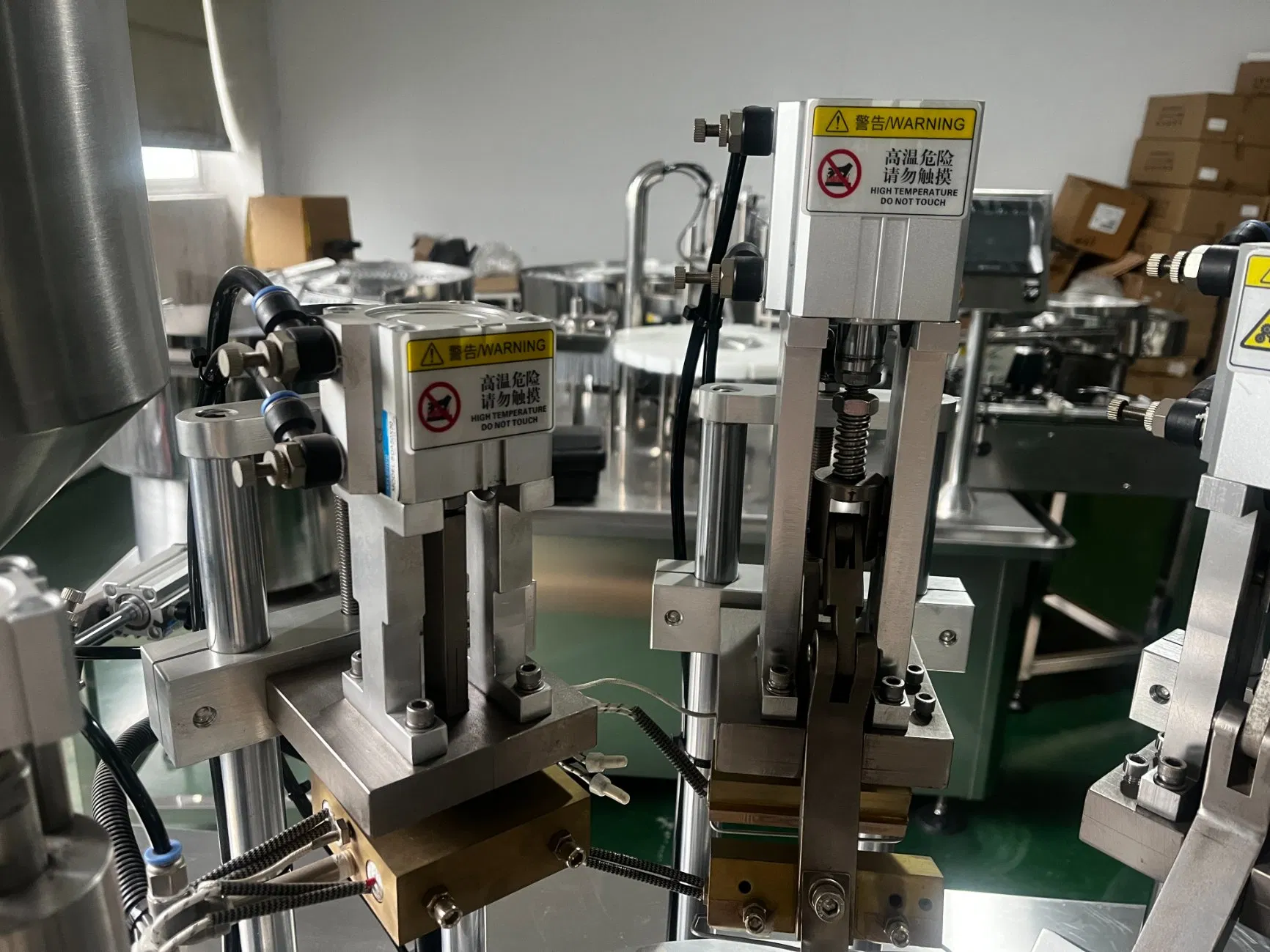

  • ✓ Compressing and forming printing code station; the manipulator automatically seals and prints the code as required.

Product Specifications

Tube Filling Machine
ModelNF-60A
Tube MaterialAluminum/ plastic tube, laminated tube
Speed20-30/min
Filling Volume0-250ml
Filling Accuracy≤±1%
Tube Length50-210mm (customizable)
Tube DiameterΦ13mm-Φ50mm
Overall Dimension1100x800x1600mm
Weight300kg
Noise Indicators≤75dBA

Detailed Photos

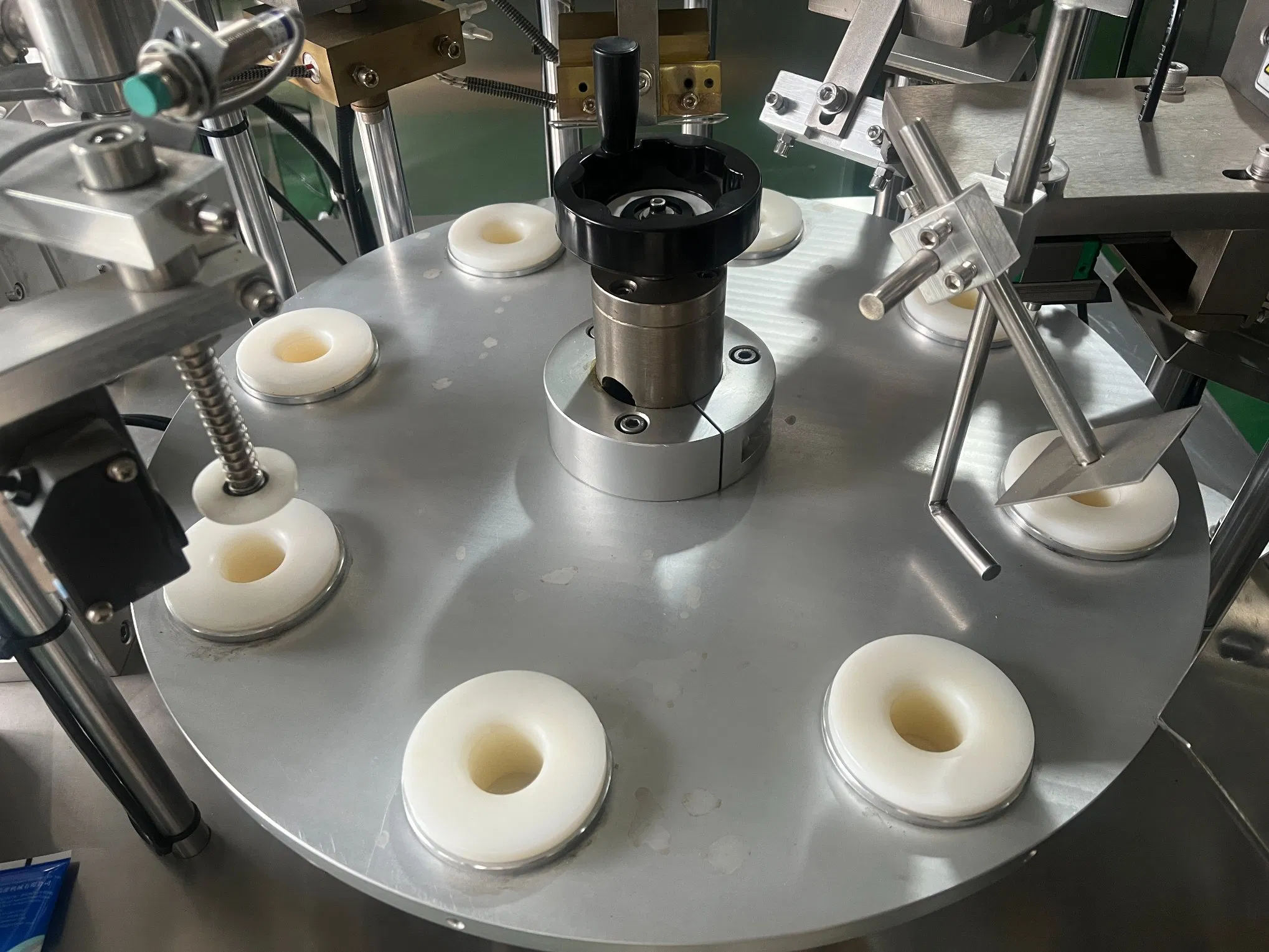

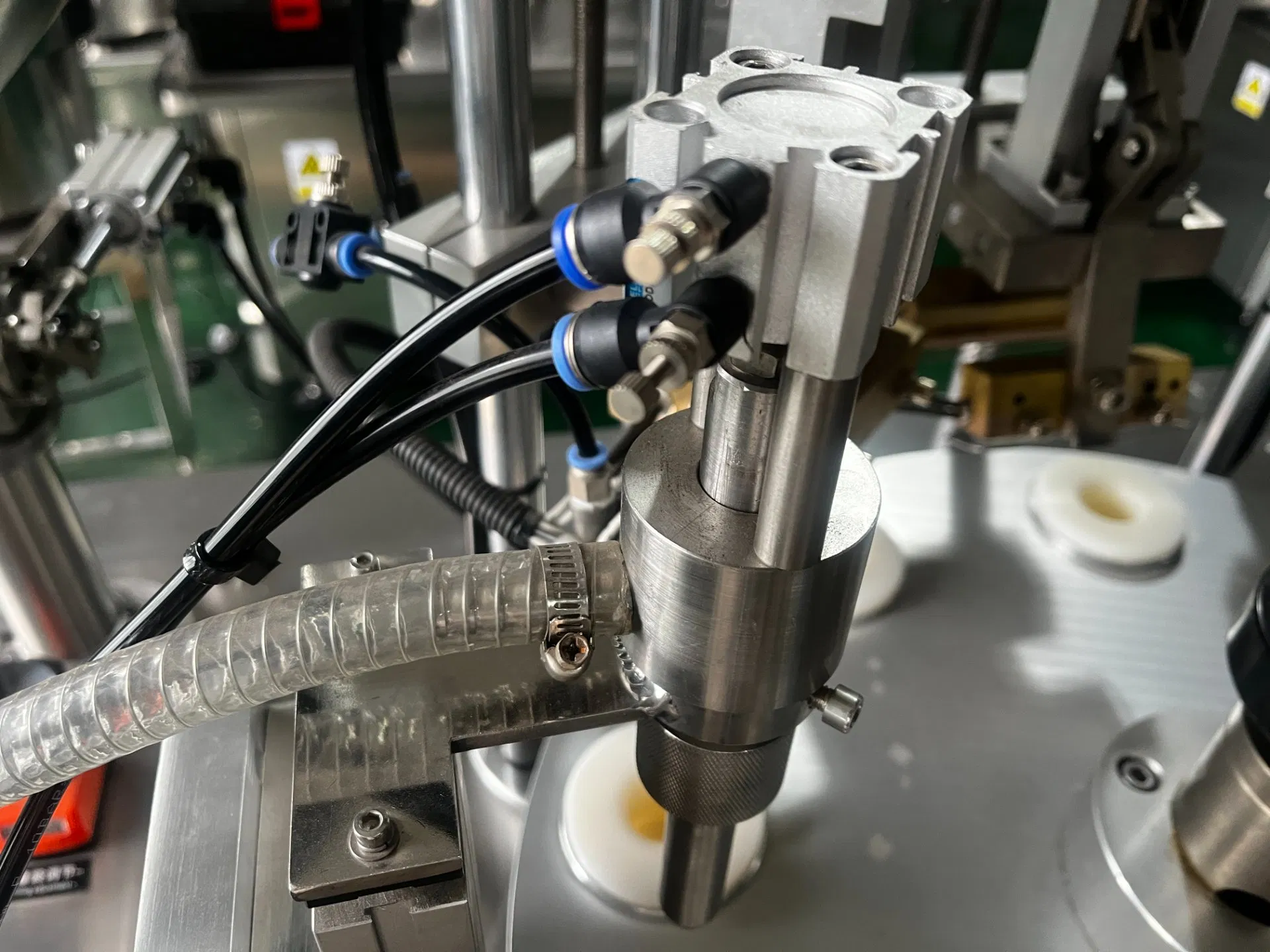

Detail 1
Detail 2
Detail 3

Product Samples

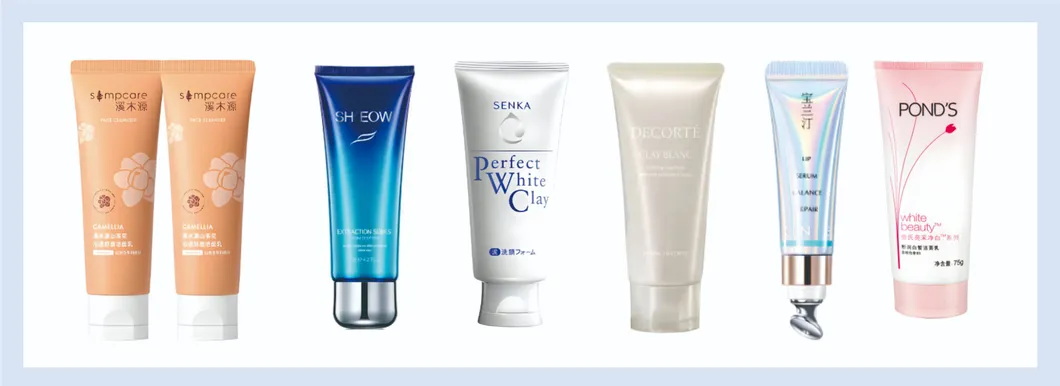

Samples

Packing & Shipping

Packing

Inner Packing: Machines are wrapped with plastic film for protection.

Outer Packaging: Standard wooden case packaging for exporting.

Loading: Professional loading by forklift.

Ports: Ningbo / Shanghai Port.

Our Advantages & Certification

Advantage 1
Advantage 2
Certification

Frequently Asked Questions

What types of tubes can this machine process?
The machine is compatible with aluminum tubes, plastic tubes, and laminated tubes.
What is the production speed of the NF-60A model?
The filling and sealing speed is approximately 20 to 30 tubes per minute.
How accurate is the filling process?
The machine offers high precision with a filling accuracy of ≤±1%.
Does the machine support batch number printing?
Yes, it includes a printing code station that automatically seals and prints batch numbers or manufacture dates.
Are the filling nozzles customizable?
Yes, we provide different types of nozzles such as blow-off, cut-off, or combined types based on your material's viscosity.
What is the safety design of the transmission part?
The transmission components are fully enclosed below the working platform to ensure safe, pollution-free operation.
