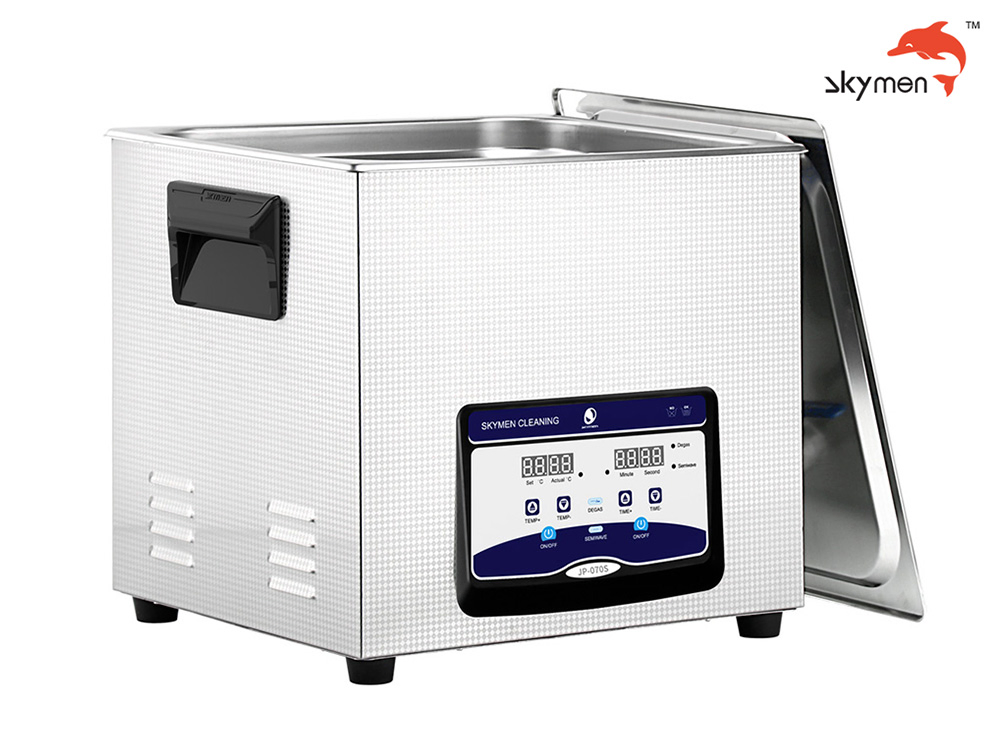

22L Diesel Injection Pumps Medical Instrument 480W Ultrasonic Cleaner Jp-080s

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Information

Model NO.JP-080S
AutomationSemi-automatic
Cleaning PrecisionUltra-Precision Industrial Cleaning
ControlPLC
PrinciplePhysical Cleaning
CertificationCE, RoHS, Reach, FCC
ConditionNew
CustomizedAvailable
FeatureHigh Efficiency
MaterialStainless Steel SUS304
Ultrasonic Power480W
Tank Capacity22L
Heating Power500W
Ultrasonic Frequency40kHz
Transducers8 PCS
Power SupplyAC 110V-240V, 50/60Hz
Warranty1 Year
MOQ1 Piece
Tank Size500*300*150mm
Unit Size585*330*280mm
Production Capacity5000PCS/Month
!

Product Description

Ultrasonic cleaner medical instrument is highly regarded worldwide for its efficiency. It is widely utilized to clean car parts, metal parts, electronic components, and more. The tank size of the ultrasonic cleaning machine can be customized to meet specific requirements.

Why Choose Ultrasonic Cleaning?

Ultrasonic cleaning is the most efficient method for removing contaminants such as grease, oil, wax, fluxes, fingerprints, and oxides from both visible and invisible surfaces, including intricate holes and cracks. Items can be cleaned much faster and more thoroughly than traditional methods, especially complex parts that are otherwise inaccessible.

Function Principle

A high-frequency generator produces 35,000 to 40,000 oscillations per second, transferred into the cleaning solution. This creates a cavitation effect where innumerable microscopic vacuum bubbles develop and implode. The resulting pulses remove dirt particles even in the deepest, least accessible places.
Ultrasonic Principle

Key Features

  • Durable SUS304 Stainless Steel Tank
  • 22L Large Capacity with Drainage
  • Digital Timer (1-30 mins) & Heater Control
  • Industrial Microcontroller Chip for Stability

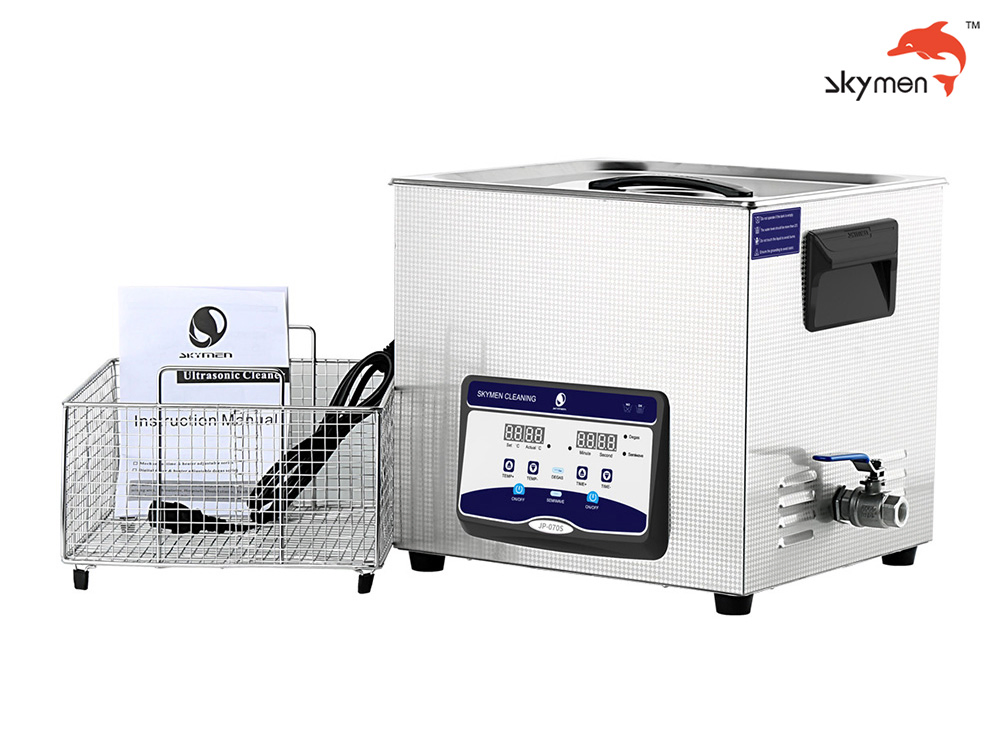

  • Includes Stainless Steel Basket
  • CE, RoHS, FCC, & REACH Certified

Wide Applications

• Diesel injection pumps
• Surgical & Medical equipment
• Dental tools & Lab glassware
• PCB boards & Electronic parts
• Automotive engine components
• Jewelry, Watches & Eyeglasses
• Industrial molds & Precision parts
• Tattoo needles & Equipment
• Carburettors & Fuel injectors
• Hardware & Pressing tools
📷

Product Display

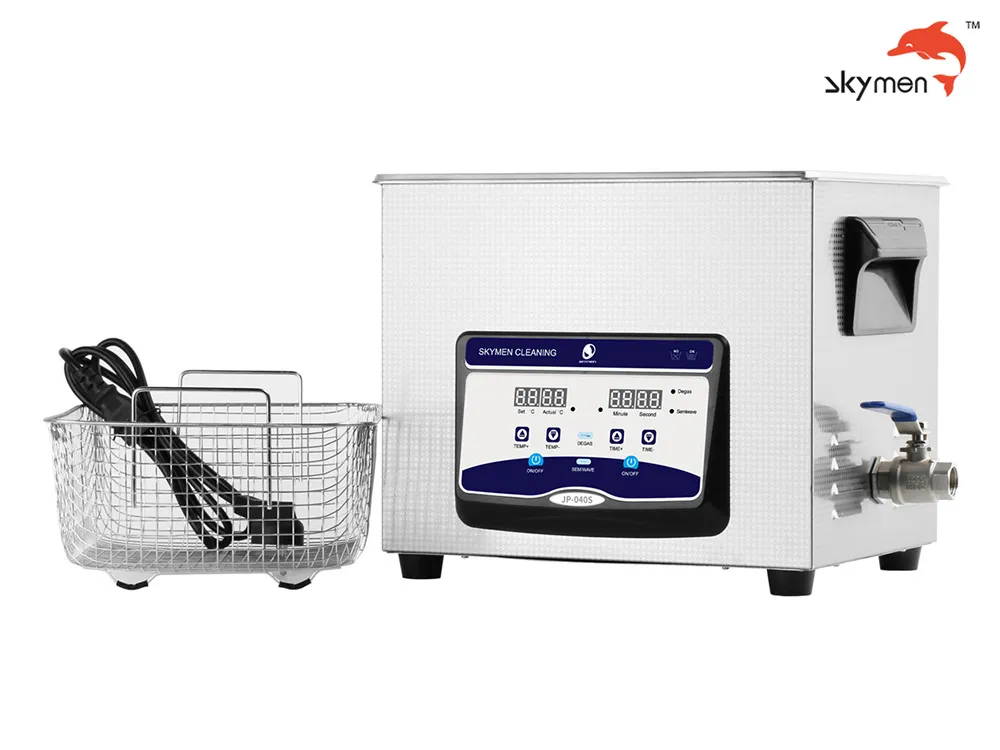

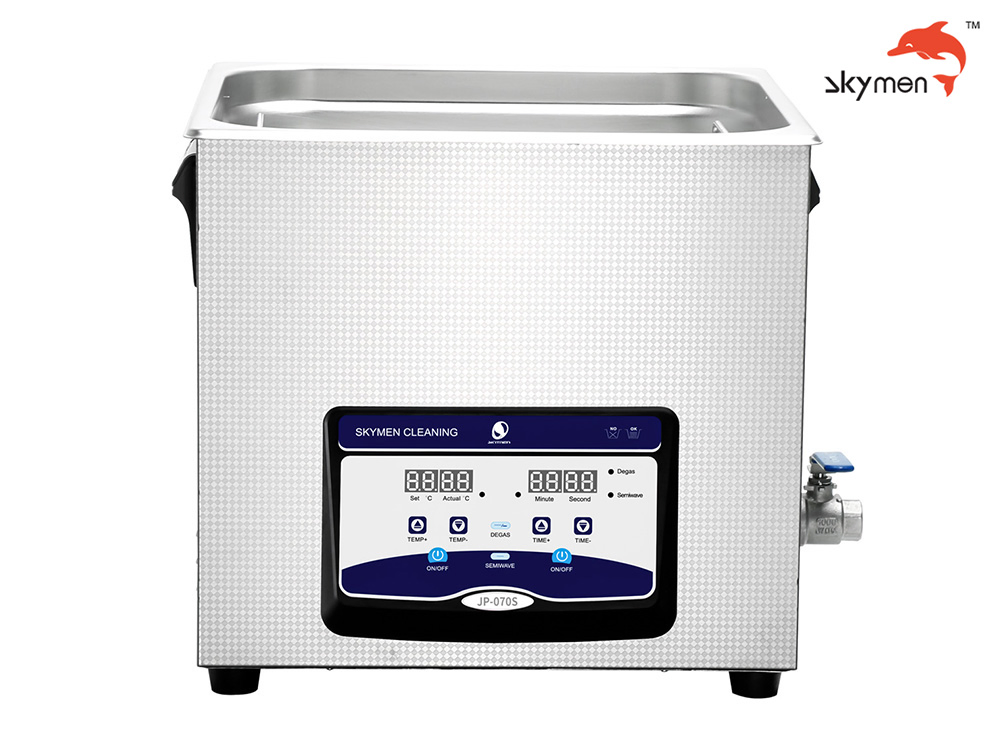

Ultrasonic Cleaner View 1

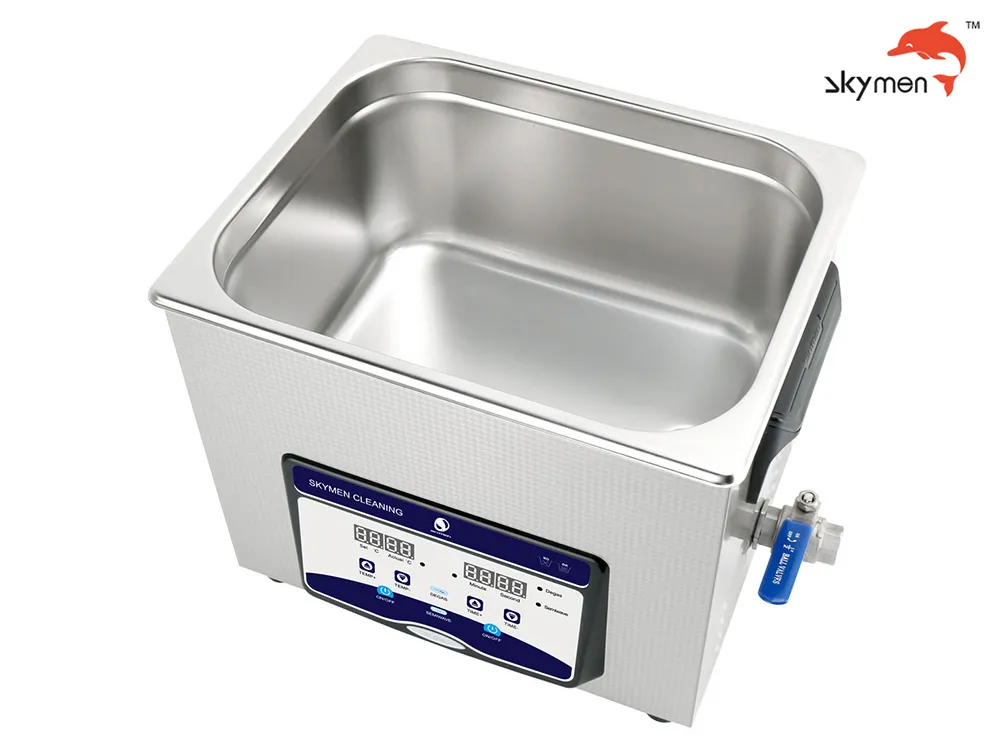

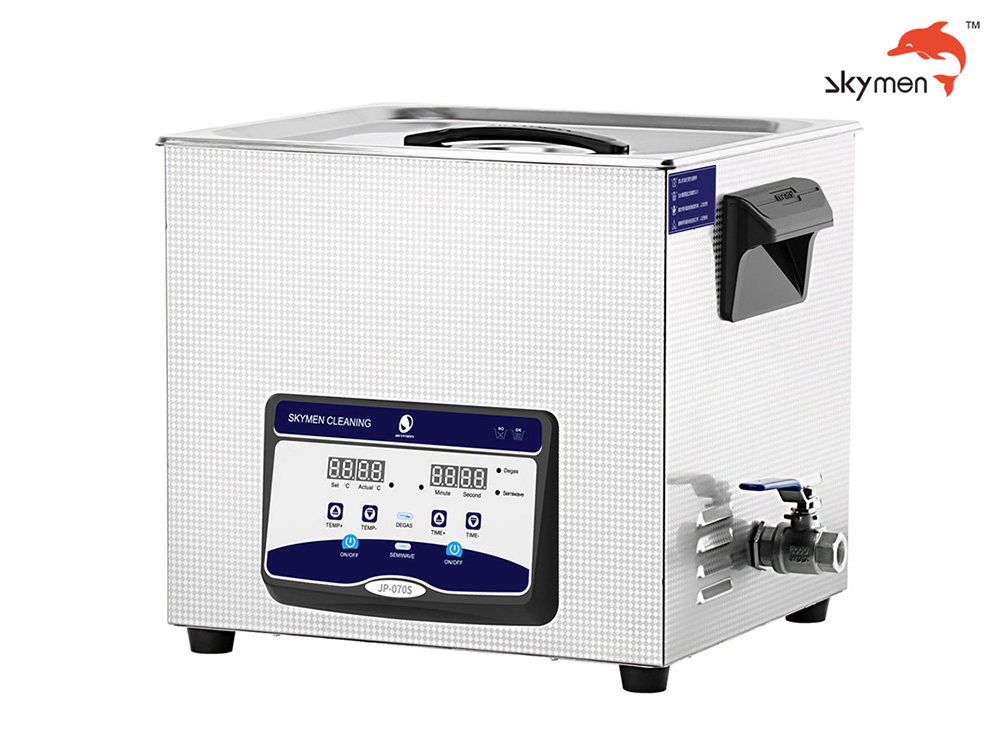

Ultrasonic Cleaner View 2

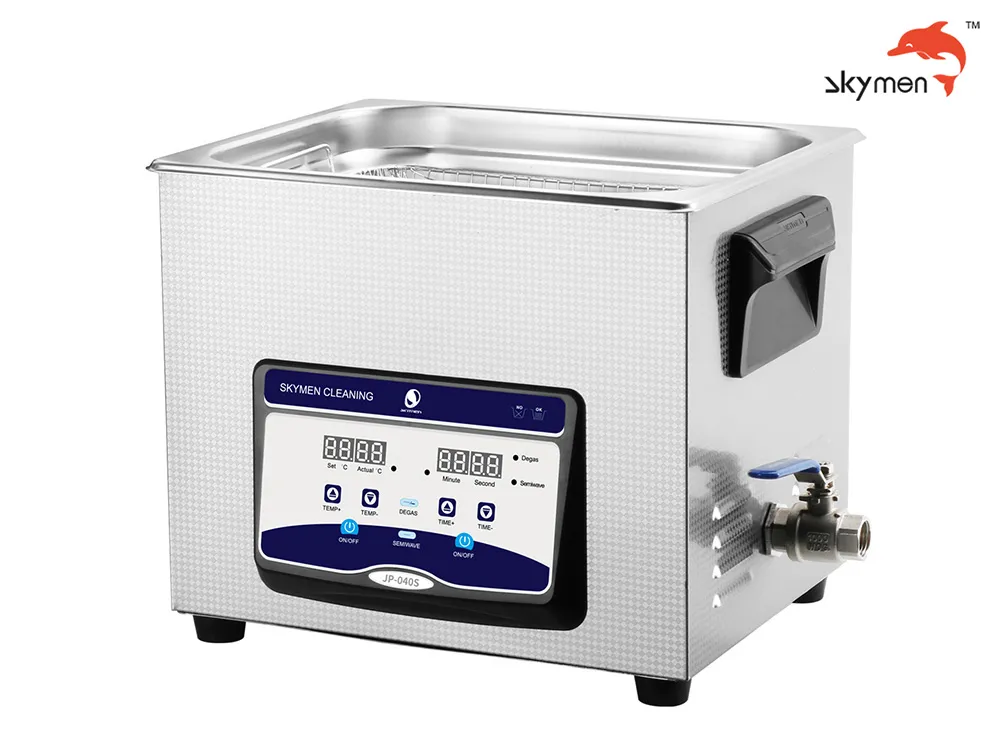

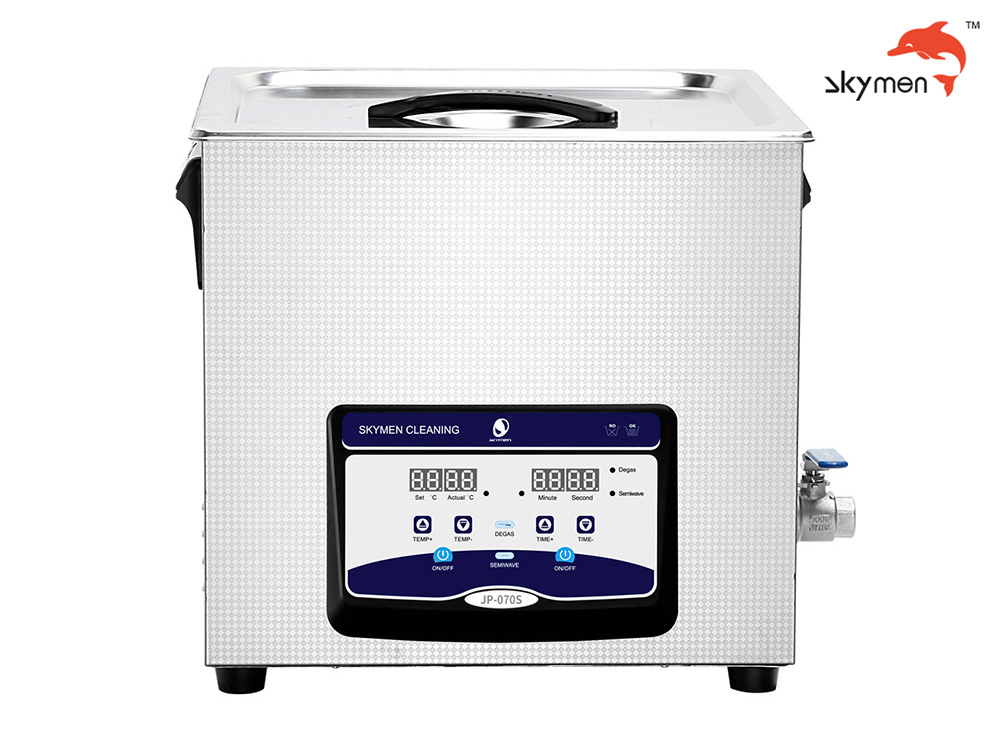

Ultrasonic Cleaner View 3

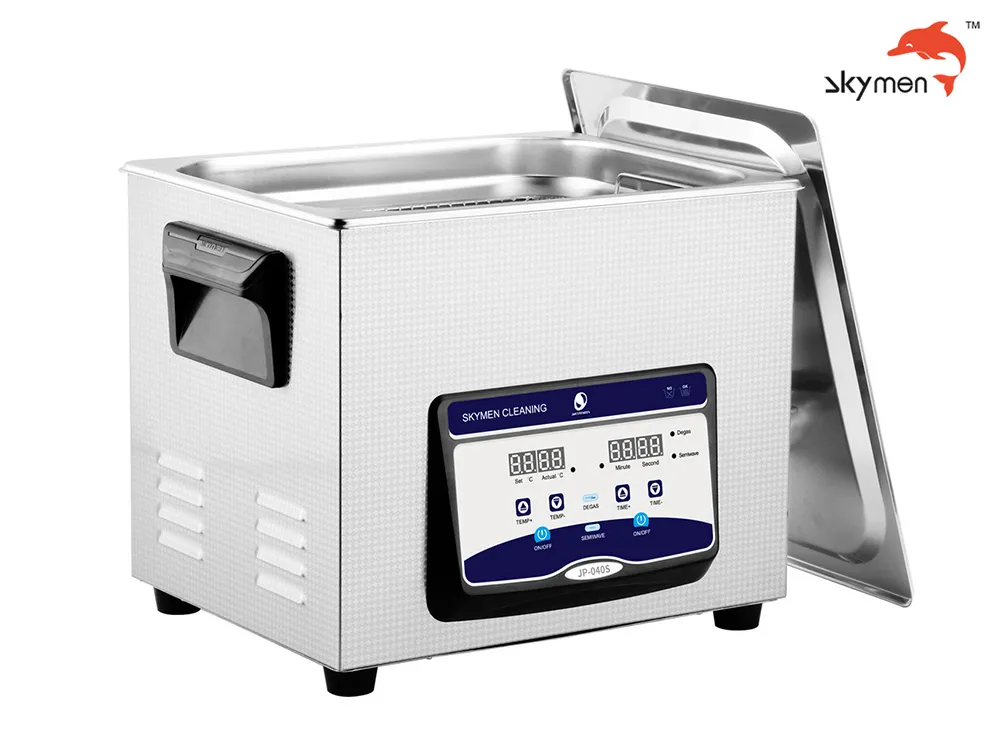

Ultrasonic Cleaner View 4

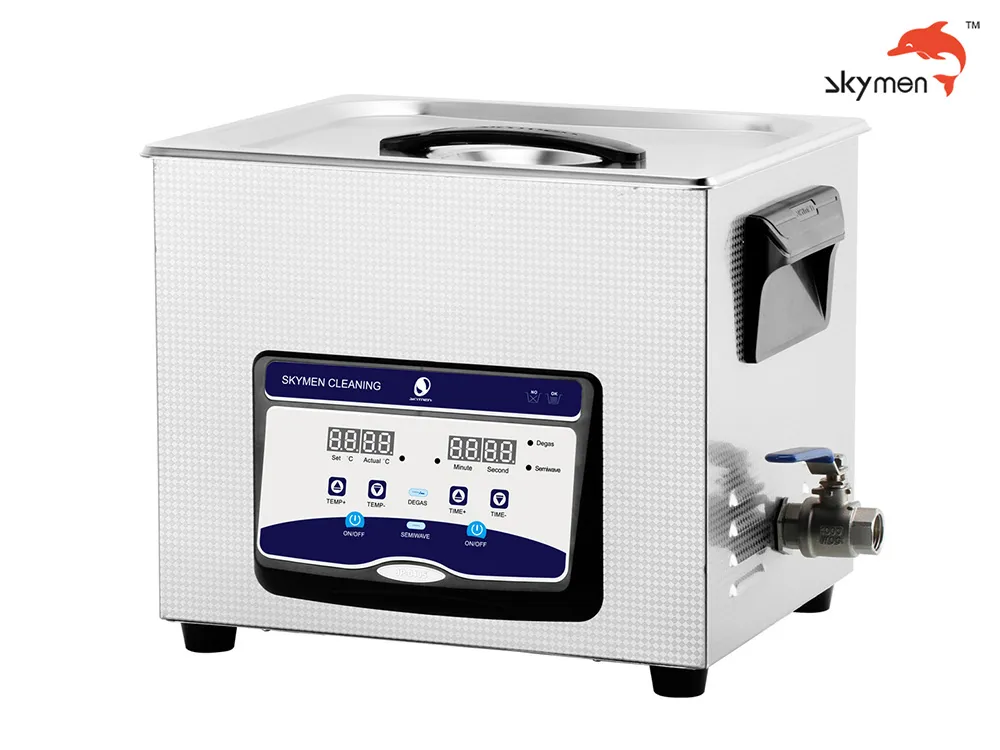

Ultrasonic Cleaner View 5

Cleaning Effects

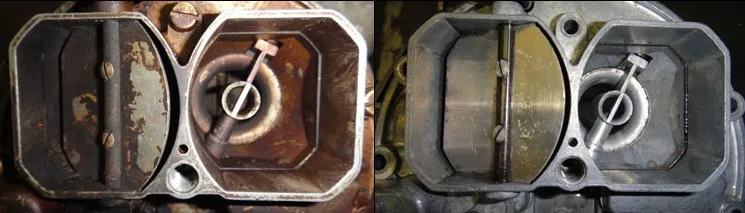

Cleaning Effect 1

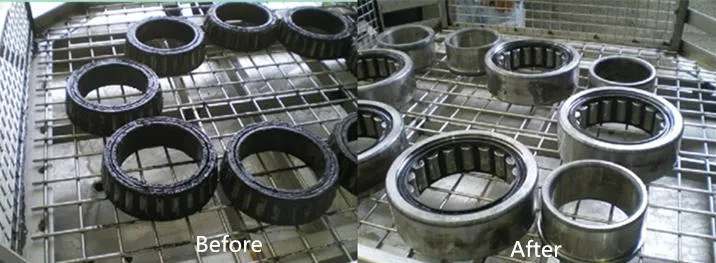

Cleaning Effect 2

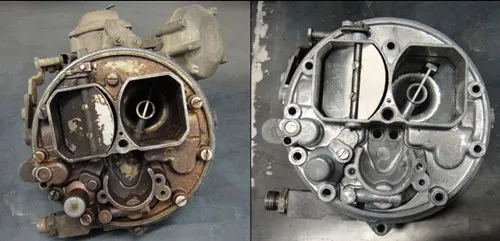

Cleaning Effect 3
?

Frequently Asked Questions

Q1: What materials can be cleaned with this ultrasonic cleaner?
A: It is ideal for stainless steel, metals, glass, ceramics, and certain plastics. It is widely used for medical instruments, car parts, jewelry, and electronic components.
Q2: How does the cavitation principle work?
A: High-frequency sound waves create millions of tiny bubbles in the liquid. When these bubbles implode, they release energy that dislodges contaminants from the surface and tiny crevices.
Q3: Do I need to use a special cleaning solution?
A: While tap water works for basic cleaning, using a specific ultrasonic solvent or industrial alcohol can significantly improve results for stubborn grease and oxides.
Q4: Is the heating function necessary?
A: Heating helps to break down oil and grease faster. This model features a 500W heater to optimize the cleaning chemical's activity and efficiency.
Q5: What is the benefit of SUS304 stainless steel?
A: SUS304 provides excellent resistance to corrosion and wear, ensuring a long service life for the tank even when used with various cleaning agents.
Q6: Can the cleaning time be adjusted?
A: Yes, this unit features a digital timer that allows you to set the cleaning duration between 1 and 30 minutes.
