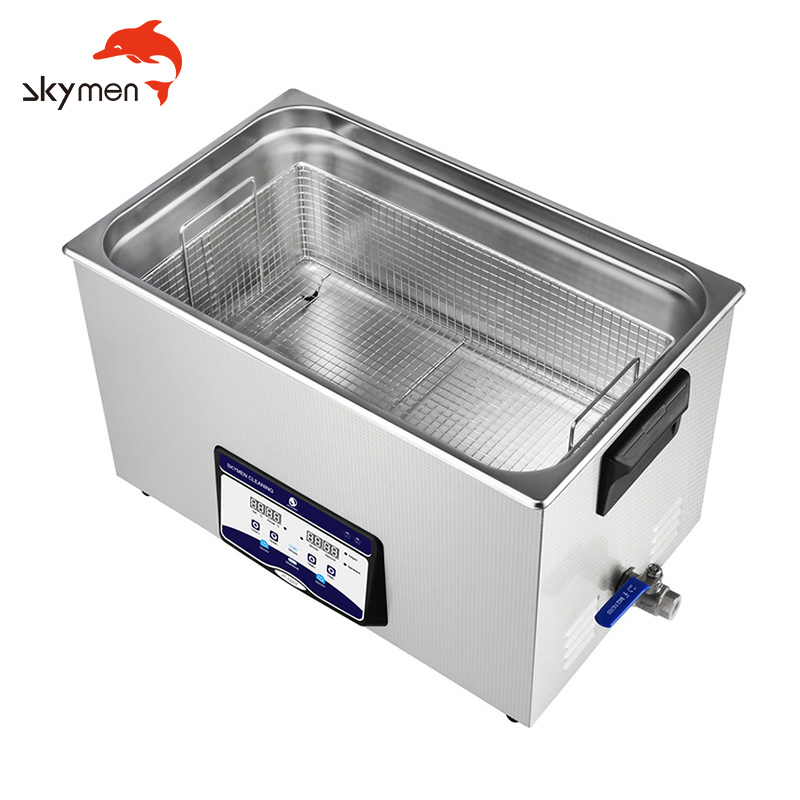

Skymen Industrial Ultrasonic Cleaner 30L for Auto Engine Parts /Medical Instruments/ Various Metal Parts Cleaning

Still deciding? Get samples of $ !
Request Sample

Product Description

🔹 Basic Specifications

Model NO.
JP-100S
Application
Optical Glass
Cleaning Media
Wet Cleaning
Automation
Semi-automatic
Frequency
40kHz
Material
Stainless Steel SUS304
Tank Capacity
30L
Ultrasonic Power
600/300W Switchable
Heating Power
500W
Unit Size
585*327*333mm
Certification
CE, RoHS, ISO9001
Timer

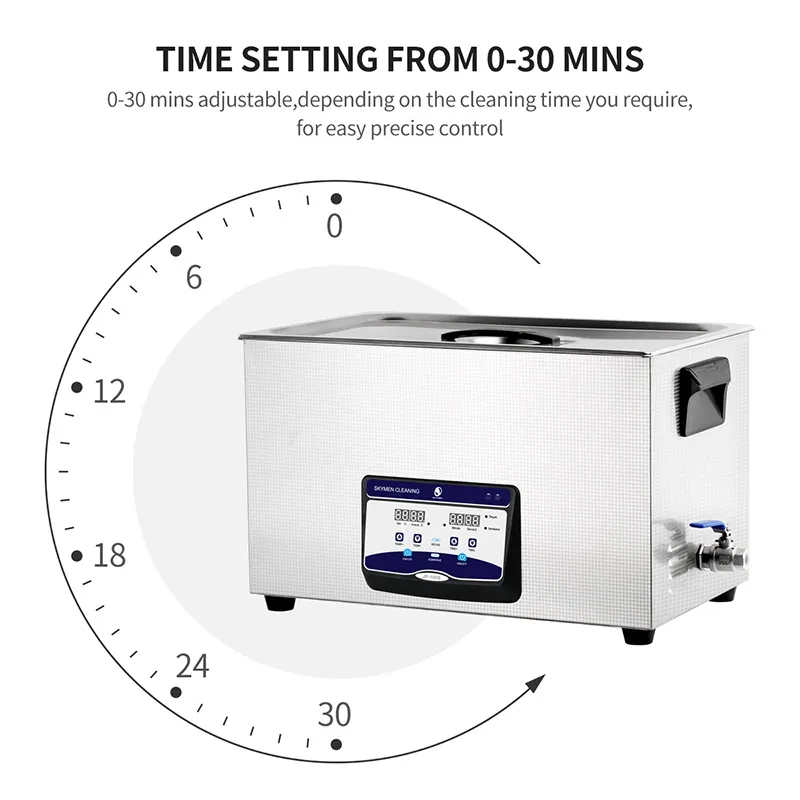

0-30min Adjustable

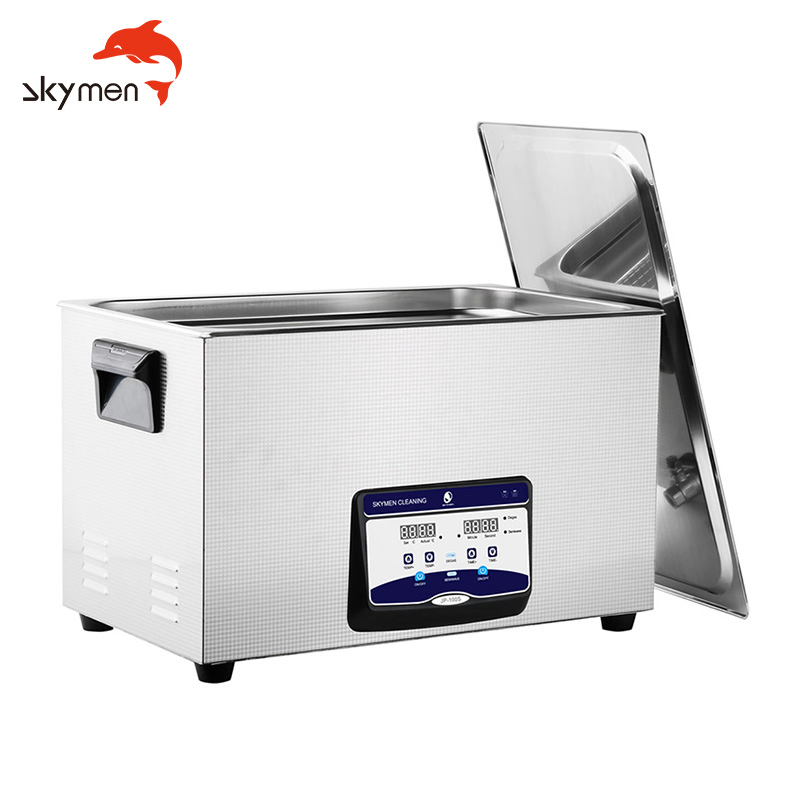

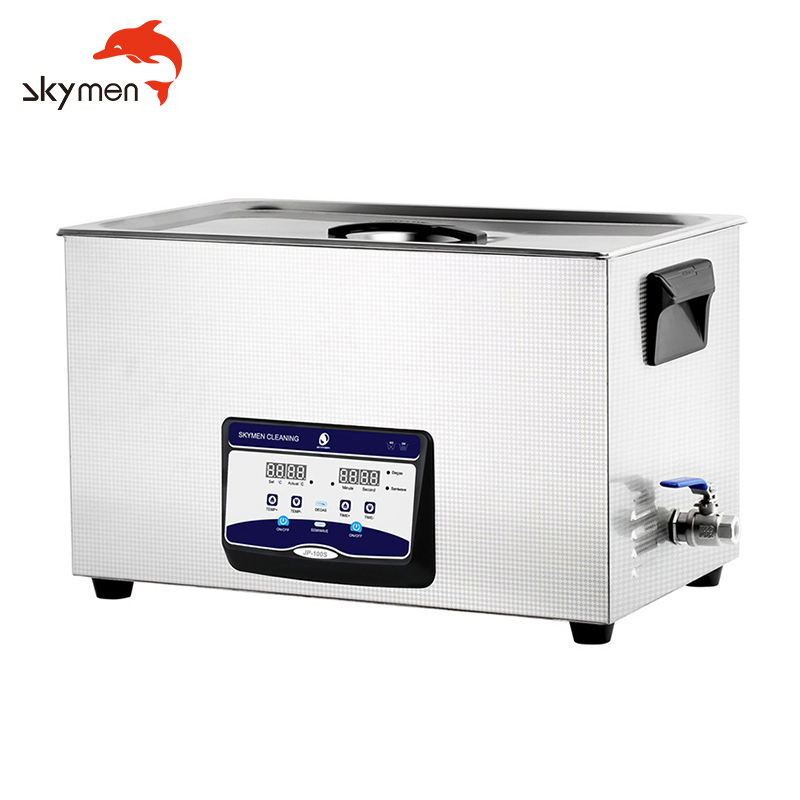

30L 500W Benchtop Digital Ultrasonic Cleaner for Optical Glass

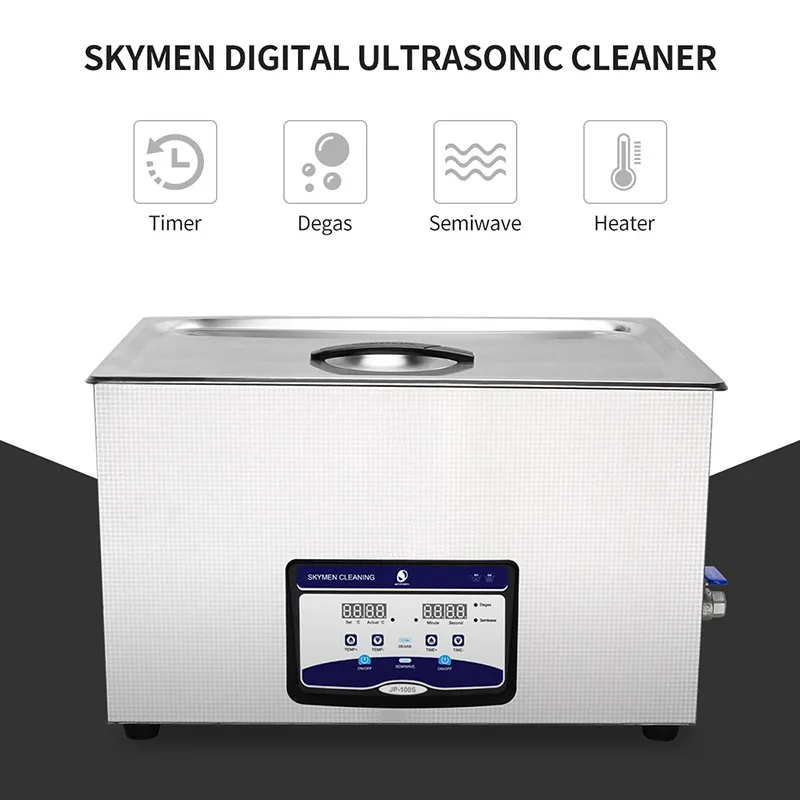

Benchtop digital ultrasonic cleaner

✅ Key Features

Stainless steel tank with high resistance to wear and long service life.

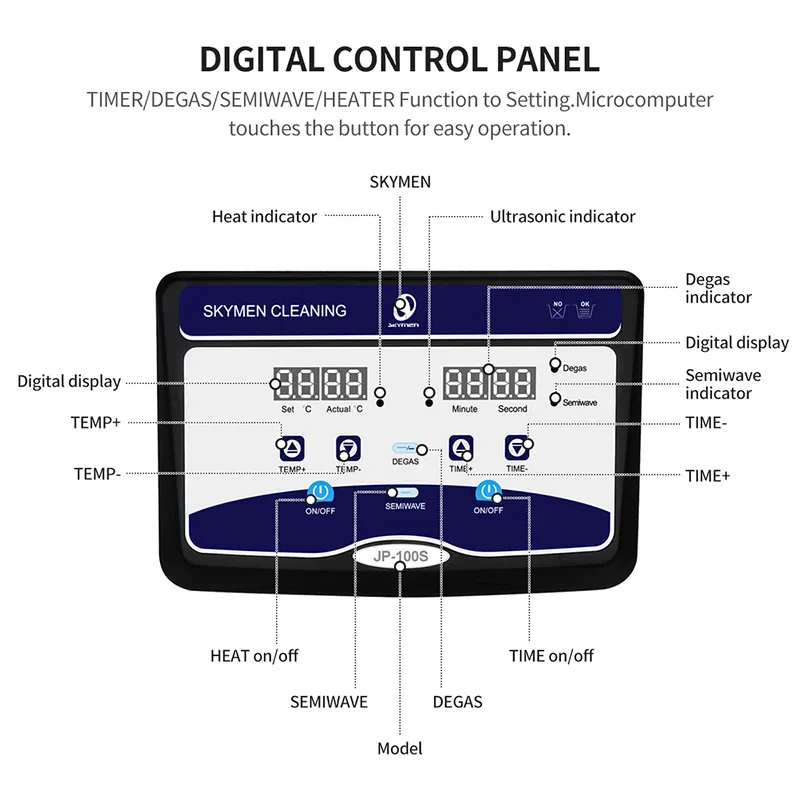

Digital timer and heater control for precise operation.

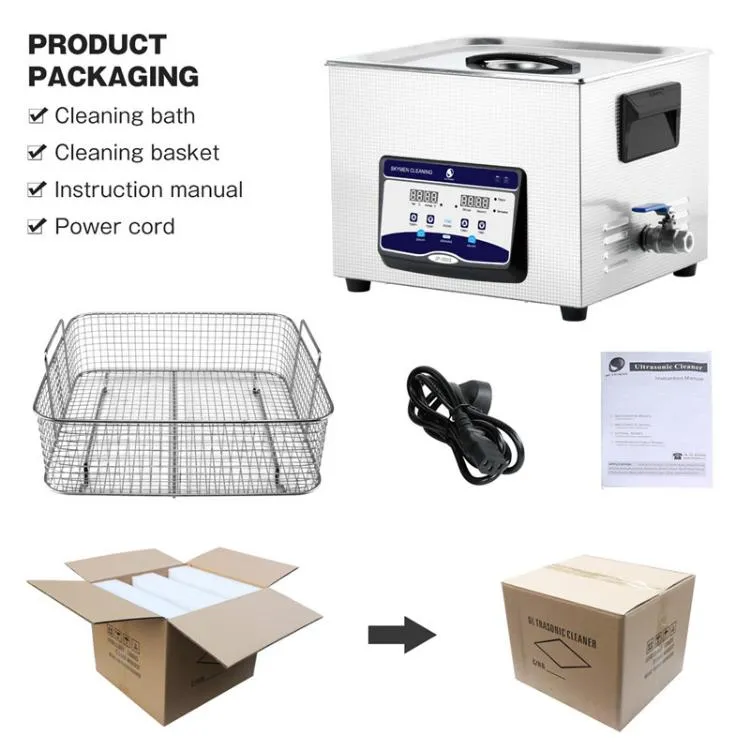

Equipped with standard stainless steel basket and cover.
Flexible circuit board control using industrial-grade microcontrollers for stability.
Includes drainage, multi-direction castors, and degas function.
Efficiently removes oils, residues, and contaminants even in deep crevices.

💡 Working Principle

Electrical energy is converted into mechanical vibrations via specialized transducers. These vibrations are transferred through the stainless steel walls into the fluid, creating microscopic vacuum bubbles that cause consecutive implosions (cavitation). The resulting high-energy jets efficiently remove dirt from surfaces and internal bores of materials placed in the cleaning bath.

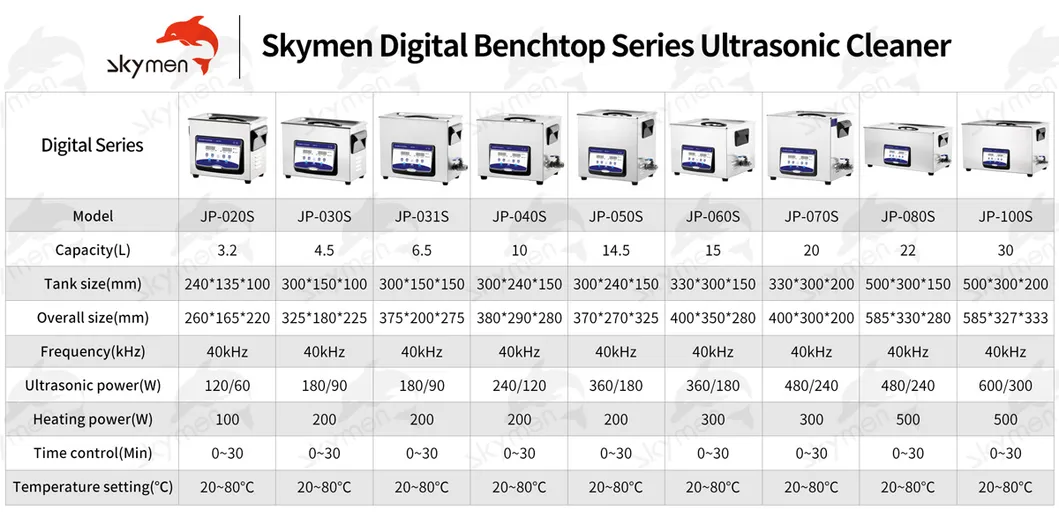

Product Size Chart

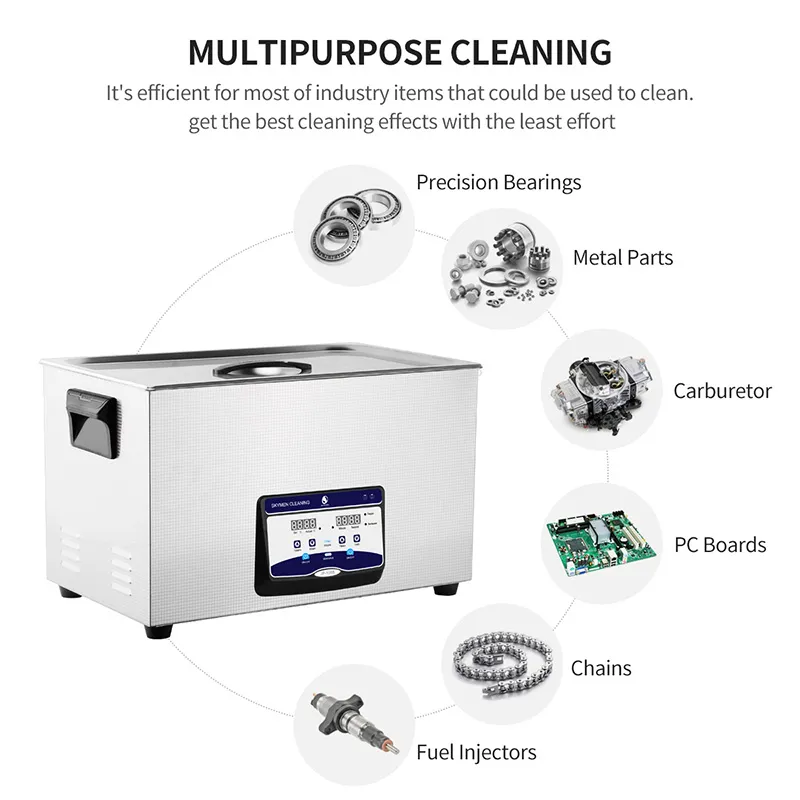

🚀 Wide Range of Applications

Scientific Labs: Eyeglass Frames, Lab Glassware, Optical & Contact Lenses, Pipettes, Scientific Instruments, Test tubes.

Industrial & Electronic: Assemblies, Gears, Precision Bearings, Capacitors, Ceramic Substrates, PC Boards, Quartz Crystals.

Medical & Dental: Burs, Blood Oxygenators, Dental Instruments, Surgical Instruments.

Jewelry: Chains, Charms, Coins, Precious Metals & Gemstones, Watches.

📷 Product Showcase

❓ Frequently Asked Questions
1. Which optical glass products can be cleaned? It is suitable for lenses, prisms, spectacle frames, optical fibers, liquid crystal LCDs, and precious metal decorations.
2. What are the main benefits of using this ultrasonic cleaner? It offers intelligent integrated cleaning, protects personnel from sharp medical instruments, and provides superior results by reaching deep into gaps and pores via cavitation.
3. How does ultrasound compare to traditional cleaning? It minimizes manual labor, eliminates the need for aggressive organic solvents in many cases, reaches every hidden area of a product, and significantly shortens cleaning times.
4. What is the warranty period for this equipment? The equipment comes with a 12-month warranty. Technical support and replacement parts are available during this period, with continued support after the first year.
5. What is the typical lead time for an order? Under regular production capacity, orders are typically completed within 25 days after the confirmation of all technical details.
6. Can it be used with industrial solvents? Yes, for higher cleaning requirements, you can use tap water, industrial alcohol, or specialized solvent cleaners depending on the contaminant.
