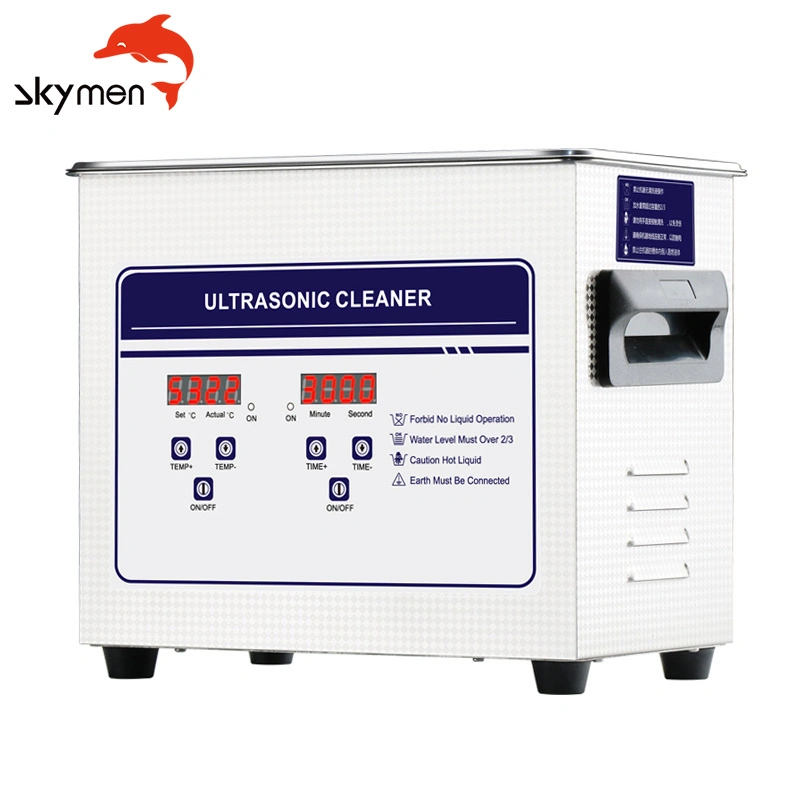

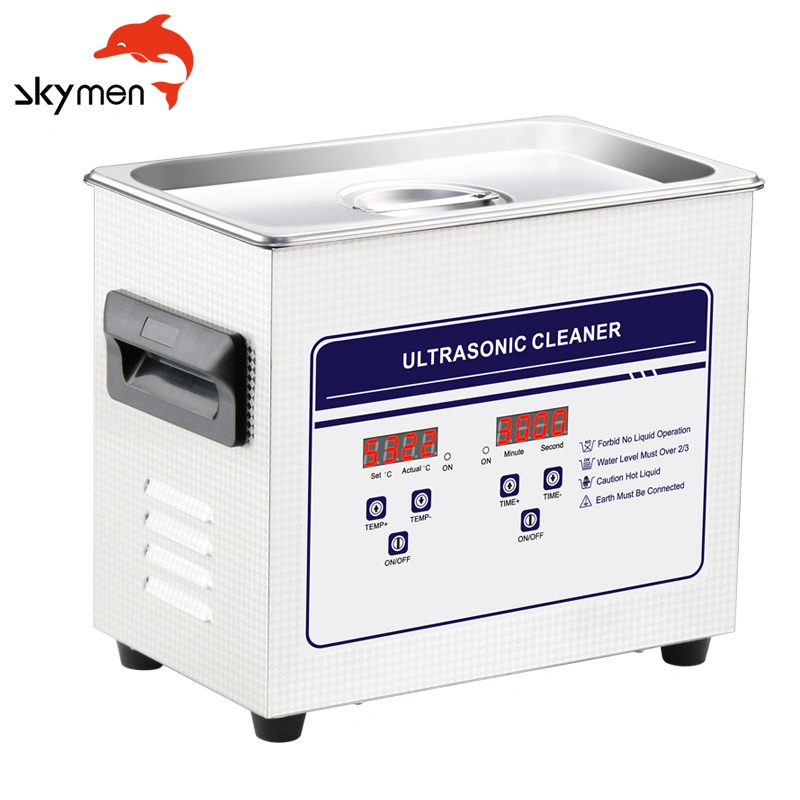

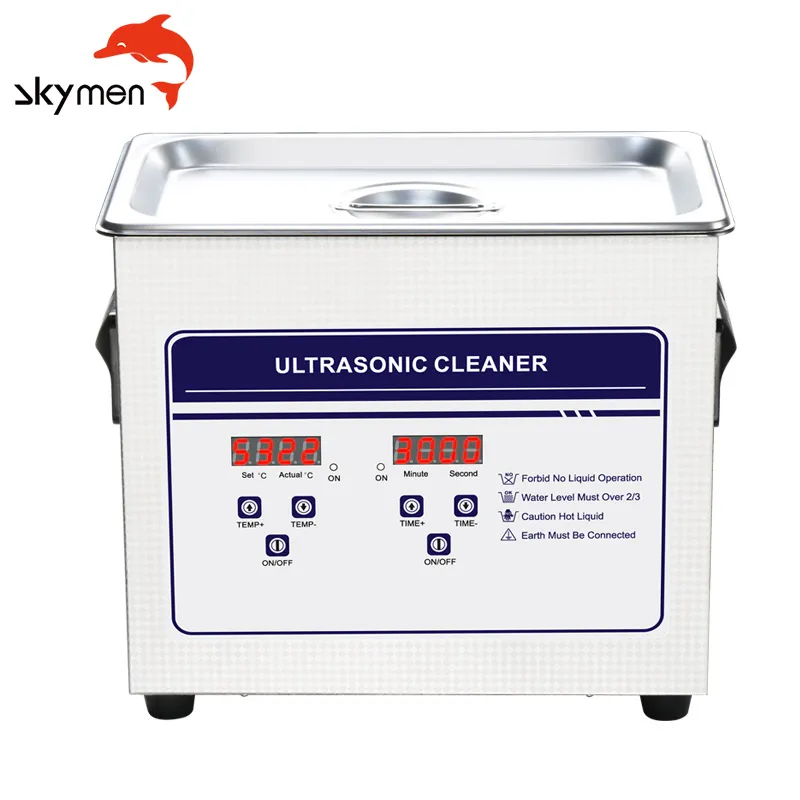

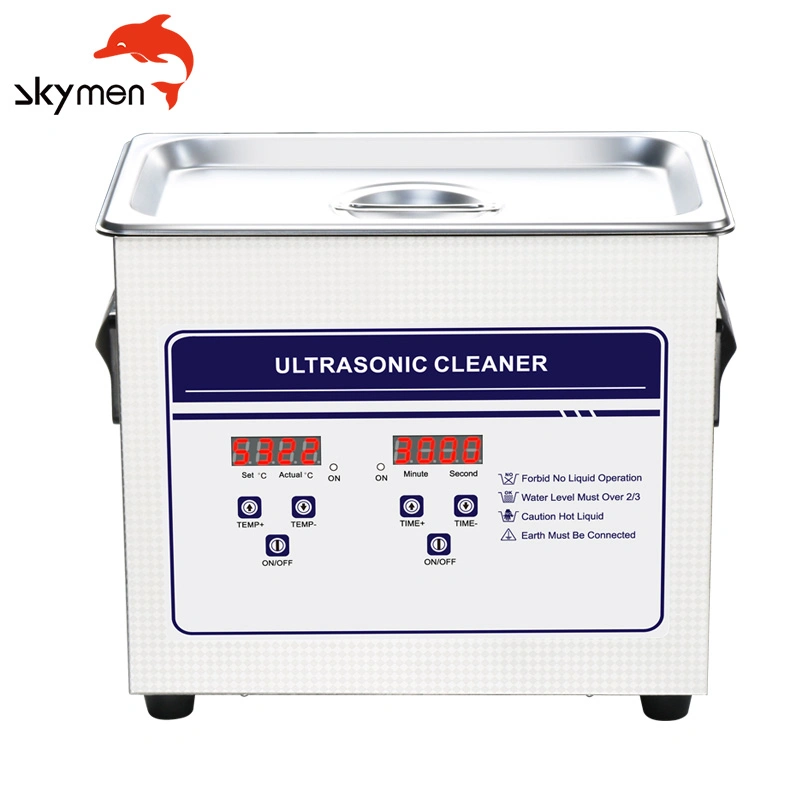

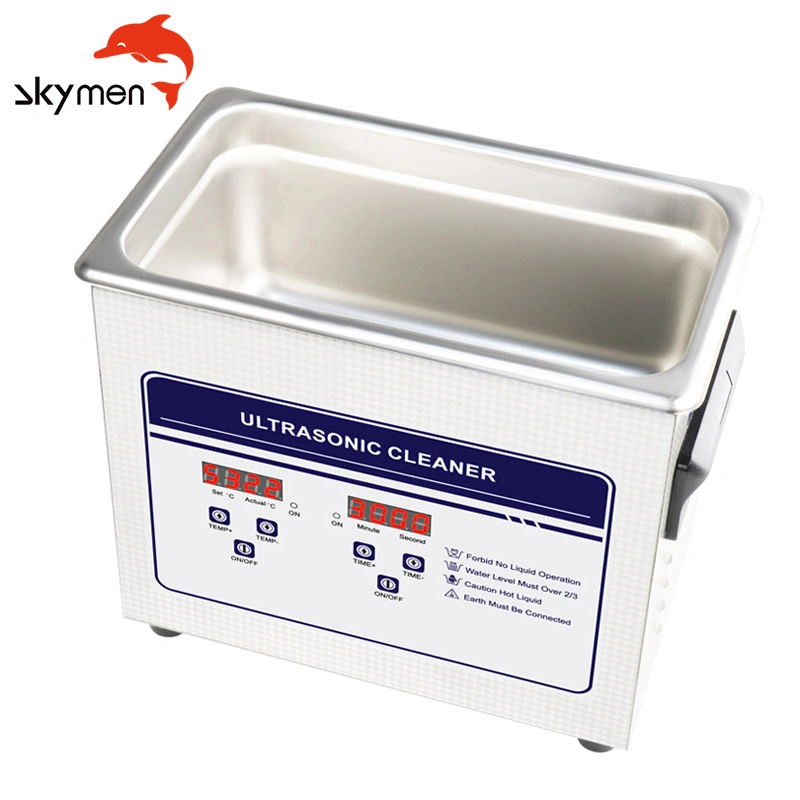

3.2L Dental Digital Bench Top Ultrasonic Cleaner
Professional Commercial Cleaning Solution
📋 Basic Specifications
| Model NO. | 020S |
| Heating | Yes (Digital Control) |
| Application | Commercial Cleaning / Medical / Laboratory |
| Ultrasonic Frequency | 40kHz |
| Tank Capacity | 3.2L (0.75 Gallon) |
| Ultrasonic Power | 120W |
| Heating Power | 100W |
| Tank Size | 240 x 135 x 100 mm (L x W x H) |
| Materials | Stainless Steel SUS304 |
| Timer | 1-30 minutes Digital Timer |
| Temperature Range | 20°C to 80°C |
| Production Capacity | 5000PCS / Month |
💡 Key Features
Durable Construction: Stainless steel tank with high resistance to wear and long operational life.
Precision Control: Features a digital timer and heater control for exact cleaning requirements.
Enhanced Safety: Industrial control chip microcontroller with flexible circuit board control for stability.
Versatile Cleaning: Use tap water, industrial alcohol, or solvent cleaners for higher precision needs.
🖼️ Product Showcase

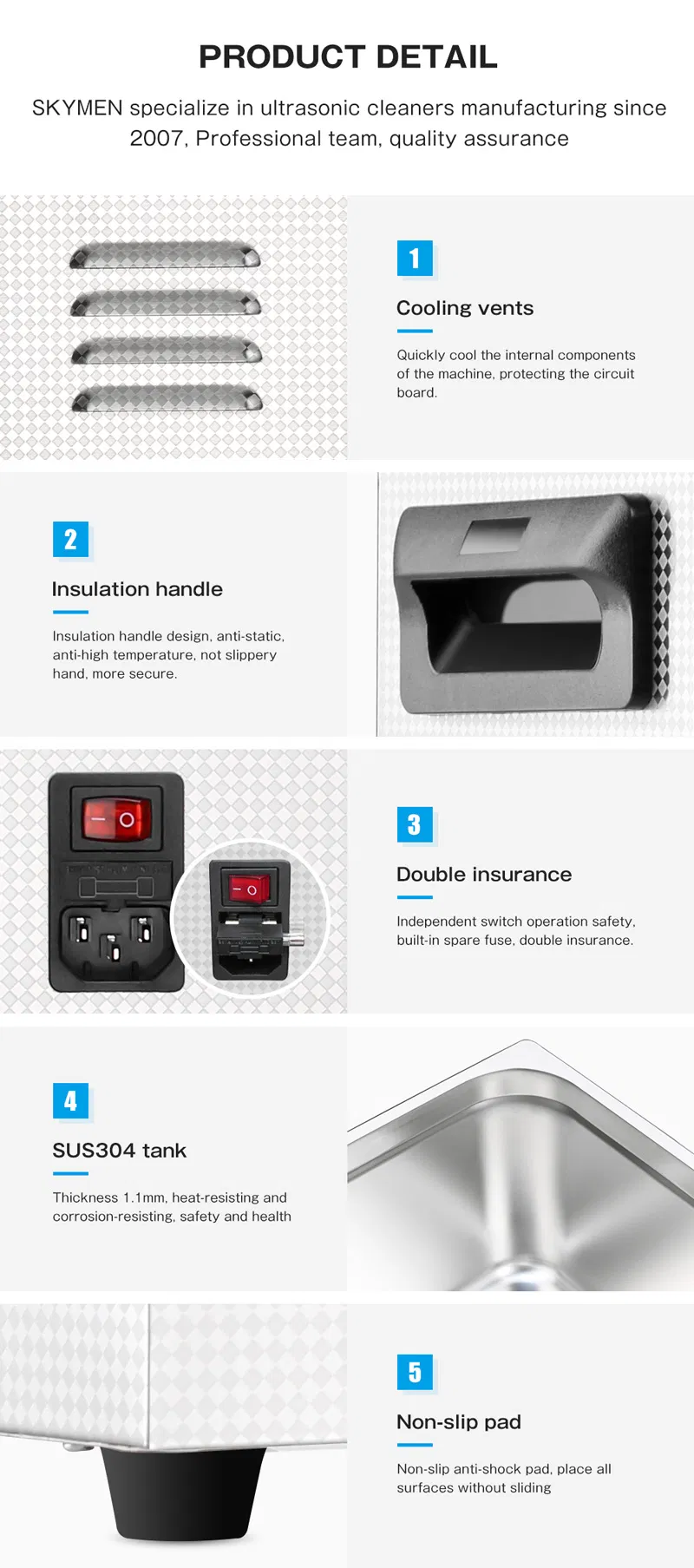

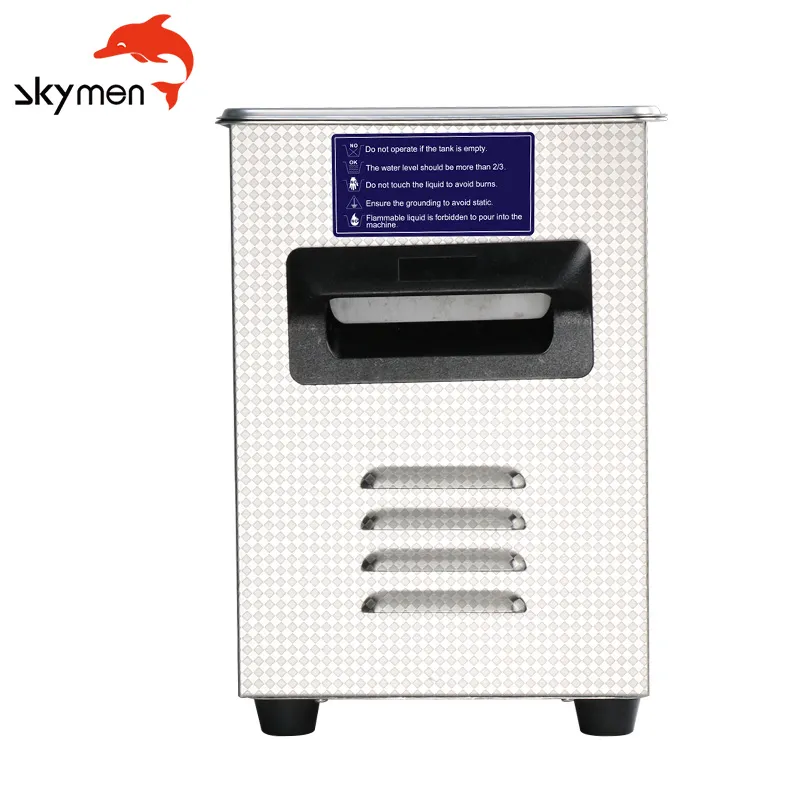

🔍 Product Details
🚀 Wide Applications
Electronic Factory
Medical Instruments
Dental Clinics
Optical & Glasses
Hardware Tools
Auto Parts
Scientific Laboratory
Jewelry & Utensils
📏 Series Models Comparison
📦 Packing Information
| Unit Size | 265 x 165 x 220 mm |
| Package Size | 340 x 245 x 310 mm |
| Net Weight (N.W.) | 3.0 kg |
| Gross Weight (G.W.) | 4.0 kg |

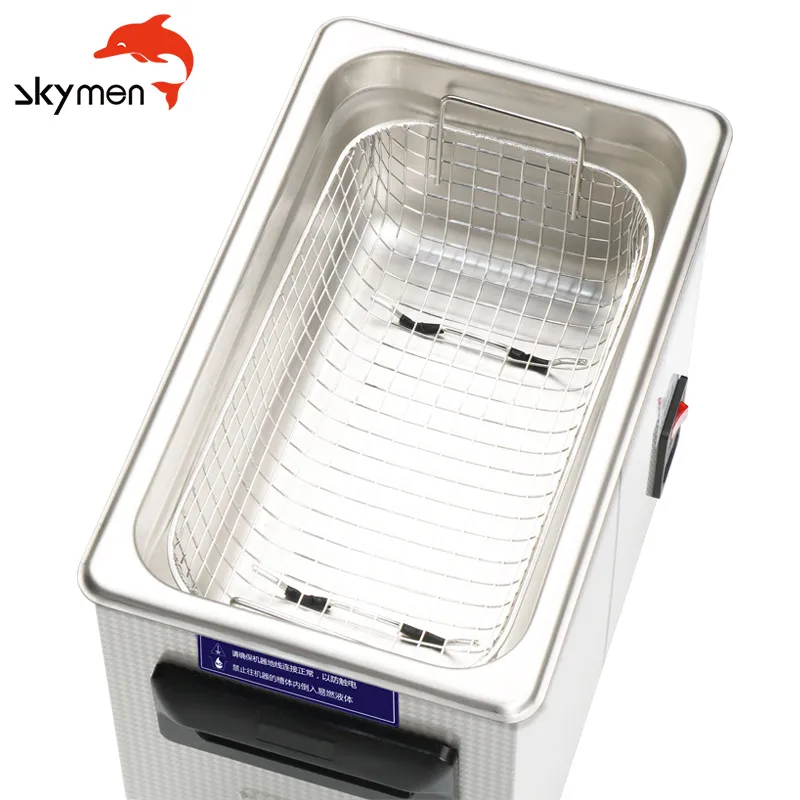

| Standard Package | 1 Set / Carton (Includes Stainless Steel Basket) |
🛡️ Warranty & Support
1 Year Warranty: If any technical problems occur during the warranty period, replacement parts will be provided free of charge. Technical support remains available after the warranty period.
Frequently Asked Questions (FAQ)
Q1: What frequency is better for my parts?
A: Frequency is based on pollutants. 28kHz is stronger and better for heavy parts (car/motor parts) to remove grease. 40kHz is ideal for precision items like PCB boards and electronic parts. Higher precision requires higher frequency.
Q2: Can ultrasonic cleaning damage my parts?
A: No, the cleaning process is safe. Although thousands of implosions happen per second, the process is designed not to damage daily objects or delicate parts.
Q3: What cleaning solution should I use?
A: You can use tap water, industrial alcohol, or specialized formulas designed for specific applications. Proper selection prevents unwanted reactions with the workpiece.
Q4: Is rinsing necessary after the cleaning cycle?
A: Yes, rinsing is recommended to remove chemical residues. You can rinse using a clean water bath, tap water, or deionized water.
Q5: What is the benefit of the heating function?
A: The heater (adjustable from 20°C to 80°C) helps soften oils and contaminants, significantly improving the efficiency of the ultrasonic cleaning process.
Q6: Is the tank durable enough for industrial use?
A: Yes, the tank is made of high-quality Stainless Steel SUS304, which provides excellent resistance to wear, heat, and chemical corrosion for long-term use.
