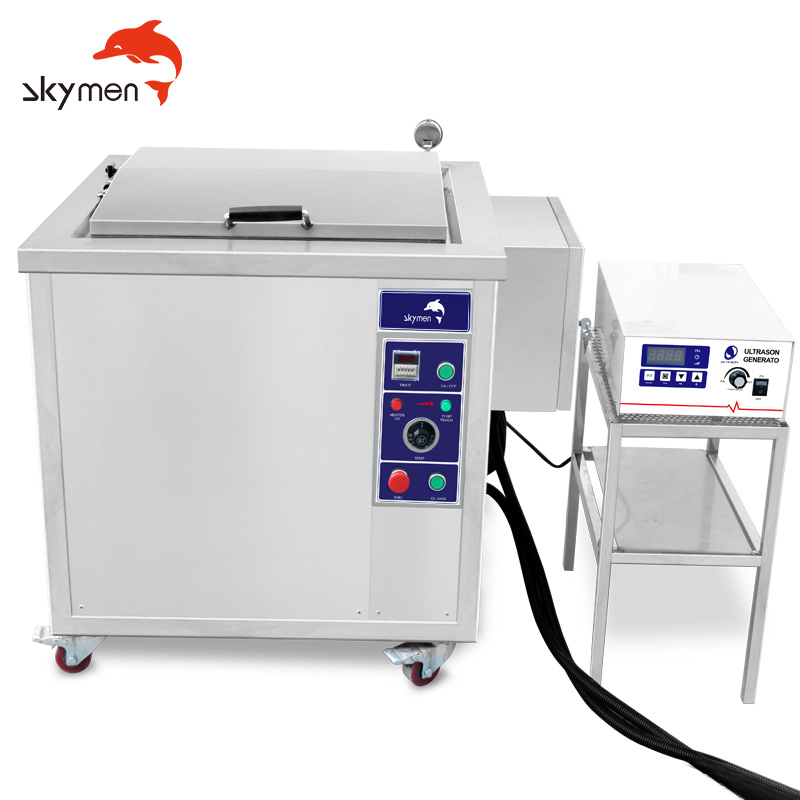

Skymen 99liter Ultrasonic Cleaner with Filter for Medical Equipment Medical Instrument Ultrasonic Cleaner Washing Machine
Skymen 99liter Ultrasonic Cleaner with Filter for Medical Equipment Medical Instrument Ultrasonic Cleaner Washing Machine
Skymen 99liter Ultrasonic Cleaner with Filter for Medical Equipment Medical Instrument Ultrasonic Cleaner Washing Machine
1 / 3
Skymen 99liter Ultrasonic Cleaner with Filter for Medical Equipment Medical Instrument Ultrasonic Cleaner Washing Machine
Skymen 99liter Ultrasonic Cleaner with Filter for Medical Equipment Medical Instrument Ultrasonic Cleaner Washing Machine
Skymen 99liter Ultrasonic Cleaner with Filter for Medical Equipment Medical Instrument Ultrasonic Cleaner Washing Machine

Skymen 99liter Ultrasonic Cleaner with Filter for Medical Equipment Medical Instrument Ultrasonic Cleaner Washing Machine

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
JP-300G
Application
Medical
Cleaning Media
Wet Cleaning
Automation
Semi-automatic
Cleaning Precision
Ultra-Precision Industrial Cleaning
Control
PLC
Principle
Physical Cleaning
Certification
CE, RoHS, ISO9001
Tank Size
550*450*350mm
Capacity
99L
Ultrasonic Power
1500W (Customizable)
Heating Power
3000W
Material
Stainless Steel SUS304/SUS316
Heater
20-95℃ Adjustable

Product Overview

The industry standard range of ultrasonic cleaning equipment ranges from 38 to 1500 liters capacity. They are designed for cleaning and descaling of all types of parts, components and accessories. All equipment in this line can incorporate a lifting platform that facilitates loading and unloading of parts. They can also carry systems of filtration, separation of oils and water treatments.

Ultrasonic Cleaner 1

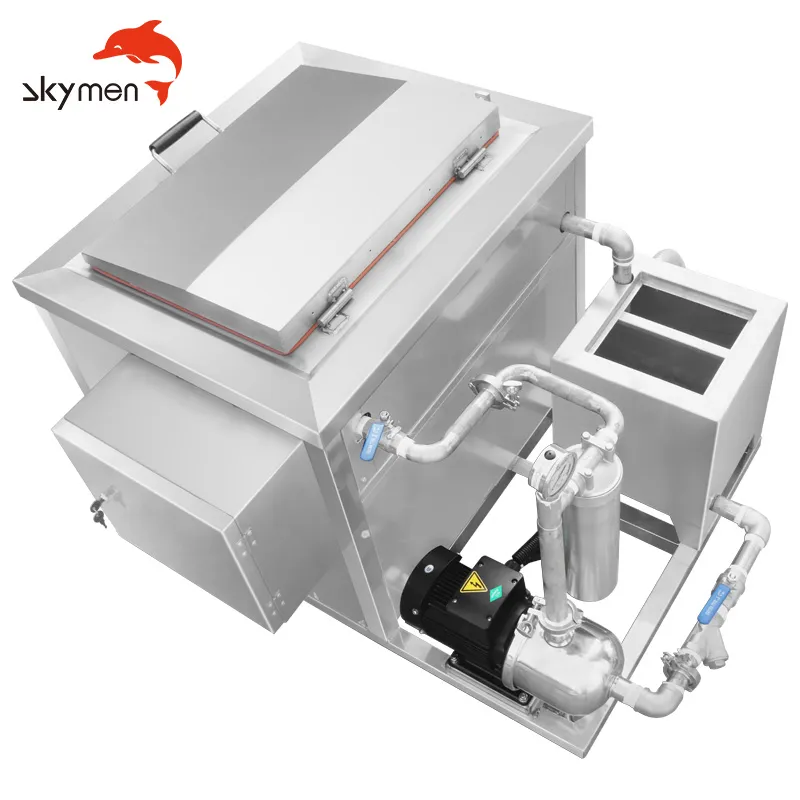

Ultrasonic Cleaner 2

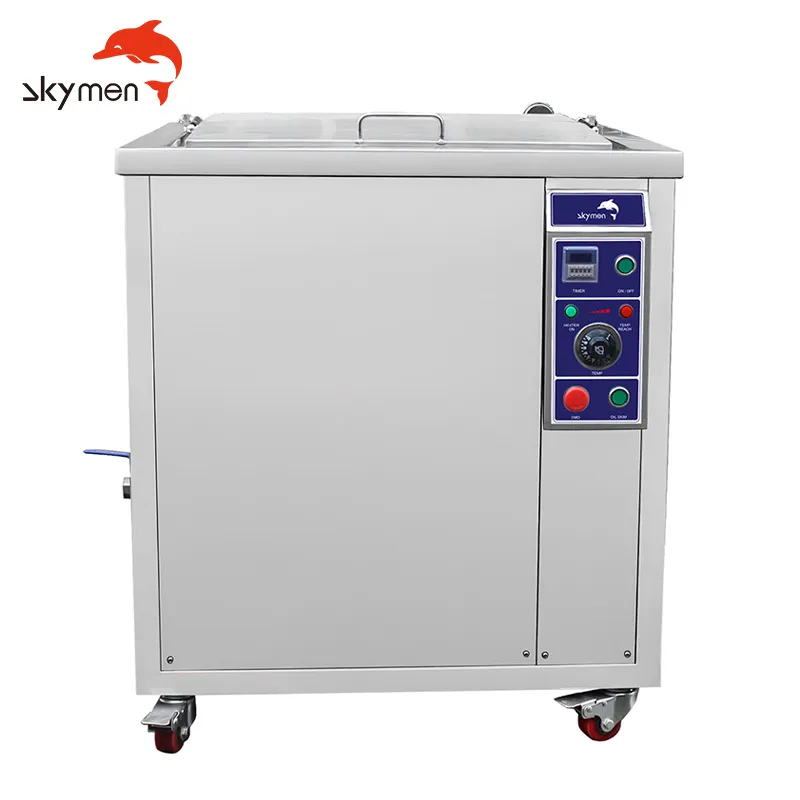

Ultrasonic Cleaner 3

Structure and Function

✓ All working parameters and fault information can be quickly checked and set via the control interface.
✓ Pneumatic lifting device allows materials to automatically enter and exit the tank, improving cleaning effects through up-and-down movement.
✓ Equipped with a filter system to remove surface oil floating after cleaning, reducing secondary pollution.
✓ Ultrasonic transducers are installed in a vibration box for easy maintenance and reduced noise levels.
✓ All components in contact with water are constructed from high-grade SUS304/SUS316 material.

Technical Specifications

Model JP-120G JP-180G JP-240G JP-300G JP-360G JP-480G
Capacity 38L 53L 77L 99L 135L 175L
Useful Size (mm) 500*300*250 500*350*300 550*400*350 550*450*400 600*500*450 700*500*500
Heating Power 1.5kw 1.5kw 3kw 6kw 6kw 6kw
Ultrasound Power 0.6kw 0.9kw 1.2kw 1.5kw 1.8kw 2.4kw
Frequency 28/40khz 28/40khz 28/40khz 28/40khz 28/40khz 28/40khz

Filtration & Cleaning Performance

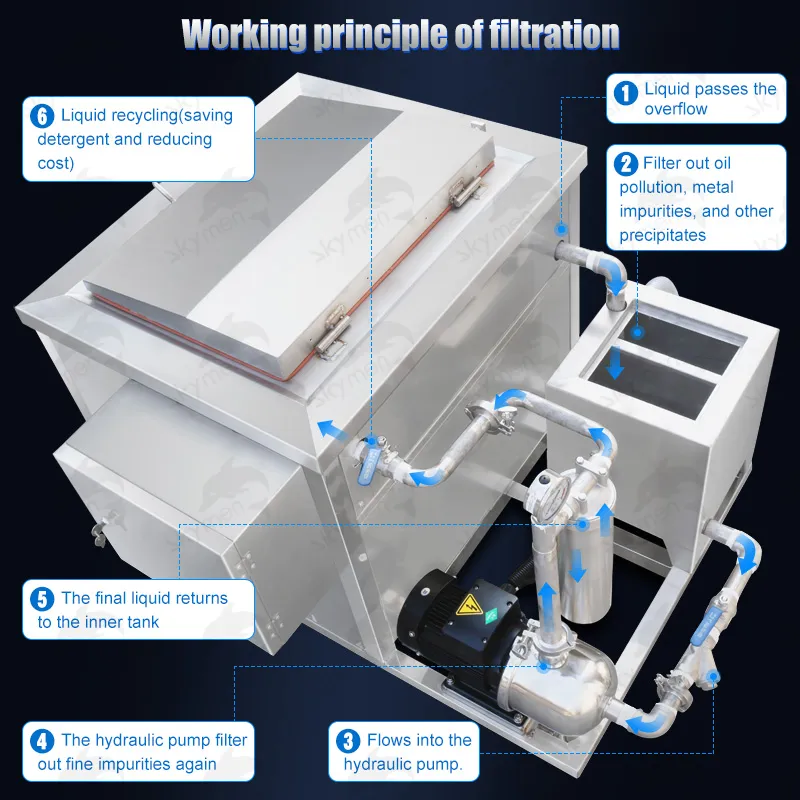

Filter System 1

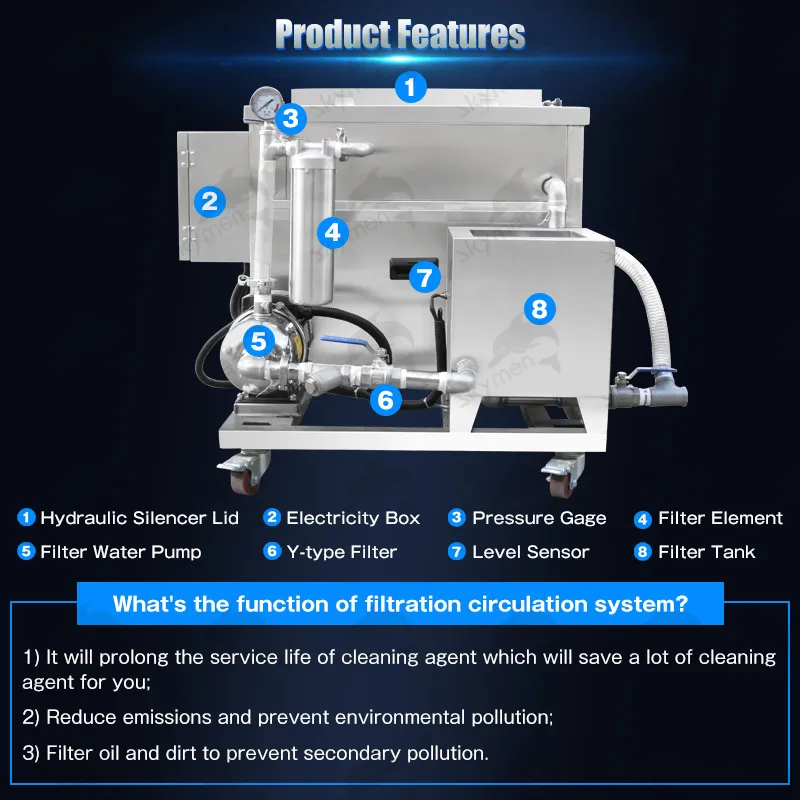

Filter System 2

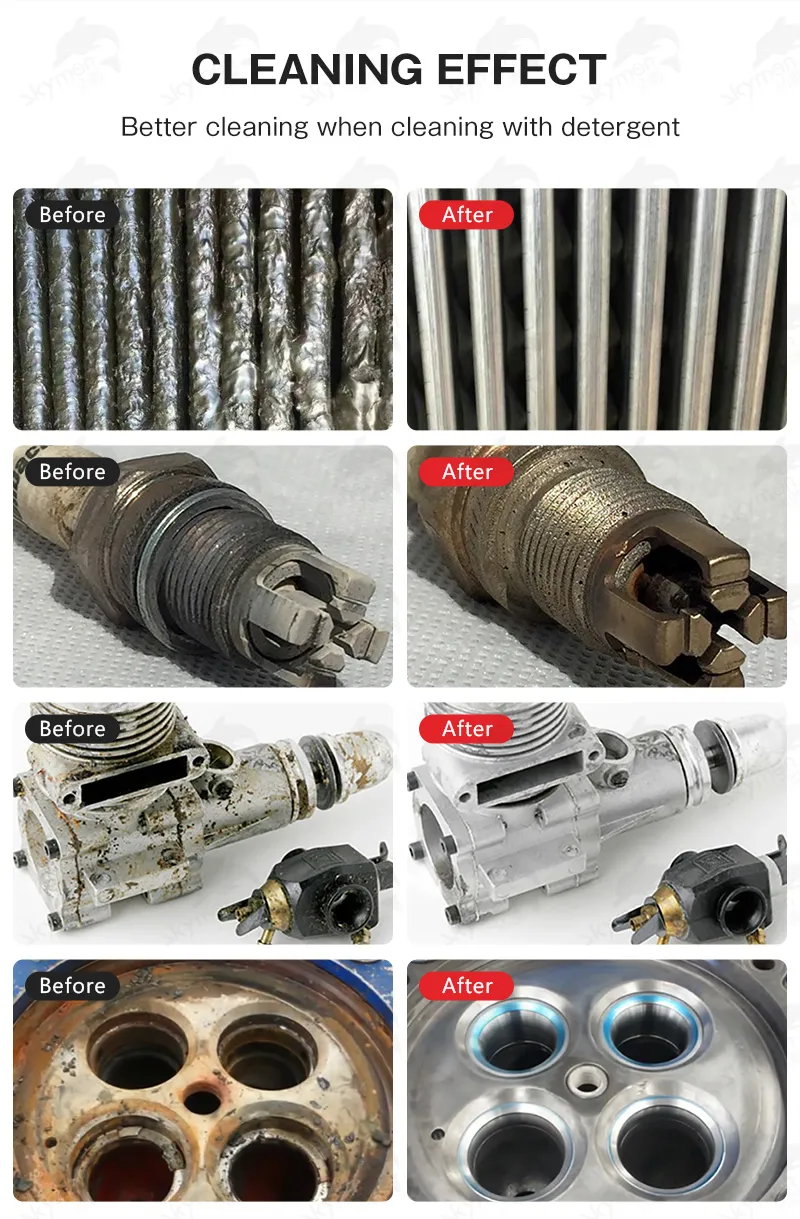

Cleaning Effect

Manufacturing Facility

Facility 1
Facility 2
Facility 3

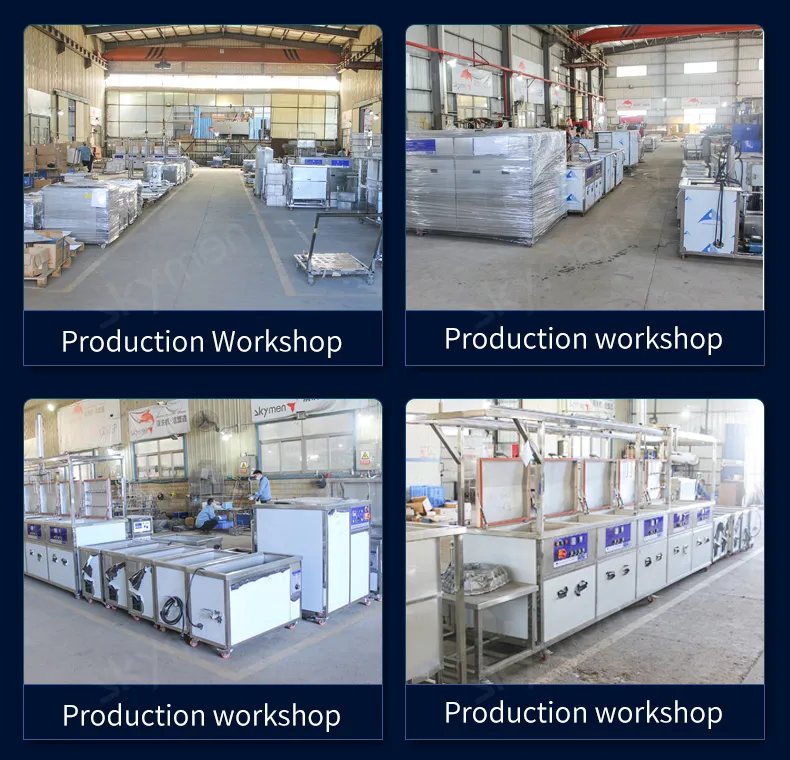

Facility 4

Frequently Asked Questions

What is the primary application for this ultrasonic cleaner?
This model is specifically designed for medical instruments and industrial parts, such as engine components, requiring ultra-precision cleaning.
What materials are used in the construction of the machine?
All parts in contact with cleaning media are made of high-quality Stainless Steel SUS304 or SUS316, ensuring durability and resistance to corrosion.
Does the machine include a filtration system?
Yes, it is equipped with a built-in filtration system that removes oil and contaminants from the surface of the cleaning liquid to prevent secondary pollution.
Can the ultrasonic frequency be adjusted?
The machine offers optional frequencies of 28kHz or 40kHz to suit different cleaning requirements, from heavy-duty descaling to delicate instrument cleaning.
What is the delivery time for standard and OEM orders?
Standard products typically take 7 to 10 working days. For custom OEM products, the lead time is generally between 20 to 30 working days.
Is the heating temperature adjustable?
Yes, the heating system is fully adjustable from 20°C to 95°C, allowing you to optimize the cleaning temperature for various solvents and parts.
