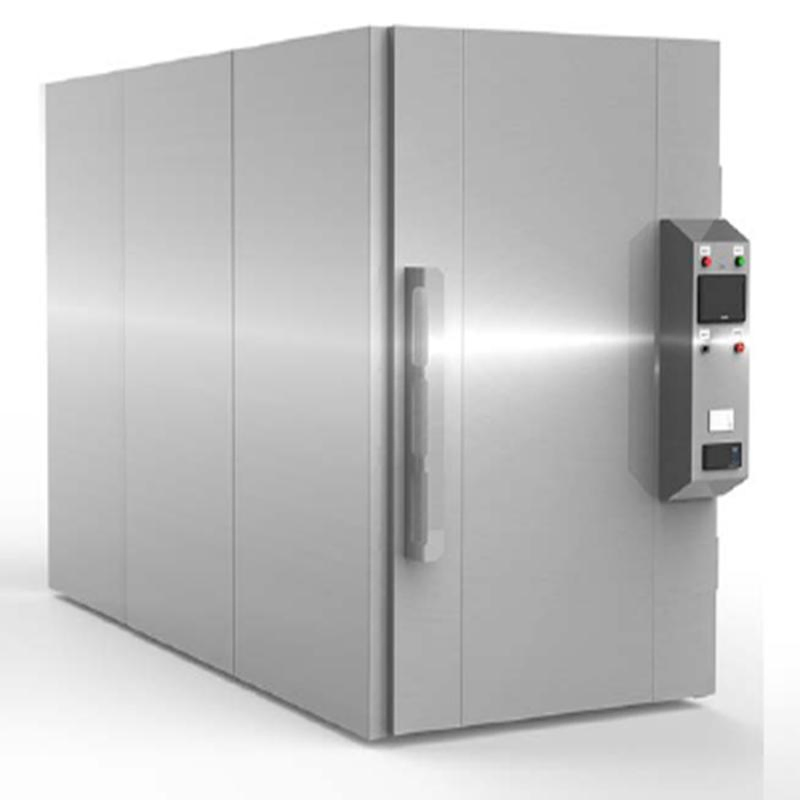

10 Cubic Ethylene Oxide Gas Sterilizer Eto Autoclave
10 Cubic Ethylene Oxide Gas Sterilizer Eto Autoclave
10 Cubic Ethylene Oxide Gas Sterilizer Eto Autoclave
10 Cubic Ethylene Oxide Gas Sterilizer Eto Autoclave
10 Cubic Ethylene Oxide Gas Sterilizer Eto Autoclave
1 / 5
10 Cubic Ethylene Oxide Gas Sterilizer Eto Autoclave
10 Cubic Ethylene Oxide Gas Sterilizer Eto Autoclave
10 Cubic Ethylene Oxide Gas Sterilizer Eto Autoclave
10 Cubic Ethylene Oxide Gas Sterilizer Eto Autoclave
10 Cubic Ethylene Oxide Gas Sterilizer Eto Autoclave

10 Cubic Ethylene Oxide Gas Sterilizer Eto Autoclave

Customization: Available
Theory: Eo Sterilizer
Type: Eo Sterilizer
Send Inquiry

Product Description

Basic Information
Model NO.
YJ-EO10
Certification
CE, ISO13485
Electric Tension
380V
Material
304 Stainless Steel
Product Name
Eto Sterilizer
Capacity
10 Cubic
Working Temp
30℃-50℃
HS Code
9018129100
Product Description

10CBM ETO Gas Sterilizer Ethylene Oxide Sterilizer for Hospital

ETO Sterilizer 1
ETO Sterilizer 2

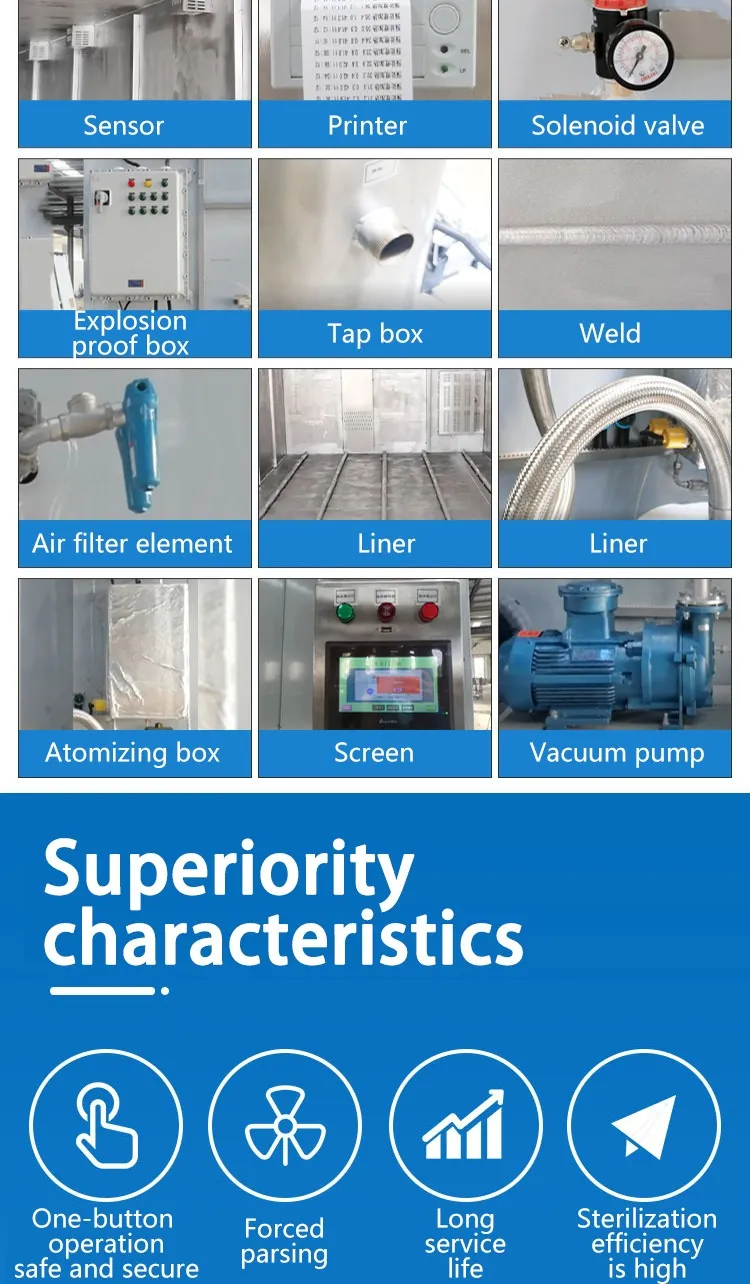

ETO Sterilizer 3
ETO Sterilizer 4
Application & Usage:
Medical Supplies: Syringe, Infusion Set, Surgical Gloves, all kinds of Rubber Infusion Catheter, Oxygen devices, Suture, Anesthesia supplies, Sanitary napkins, Medical dressing.
Medical Devices: Optical endoscopic, Pacemakers, In stent, Surgical instruments, patient's bedding, etc.
Key Features:
Controlled by a LCD color screen PLC microcomputer. Features include automatic heating, vacuum, humidification, vaporization, sterilization, residue removal, and ethylene oxide residue automatic analysis. It includes a memory function for complex processes, ensuring 100% sterilization safety for moisture-sensitive and heat-sensitive articles.
  • 🔹 Inner Material: Stainless steel SUS304, actual thickness ≥5mm.
  • 🔹 Water Jacket: 6mm stainless steel on both sides and top surface.
  • 🔹 Thermal Insulation: Rock wool thickness > 5cm for excellent performance.
  • 🔹 Sterilizer Door: Pneumatic single door seal with automatic smooth opening/closing.
  • 🔹 Monitoring: Real-time monitoring of pressure, humidity, and temperature (±1% accuracy).
Technical Specifications

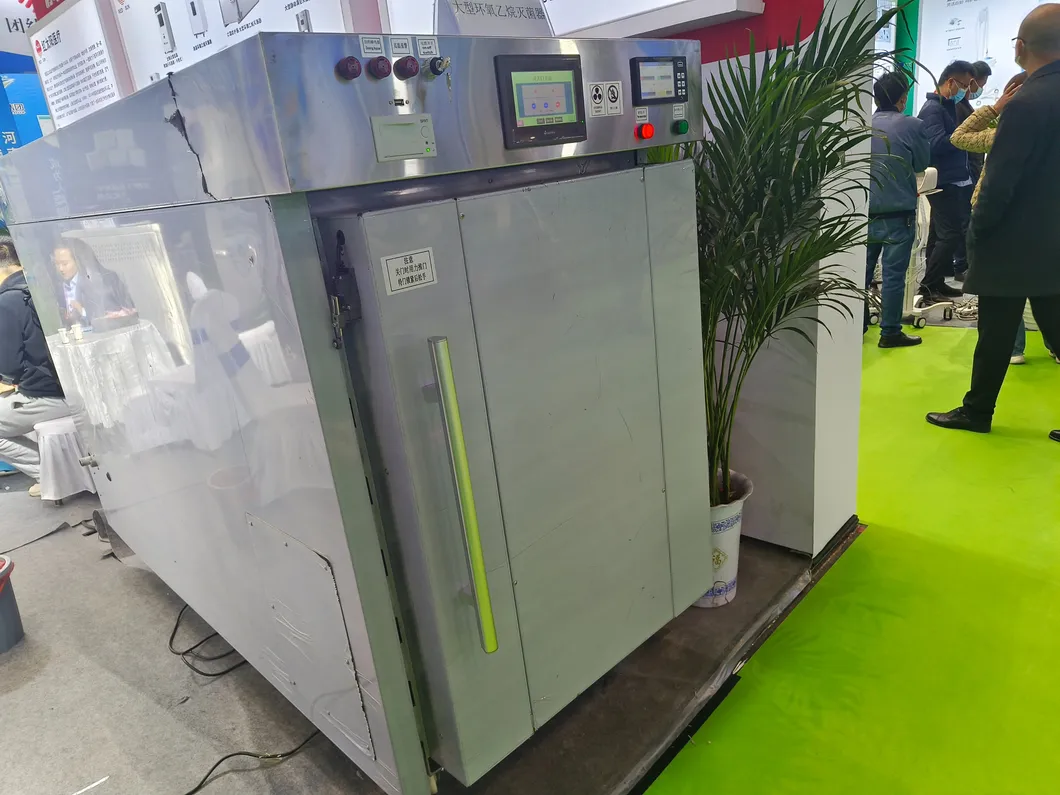

Technical 1

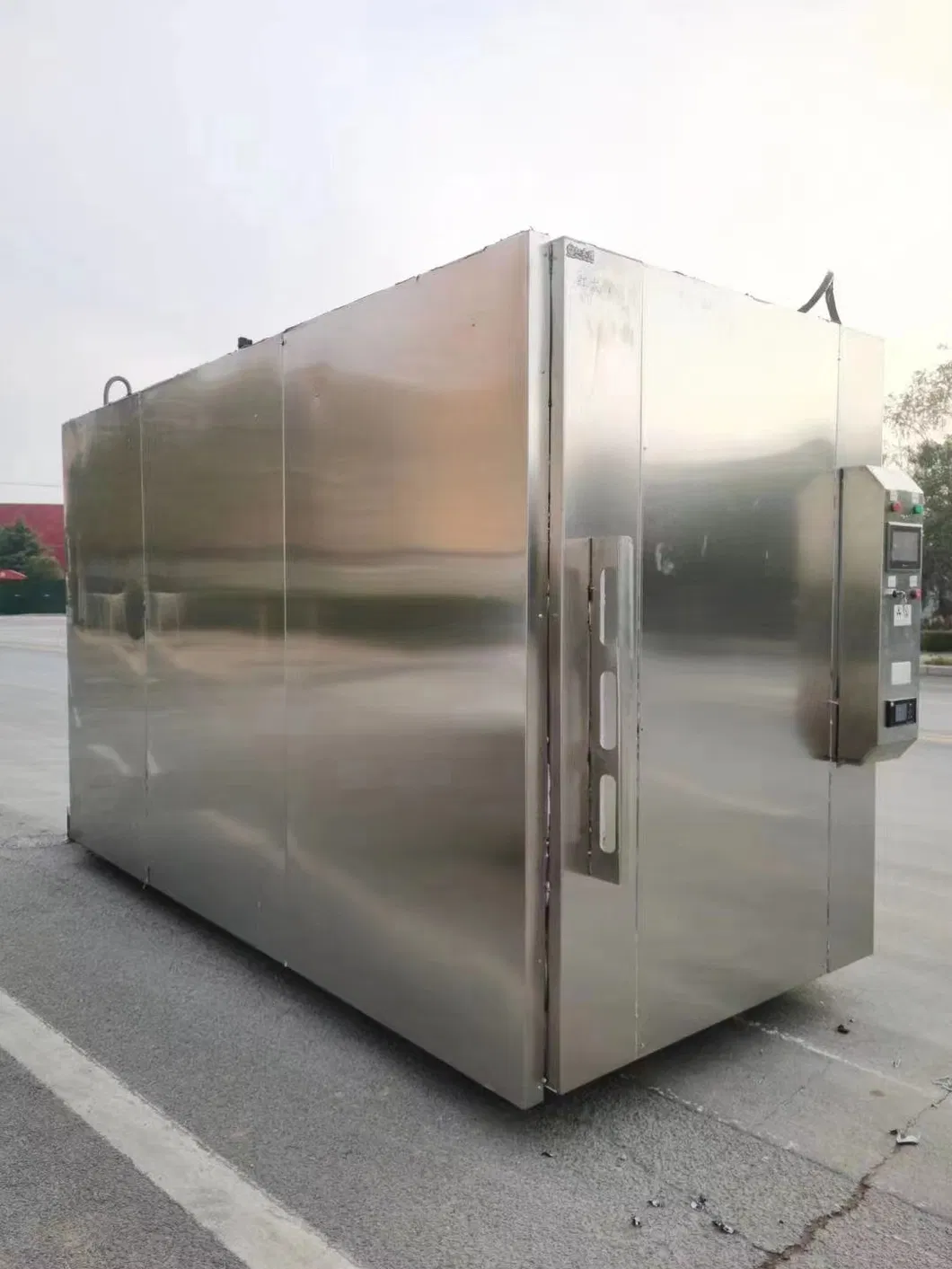

Technical 2
Parameter Details
Rated Power14kw - 20kw
Liner Specification (L*W*H)4000*1500*1800 CM
External Size (L*W*H)5100*2000*2450 MM
Work Pressure0KPa - 60KPa
Working Humidity20% - 90%
Operating Temperature45ºC - 60ºC
Sterilization Time1 - 99h
Sterilization Method100% Ethylene Oxide Gas
Heating MethodElectric heating film for uniform heating
Detailed Photos

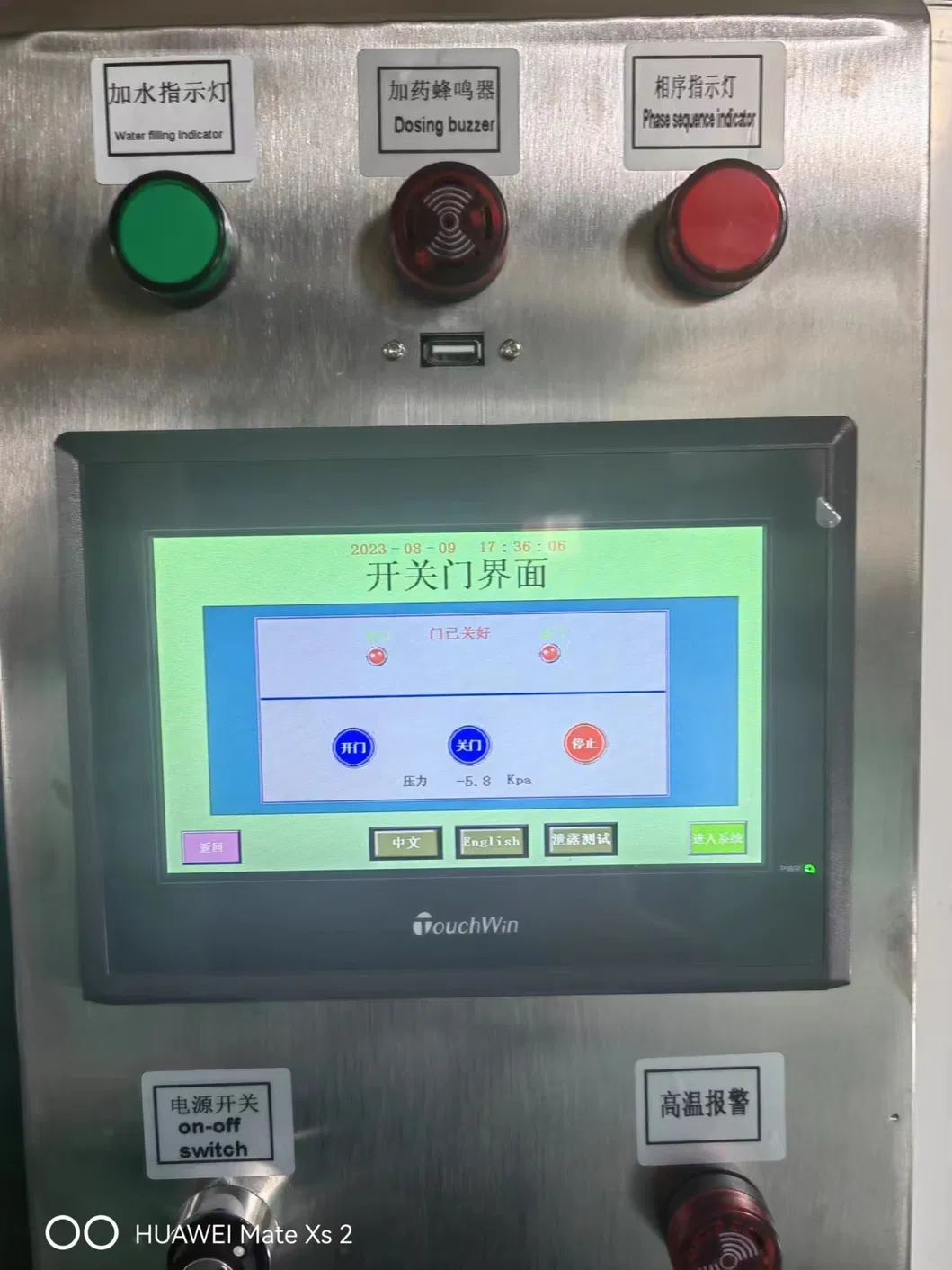

Detail 1

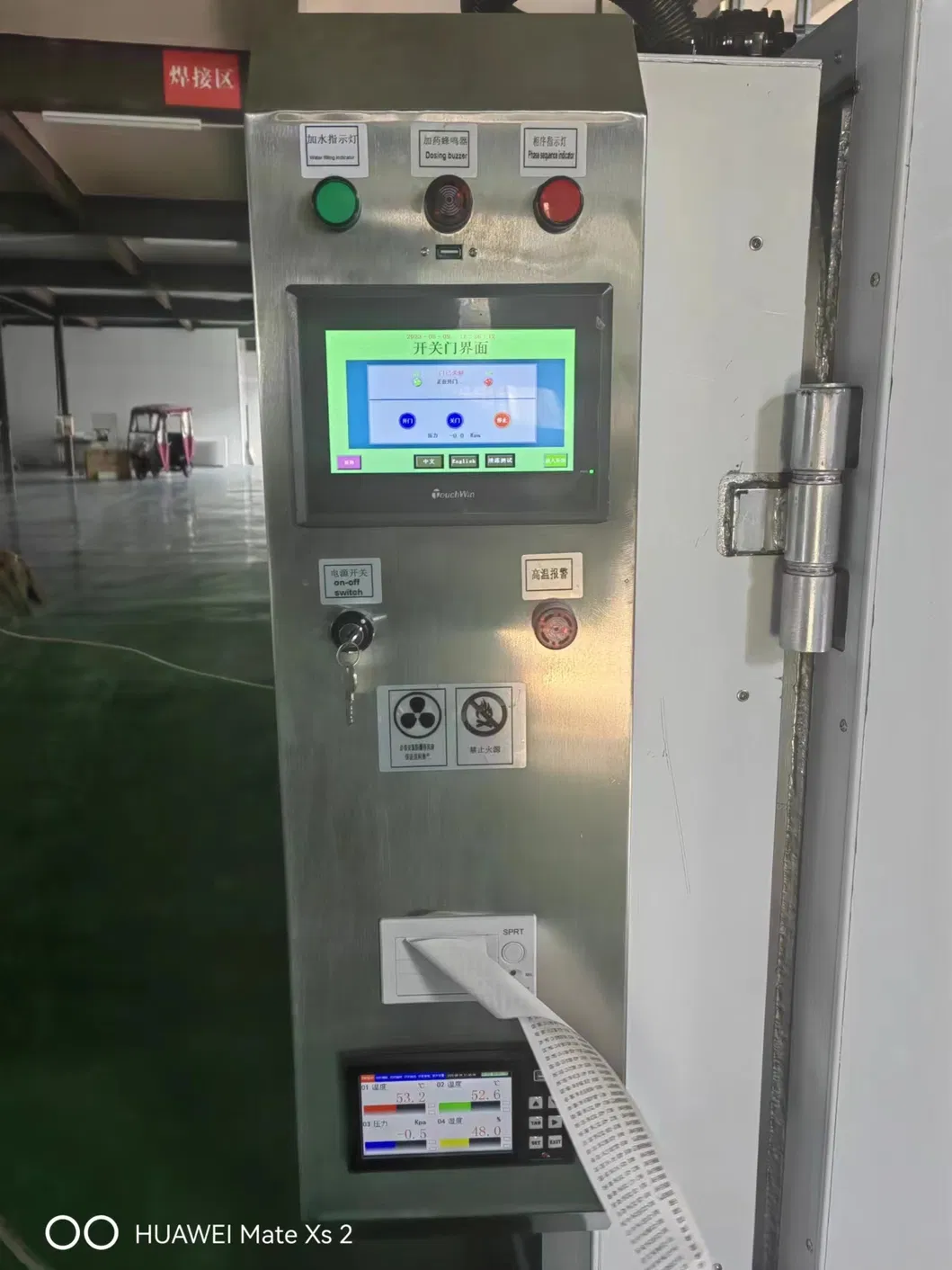

Detail 2

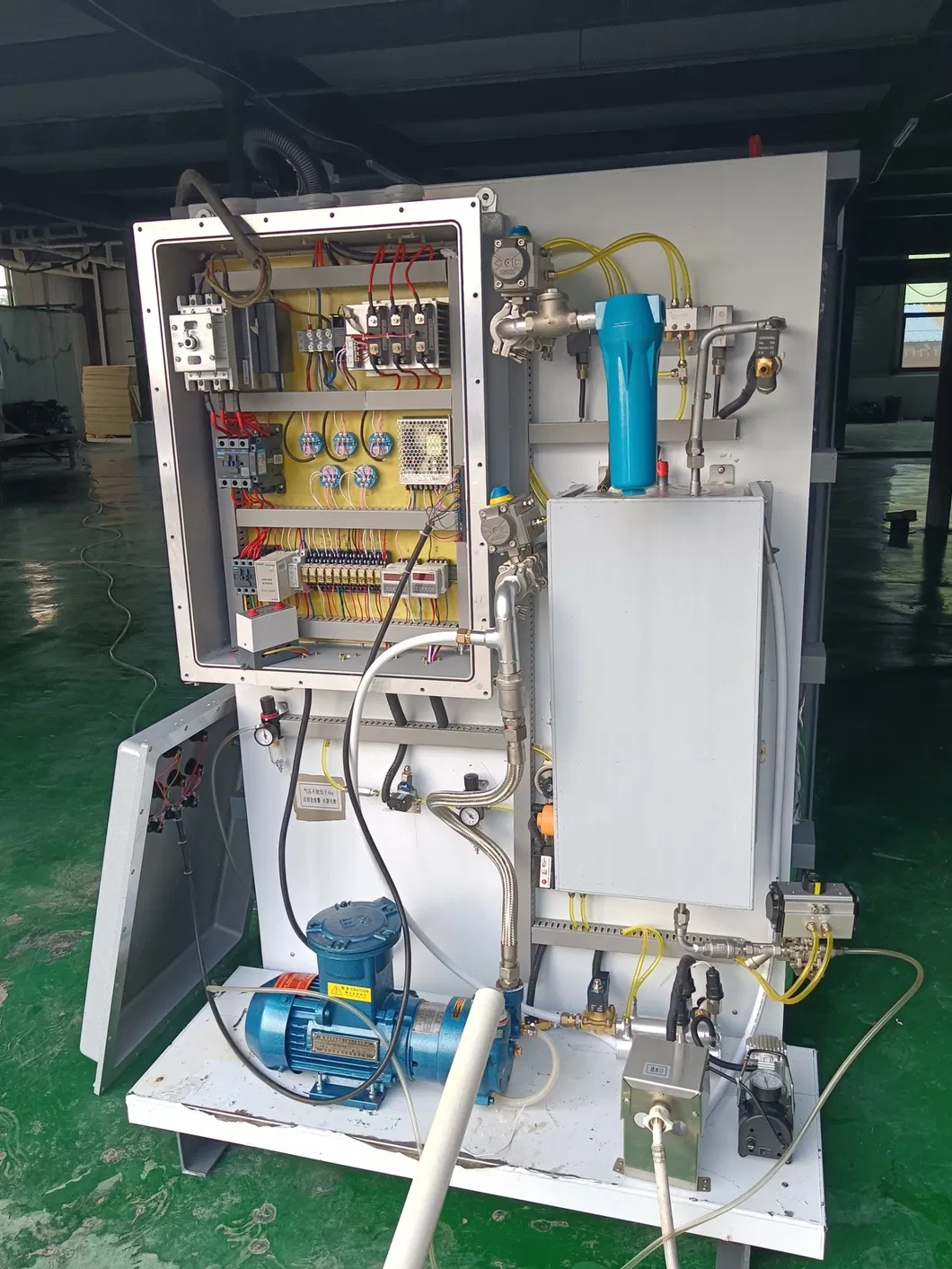

Detail 3
Detail 4
Manufacturing & Quality
Production 1
Production 2
Production 3

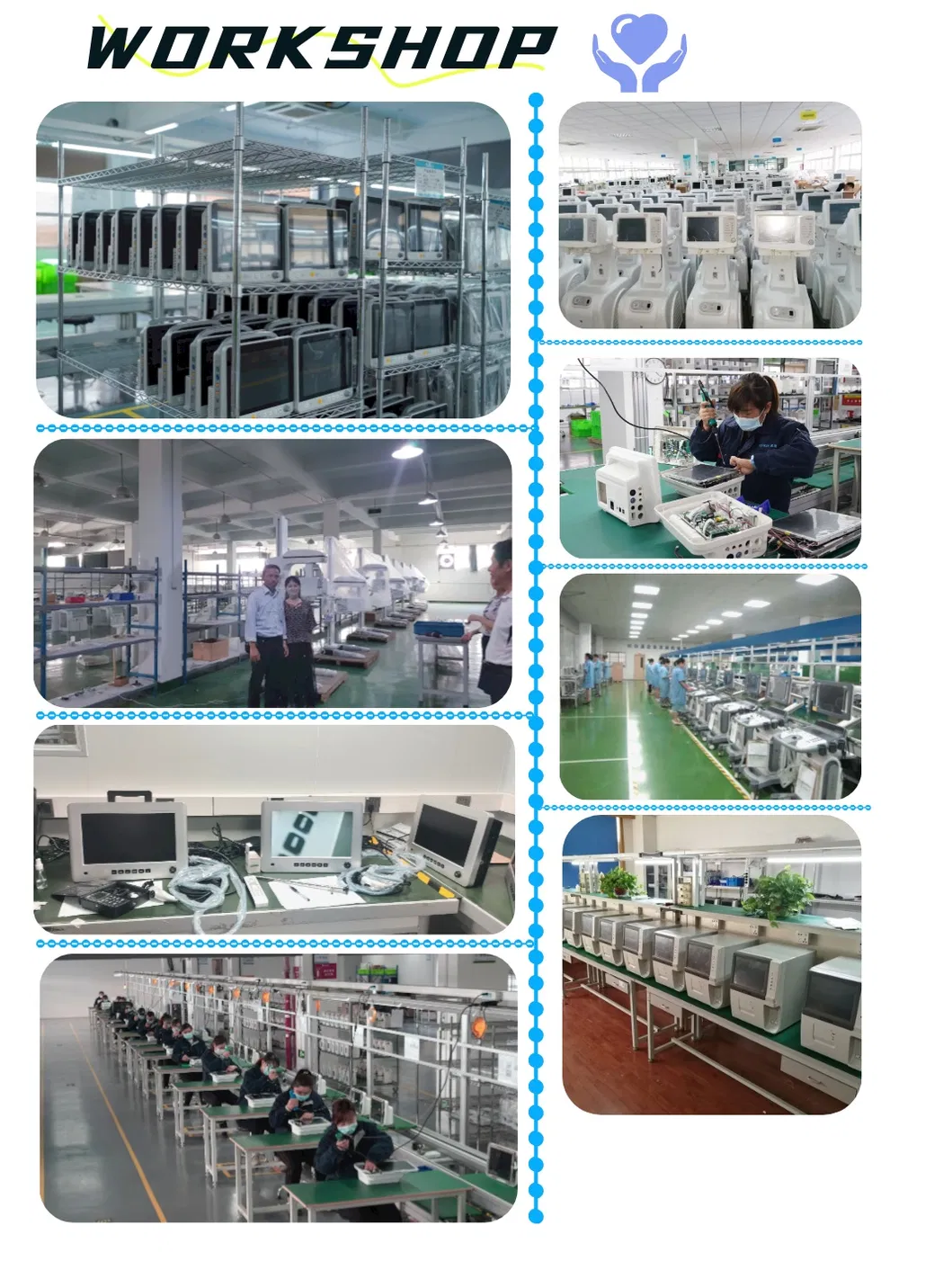

Production 4
Frequently Asked Questions
What is an ETO Sterilizer used for?
Ethylene Oxide (ETO) sterilizers are primarily used for medical supplies that are sensitive to heat and moisture, such as plastic syringes, infusion sets, surgical gloves, and optical endoscopes.
Is the sterilization process fully automatic?
Yes, the system is controlled by a PLC microcomputer. Once the run button is pressed, the machine automatically handles heating, vacuuming, humidification, sterilization, and residue removal.
What materials are used for the sterilization chamber?
The inner chamber is constructed from high-quality SUS304 stainless steel with a thickness of at least 5mm to withstand vacuum pressure and ensure long-term durability.
How does the machine ensure operator safety regarding gas residues?
The sterilizer includes a forced ventilation and residual gas treatment system that automatically analyzes and removes ethylene oxide residues at the end of the cycle.
What are the power and temperature requirements?
The 10CBM model typically requires a 380V 50Hz power supply. The working temperature is adjustable between 30℃ and 60℃ depending on the specific items being sterilized.
Does the machine provide a record of the sterilization cycle?
Yes, it features a printing system that uses a micro printer to record and save the entire sterilization process for quality control and compliance.
