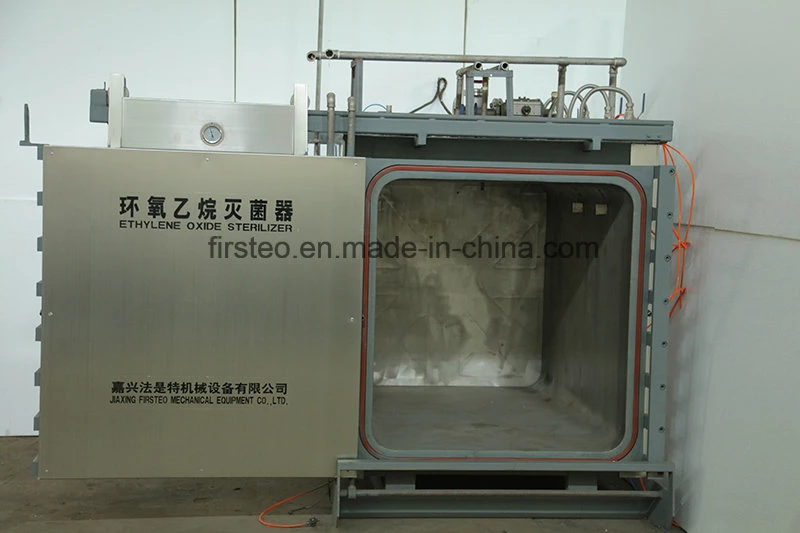

Ethylene Oxide Sterilizer Manufacturer Eto Gas Disinfection Machine for Mask Sterilization
Ethylene Oxide Sterilizer Manufacturer Eto Gas Disinfection Machine for Mask Sterilization
Ethylene Oxide Sterilizer Manufacturer Eto Gas Disinfection Machine for Mask Sterilization
Ethylene Oxide Sterilizer Manufacturer Eto Gas Disinfection Machine for Mask Sterilization
Ethylene Oxide Sterilizer Manufacturer Eto Gas Disinfection Machine for Mask Sterilization
1 / 5
Ethylene Oxide Sterilizer Manufacturer Eto Gas Disinfection Machine for Mask Sterilization
Ethylene Oxide Sterilizer Manufacturer Eto Gas Disinfection Machine for Mask Sterilization
Ethylene Oxide Sterilizer Manufacturer Eto Gas Disinfection Machine for Mask Sterilization
Ethylene Oxide Sterilizer Manufacturer Eto Gas Disinfection Machine for Mask Sterilization
Ethylene Oxide Sterilizer Manufacturer Eto Gas Disinfection Machine for Mask Sterilization

Ethylene Oxide Sterilizer Manufacturer Eto Gas Disinfection Machine for Mask Sterilization

Theory: Pneumatic
Type: Gas Sterilization Equipments
Certification: CE, ISO13485
Send Inquiry

Product Description

📋 Basic Information

Model NO.FST-size
Electric Tension220~380
LCD DisplayWith LCD Display
MaterialStainless Steel
After-SalesOnline Technical Support
Doors TypePneumatic Sliding Door
Specification1cbm to 100cbm
Alarm SystemUltra High Temperature Alarm

🏢 Overview

🛡️

Our products include overall facilities for EO sterilization chambers, preconditioning chambers, degassing chambers, and EO waste gas treatment apparatus.

Compliance: Products meet the requirements of ISO9001:2008 and ENISO13485:2003/AC2009.

Innovative Technology: Utilizing a specialized hot air heating system with a utility model patent certificate, holding a leading position in the sterilization industry.

🖼️ Product Display

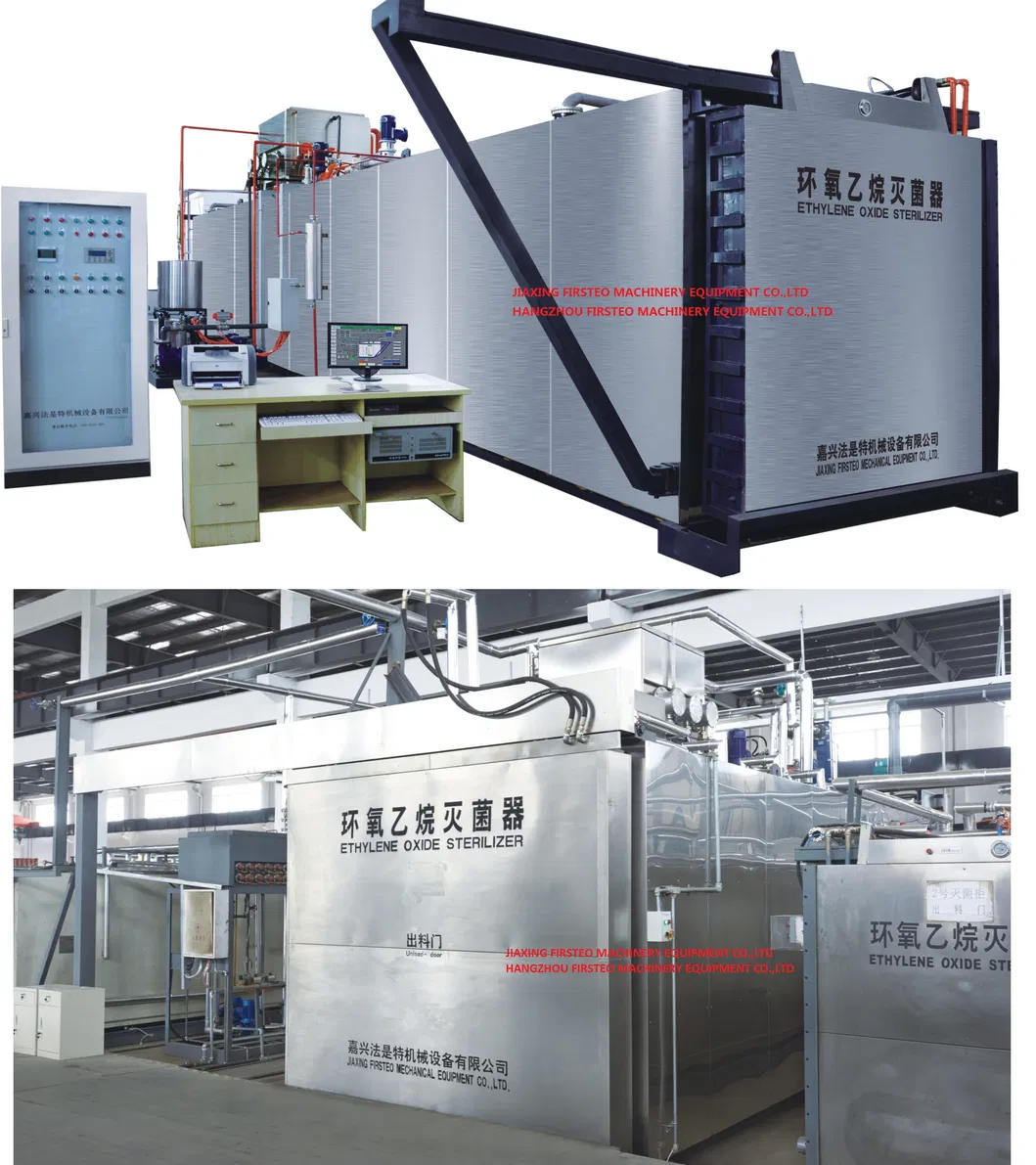

EO Sterilizer Machine
EO Sterilization Equipment

⚙️ Sterilization Process Steps

1
Loading goods and locking the secure door.
2
Temperature Adjusting: Reaching 50ºC (1-2 hours).
3
Pre-Vacuum: Air removal (6-30 minutes).
4
Pressure Holding Test: Ensuring no gas leaks.
5
Pre-humidification: Adjusting to 55%RH humidity.
6
EO Gas Injection: 20-30 minutes.
7
Sterilizing Stage: Maintaining conditions for 4-8 hours.
8
Residue Removal: Vacuum and air blowing cycles.
9
Unloading: Safe removal of sterilized goods.
Capacity Note: Our sterilizer chamber can handle two batches of cargo within a 24-hour period.

📊 Technical Specifications

Technical Info Specifications
Machine TypeEthylene Oxide Sterilizers / Chambers
Chamber Capacity1 to 100 m3
Chamber MaterialStainless steel (Grade 304 or 316)
Doors TypeDouble pneumatic sliding systems (Manual/Auto)
CirculationDouble jacket with 4 hot water circulation systems
PLC ControlSIEMENS Programmable Logic Controller
Power Supply380V AC, 50Hz or 60Hz
SensorsIntegrated Pressure, Temperature, and Humidity sensors

💻 Software & Data Processing

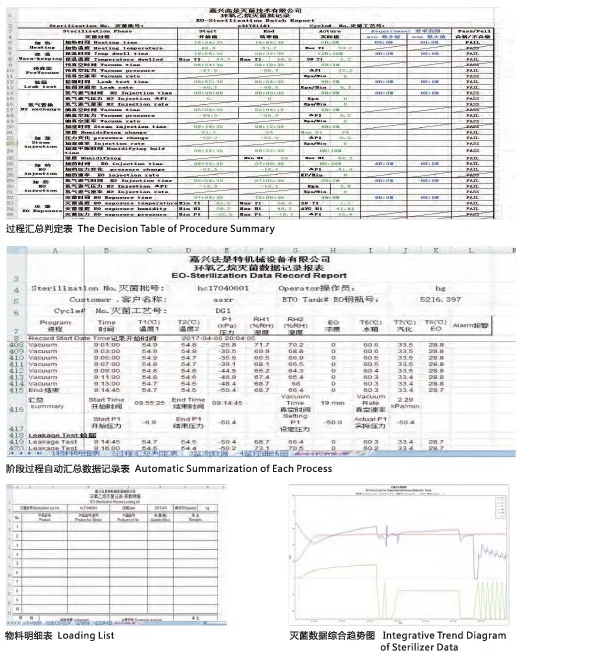

Software Interface

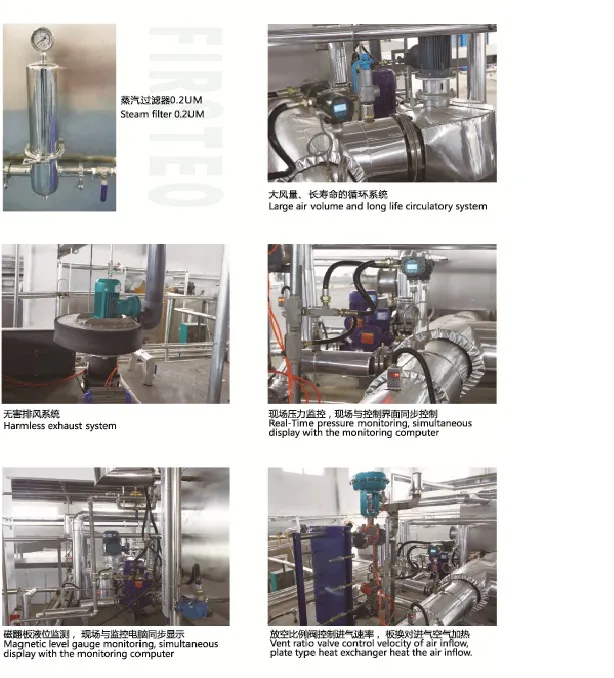

Data Reports

Loading and Logistics: Equipment is prepared for international transport in secure wooden packaging.

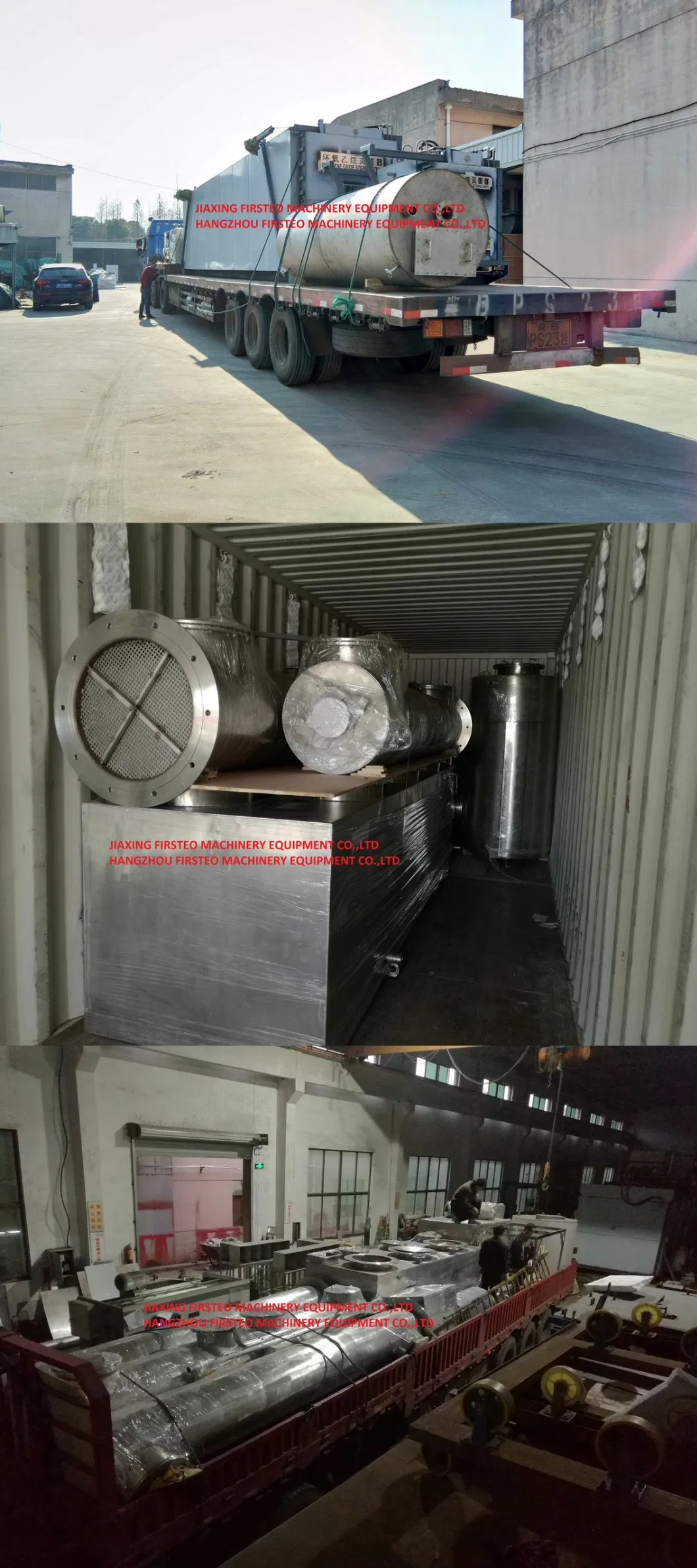

Container Loading

🛠️ Pre-Sales Service

  • Drafting technical agreements
  • Technical way planning
  • Equipment manufacturing customization

🔧 After-Sales Service

  • Installation and operational training
  • Overseas engineering support
  • Maintenance and parts supply

❓ Frequently Asked Questions

What is the range of chamber capacities available?
We provide sterilization chambers ranging from 1cbm up to 100cbm to suit different production scales.
What materials are used in the construction of the chamber?
The chambers are constructed using high-quality stainless steel, specifically grade 304 or 316, for maximum durability and hygiene.
How is the sterilization process controlled?
The system utilizes a SIEMENS Programmable Logic Controller (PLC) with software that supports both automatic and manual control, data storage, and graphic recording.
Does the machine meet international safety standards?
Yes, our products are designed to meet ISO9001:2008 and ENISO13485:2003/AC2009 requirements.
What kind of after-sales support is offered?
We offer comprehensive after-sales service, including online technical support, installation training, and overseas engineer availability for maintenance.
What are the main stages of the EtO sterilization cycle?
The cycle includes four main stages: preconditioning, sterilizing, degassing, and waste gas treatment.
