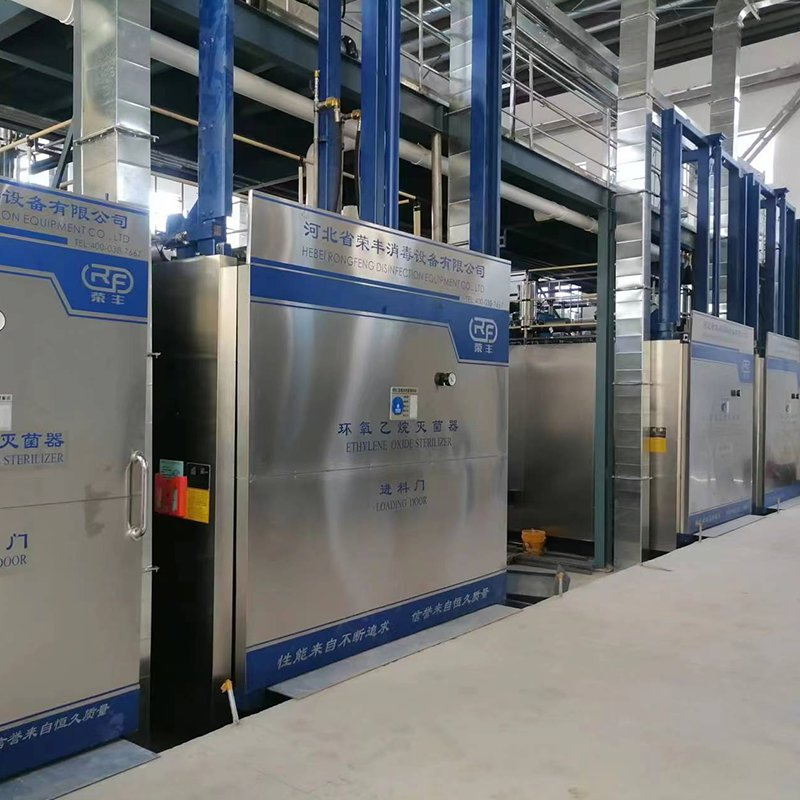

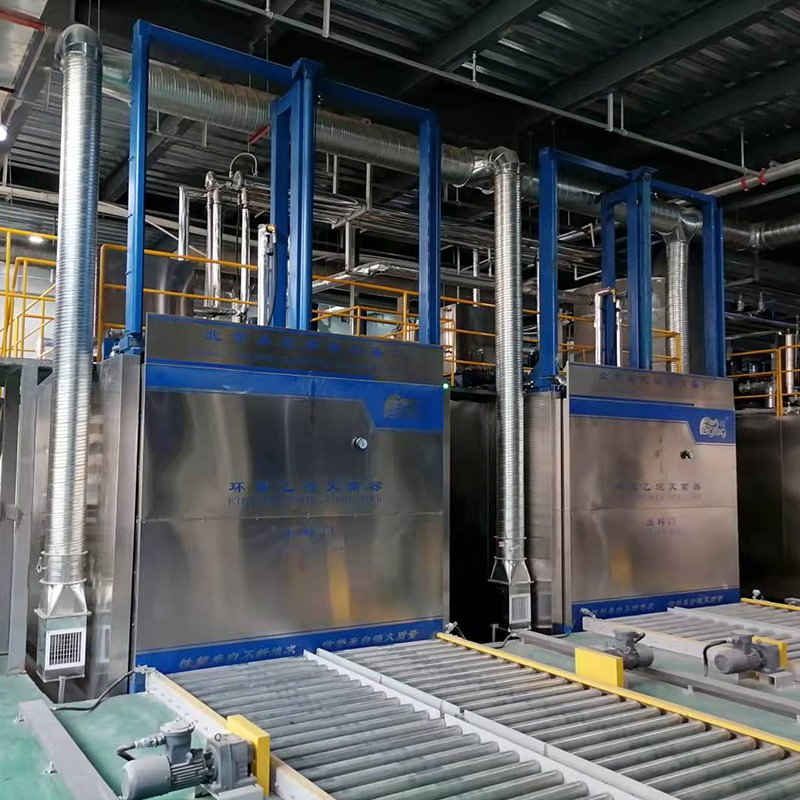

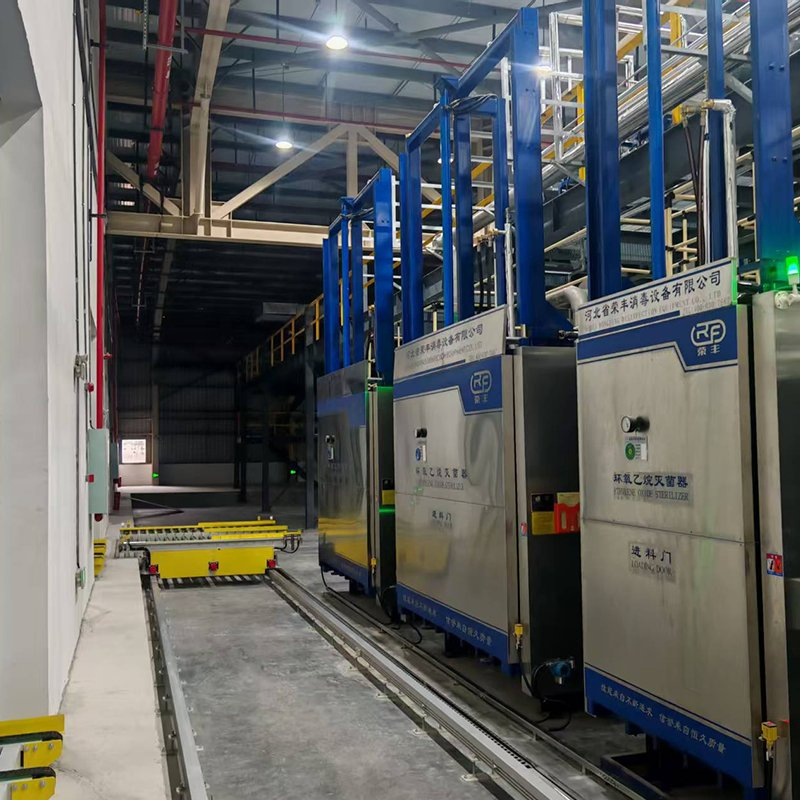

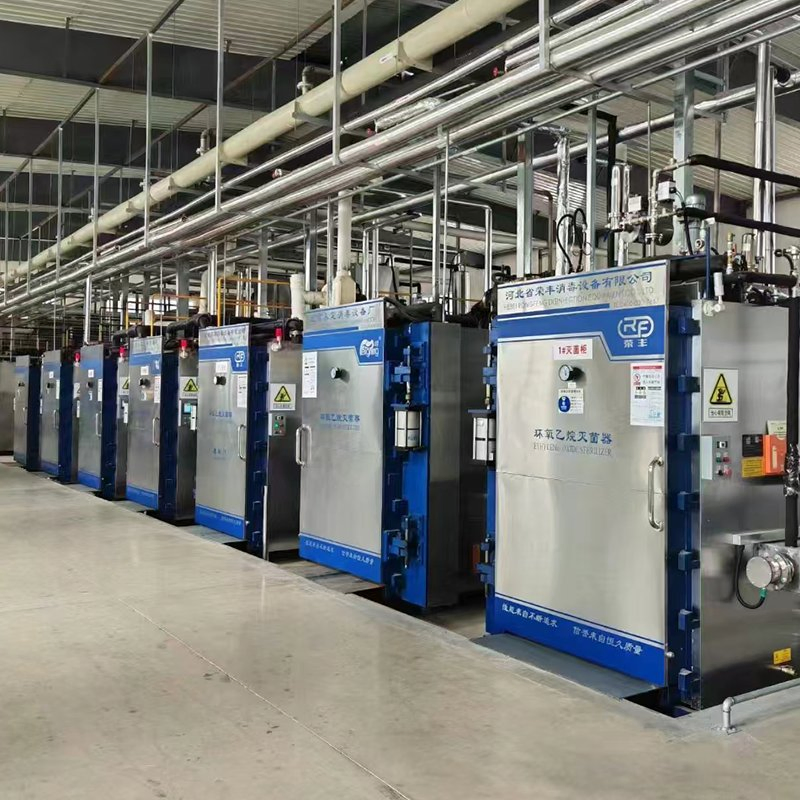

Large Ethylene Oxide Sterilizer / Eo Sterilizer / Eto Sterilizer

Customization:	Available
Theory:	Chemical Sterilization
Type:	Gas Sterilization Equipments

Basic Information

Model NO.

HMQ

Certification

CE, ISO13485

Electric Tension

380V

LCD Display

With LCD Display

Material

SUS 304 Stainless Steel

Temp. Control

(0~100)℃

Humidity Range

(0~100)%Rh

Production Capacity

3000 Cubic Meter/Year

Principle of Product

Ethylene oxide sterilizer is a special equipment for low temperature fumigation and sterilization of the articles enclosed in the sterilization room with ethylene oxide gas under certain temperature, pressure and humidity conditions. It has a broad spectrum of sterilization, strong penetration (cloth, carton, polyethylene film can penetrate), sterilization thoroughly, no damage to the articles, easy to preserve after sterilization and other advantages.

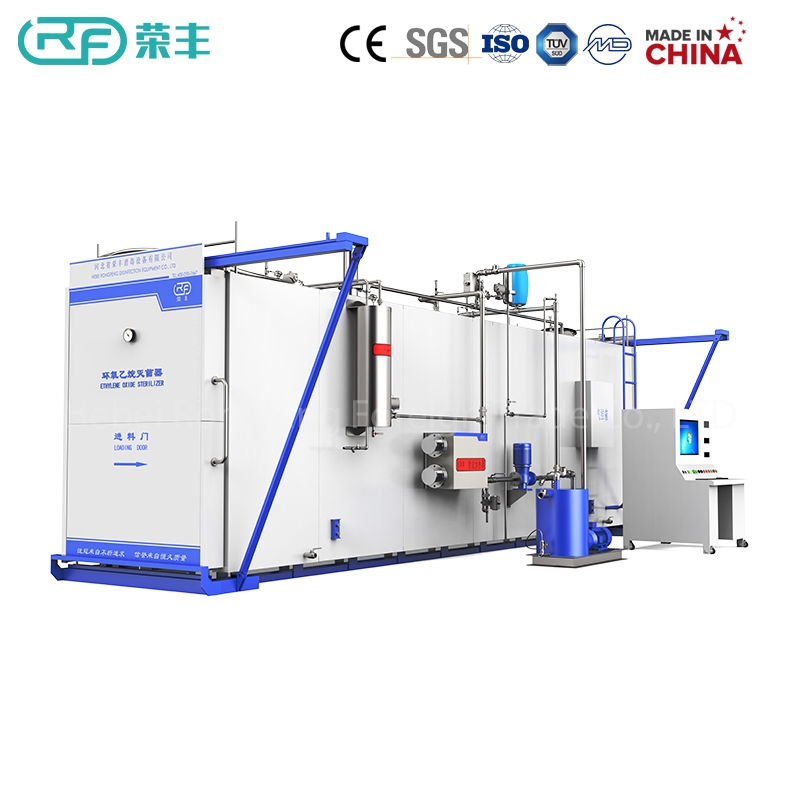

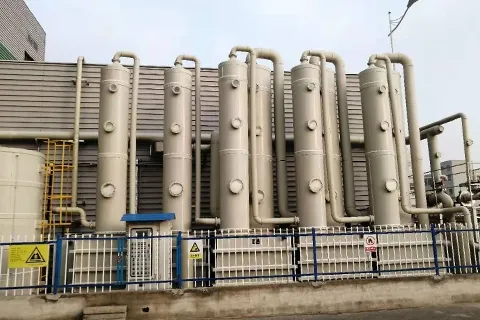

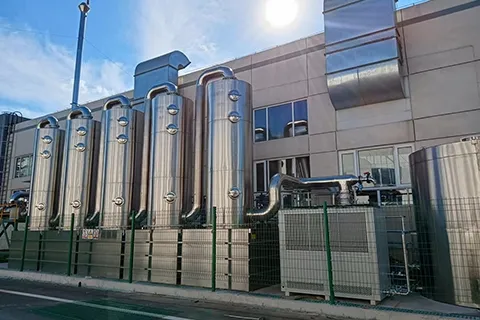

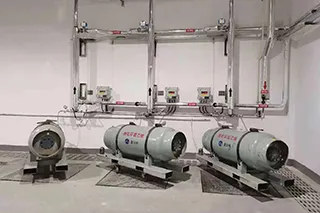

The HMQ large ethylene oxide sterilizer is mainly composed of sterilizer cabinet, auxiliary equipment (heating and thermal circulation device, vacuum device, dosing and vaporization device, humidification device, sealing device, residual gas treatment device), monitoring and control device.

Product Features

Durable Construction Cabinet body made of pressure vessel grade plate, designed for 20 years of service life.

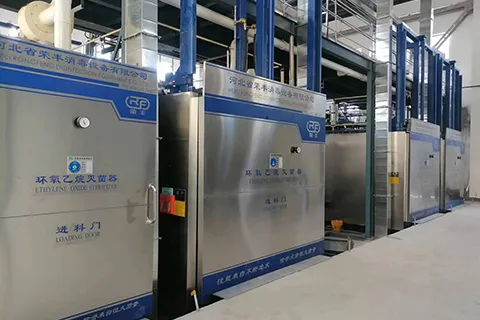

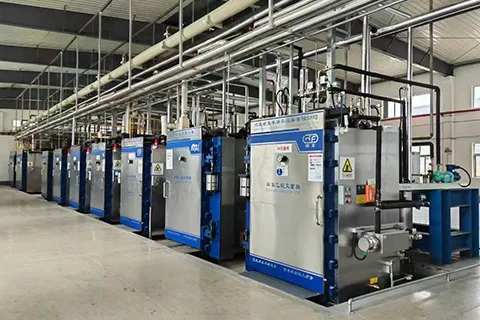

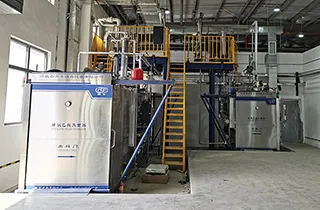

Customized Design Support for customized size, configuration, and door types (lifting/sliding/revolving).

Uniform Heating Hexahedral hot water circulation heating mode ensures sterilization without dead corners.

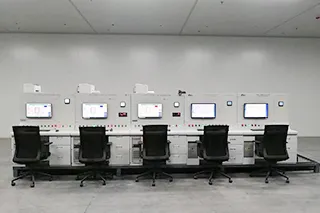

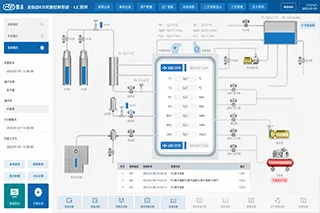

Intelligent Control Automatic or semi-automatic control with voice prompts and human-computer interface.

Safety Monitoring Real-time monitoring for over-temperature, over-pressure, and EO non-vaporization.

Easy Maintenance Dismountable dosing pipeline and drainage ball valves for easy cleaning.

Technical Parameters

Inner Tank Volume

(1~100)m³

Pressure Control

±80Kpa

Humidifier Power

(3~24)kw

Humidity Control

(0~99)%RH

Heating Power

(9~60)Kw

Power Supply

380V; 50Hz

Volume (m³)	Model (P/N)	Cabinet Inner Size (mm)	Temp (℃)	Humidity (%RH)	Pressure (MPa)	Power (kW)	Weight (kg)
1	HMQ-1	1400x700x1000	30~70	40~80	-0.08~0.08	45	1000
2	HMQ-2	1650x1000x1200					2000
3	HMQ-3	2500x1000x1200					3000
6	HMQ-6	2900x1350x1550				100	5000
15	HMQ-15	5600x1350x2000					9000
30	HMQ-30	10000x1350x2000					15000
100	HMQ-100	16500x2700x2200	30~70	40~80	-0.08~0.08	120	45000
