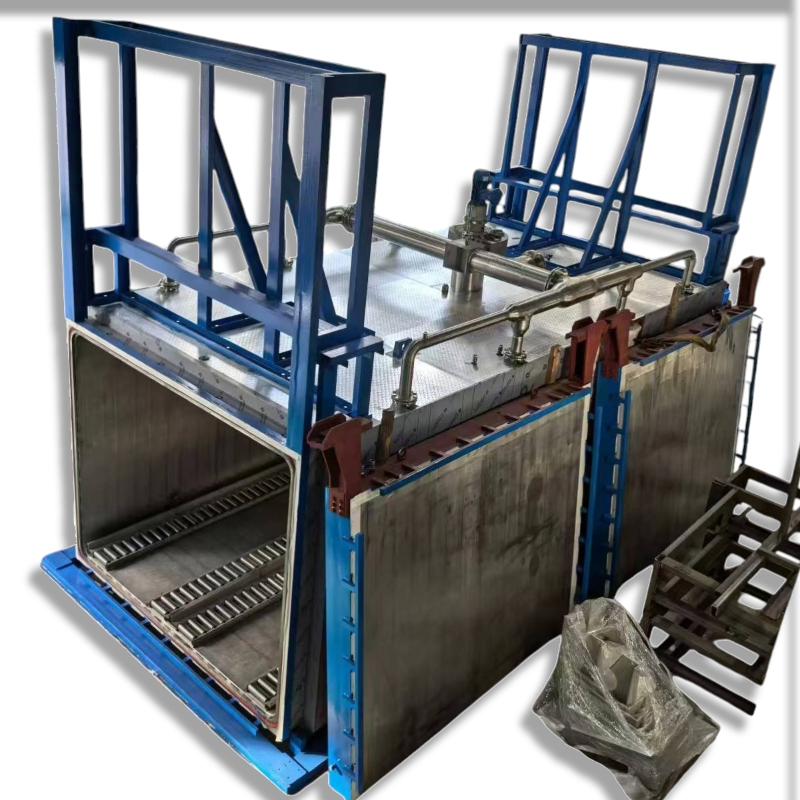

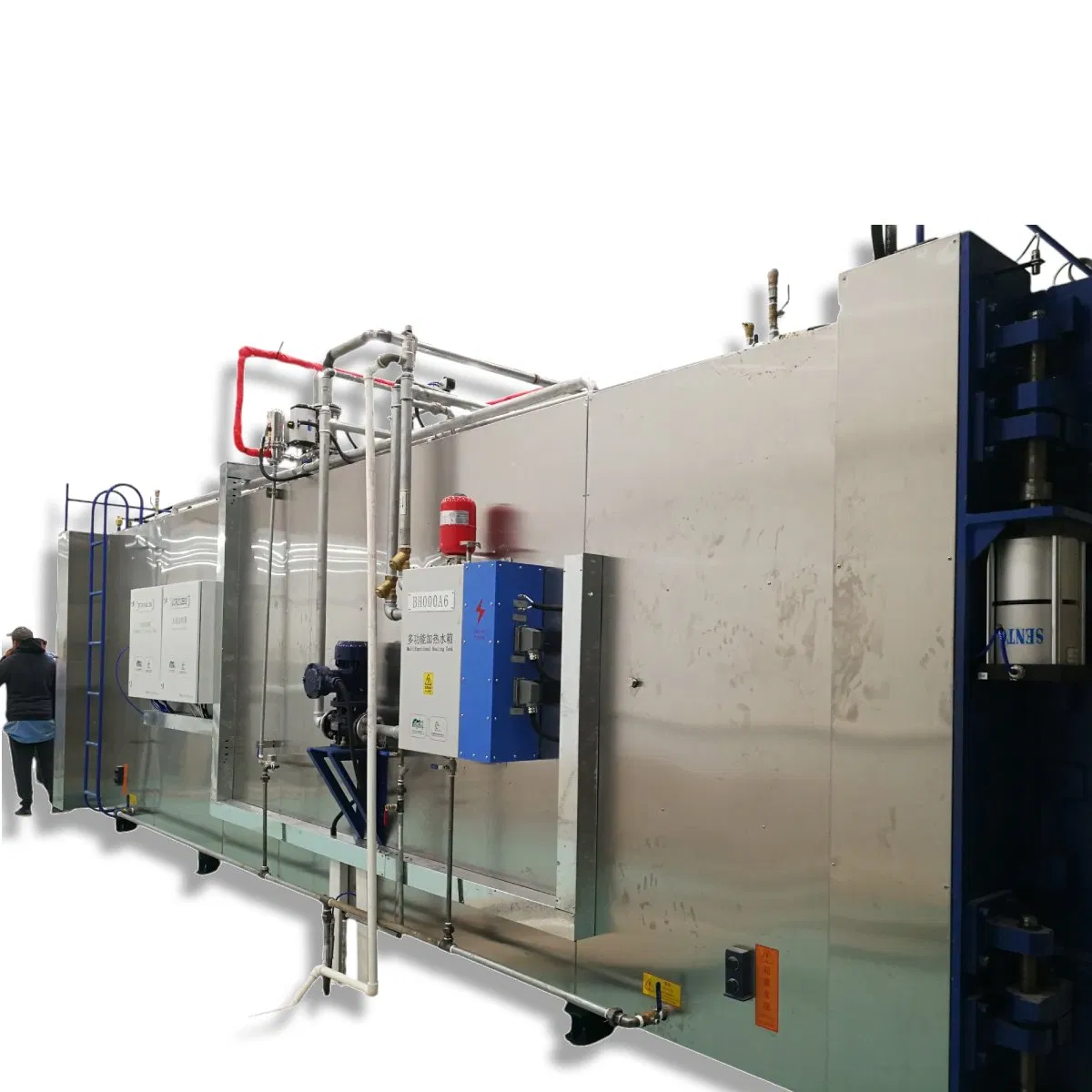

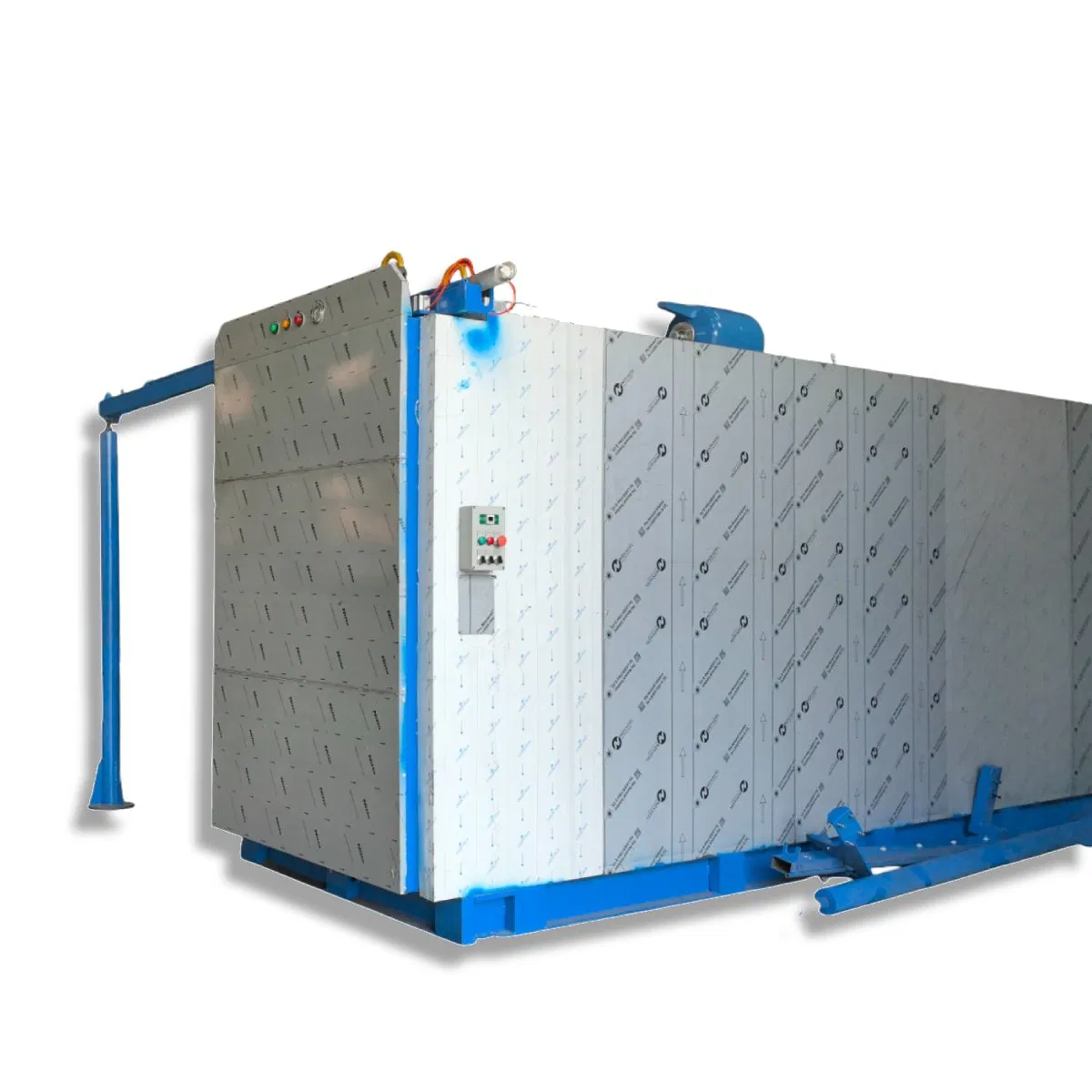

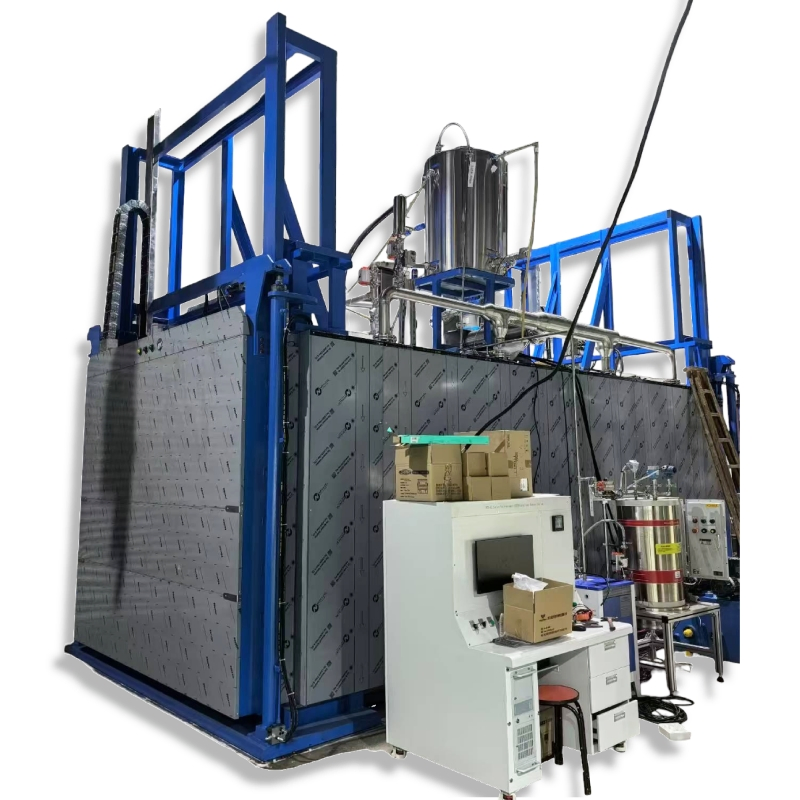

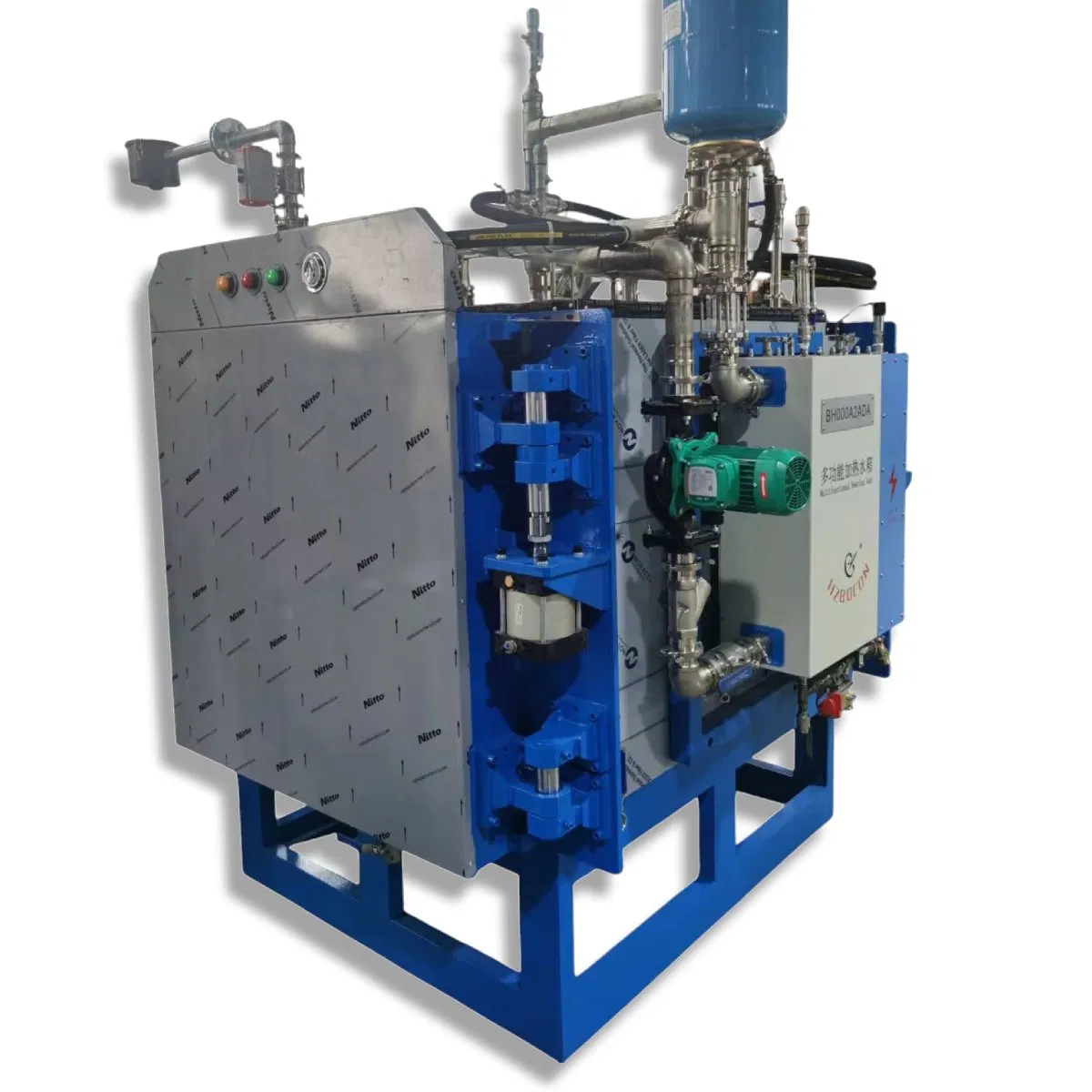

6m3 Ethylene Oxide Gas Sterilization Chamber, Eo Gas Sterilizer 10m3 China Combination Type Eto Gas Sterilization Machine
6m3 Ethylene Oxide Gas Sterilization Chamber, Eo Gas Sterilizer 10m3 China Combination Type Eto Gas Sterilization Machine
6m3 Ethylene Oxide Gas Sterilization Chamber, Eo Gas Sterilizer 10m3 China Combination Type Eto Gas Sterilization Machine
6m3 Ethylene Oxide Gas Sterilization Chamber, Eo Gas Sterilizer 10m3 China Combination Type Eto Gas Sterilization Machine
6m3 Ethylene Oxide Gas Sterilization Chamber, Eo Gas Sterilizer 10m3 China Combination Type Eto Gas Sterilization Machine
1 / 5
6m3 Ethylene Oxide Gas Sterilization Chamber, Eo Gas Sterilizer 10m3 China Combination Type Eto Gas Sterilization Machine
6m3 Ethylene Oxide Gas Sterilization Chamber, Eo Gas Sterilizer 10m3 China Combination Type Eto Gas Sterilization Machine
6m3 Ethylene Oxide Gas Sterilization Chamber, Eo Gas Sterilizer 10m3 China Combination Type Eto Gas Sterilization Machine
6m3 Ethylene Oxide Gas Sterilization Chamber, Eo Gas Sterilizer 10m3 China Combination Type Eto Gas Sterilization Machine
6m3 Ethylene Oxide Gas Sterilization Chamber, Eo Gas Sterilizer 10m3 China Combination Type Eto Gas Sterilization Machine

6m3 Ethylene Oxide Gas Sterilization Chamber, Eo Gas Sterilizer 10m3 China Combination Type Eto Gas Sterilization Machine

Customization: Available
Theory: Gas Sterilization
Type: Gas Sterilization Equipments
Send Inquiry

Product Description

Basic Information
Model NO.
BCS
Certification
CE
Electric Tension
as Your Request
LCD Display
Without LCD Display
Temperature Alarm
Ultra High Temperature Alarm
Material
Stainless Steel
Doors Type
Pneumatic Sliding/Revolving Door
Specification
1cbm to 100cbm
Production Capacity
20 Sets /Month
HS Code
8419200000
Product Description
Ethylene Oxide Gas Sterilization Chamber
Volume Pallet Inner Size Sliding Door Size Revolving Door Size Inner/Door Thickness Weight
1m³/1400*700*10001750*1270*1520/6mm / 6mm1t
2m³/1650*1000*12002070*2520*17202000*1570*17206mm / 6mm2t
5m³2*(1200*1000)2250*1350*17002670*3220*22202600*1920*22208mm / 6mm4.5t
10m³4*(1200*1000)4500*1350*17004920*3220*22204850*1920*22206mm / 8mm7t
20m³7*(1200*1000)7500*1350*20007920*3220*25207850*1920*25208mm / 8mm12t
52m³13*(1200*1000)13900*1400*270014320*3320*322014250*1970*32208mm / 10mm28t
101m³32*(1200*1000)17050*2700*220017510*3300*278017510*3300*27808mm / 10mm45t
Detailed Photos

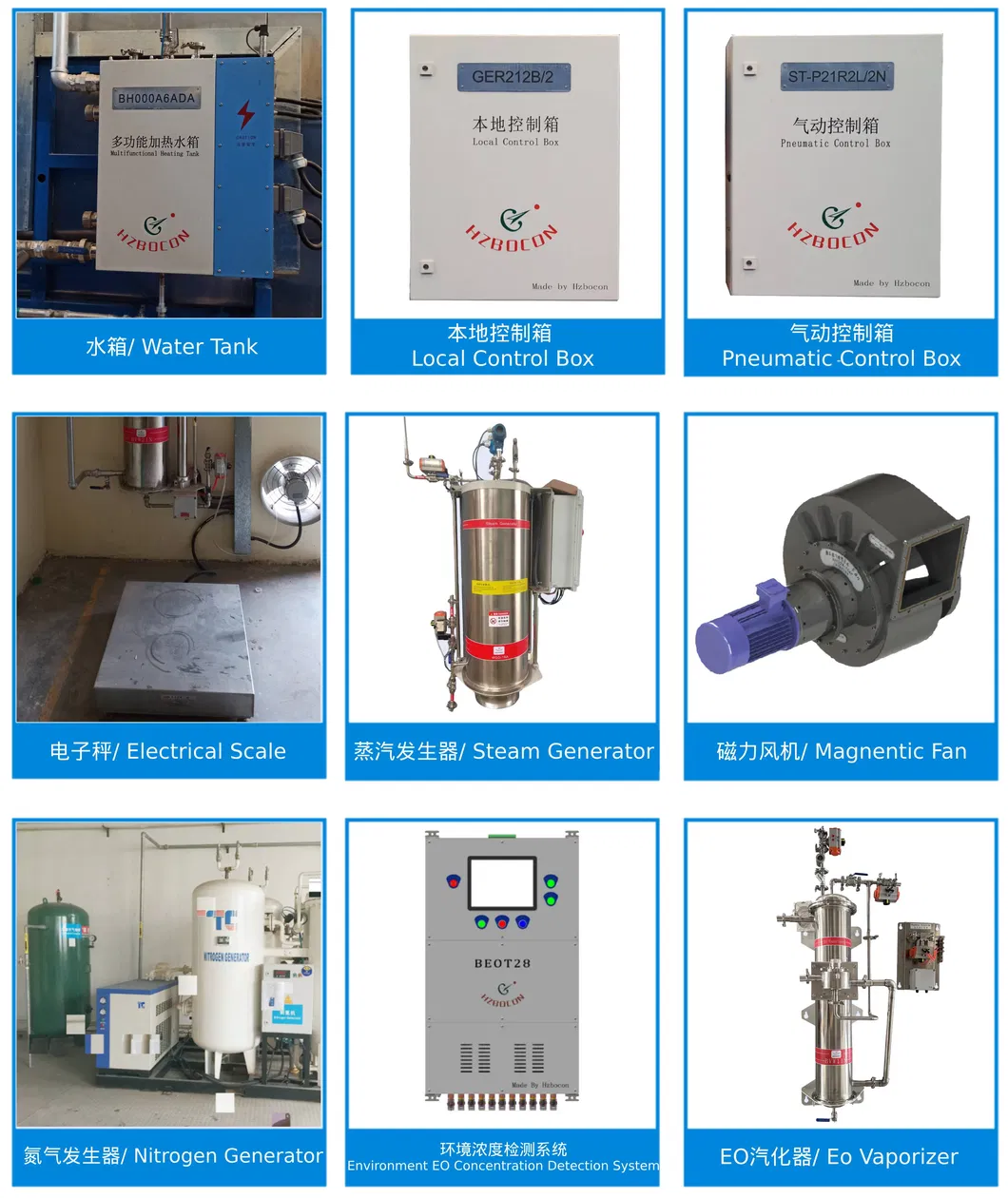

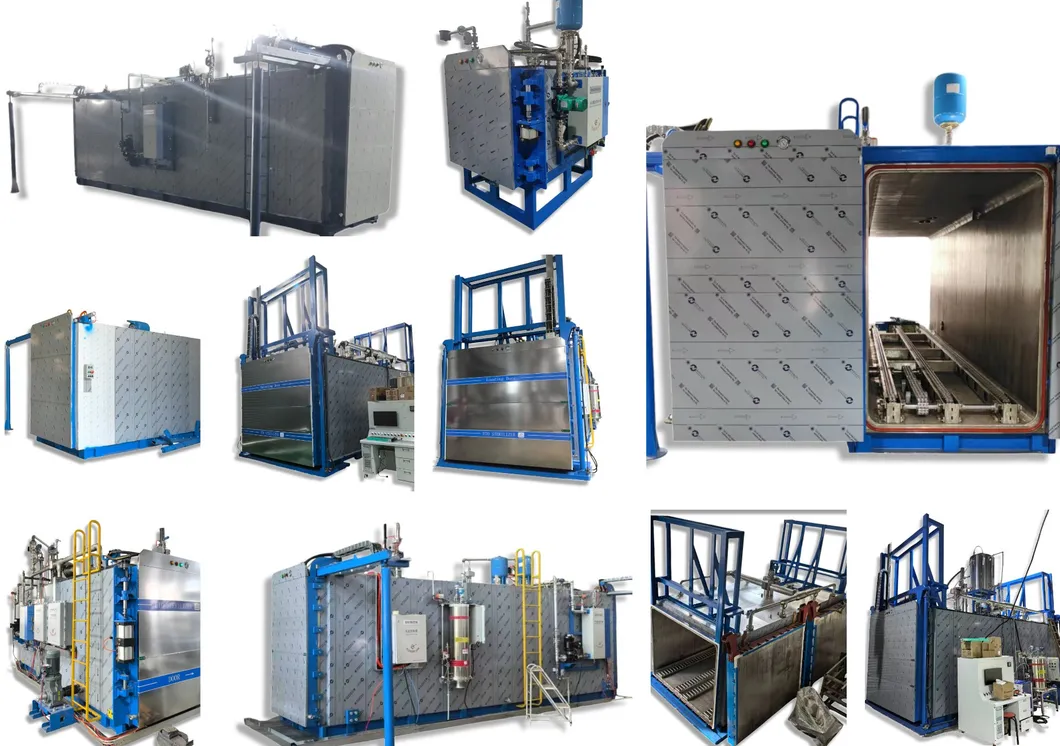

Detailed Photo 1 Detailed Photo 2
Detailed Photo 3
Facility Display

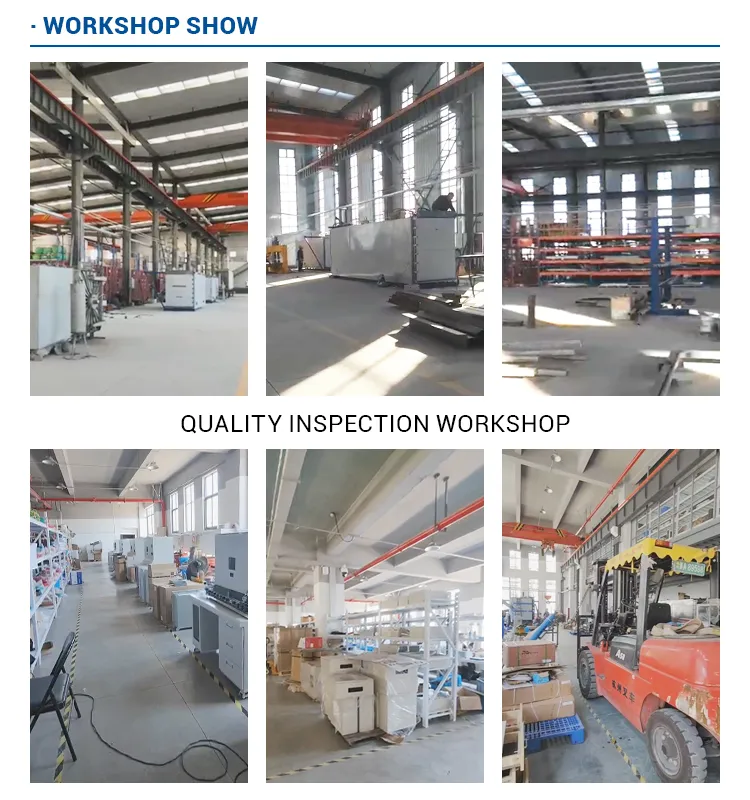

Facility 1 Facility 2 Facility 3 Facility 4
Frequently Asked Questions
What is ethylene oxide (EtO) sterilization?
Ethylene oxide is a gas widely used in sterilization; more than 50% of medical devices are sterilized by EtO. It is used either as 100% ETO or in combination with carbon dioxide.
What are the advantages of EtO sterilization?
It is preferred for large volume sterilization due to high penetration. Benefits include:
  • Sterilization after final packing to avoid secondary pollution.
  • Low temperature processing to maintain product characteristics.
  • Low sterilization and maintenance costs.
  • Excellent material compatibility for electronics and batteries.
What products can be sterilized using ETO?
It covers a wide scope including: Endoscopes, plastic/rubber products (syringes, catheters), surgical instruments, anesthetic vessels (masks, tubes), and cotton fiber products (surgical gowns, bandages).
What are the payment and delivery terms?
Payment is typically via T/T with a 30% down payment. Production and delivery take approximately 60-90 days. Installation and debugging require 15-60 days depending on chamber size.
What is the warranty period?
The mainframe of the cabinet is guaranteed for at least 5 years, the control system for 2 years, and other purchased parts for 1 year.
Do you provide technical documentation like IQ/OQ/PQ?
Yes, we provide FAT (Factory Acceptance Testing), IQ (Installation Qualification), OQ (Operational Qualification), and support for PQ (Performance Qualification), along with software validation.
