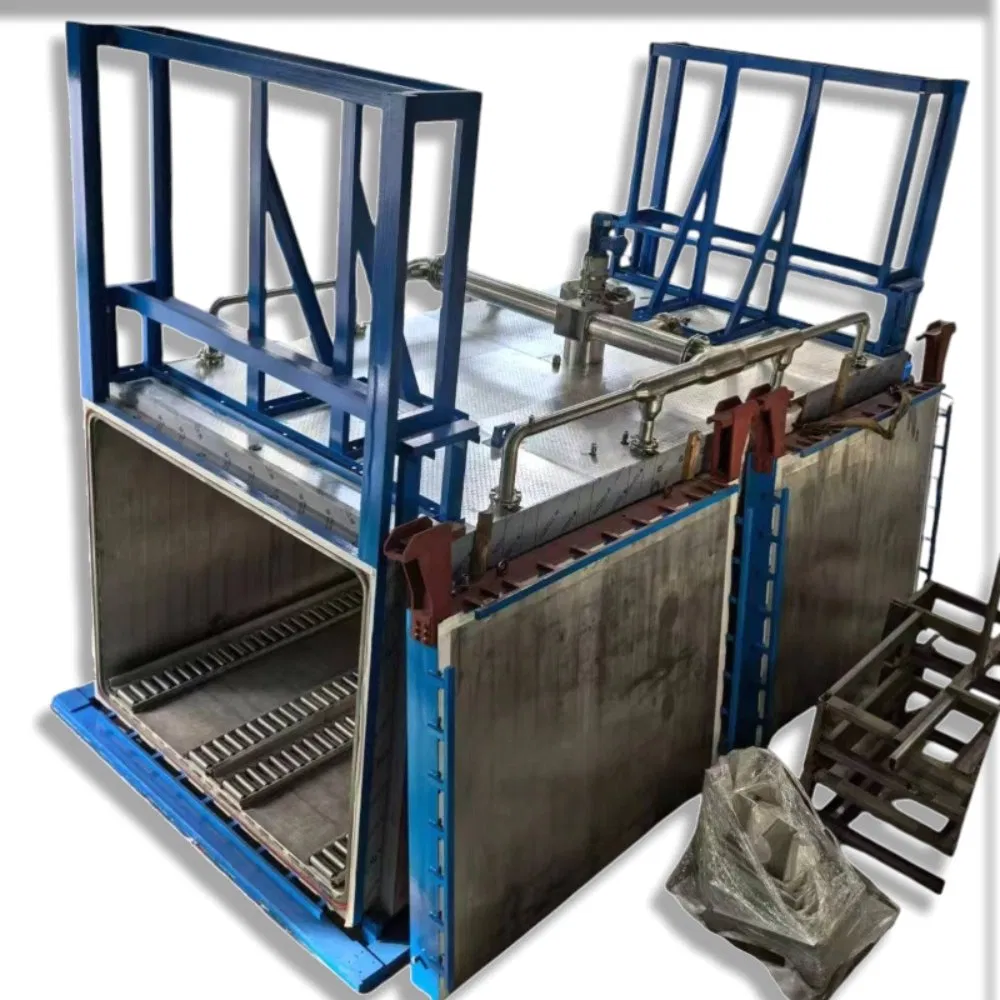

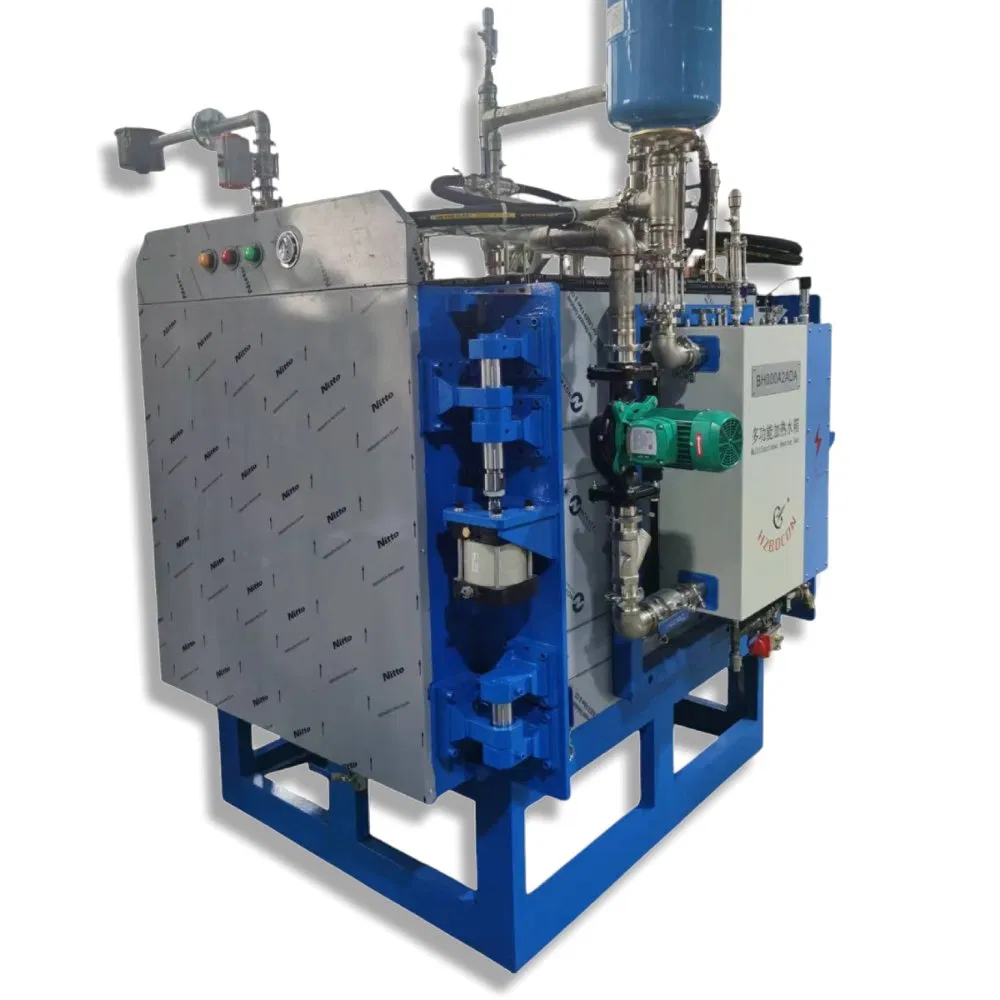

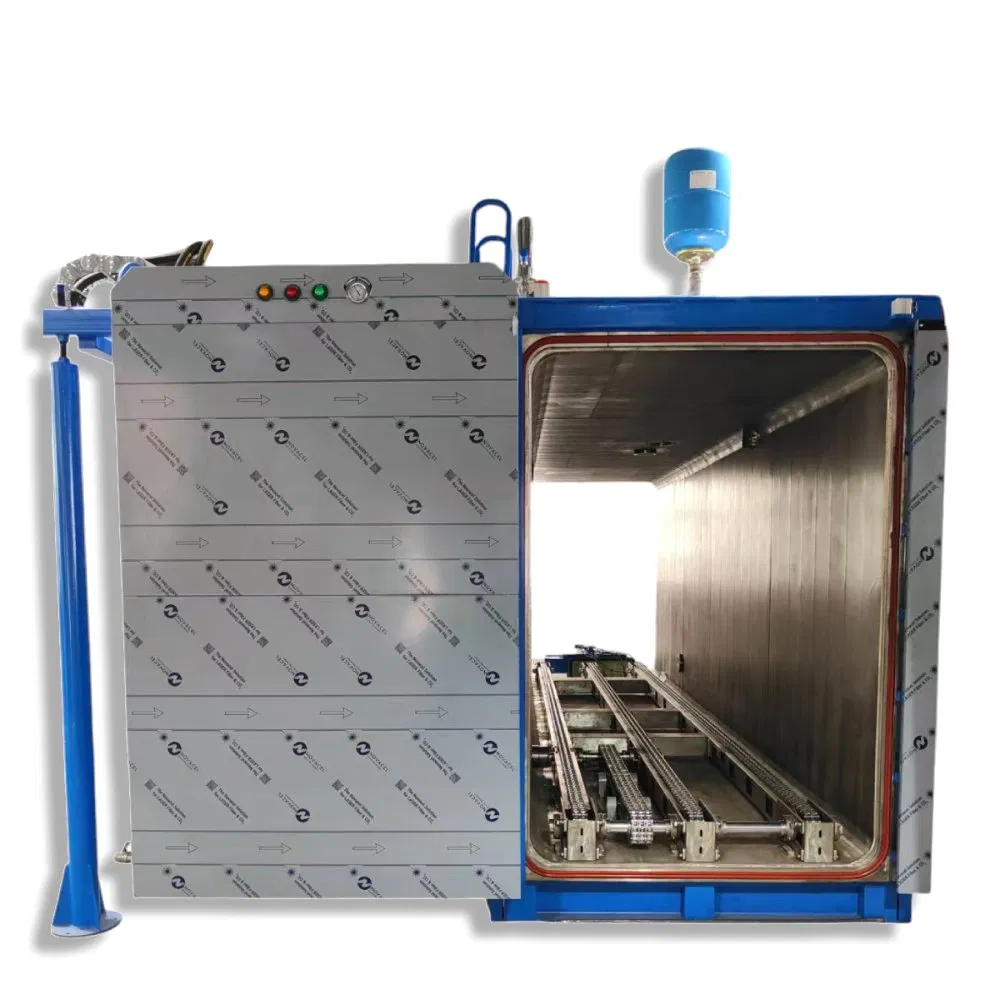

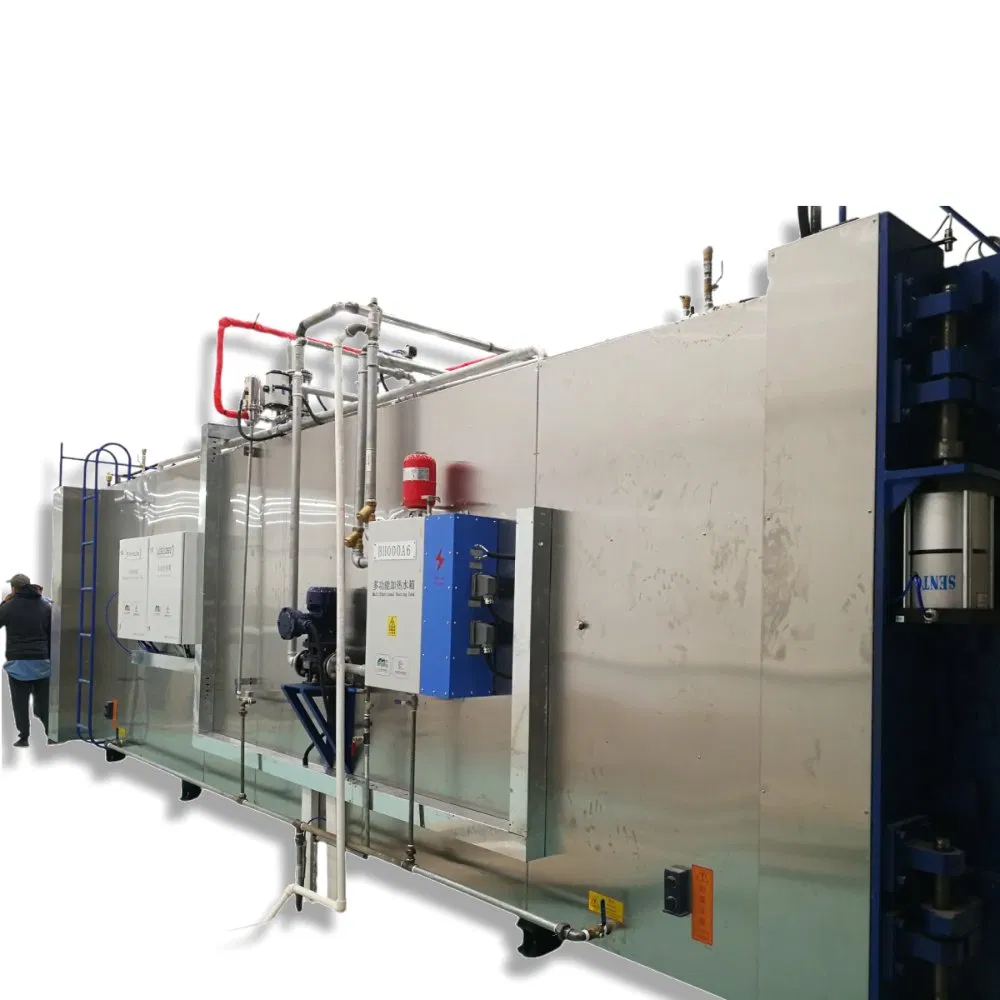

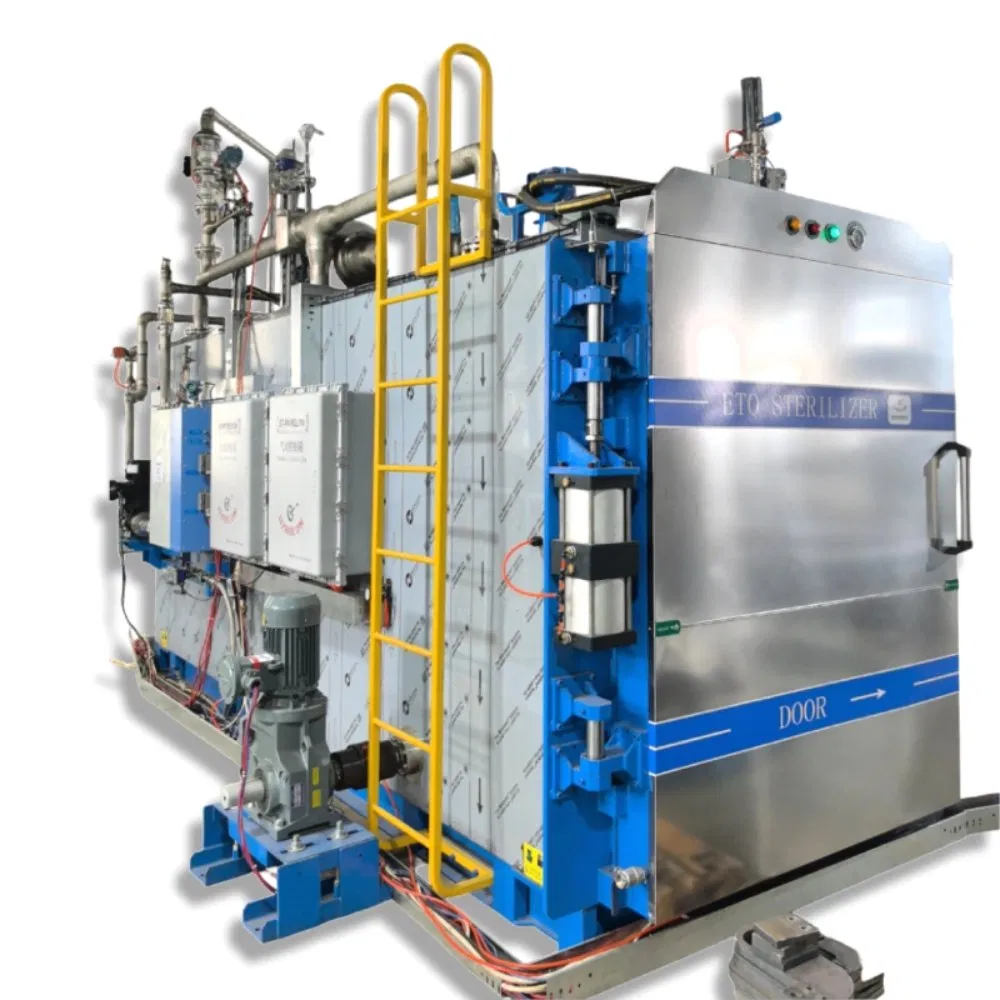

Large Volume Eo/Eto Gas Sterilizer 3 Cubic Mask Clothes Sterilization Equipment Ethylene Oxide Sterilizer
Large Volume Eo/Eto Gas Sterilizer 3 Cubic Mask Clothes Sterilization Equipment Ethylene Oxide Sterilizer
Large Volume Eo/Eto Gas Sterilizer 3 Cubic Mask Clothes Sterilization Equipment Ethylene Oxide Sterilizer
Large Volume Eo/Eto Gas Sterilizer 3 Cubic Mask Clothes Sterilization Equipment Ethylene Oxide Sterilizer
Large Volume Eo/Eto Gas Sterilizer 3 Cubic Mask Clothes Sterilization Equipment Ethylene Oxide Sterilizer
1 / 5
Large Volume Eo/Eto Gas Sterilizer 3 Cubic Mask Clothes Sterilization Equipment Ethylene Oxide Sterilizer
Large Volume Eo/Eto Gas Sterilizer 3 Cubic Mask Clothes Sterilization Equipment Ethylene Oxide Sterilizer
Large Volume Eo/Eto Gas Sterilizer 3 Cubic Mask Clothes Sterilization Equipment Ethylene Oxide Sterilizer
Large Volume Eo/Eto Gas Sterilizer 3 Cubic Mask Clothes Sterilization Equipment Ethylene Oxide Sterilizer
Large Volume Eo/Eto Gas Sterilizer 3 Cubic Mask Clothes Sterilization Equipment Ethylene Oxide Sterilizer

Large Volume Eo/Eto Gas Sterilizer 3 Cubic Mask Clothes Sterilization Equipment Ethylene Oxide Sterilizer

Customization: Available
Theory: Gas Sterilization
Type: Gas Sterilization Equipments
Send Inquiry

Product Description

Basic Information
Model NO.
BCS
Certification
CE
Electric Tension
As Your Request
LCD Display
With LCD Display
Temperature Alarm
Ultra High Temperature Alarm
Recording
Sterilization Information Recording and Printing
Material
Stainless Steel
Doors Type
Pneumatic Sliding Door, Pneumatic Revolving Door
Transport Package
Wooden Package
Specification
1cbm to 100cbm
Product Description
Eo/Eto Gas Sterilizer
Volume Pallet Inner Size (mm) Pneumatic Sliding Door Weight (T) Material
1m³/1400*700*10001750*1270*15201t6mm
2m³/1650*1000*12002070*2520*17202t6mm
5m³2*(1200*1000)2250*1350*17002670*3220*22204.5t8mm
10m³4*(1200*1000)4500*1350*17004920*3220*22207t6mm/8mm
20m³7*(1200*1000)7500*1350*20007920*3220*252012t8mm
50m³+CustomizedMultiple SizesAvailableUp to 49t8mm/10mm
Technical Specifications
Machine Type
ETO Sterilization chambers / EO gas Sterilizer
Chamber Capacity
Stainless steel SUS304, 1 to 100 m3
Design Standard
EN1422, ISO11135-2014
Control Mode
Soft Manual & Full-Automatic
Temperature Precision
±3ºC (Inside Cabinet)
Pressure Range
-100 to +150Kpa
Detailed Photos

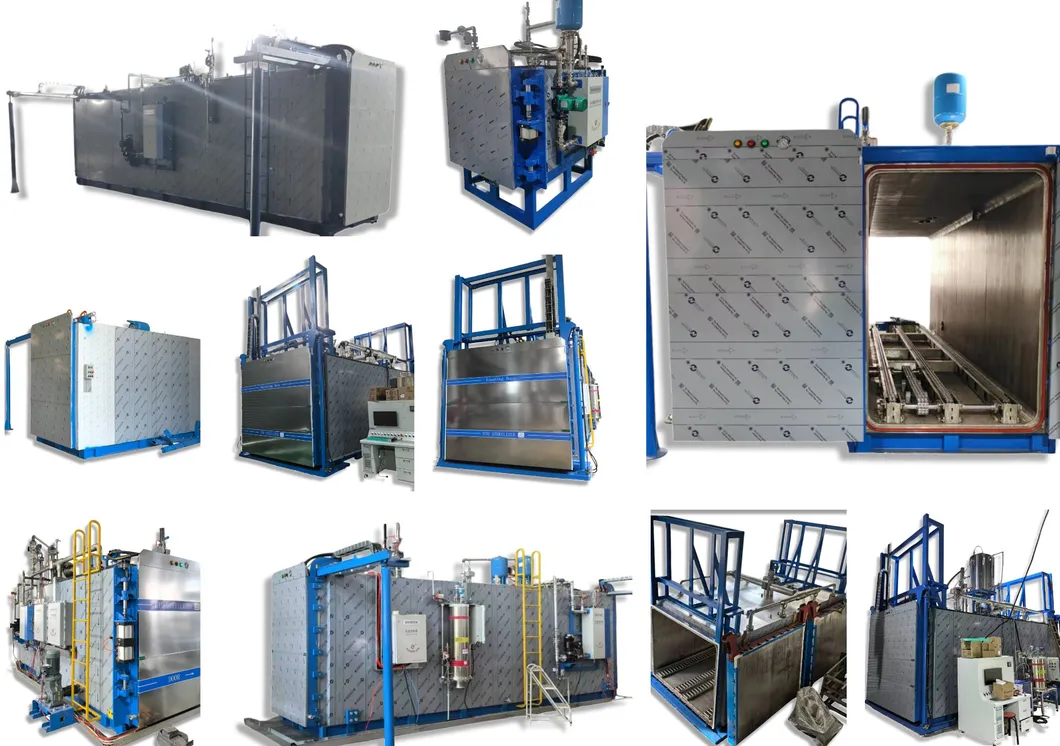

Detail 1

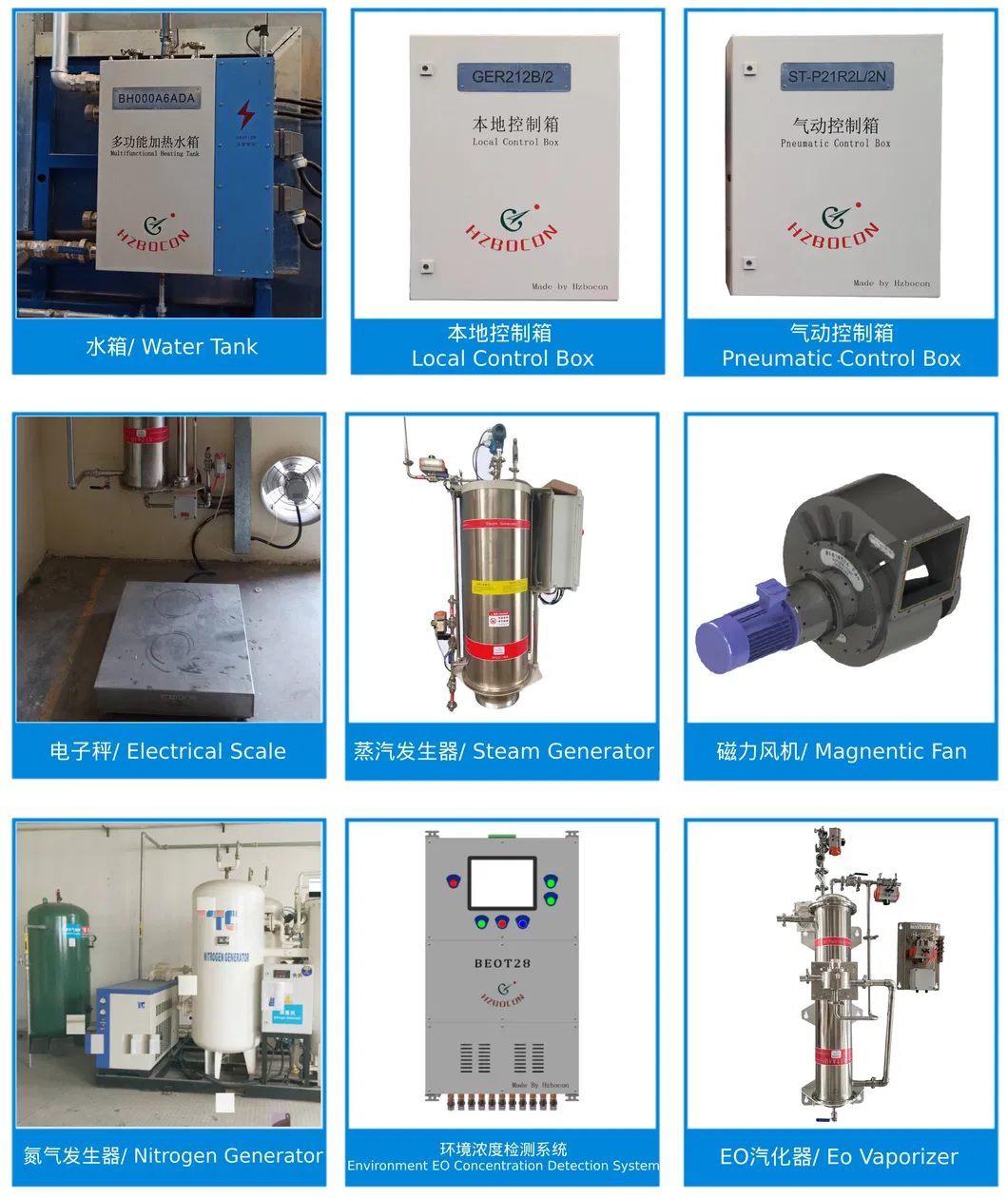

Detail 2
Detail 3
Factory & Certification
Certificate 1

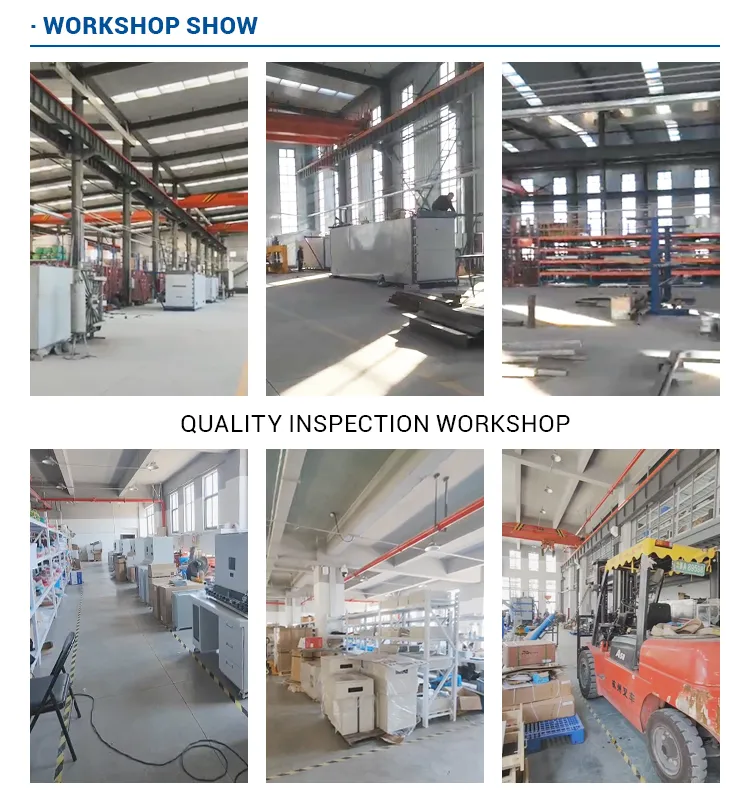

Factory 1
Factory 2
Equipment
Production
Frequently Asked Questions
What is ethylene oxide (EtO) sterilization?
Ethylene oxide is a gas widely used in sterilization; more than 50% of medical devices are sterilized by EtO. It is used either as 100% ETO or in combination with carbon dioxide. It is preferred for large volume sterilization due to its high penetration properties.
What are the main advantages of EtO sterilization?
  • Excellent penetration for large volume sterilization.
  • Sterilization of products in their final sealed packaging.
  • Low-temperature process maintains product characteristics.
  • Compatible with a wide range of materials including plastics and electronics.
  • Low maintenance and operation costs.
What is the scope of use for an ETO Sterilizer?
It is used for endoscopes, plastic and rubber products (syringes, catheters), surgical instruments, anesthetic vessels, and cotton fiber products like surgical gowns and bedding.
What is your warranty policy?
The mainframe of the cabinet is guaranteed for at least 5 years, the control system for 2 years, and other purchased parts are guaranteed for 1 year.
Do you provide technical documentation like IQ, OQ, PQ?
Yes, we provide FAT (Factory Acceptance Test), IQ (Installation Qualification), OQ (Operational Qualification), and support for PQ (Performance Qualification), along with software validation.
What is the production and installation timeframe?
Equipment production takes 60-90 days. Installation and debugging require 15-60 days depending on chamber size. IQ and OQ validation takes approximately 7 days.
