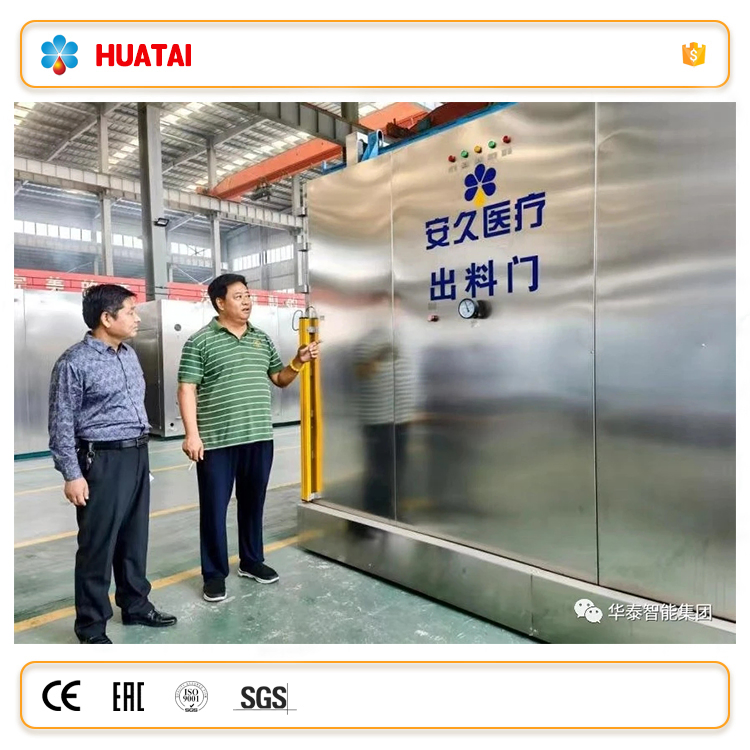

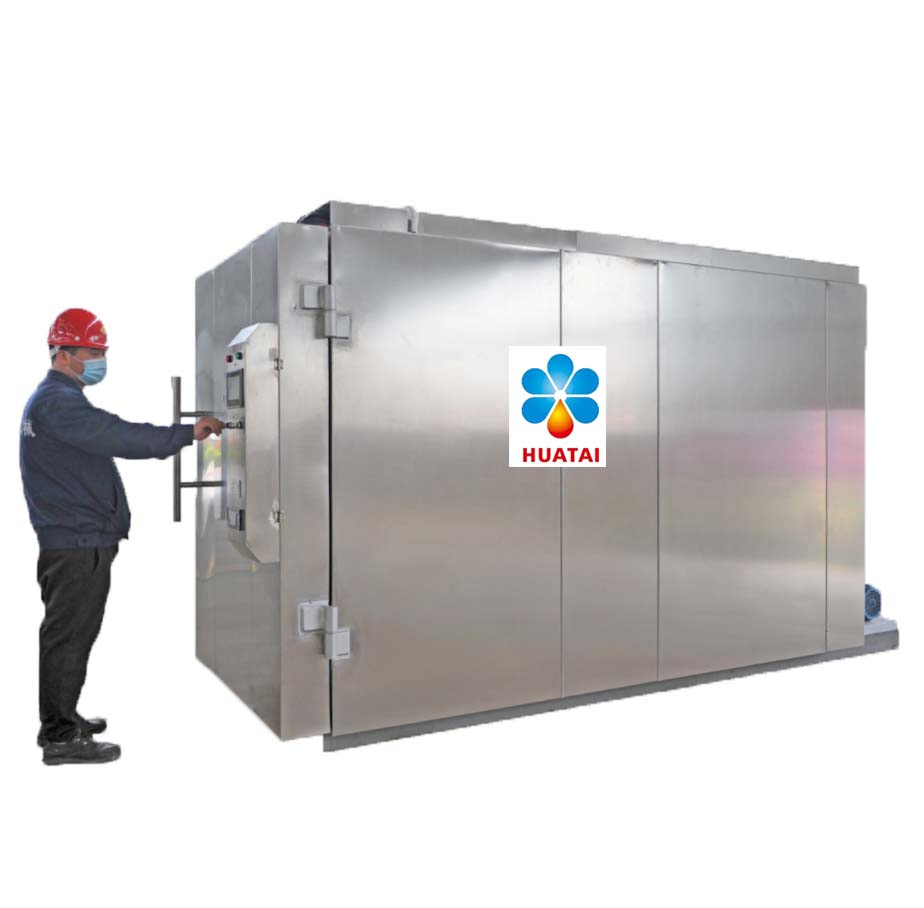

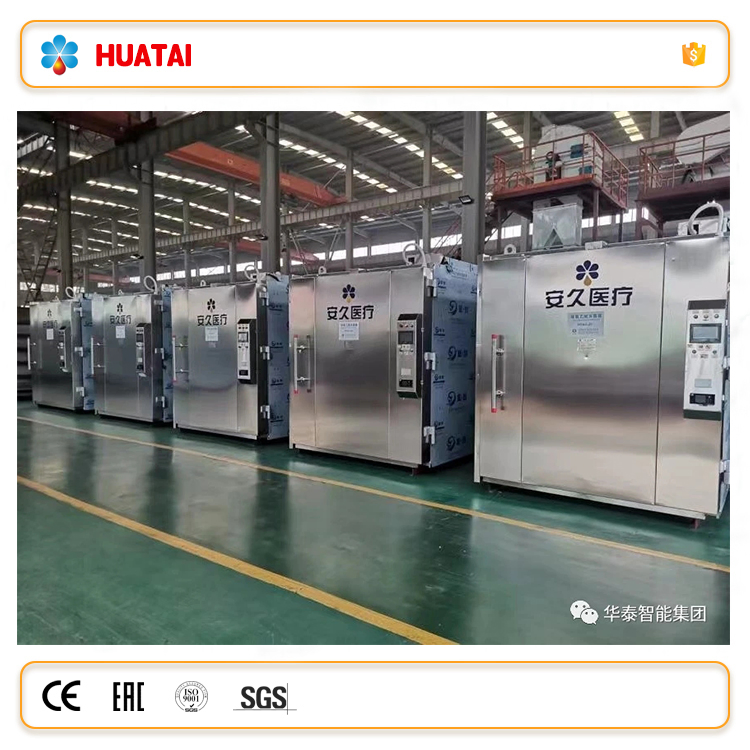

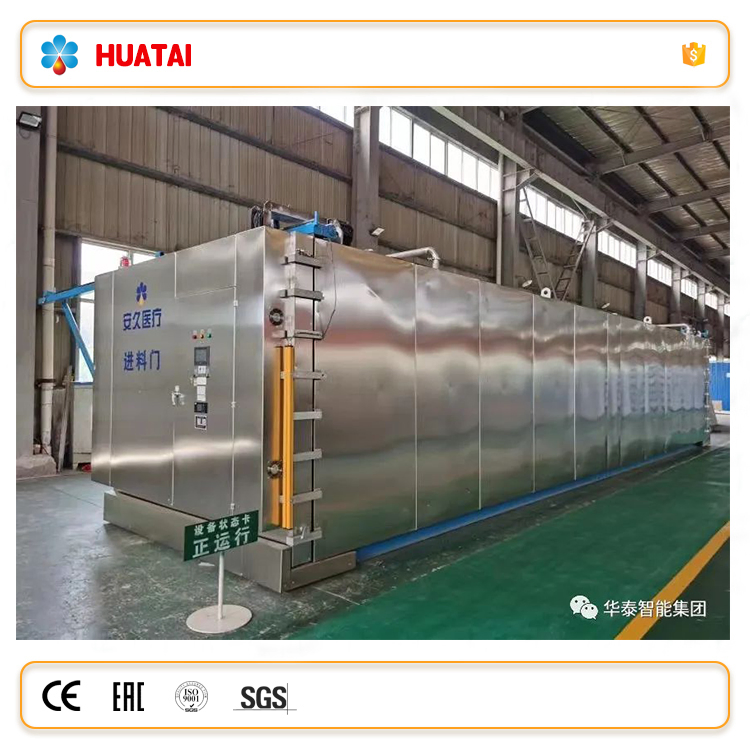

Factory Eto Gas Sterilizer, Ethylene Oxide Sterilization Machine

Customization: Available
Theory: Low Temperature Sterilization
Type: Gas Sterilization Equipments

Product Description

🛈 Basic Information
Certification:
ISO13485
Electric Tension:
380V
Material:
Stainless Steel
Product Name:
Ethylene Oxide Sterilizer
Dimension:
3-20 Cubic Meter
Working Temp:
50℃ ±3℃
Working Pressure:
-60kpa-0
HS Code:
841920
Capacity:
3cbm-20cbm
📋 Product Description
Ethylene Oxide Sterilization Machine

ETO Sterilizer for Medical Devices

HTAJ series large-scale ethylene oxide sterilizer is a low-temperature sterilization equipment designed using advanced computer technology, automation, and precise welding processes. It is optimized for safe and reliable sterilization of medical instruments.

The equipment is space-efficient and easy to install. It requires an independent operating space and basic utility connections (water inlet, outlet, power supply, and air compressor).

⚙️ Technical Specifications

HTAJ series uses pure ethylene oxide or mixed gas at controlled temperature, pressure, and humidity for low-temperature fumigation. It provides broad-spectrum and highly reliable sterilization effects.

Model HTAJ-3CBM HTAJ-6CBM HTAJ-10CBM HTAJ-15CBM HTAJ-20CBM
Rated Power 12KW 18KW 24KW 30KW 35KW
Liner Size (L*W*H) mm 1700*1200*1500 3000*1200*1700 4000*1500*1800 5800*1500*1800 6000*1750*1950
External Size (L*W*H) mm 2600*1500*1900 3950*1570*2190 4950*1870*2350 6750*1870*2350 6950*2120*2450
Working Pressure -60Kpa~0
Working Temp 30ºC~50ºC
Sterilization Time 3-99 hours adjustable
Chamber Material 304 anticorrosive stainless steel
Weight (kg) 2000 3200 4600 6500 8000
📷 Detailed Photos

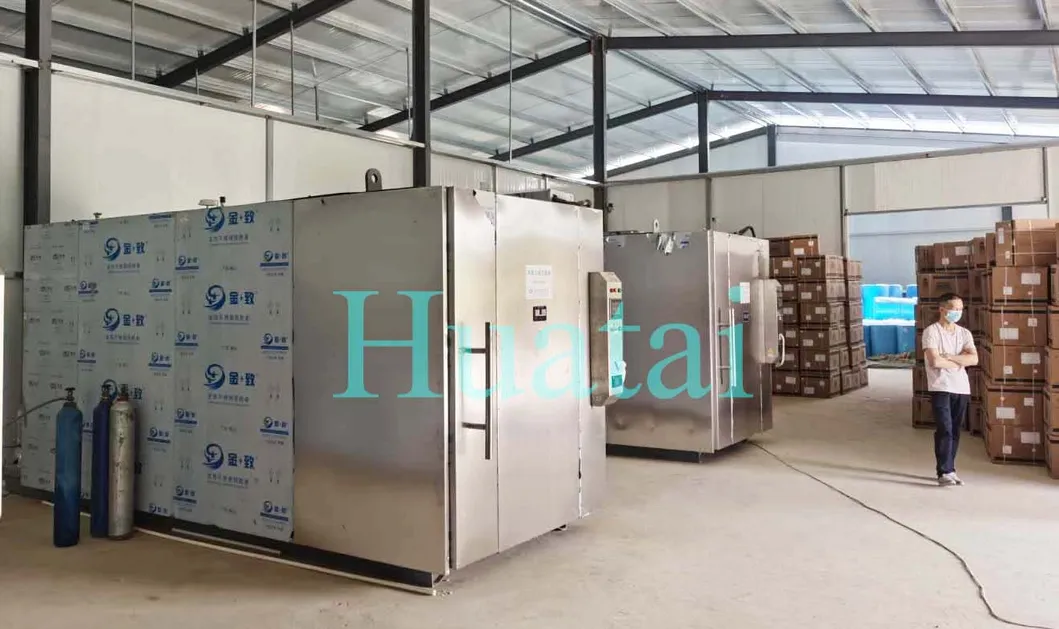

ETO Sterilizer View 1
ETO Sterilizer View 2
ETO Sterilizer View 3
📜 Certifications

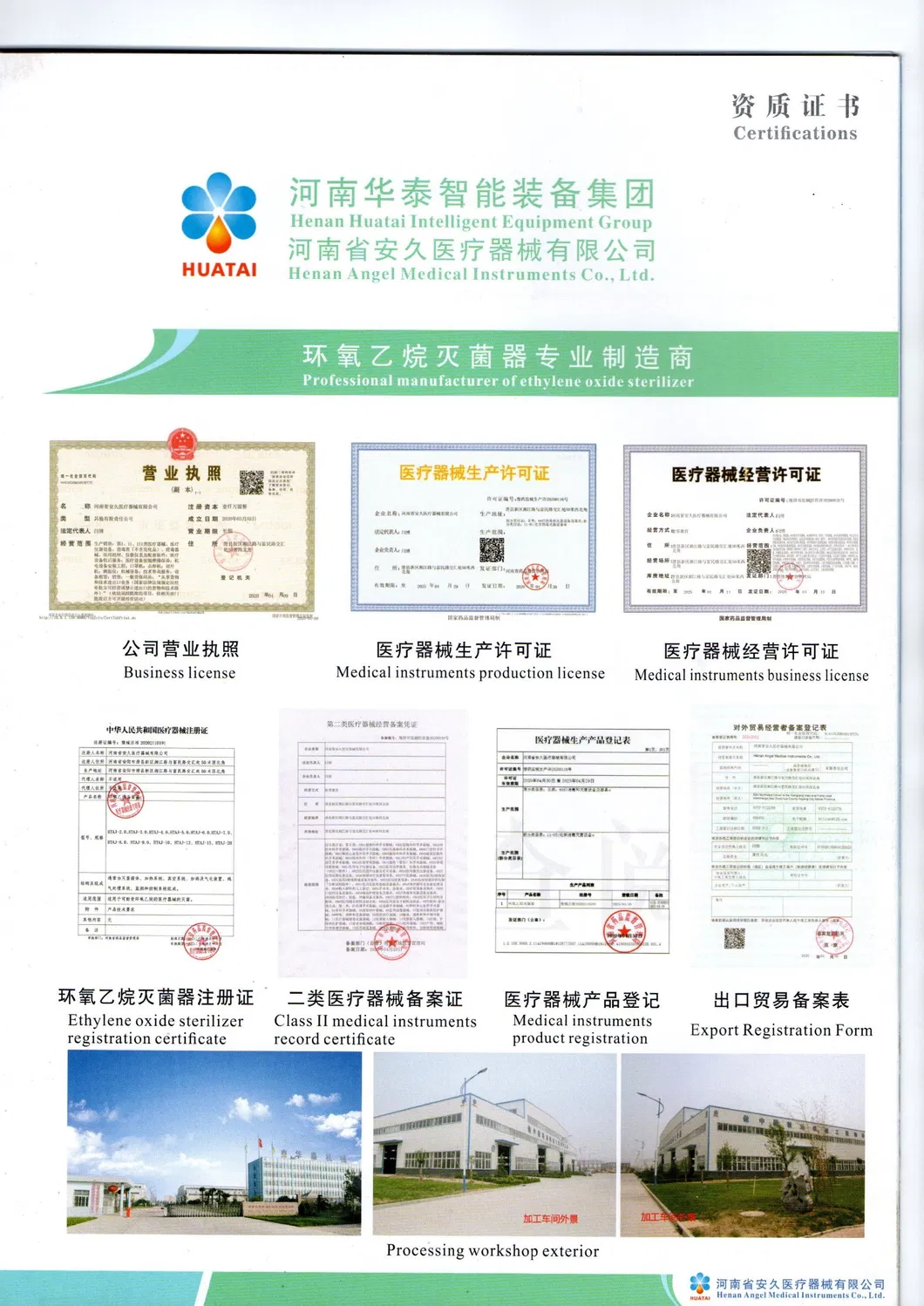

Certification Documents
🏭 Production Facility

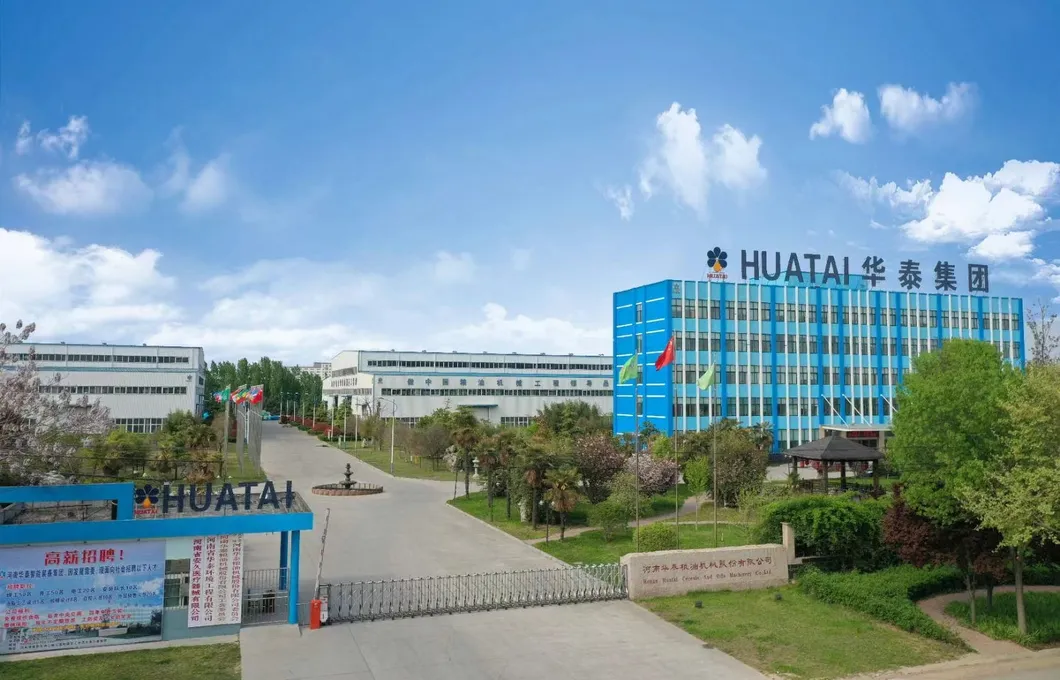

Factory Overview

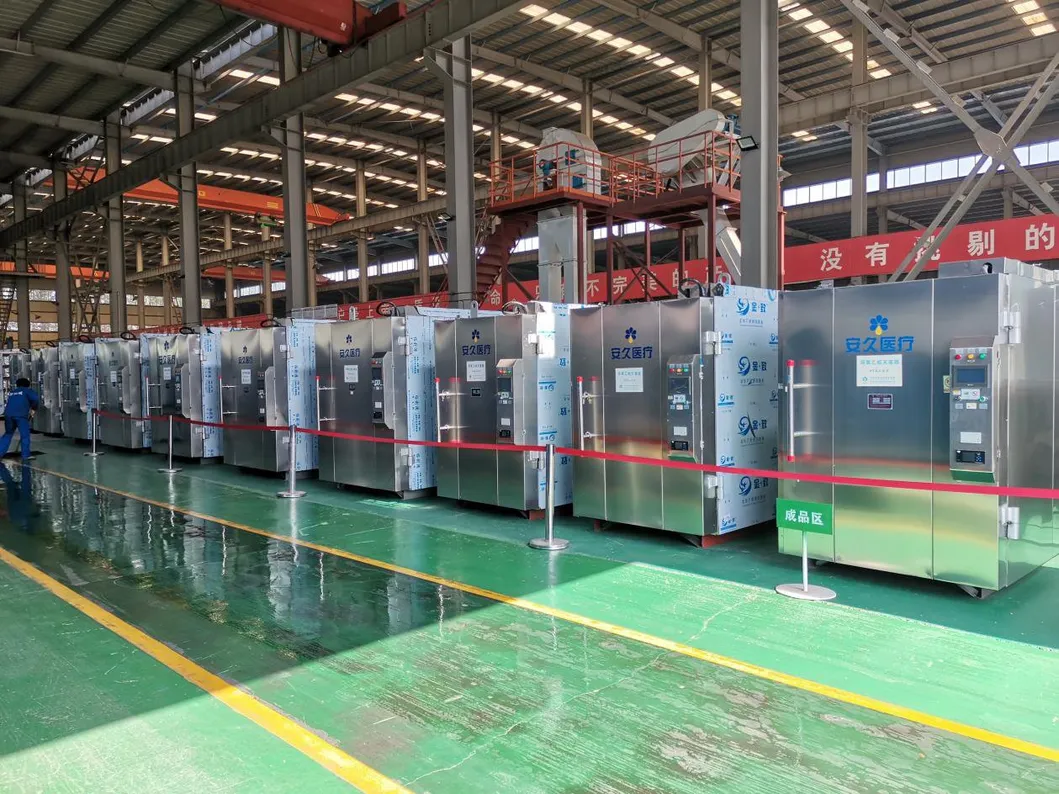

Manufacturing Area 1

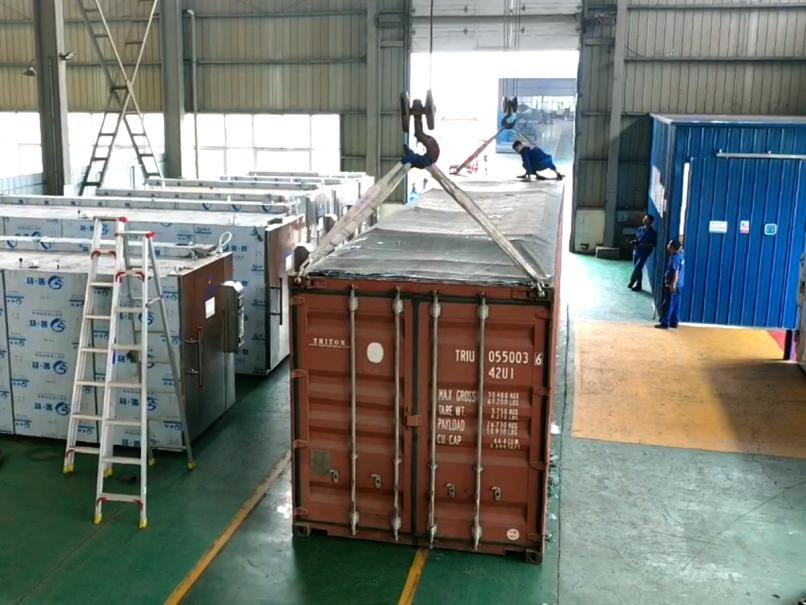

Manufacturing Area 2
❓ Frequently Asked Questions
What are the primary applications of this ETO sterilizer?
The HTAJ series ethylene oxide sterilizer is primarily used for the low-temperature sterilization of medical devices that are sensitive to heat and moisture.
What materials is the sterilization chamber made of?
The liner is constructed from high-quality 304 anticorrosive stainless steel to ensure durability and prevent chemical reactions during the sterilization process.
Is the sterilization temperature adjustable?
Yes, the working temperature is adjustable within a range of 30ºC to 50ºC, typically maintained at 50ºC ±3℃ for optimal results.
What are the installation requirements for the equipment?
Installation requires an independent room roughly twice the size of the machine, with standard connections for water inlet/outlet, power supply, and an air compressor.
How long does a typical sterilization cycle take?
The sterilization time is fully adjustable between 3 and 99 hours, depending on the specific load and medical requirements.
