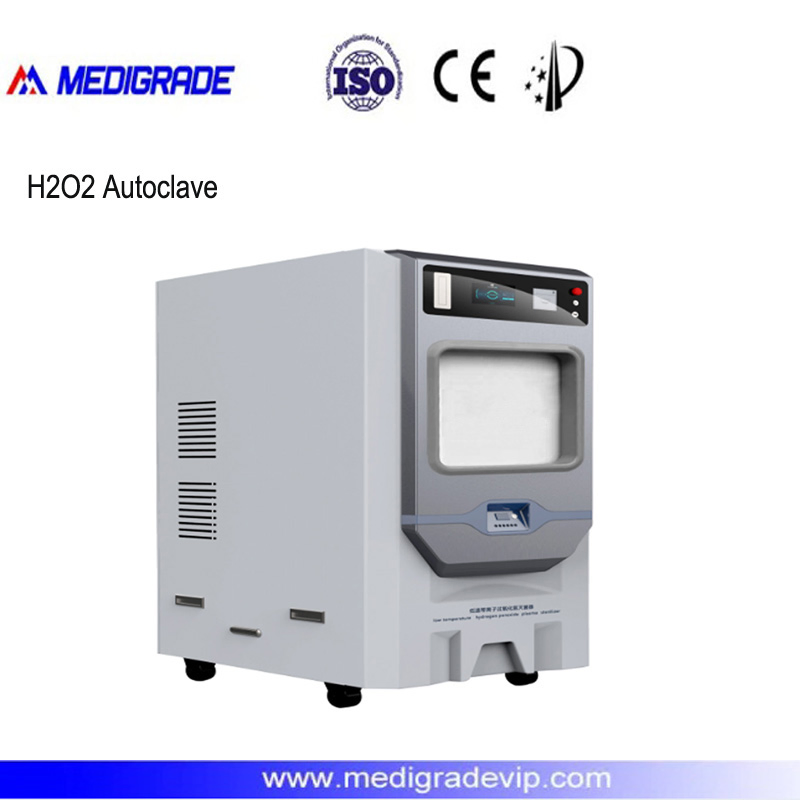

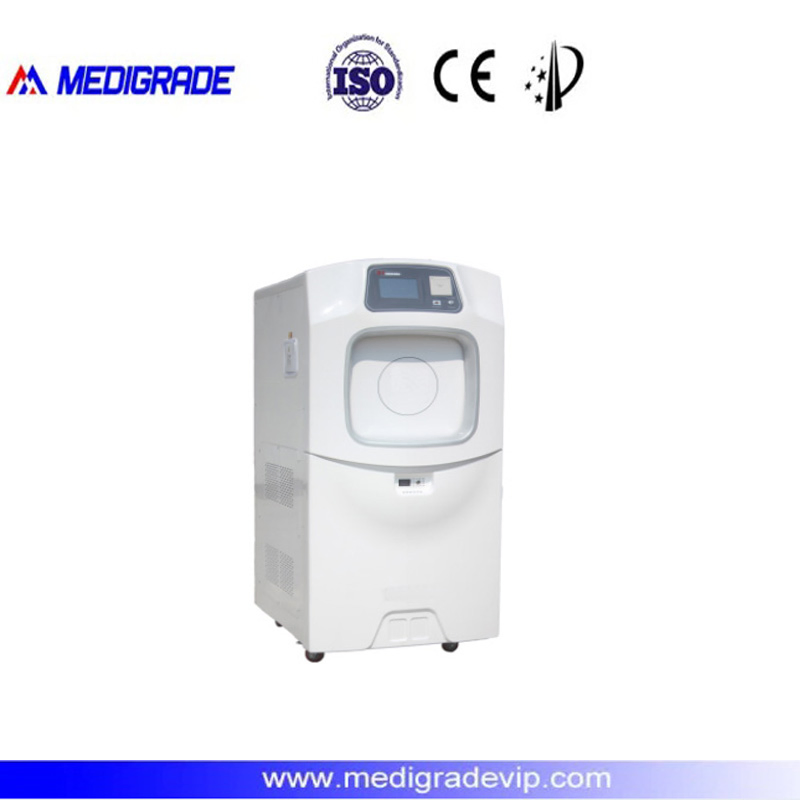

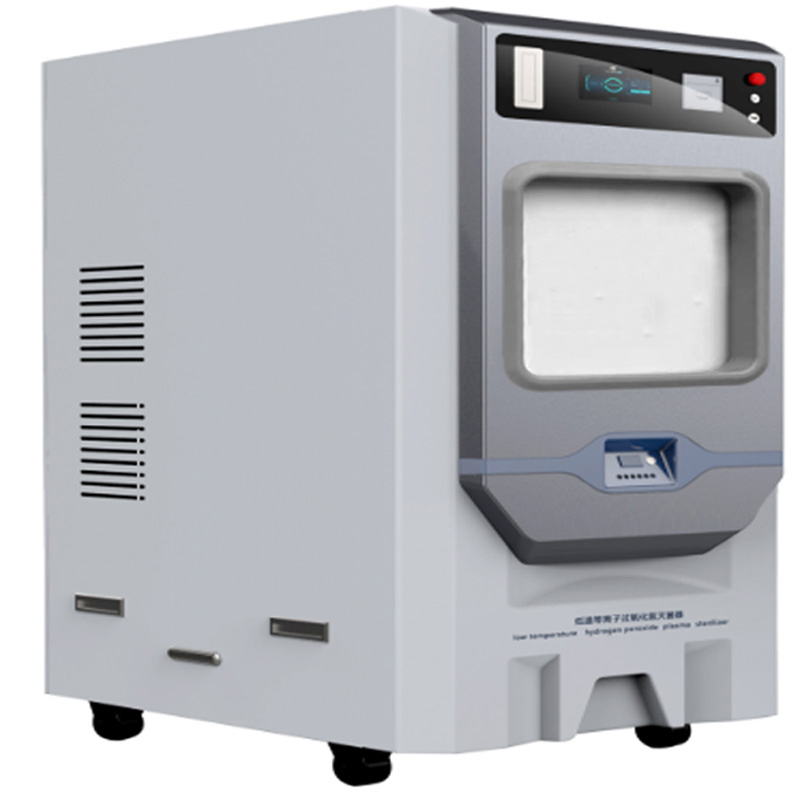

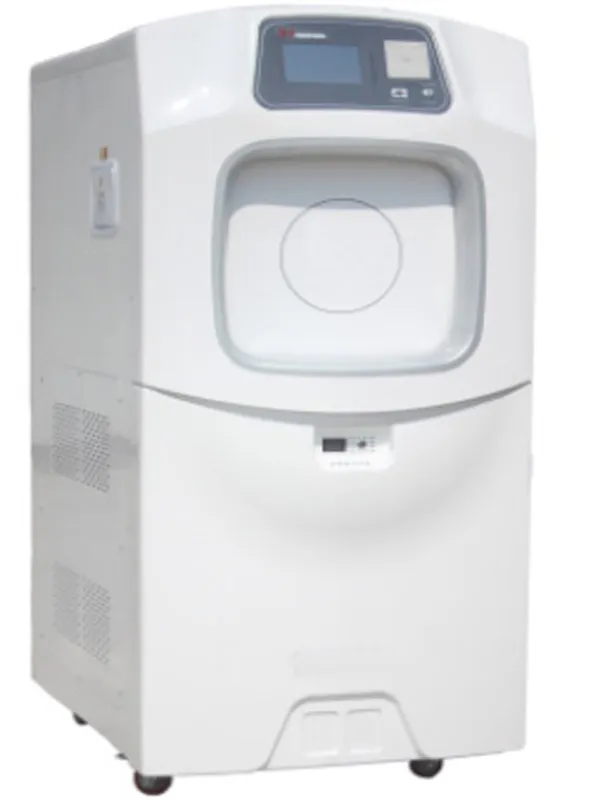

Full Automatic Hydrogen Peroxide System
Low temperature plasma sterilization system operates in a low temperature, vacuum, and plasma environment generated by high frequency electric fields. The active materials react with microbial metabolism of proteins and nucleic acids to destroy microorganisms and disrupt their survival functions, using H2O2 as a key medium.
Suitable Articles and Materials:
- Hysteroscopy, laparoscopy, laryngoscope, and rigid endoscopes.
- Hose endoscopes, ophthalmic lenses, and fiber optic cables.
- Intracranial pressure sensors and cryotherapy probes.
- Esophageal dilators, electrocautery apparatus, and laser heads.
- Metal, glass, and silica gel rubber materials.
Technological Advantages
01. Low Temperature Sterilization
Sterilization temperature is 50ºC±5ºC. No humidity, no damage to precision instruments, prolonging equipment life.
02. Green Environmental Protection
Uses hydrogen peroxide solution with no toxic residue. Zero pollution to the environment with high-performance filters.
03. Stable Sterilization Chamber
Aluminum or stainless steel chamber with superior thermal conductivity ensures 100% gas distribution.
04. Intelligent Control System
One-key start with high intelligent control processor. U-disk storage for over one million records.
05. Safety & Stability
Rod-driven electric lift door with security interlocking devices to prevent operational risks.

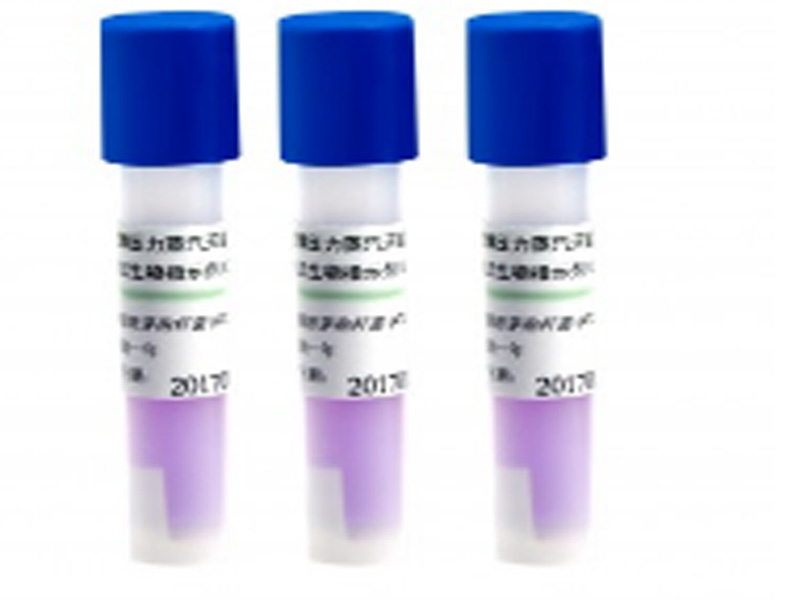

06. Biological Monitoring
Equipped with a microcomputer-controlled biological indicator incubator for constant temperature culture.
Frequently Asked Questions
Q: What is the primary sterilizing agent used in this system?
A: The system uses a 60% Hydrogen Peroxide (H2O2) solution as the sterilizing agent.
Q: How long does a typical sterilization cycle take?
A: A standard sterilization cycle is very efficient, typically completing within 45 to 50 minutes.
Q: Is the plasma sterilizer safe for delicate medical instruments?
A: Yes, because it operates at a low temperature (50±5ºC) and without humidity, it is ideal for precision instruments like endoscopes and fiber optic cables.
Q: Does the system require special drainage or ventilation?
A: No, the system is environmentally friendly. It produces no toxic residue and requires no drainage or external ventilation.
Q: How is the sterilization data recorded?
A: The system features U-disk storage (≥8G) that can store over one million records, including temperature, pressure, and time data.
Q: What are the installation environment requirements?
A: It should be installed in an environment with a temperature between 5~45℃ and requires a minimum maintenance distance of 1 meter.
