H2O2 Low Temperature Plasma Sterilizer / Autoclave Bj-PS80

Still deciding? Get samples of $ !
Request Sample

Product Description

📋
Basic Specifications
Model NO.
BJ-PS80
Certification
CE, ISO13485
Electric Tension
220V
LCD Display
With LCD Display
Material
Stainless Steel
Warranty
One Year
Chamber Shape
Rectangular Shape
Chamber Capacity
98L
Sterilizing Temp
50±5°C
Power Supply
AC 380V/50Hz
Weight
275kg
Specification
746 × 1700 × 940mm
🔬
Product Description

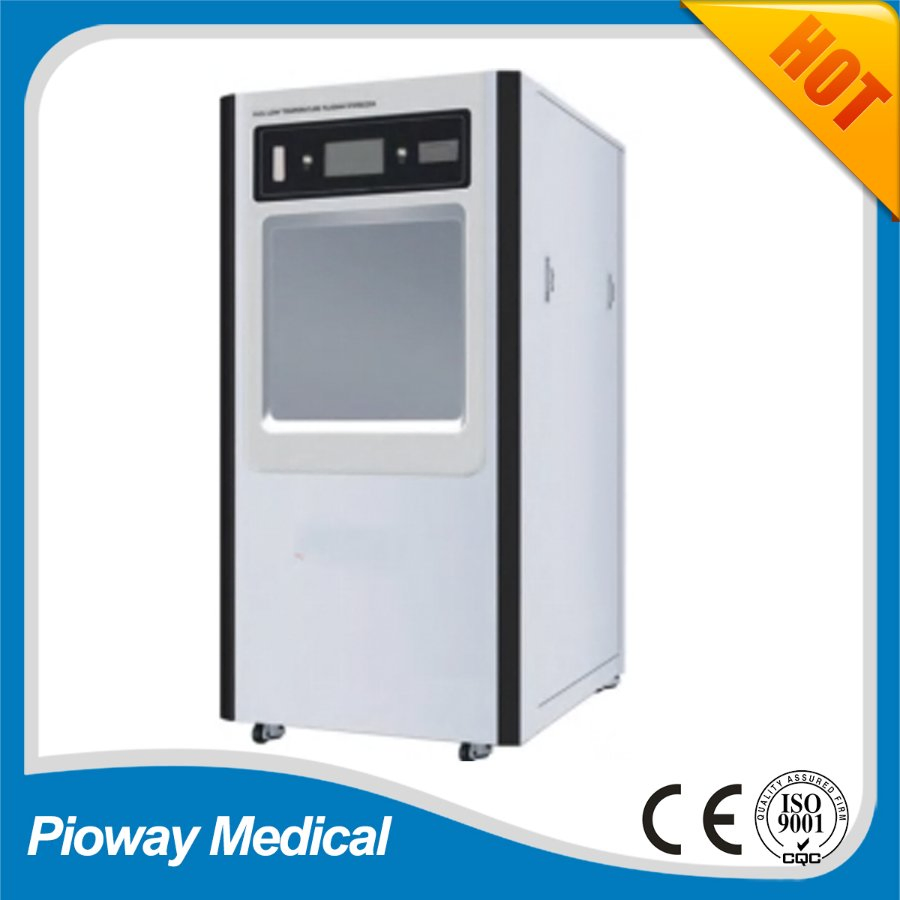

H2O2 Low Temperature Plasma Sterilizer / Autoclave BJ-PS80
H2O2 Low Temperature Plasma Sterilizer
⭐ Applications

Ideal for sterilizing delicate instruments including soft and hard endoscope lenses (hysteroscopes, laparoscopes), endoscopic equipment, laser probes, esophageal dilators, cryotherapy probes, surgical power tools, batteries, razor heads, ultrasonic probes, optical fibers, pacemaker leads, and electronic accessories.

Note: Not suitable for paper products, plant-based fibers (absorbent cotton), liquids, moist objects, or powders.

🚀 Key Characteristics
  • Intelligent Injection: High-precision H2O2 injection system with closed-loop feedback for cost-effective consumable usage.
  • Patented Purification: Advanced technology ensuring hydrogen peroxide diffuses evenly, even in narrow, long tubes.
  • High Performance: Sterilizes stainless steel tubes (1mm ID) up to 500mm and PTFE hoses up to 2,000mm.
  • Safety Design: Electric lifting door with infrared anti-pinch control and shielded UV radiation for operator safety.
  • Reliable Components: Built with international renowned brands for low failure rates and longevity.
  • Advanced Connectivity: Supports remote fault diagnosis, maintenance, and training.
  • Durable Construction: Chamber made of 5052 anti-rust alloy for superior heat conduction and balanced temperature.
📊 Technical Data Comparison
Parameter BJ-PS80 BJ-PS120 BJ-PS200
Chamber Capacity98L144L220L
Valid Capacity80L120L200L
Overall Size (W×H×D)746×1700×940mm845×1700×990mm932×1775×1098mm
Chamber Size (W×H×D)400×360×680mm450×410×780mm550×445×900mm
Cycle Time (Standard)≤45min≤50min≤55min
Sterilant Usage1.7ml/cycle2.5ml/cycle3.8ml/cycle
Consumption2.8KW3KW3.5KW
Weight275kg340kg390kg
Power SupplyAC 380V/50Hz
Temp Range50±5°C
Frequently Asked Questions
1. What is the typical sterilization temperature for this unit?
The BJ-PS series operates at a low temperature of 50±5°C, which is ideal for protecting delicate medical instruments and extending their service life.
2. Can it sterilize instruments with long, narrow lumens?
Yes, the unit features patented purification technology capable of sterilizing stainless steel tubes (1mm ID) up to 500mm and PTFE hoses up to 2000mm.
3. What kind of sterilant does this system use?
The system uses medical-grade hydrogen peroxide (H2O2) with a concentration of 56% to 60%.
4. Is the operation safe for hospital staff?
Absolutely. It includes infrared anti-pinch hand protection for the electric door and ensures that all UV radiation generated during plasma discharge is completely shielded.
5. What are the installation requirements?
The unit requires a power supply of AC 380V/50Hz and an environment temperature between 10-40°C. It features built-in casters for easy movement and positioning.
6. How are the sterilization results recorded?
The unit is equipped with a built-in printer that provides real-time printouts of parameters for every cycle, including time, temperature, and sterilization results.
