Laboao Plasma Sterilizer Table Top Autoclave Sterilizer for Lab and Hospital

Customization: Available
Theory: Autoclave
Type: Pressure Steam Sterilization Equipments

Product Description

Basic Information
Model NO.
L-HD series
Certification
CE, FDA, EEC, ISO13485
Electric Tension
220V
LCD Display
With LCD Display
Material
Stainless Steel
Product Name
Steam Sterilizer
Application
Laboratory, Hospital, Dental
Sterilization Time
0~99min
Capacity
35L, 50L, 75L, 100L
Working Pressure
0.22MPa
Max Temperature
134 Centigrade
HS Code
8419200000
Product Description
Vertical Automatic Pressure Steam Sterilizer
Vertical Automatic Pressure Steam Sterilizer Autoclave Machine Quick Open Type
The vertical sterilizer is a safe, reliable and automatically controlled sterilization device, consisting of a heating system, a microcomputer control system, and an overheat overpressure protection system. It offers reliable disinfection, convenient operation, safe use, and durability. It is ideal for sterilizing surgical instruments, dressings, utensils, and culture media in medical and research settings.

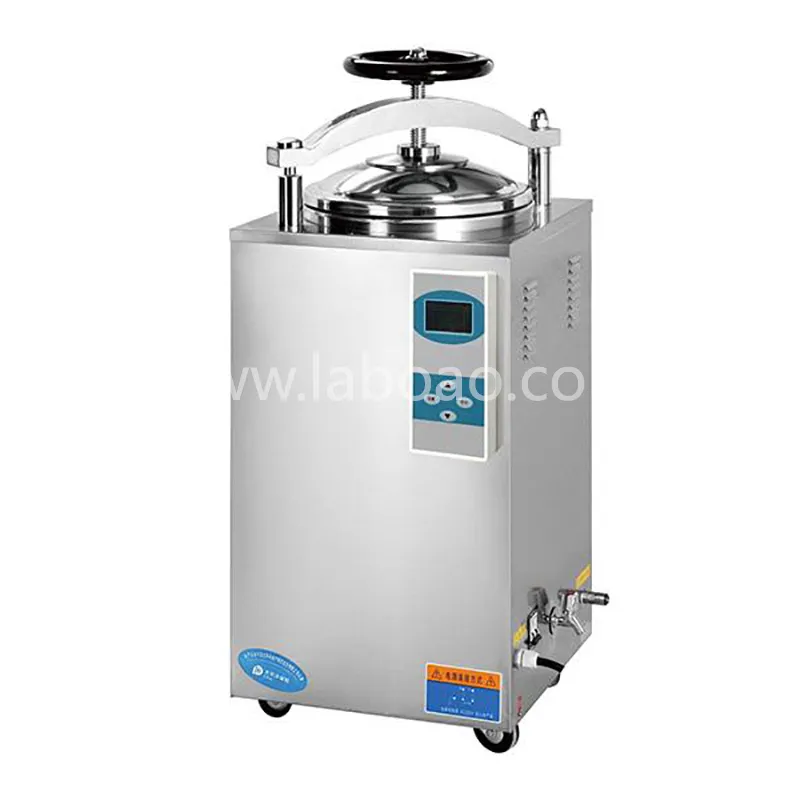

Autoclave Machine
Core Features
Fully stainless-steel structure (SUS304/AISI 304 - 3mm)
Hand wheel type of quick-open door structure
Door safety lock system
LCD display of working status, touch key operation
Auto discharge of cool air and steam post-sterilization
Over temperature & over pressure auto-protection
Safe protection against water shortage
Self-inflating type seal
Automatic shut off with beep reminder
Suitable for medical instruments and cotton products
Drying function (Optional)
Technical Specifications
Model Data L-35HD L-50HD L-75HD L-100HD
Chamber volume35L(φ318×450)50L(φ340×550)75L(φ400×600)100L(φ440×650)
Working pressure0.22MPa0.14 MPa
Working temp134ºC126ºC
Max working pressure0.23 MPa0.165 MPa
Timer0~99min or 0~99hour59min
Power2.5Kw/AC220V3Kw/AC220V4.5Kw/AC220V
Overall dimension (mm)450×450×1010510×470×1130560×560×1120540×560×1250
G.W/N. W (Kg)72/5688/68100/80110/85
Detailed Component Photos

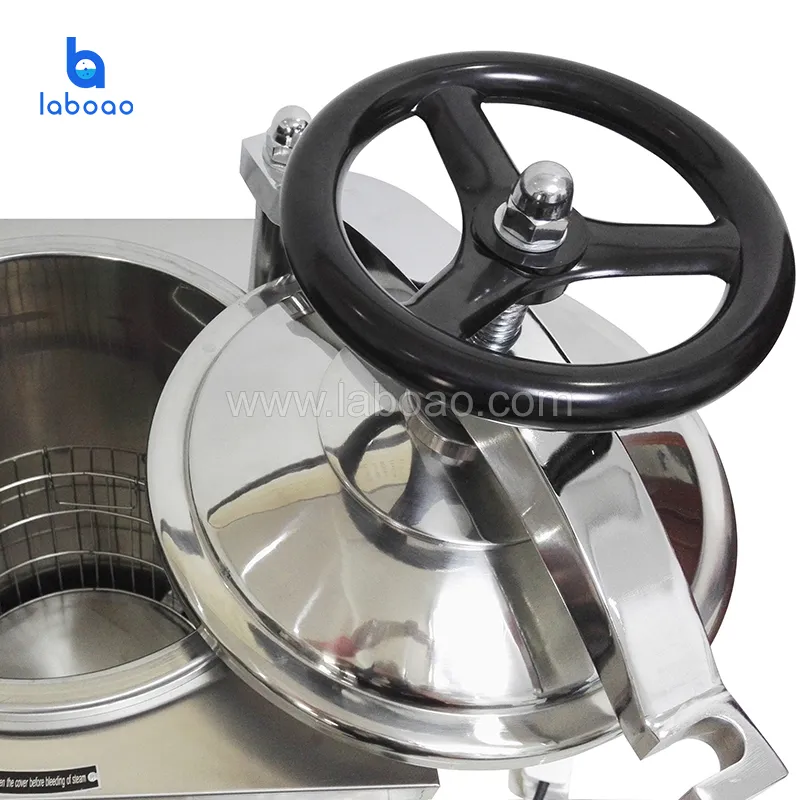

Detailed View 1
Detailed View 2
Detailed View 3

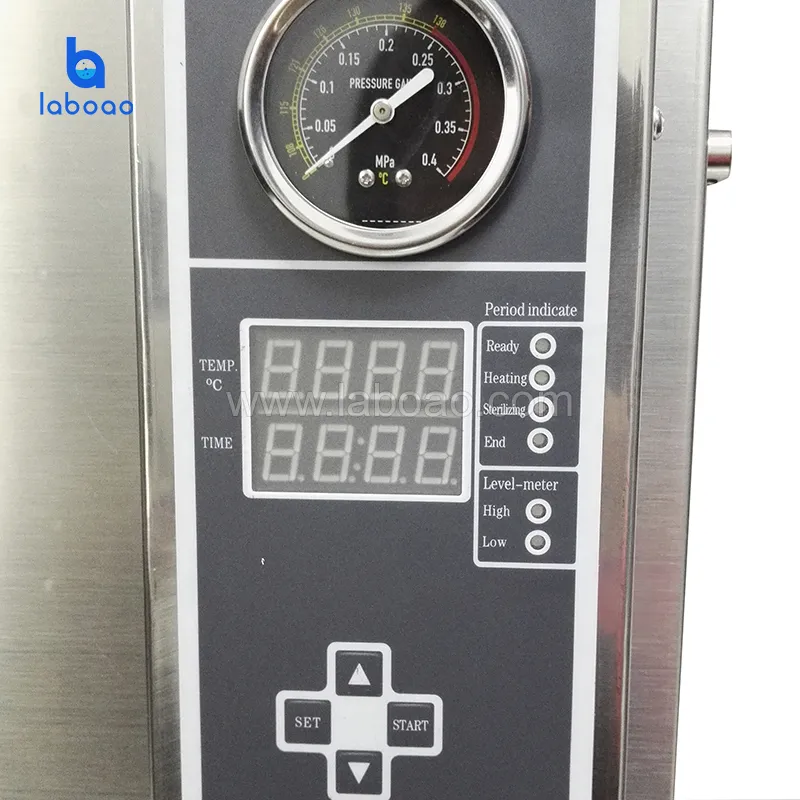

Detailed View 4

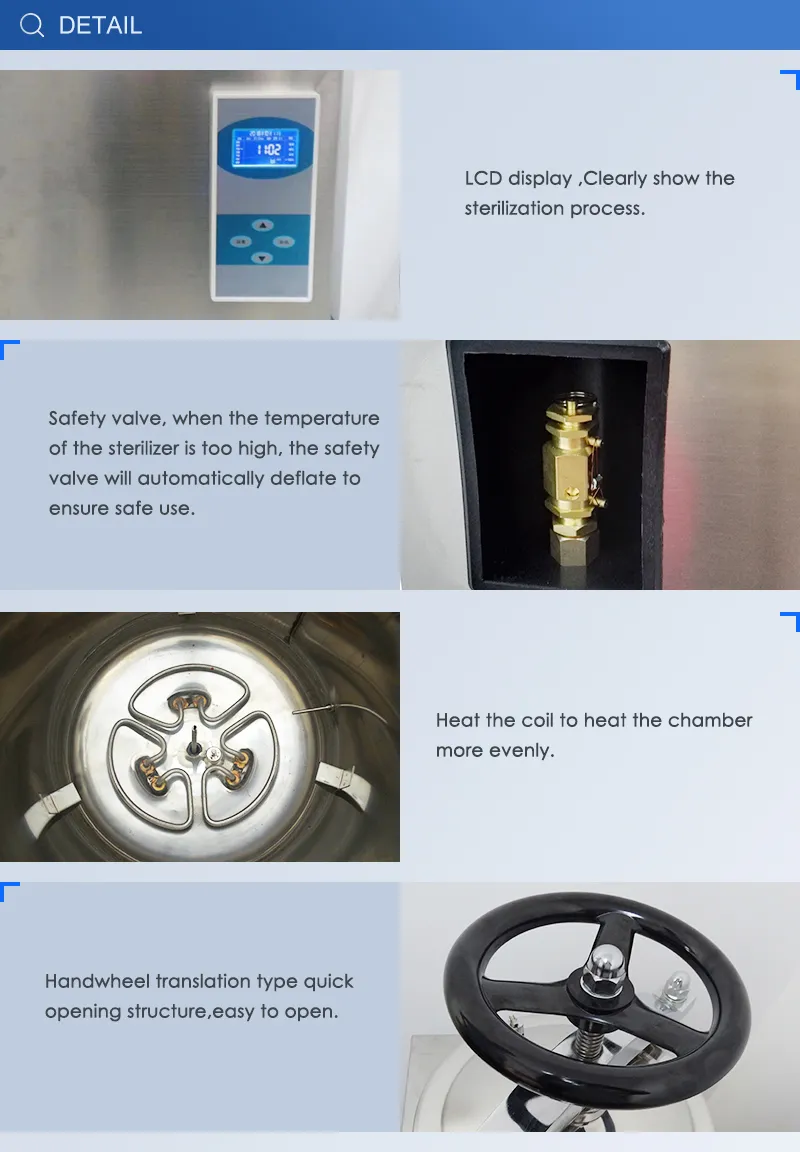

Internal Structure
Product Display

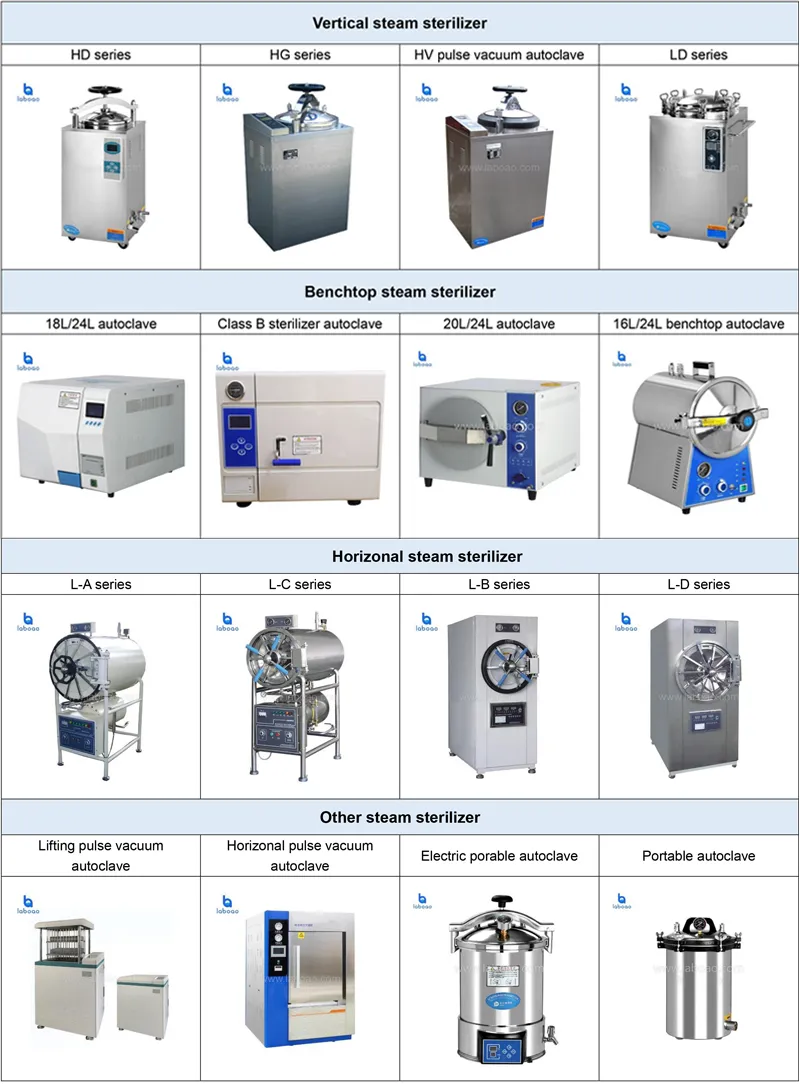

Product Overview
Display 1
Display 2

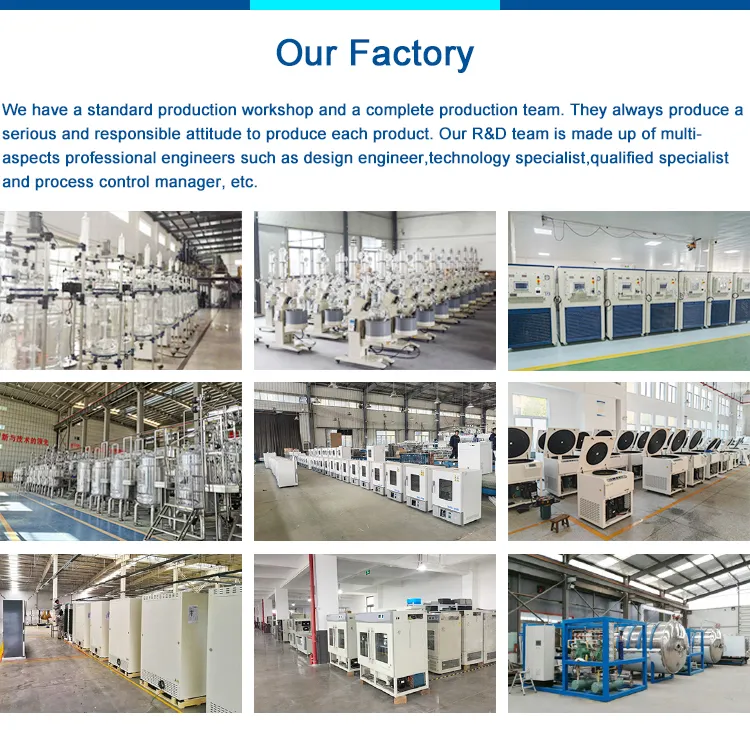

Display 3

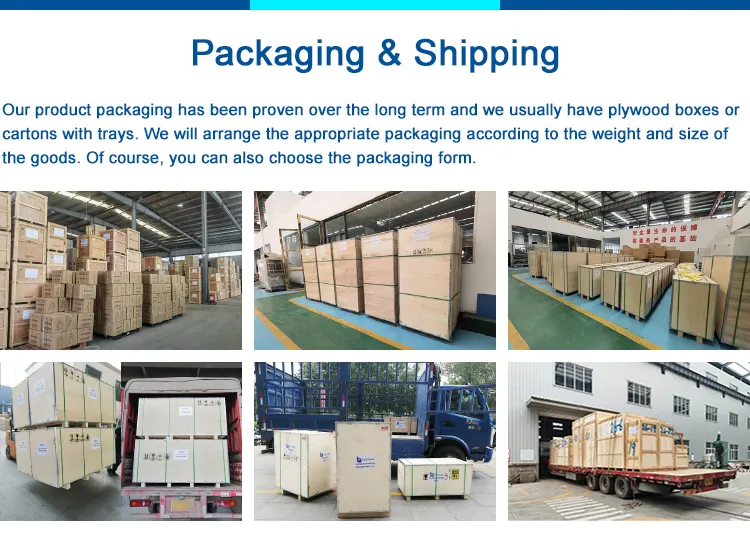

Display 4
Display 5
Display 6
Frequently Asked Questions
Q1: What is the maximum working temperature of this autoclave? The sterilizer can reach a maximum working temperature of 134°C, which is ideal for rapid and effective sterilization.
Q2: What materials is the autoclave constructed from? The unit features a fully stainless-steel structure using high-quality SUS304/AISI 304 (3mm thickness) for durability and hygiene.
Q3: Does the machine have built-in safety features? Yes, it includes a door safety lock system, water lack protection, and an auto-protection system for over-temperature and over-pressure conditions.
Q4: Can I use this for sterilizing medical cotton? Absolutely. It is specifically designed for the sterilization of medical instruments, medical cotton products, and culture media.
Q5: Is the operation of the sterilizer automated? Yes, the device features a microcomputer control system, an LCD display for status, and an automatic beep reminder once the sterilization cycle is complete.
Q6: What are the available capacities for the L-HD series? The series comes in four chamber volumes: 35L, 50L, 75L, and 100L to suit different laboratory or hospital needs.
