Basic Specifications
Certification
CE, ISO, FDA
Electric Tension
380V / 220V Optional
Sterilization Temp
50℃–60℃
Control System
Android Operating System
Display
7 / 10.4 Inch LCD
Door Type
Single/Double Door Optional

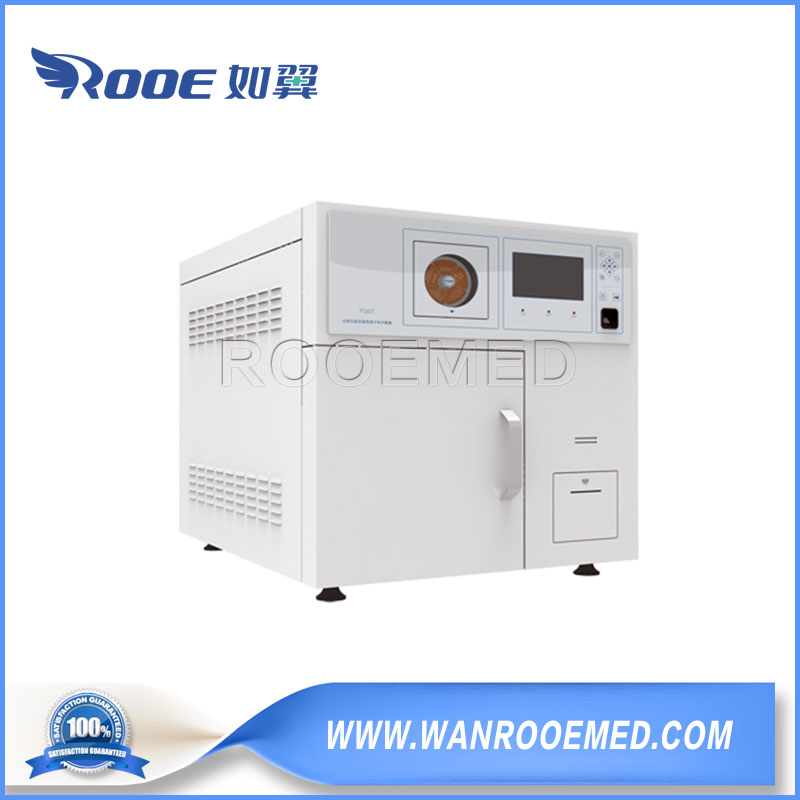

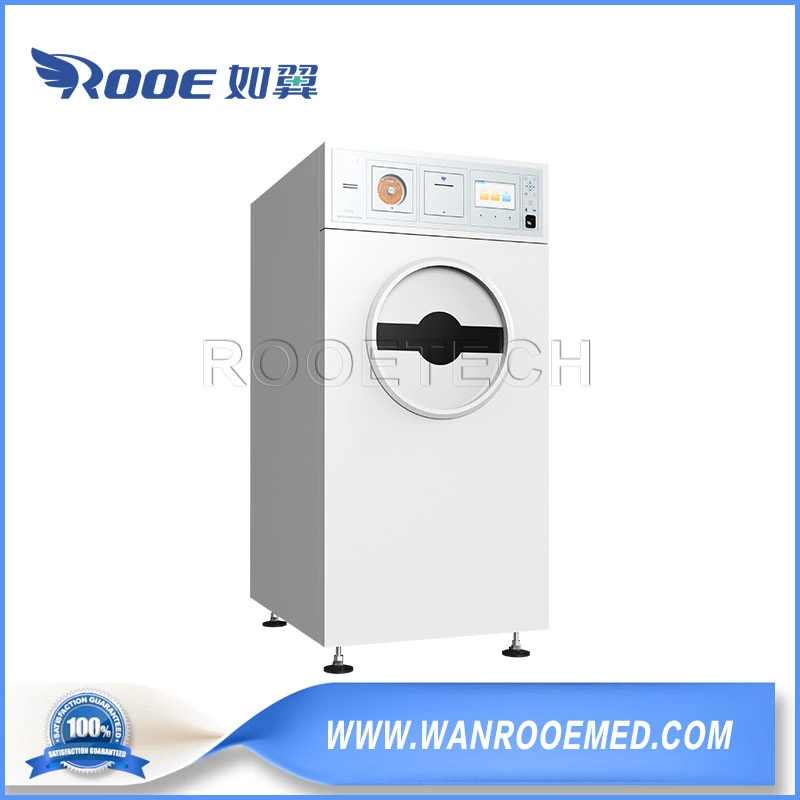

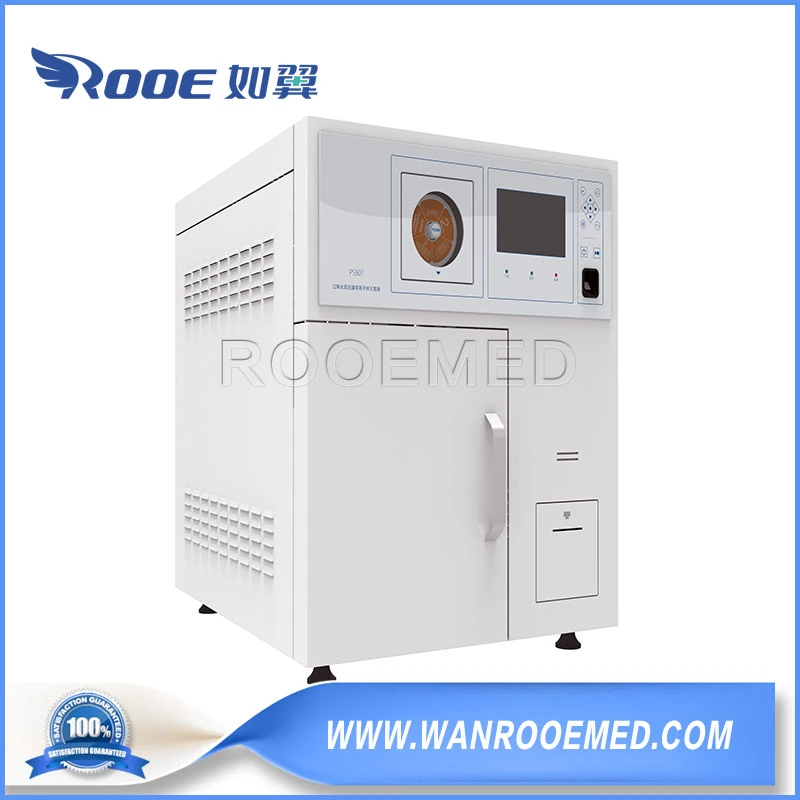

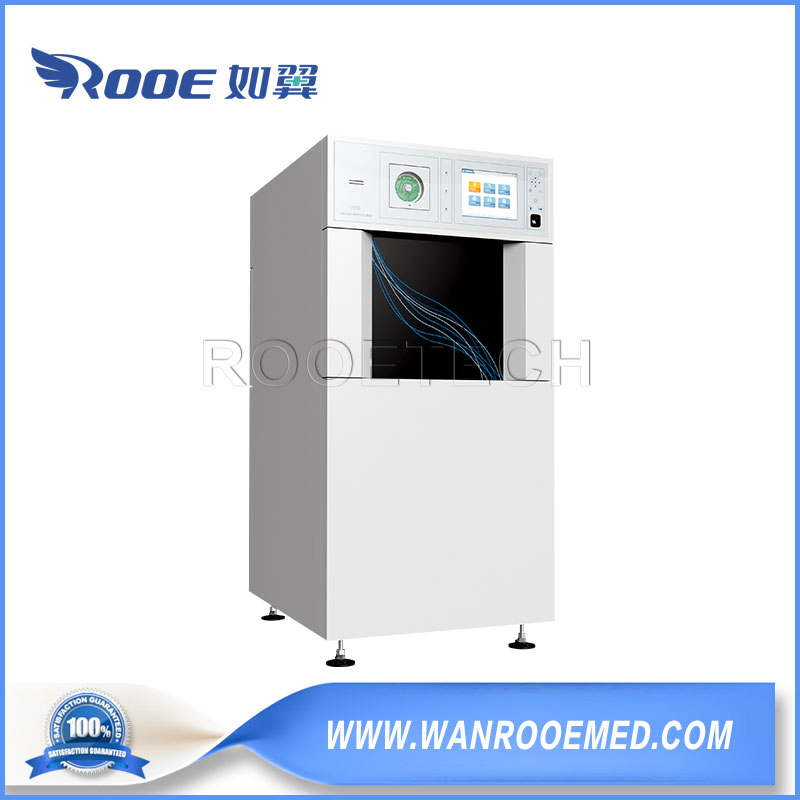

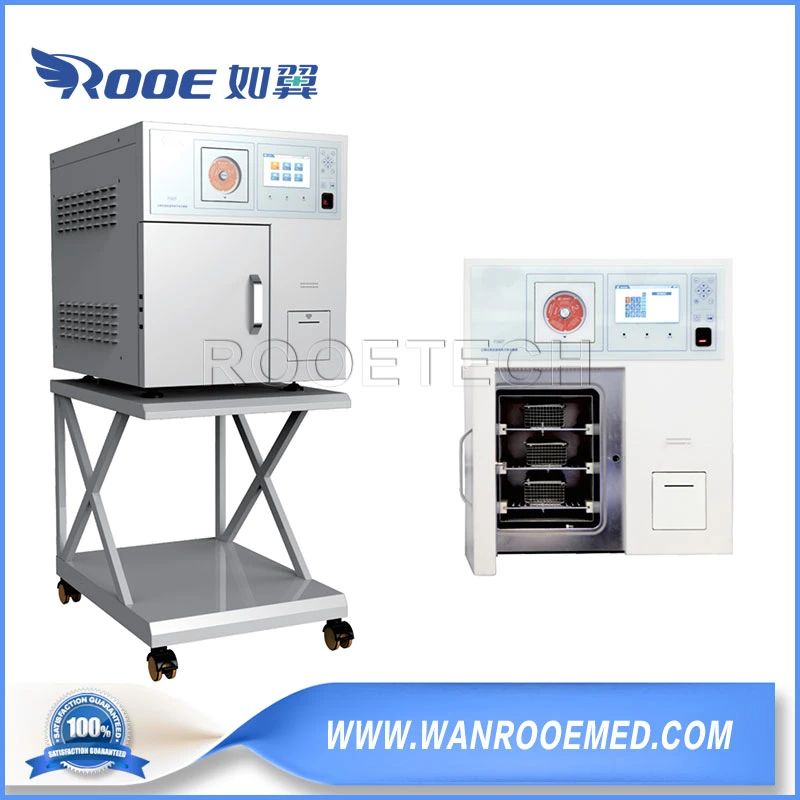

PS Vertical H2O2 Hydrogen Peroxide Low Temperature Plasma Sterilizer for Laboratory Instrument
Key Features
⚙️
Advanced OS: 7 inch or 10.4 inch LCD with Android operating system.
👤
Security: Fingerprint identification for operator management.
🌐
Connectivity: Support wired LAN, WLAN, and 3G networks.
💾
Data Export: 2 USB connectors for exporting sterilization data records.
☁️
Cloud Service: Remote backup, recovery, and data management.
📈
Real-time Monitoring: Live curve display for sterilization status.
📱
Communication: Text message reminders and video broadcast support.
📚
Online Resources: Digital manuals and maintenance instructions available online.
Model Differences
- 🔵 PS150/200: Double LCD synchronous display (front and back) for two-area operation convenience.
- 🔵 PS60: Features an optional removable base for safer handling.
| Type |
PS60T |
PS60 |
PS120 |
PS150 |
PS200 |
| Overall Dimension |
900*650*750mm |
900*750*1720mm |
890*820*1720mm |
1080*835*1750mm |
| Power |
220V, 50Hz |
AC380V±38V, 50Hz±1Hz (Optional 220V) |
| Working Power |
2KVA |
2.62KVA |
3.0KVA |
4.0KVA |
4.2KVA |
| Effective Capacity |
60L |
60L |
120L |
150L |
200L |
| LCD Size |
7 inch LCD |
10.4 inch LCD |
| Door Type |
Single Door |
Single and Double Door Optional |
| Sterilization Mode |
Quick / standard / enhanced cycle |
| Cassette System |
12 capsules per cassette (supports 6 cycles) |

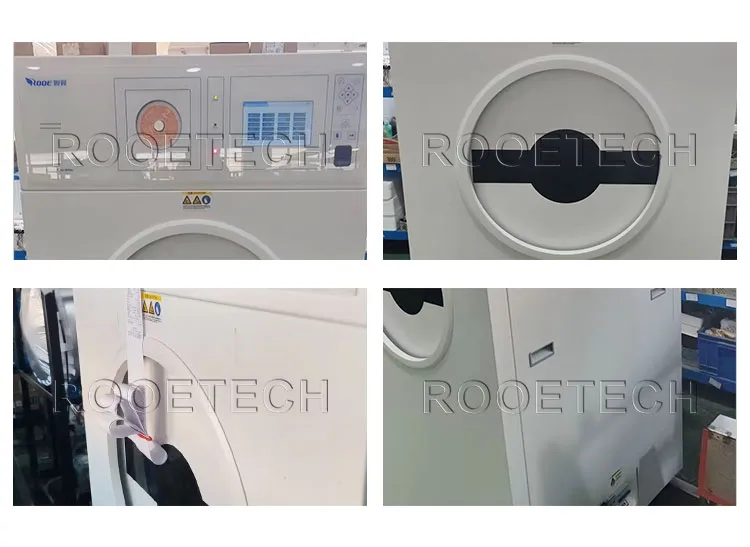

Equipment Gallery
Frequently Asked Questions
What is the sterilization temperature range?
The PS Series sterilizers operate at a low temperature range of 50℃ to 60℃, making them ideal for heat-sensitive laboratory instruments.
How many cycles can one H2O2 cassette support?
Each cassette contains 12 capsules, which provides enough hydrogen peroxide for approximately 6 sterilization cycles.
Does the system support remote data management?
Yes, the system is equipped with an Android OS and supports cloud services for record backup and recovery, as well as data export via USB.
What connectivity options are available?
The equipment supports multiple connection methods including wired LAN, WLAN (Wi-Fi), and 3G networks for cloud access and updates.
Are there different door configurations?
Yes, depending on the model (like the PS120/150/200), you can choose between a single door or a double door configuration for pass-through requirements.
How long is sterilization data stored?
The intelligent management system includes internal storage capable of keeping up to five years of sterilization records.
