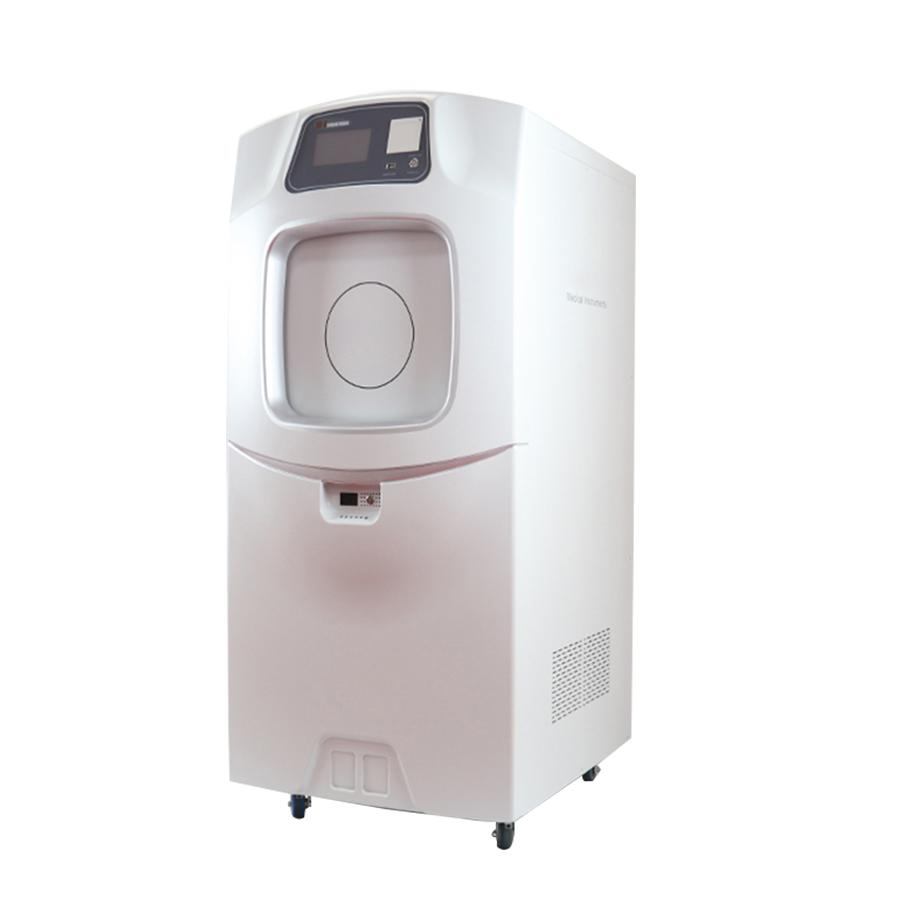

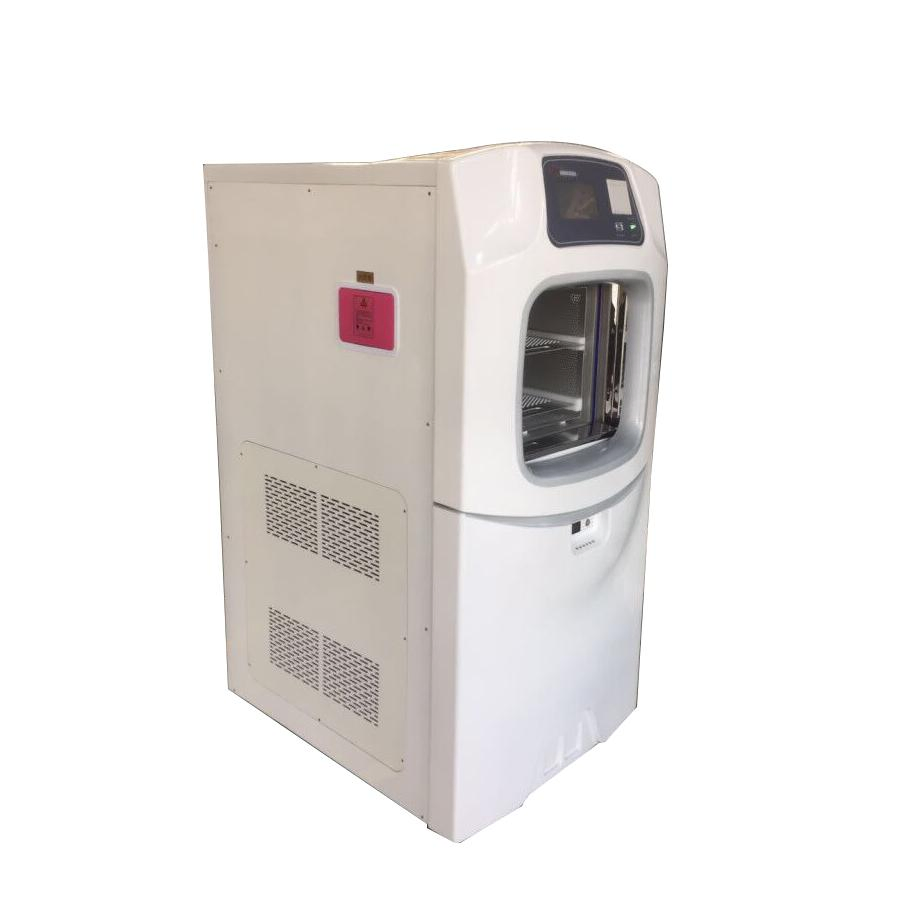

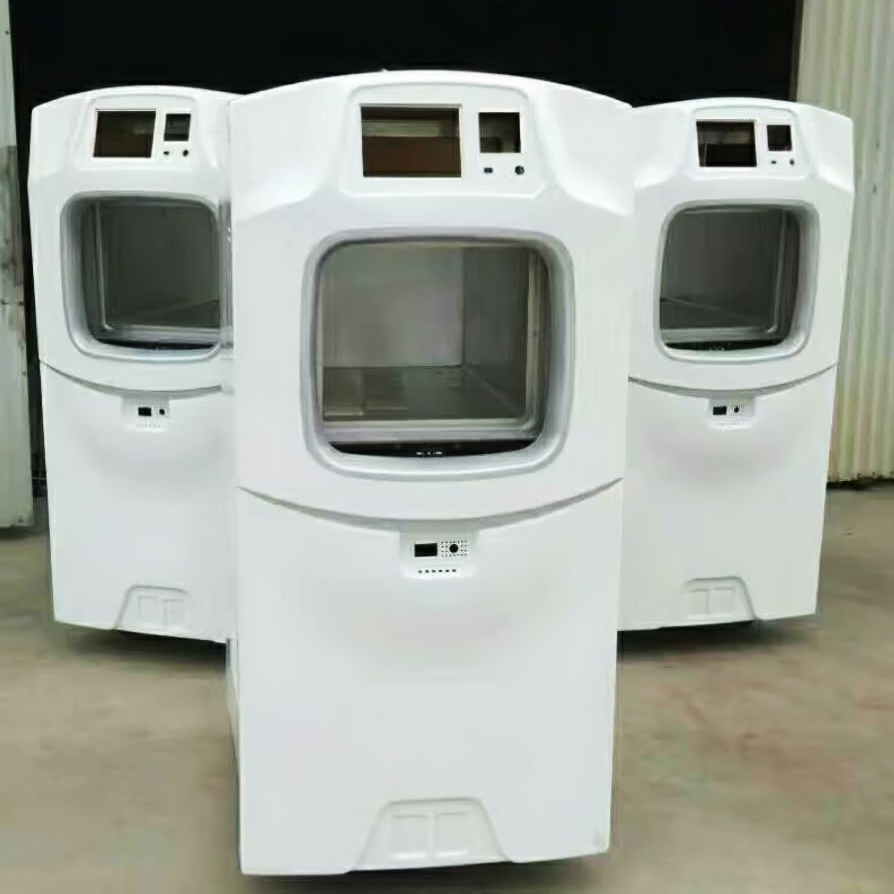

130Litre Plasma Sterilizer
Basic Info.
Certification
CE, ISO13485
LCD Display
With LCD Display
Transport Package
Wooden Case
Specification
CE, ISO Certificated
Production Capacity
500PCS/Month
Product Performance
| 30 / 50 Minutes Fast sterilization |

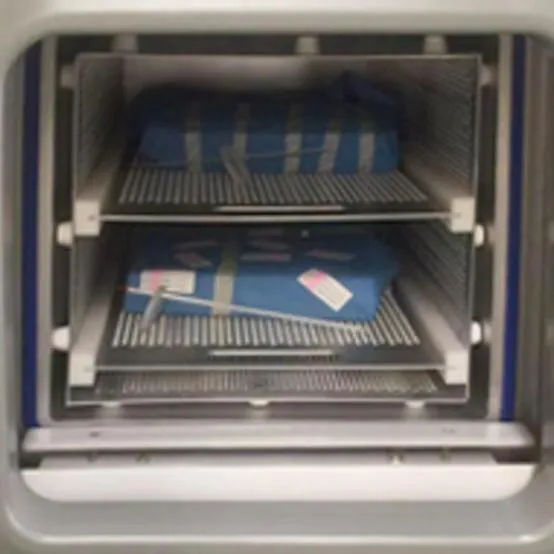

Rectangle Chamber |
| No special facilities required (Water / vent) |
Easy to clean and maintain |
| Low temperature Sterilization |
NOT corrosion to materials |
| 45-55 C working temperature |

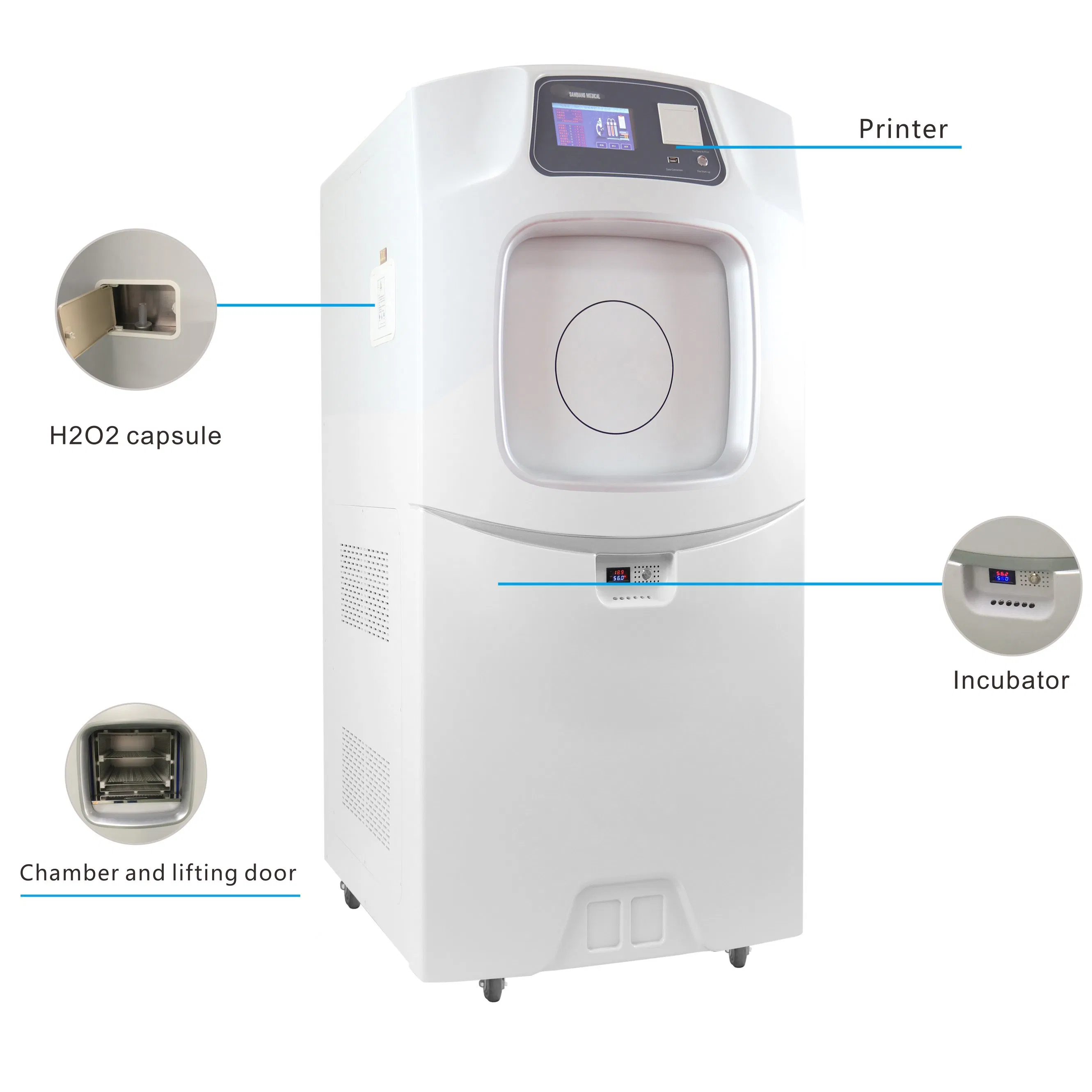

Easy to use sterilization agent capsule |
| Processes a wide range of surgical instrument |

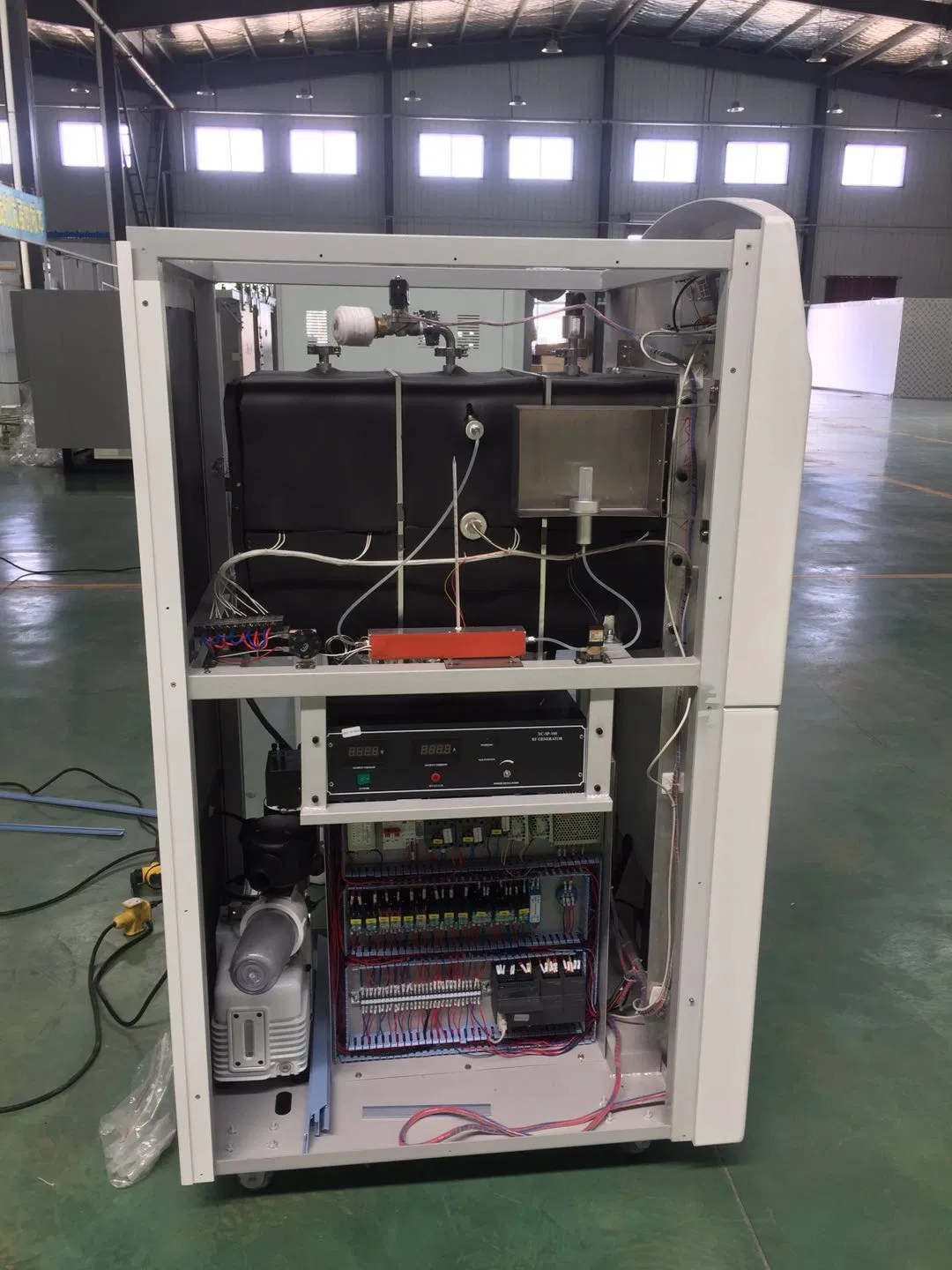

High vacuum pump for deep penetration |
| Compatible with moisture / heat-sensitive materials |
Thermal printer for complete cycle information |
| Environment friendly design |
Spare parts available in stock |
| No aeration after sterilization |
Caster wheels for easy relocation |
Specifications
- Model : SQ-D-130
- Capacity : 130L
- Chamber Size : 75 x 45 x 40 cm
- Machine Size : 104 x 80 x 160 cm
- Power : 4.2KW
- Voltage : 220V 50HZ
Key Characteristics
- Power Supply : AC 220V 50Hz or AC 110V 60Hz
- Chamber Material : 5052 Aluminum alloy
- Sterilization Agent : 60% H202 solution
- Sterilization Time : Short cycle (35 mins), Long cycle (55 mins), All-device cycle
- Application : Suitable for metal & non-metal medical devices: rigid endoscopes, metal & plastic lumen items, heat & moisture sensitive instruments.
- Working Temperature : 45-55°C settable

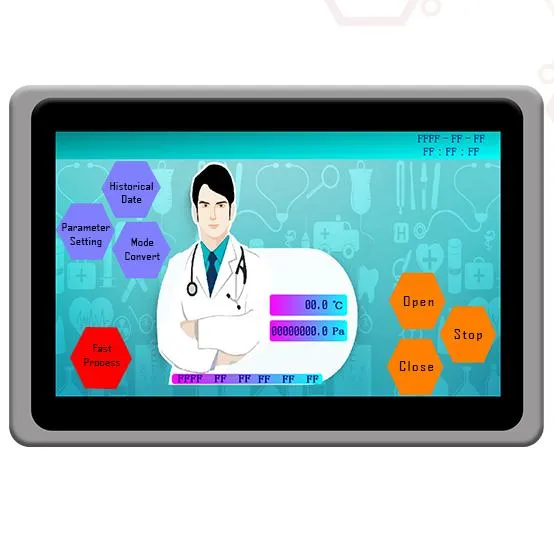

- Control System : Siemens PLC, touch screen control, fully automatic process
- Record : Built-in thermal printer, real-time print data, USB port for historical data download

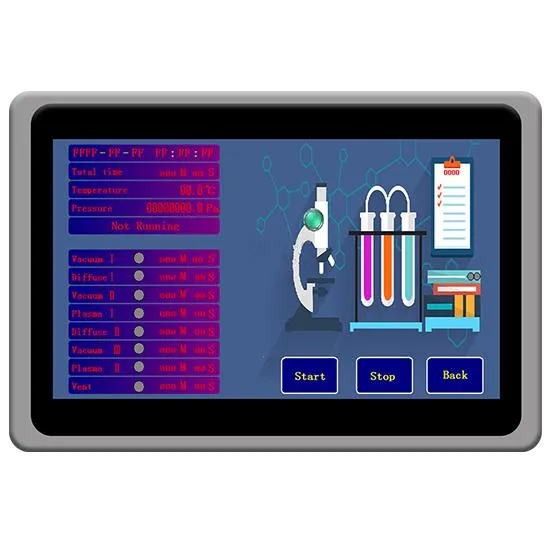

- Display : Chamber pressure and temperature, Processing phases and alarm errors
Frequently Asked Questions
What is the advantage of Low Temperature Plasma Sterilization?
It provides a safe, fast, and effective sterilization method for heat and moisture-sensitive instruments without leaving toxic residues or requiring long aeration times.
What sterilization agent does this machine use?
The system utilizes a 60% Hydrogen Peroxide (H2O2) solution as the primary sterilization agent.
Does the machine require a water supply or special ventilation?
No, this plasma sterilizer is designed for easy installation and does not require water hookups or special external venting systems.
What is the typical cycle time?
The equipment offers a short cycle of approximately 35 minutes and a long cycle of approximately 55 minutes, depending on the load.
Is the process automated?
Yes, the system is controlled by a Siemens PLC with a touch screen interface, making the entire sterilization process fully automatic and easy to monitor.
Can I track the sterilization data?
Absolutely. The machine includes a built-in thermal printer for real-time data output and a USB port for downloading historical sterilization records.
