Based on a gas diffusion process, EO is capable of sterilizing and rendering products free of micro-organisms. Sterility occurs when an EO gas molecule reacts with and destroys the bacteria DNA. All products must be placed in breathable packaging that allows gas to penetrate the sterile barrier and reach all surfaces of the device or product.

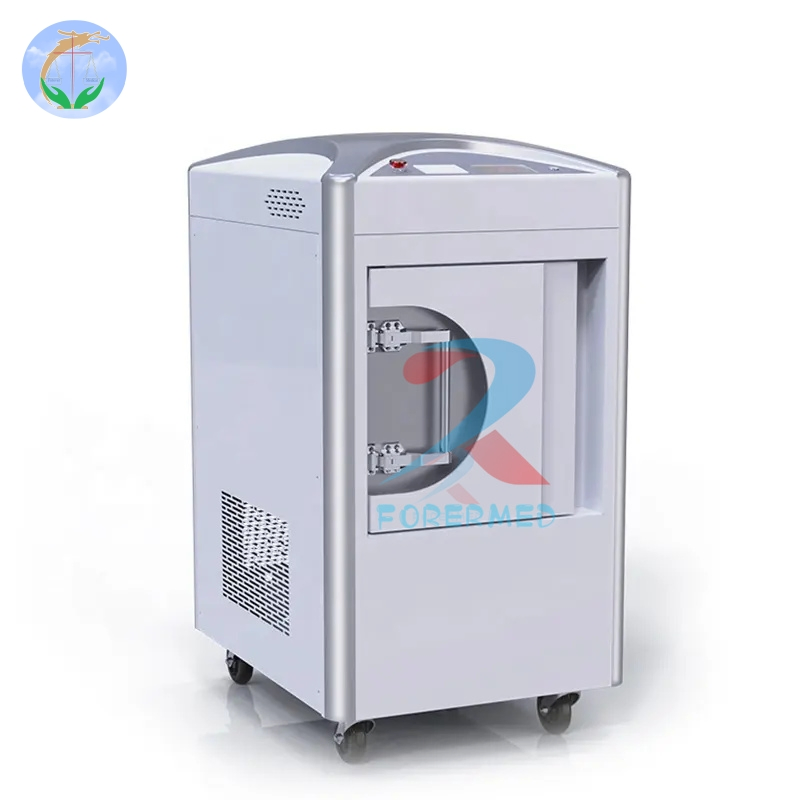

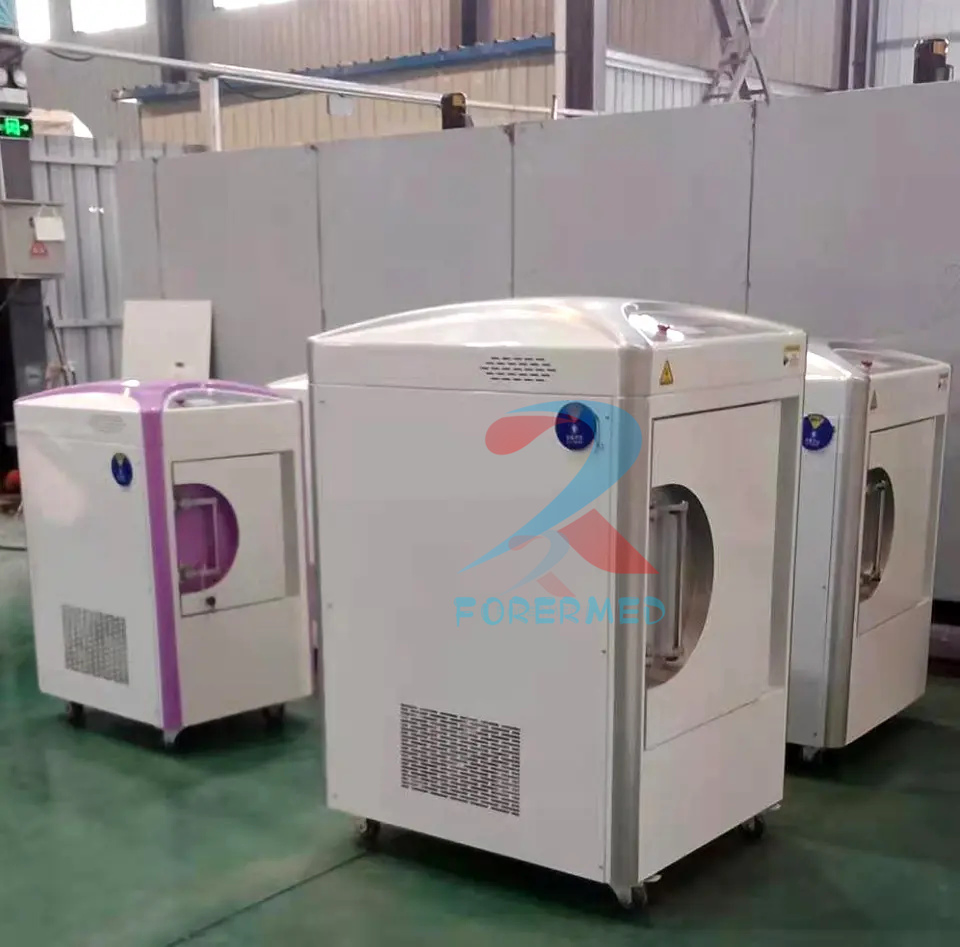

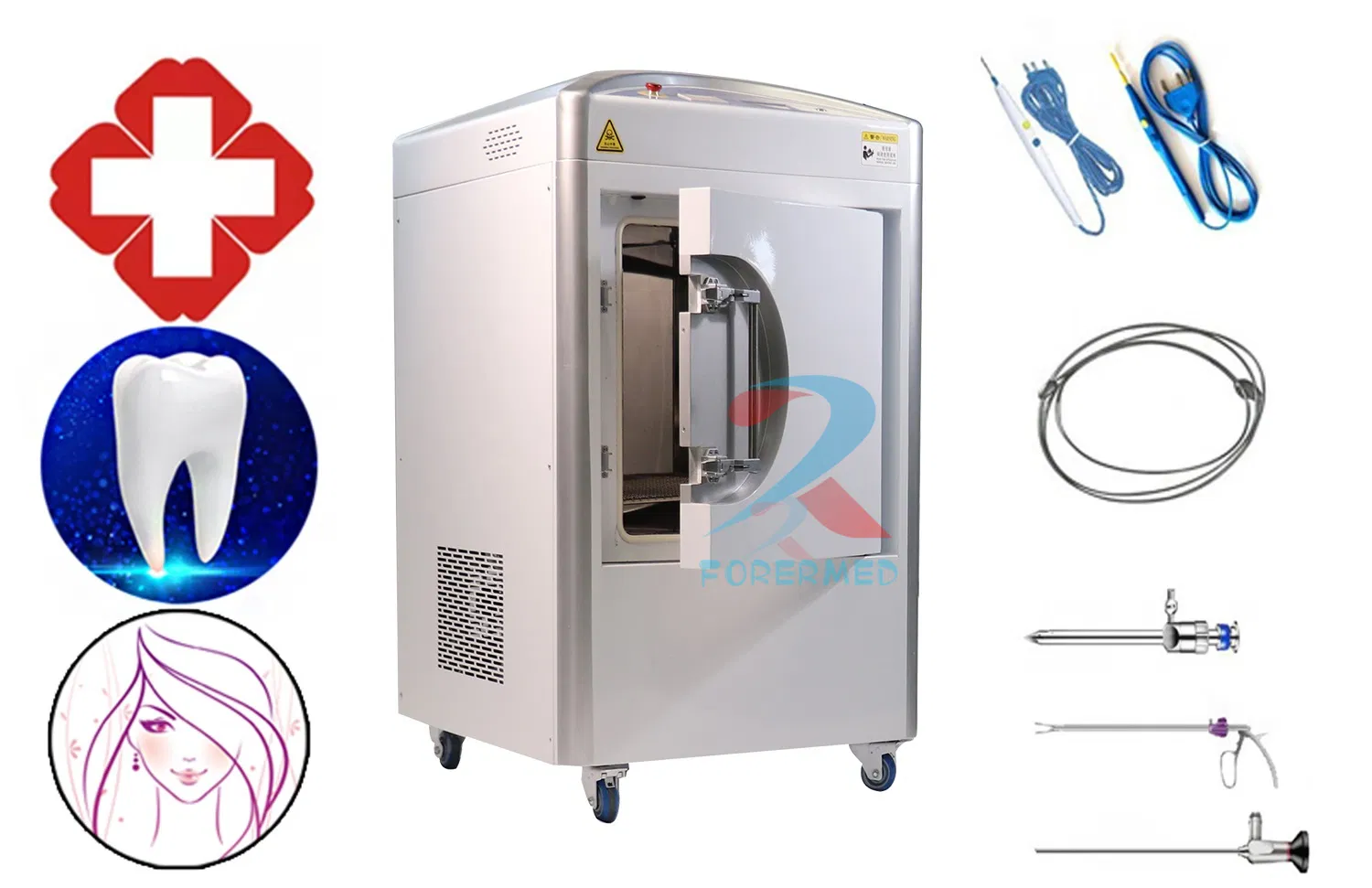

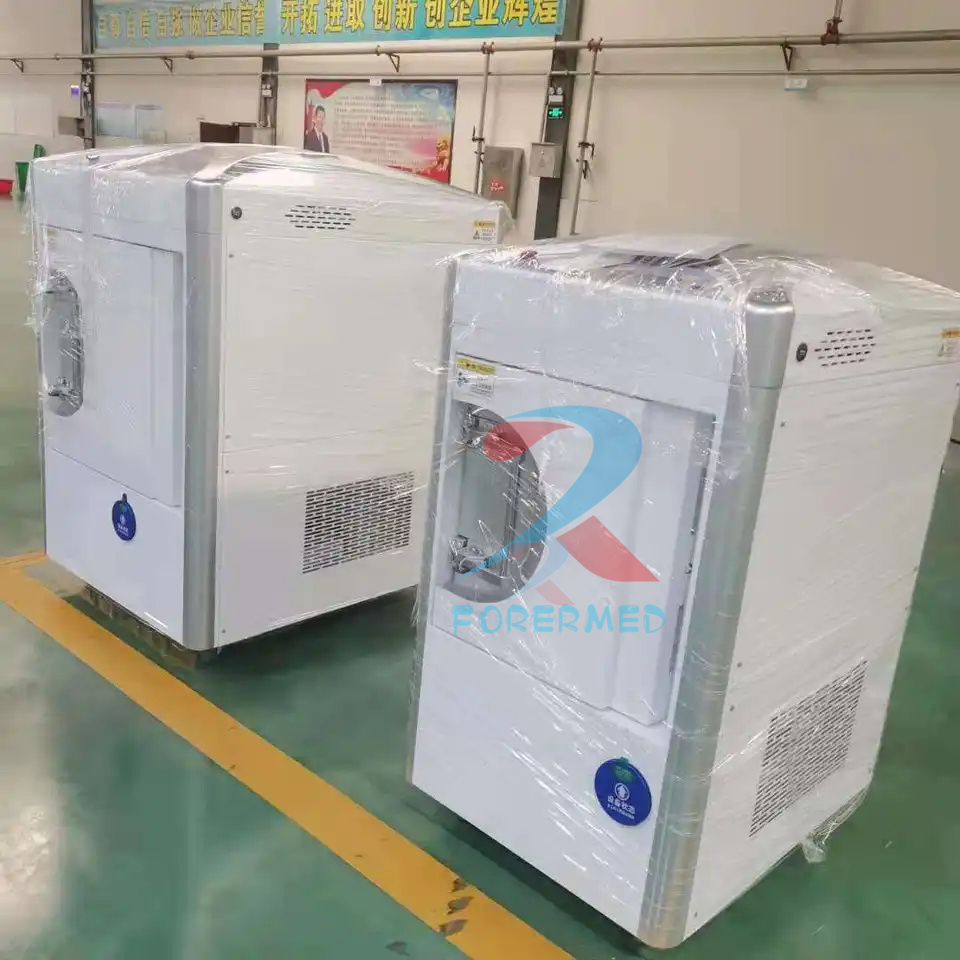

ETO gas machine able to sterilize all kinds of medical and surgical materials:
Technical Highlights:

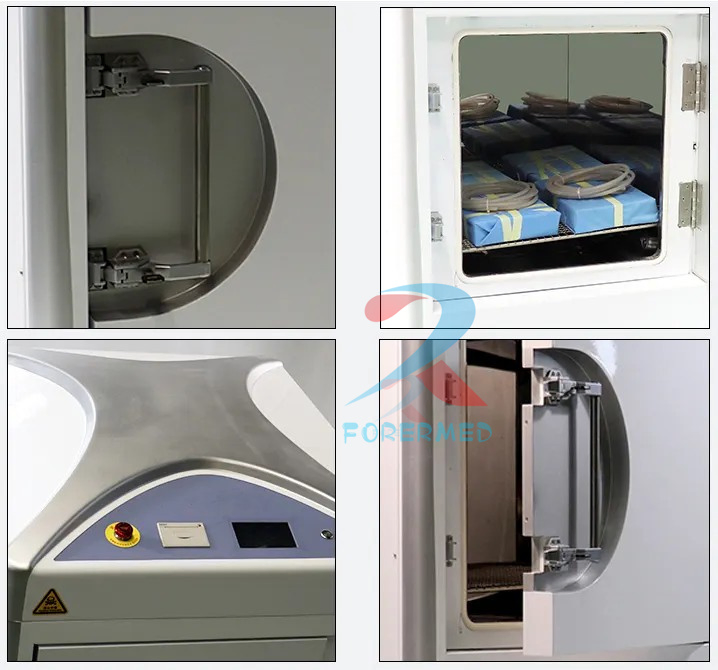

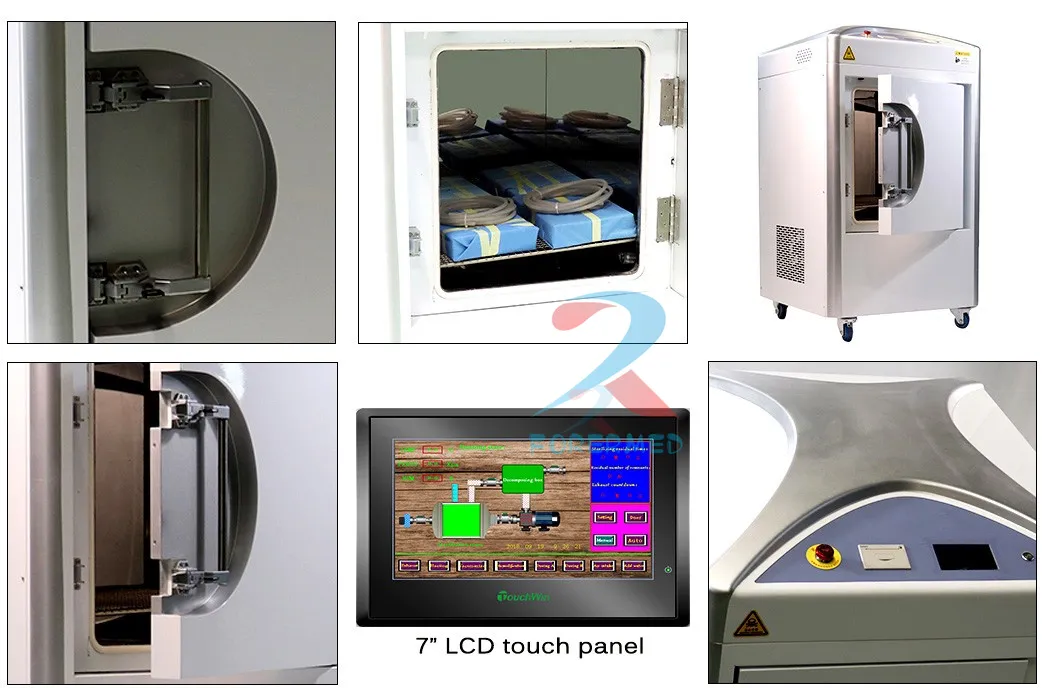

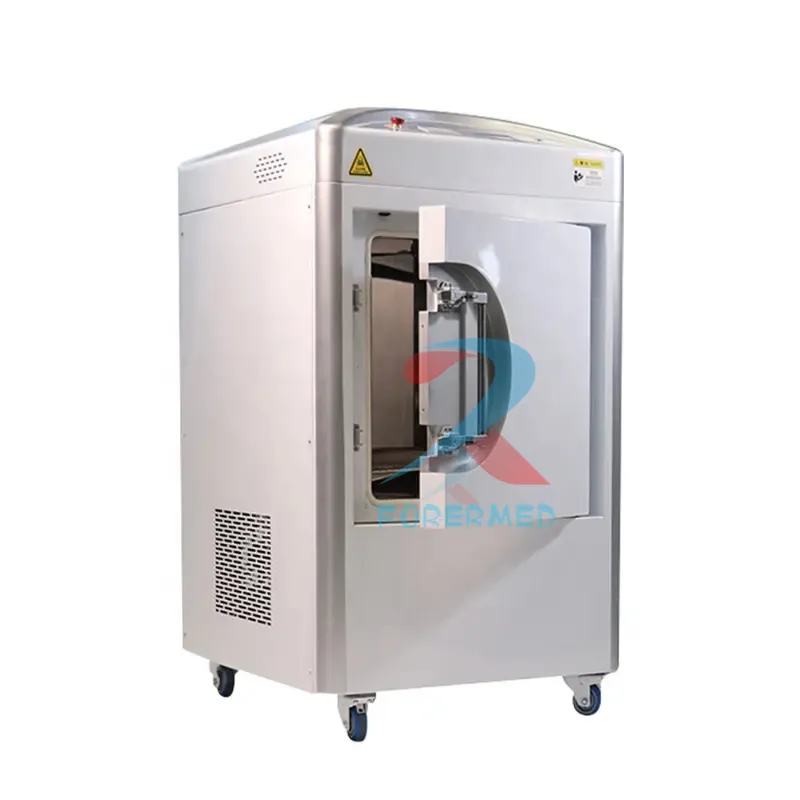

· 100% Ethylene Oxide gas cartridge · 5" Touch Screen display · Front loading rectangle 304 stainless steel chamber · Manual door operation in case of power failure · Built-in Thermal Printer · Sterilization and aeration in the same cabin · Fully adjustable temperature (37-54°C), humidity (45-85%), and time (3-8 hours).

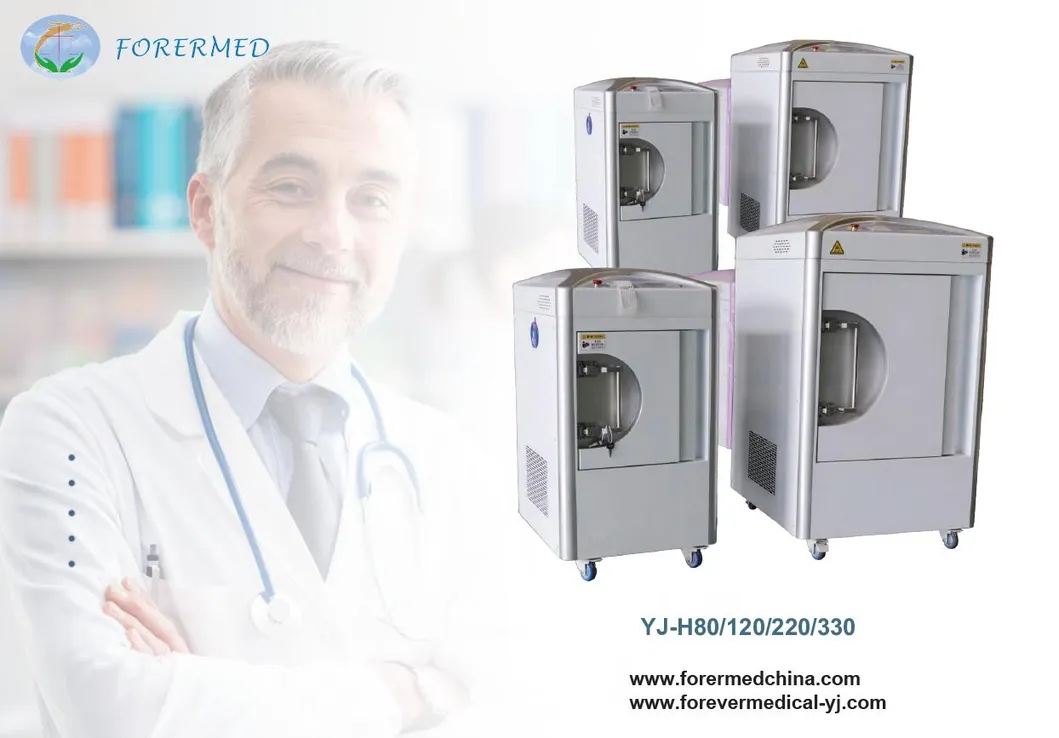

| Model | YJ-H120 | YJ-H220 | YJ-H330 |
|---|---|---|---|
| Voltage | AC220V | AC220V | AC220V |
| Power | 3KVA | 3.3KVA | 3.6KVA |
| Cell Material | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| Volume | 120L | 220L | 300L |
| Chamber Size | 585X375X472mm | 705X505X552mm | 760X545X712mm |
| Net Weight | 147KG | 207KG | 227KG |
| Cycle Time | 5-8 hours | 5-8 hours | 5-8 hours |
| Gas Cartridge | 72 g | 170 g | 240 g |
| Shelves | 1 | 2 | 2 |
