Medical HEPA Plasma Air Purifier Air Sterilizer

Customization: Available
Theory: Plasma Air Purifier
Type: Pressure Steam Sterilization Equipments

Product Description

Basic Information
Model NO.
CHL-AP100/AP120
Certification
CE, ISO13485
Electric Tension
220V
LCD Display
With LCD Display
Material
Plastic
Product Name
Plasma Air Sterilizer
Applicable Volume
≤ 100/120 M3
Circulating Air Volume
≥ 800 M3/h
Noise Level
≤ 45 dB(a)
Specification
1400*650*1600mm
Product Overview

Medical HEPA Plasma Air Purifier Air Sterilizer (CHL-AP100/AP120)

The plasma air sterilizer utilizes plasma as a primary sterilization factor to effectively disinfect indoor air and eliminate airborne bacteria. Designed for environments where human presence is constant, it ensures a safe and sterile atmosphere in critical medical and public sectors.

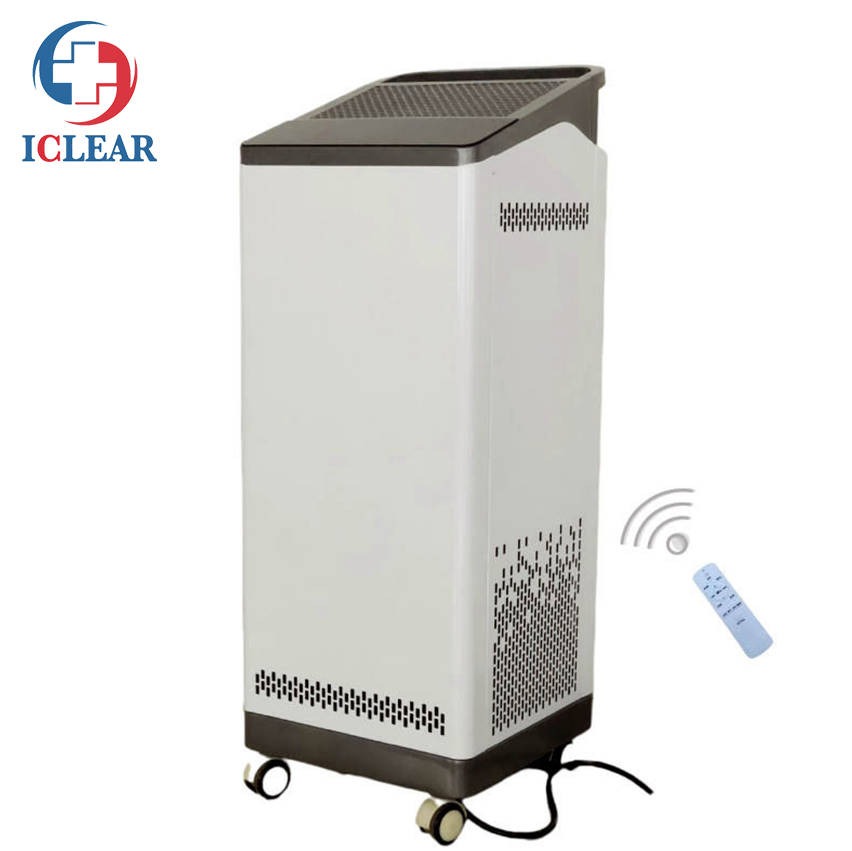

Plasma Air Sterilizer View 1

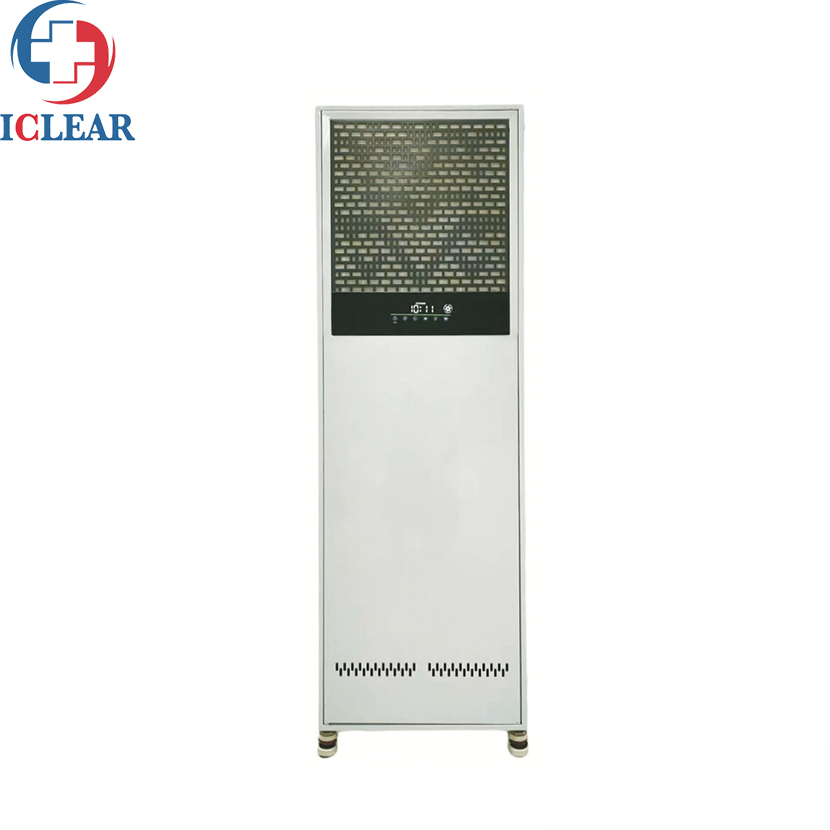

Plasma Air Sterilizer View 2

This equipment is highly suitable for air disinfection in Class II, III, and IV environments, including general operating rooms, delivery rooms, baby rooms, premature delivery units, supply rooms, and burn wards. It also serves industries such as pharmaceuticals, food production, schools, and various public spaces.

Key Characteristics
1
Filtration and Dust Removal: Employs physical filtration methods from air laminar cleaning technology to efficiently remove dust and bacteria from the air.
2
Safe and Reliable: As dynamic air disinfection equipment, it allows for man-machine coexistence. It is harmless to humans and non-corrosive to equipment, making it ideal for both occupied and unmanned spaces.
3
Flexible Installation: Available in three configurations: Wall-mounted, Mobile, and Cabinet types to suit different spatial requirements.
4
Intelligent Control: Features microcomputer program control, far-infrared remote control, automatic plasma fault monitoring, wind speed regulation, and automatic accumulation of working time.
Technical Specifications
Model No. CHL-AP100 CHL-AP120 CHL-AP100W CHL-AP150Q CHL-AP150G
Applicable Volume (m³) 100 120 100 150 150
Suggested Time (min) 90 (High Wind Speed)
Air Volume (m³/h) 800 960 800 1200 1200
Input Power (VA) 150 155 60 160 160
Noise dB (A) ≤ 50
Disinfection Efficiency Staphylococcus albicans extinction rate ≥99.9% (within 120 mins)
Installation Mode Mobile Mobile Wall-mounted Embedded Cabinet

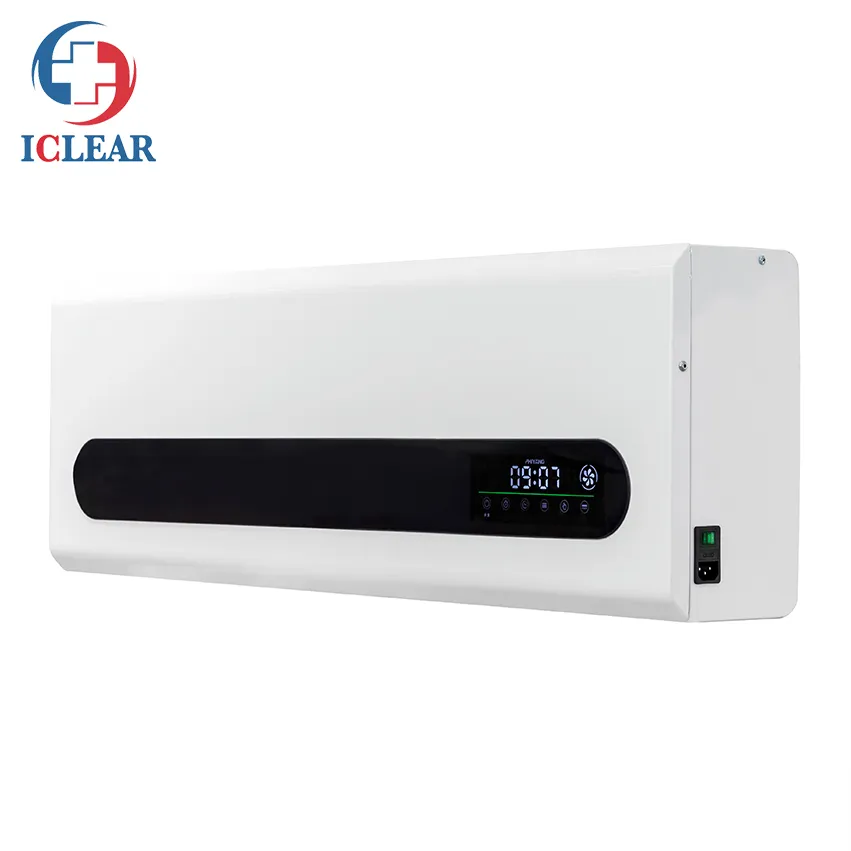

Product Detail 1

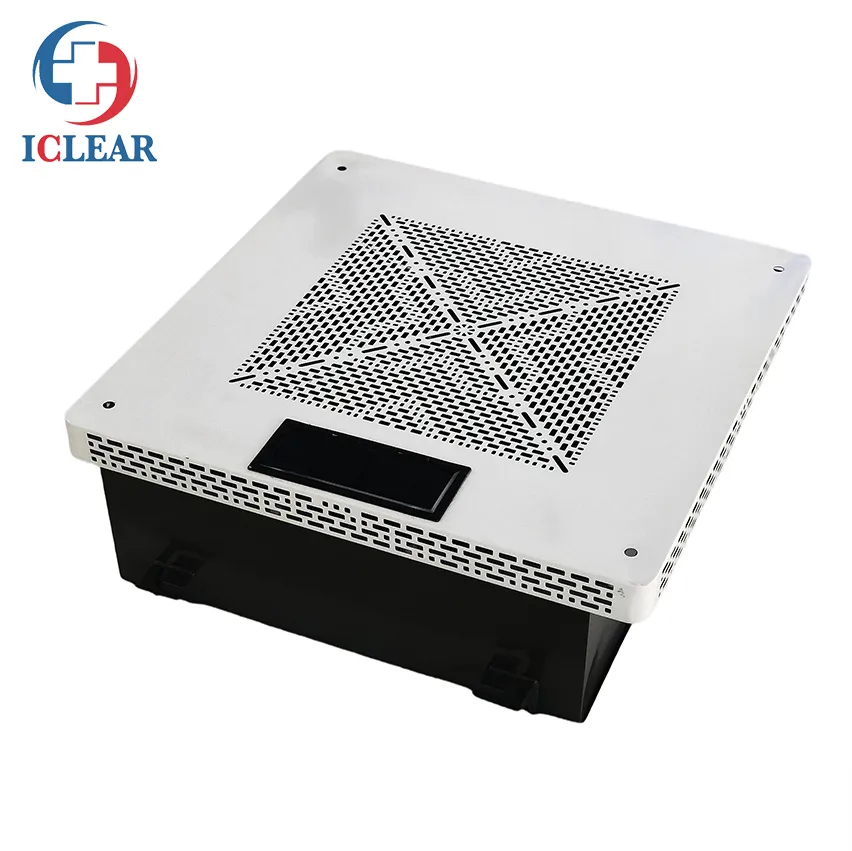

Product Detail 2
Product Detail 3
Internal Structure
Related Recommendations
Related Product 1
Related Product 2
Frequently Asked Questions
What is a Plasma Air Sterilizer and how does it work?
A plasma air sterilizer uses plasma as a sterilization factor. It physically filters dust and kills bacteria in the air, making it suitable for medical and public environments.
Is it safe to use the sterilizer while people are in the room?
Yes, this machine is designed for "man-machine coexistence." It is completely harmless to people and does not cause corrosion to other equipment in the room.
What are the different installation options available?
The sterilizer comes in three main types: Wall-mounted (Wall-hanging), Mobile (with wheels), and Cabinet/Embedded types to fit various room layouts.
What is the disinfection efficiency of this device?
In simulated experiments, the device achieves an extinction rate of ≥99.9% for Staphylococcus albicans within 120 minutes of operation.
Does the machine have automatic controls?
Yes, it features microcomputer program control, far-infrared remote control, and automatic monitoring for plasma faults and working time accumulation.
How long does shipping usually take?
Shipping times vary by method: Express takes 5-7 working days, Air freight takes 3-4 days to international airports, and Sea freight takes approximately 25-55 days.
