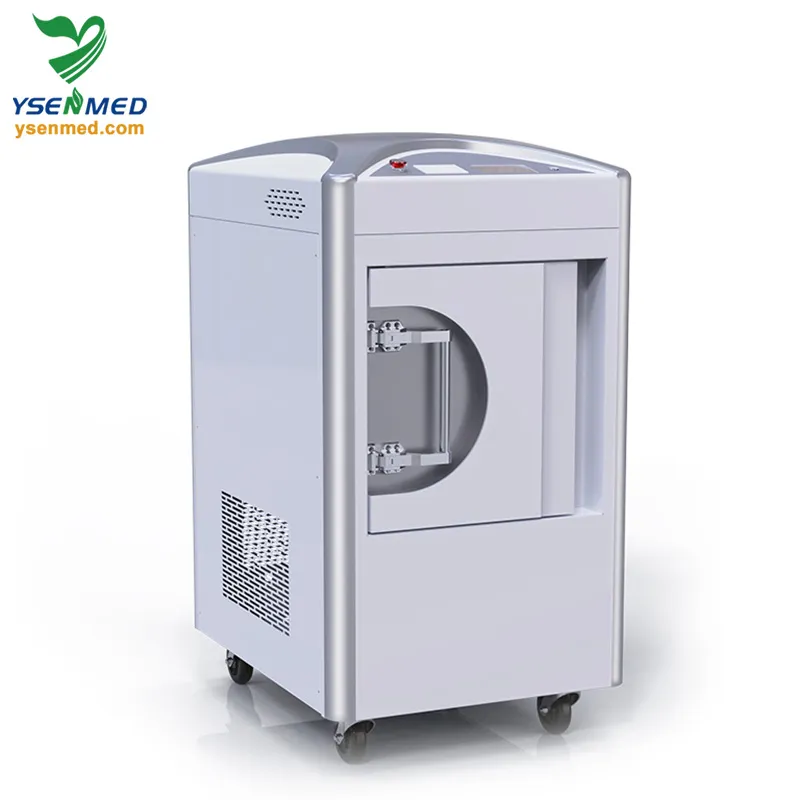

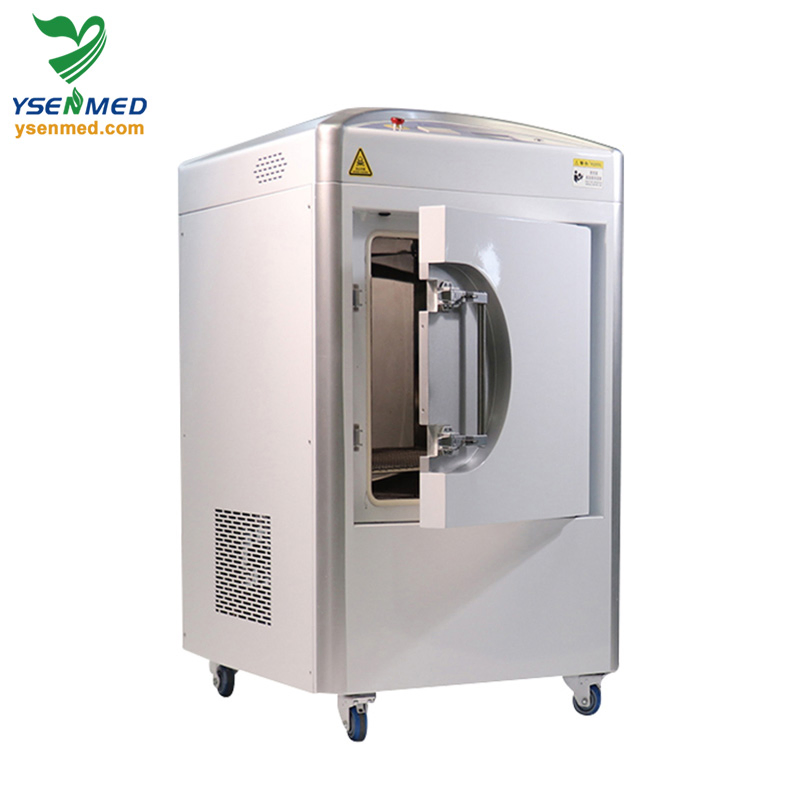

Ysmj-Eto220 Ysenmed 220L Medical Equipment Ethylene Oxide Sterilizer Eto Sterilizer

Theory: Ferv. & Xerothermic
Type: Pressure Steam Sterilization Equipments
Certification: ISO13485

Product Description

Basic Specifications

Model NO.
YSMJ-ETO220
Electric Tension
220V
LCD Display
With LCD Display
Temperature Alarm
Ultra High Temperature Alarm
Material
Stainless Steel
Capacity
23, 80, 120, 180, 220, 330L
Heating Method
Electric Heating
Power
3.3kw
Liner Size
246×450mm
Sterilizing Time
8-10 Hours
Chamber Material
304 Anti-Corrosion Stainless Steel
Outer Box
ABS Plastic
Working Temp
50℃±3℃
Working Pressure
-60kpa
Origin
China

Ethylene Oxide (ETO) Sterilizer Overview

Principle: Uses EO gas as the sterilant to kill all bacteria. It is ideal for healthcare products sensitive to high temperatures and moisture.

Key Advantages: Operates at low temperatures with high efficiency. Capable of destroying extremely resistant spores. Non-corrosive to metals, rubber, and plastics.

Core Features

Feature Item Detailed Description
Control systemPLC unit and 5" touch screen
Sterilization chamberSS304 stainless steel
Vacuum systemHigh-performance, low-noise, oil-free vacuum pump
Built-in printerThermal printer included
Humidity systemSaturated steam for uniform chamber humidity
Timing systemSettable EO gas diffusion and residual aeration time
Pre-set ModesStandard Sterilization Mode and Residual Washing

Model Comparison

Model ETO23 ETO80 ETO120 ETO220 ETO330
Capacity23L80L120L220L330L
Sterilizing Temp36-55°C Adjustable
Sterilizing Time8-10 Hours (depending on materials)
DisplayLCD screen with soft touch keys
Safety FeaturesTemperature and Pressure protection
Gas Source100% Pure EO gas cartridge
Voltage220V, 50Hz

Service and Support

Pre-sales Service

  • Inquiry and consulting support
  • Sample testing support
  • Factory inspection support
  • Timely response rate for technical questions

After-sales Service

  • Installation and operation training
  • Engineers available for machinery support
  • Online technical support through digital platforms
  • Regular maintenance guidance

Frequently Asked Questions

Q1: Are you a direct manufacturer?

Yes, we are a leading manufacturer specializing in medical sterilization equipment.

Q2: What is your main medical equipment range?

Our business covers medical imaging, OT room equipment, clinical lab instruments, medical sterilizers, and veterinary equipment.

Q3: Can I customize the equipment with my own logo?

Most of our products support OEM or ODM services, allowing for custom branding and design requirements.

Q4: What are the payment terms for orders?

For standard orders, our policy is typically a 30% advance payment via T/T, with the remaining 70% balance due before delivery.

Q5: How does the ETO sterilizer handle delicate materials?

The ETO sterilizer uses a low-temperature gas process, making it perfectly safe for heat-sensitive plastics, rubber, and electronics.

Q6: What kind of gas is used in this machine?

It utilizes 100% Pure EO (Ethylene Oxide) gas cartridges for maximum sterilization efficiency and safety.
