Principle: Use EO gas as the sterilant to kill all bacteria. Almost all health care products which are sensitive to high temperature and moisture can be sterilized by ETO sterilization. Advantages include operating at very low temperatures, high efficiency in destroying microorganisms (including resistant spores), and being non-corrosive to metal, rubber materials, and plastic.
| System Component | Technical Detail |
|---|---|
| Control system | PLC unit and 5" touch screen |
| Sterilization chamber | SS304 stainless steel |
| Vacuum system | High-performance, low-noise, oil-free vacuum pump |
| Built-in printer | Thermal printer |
| Humidity system | Saturated steam humidification for uniform air humidity |
| Timing system | Settable EO gas diffusion and residual aeration time |
| Pre-set | Standard Sterilization Mode and Residual Washing |

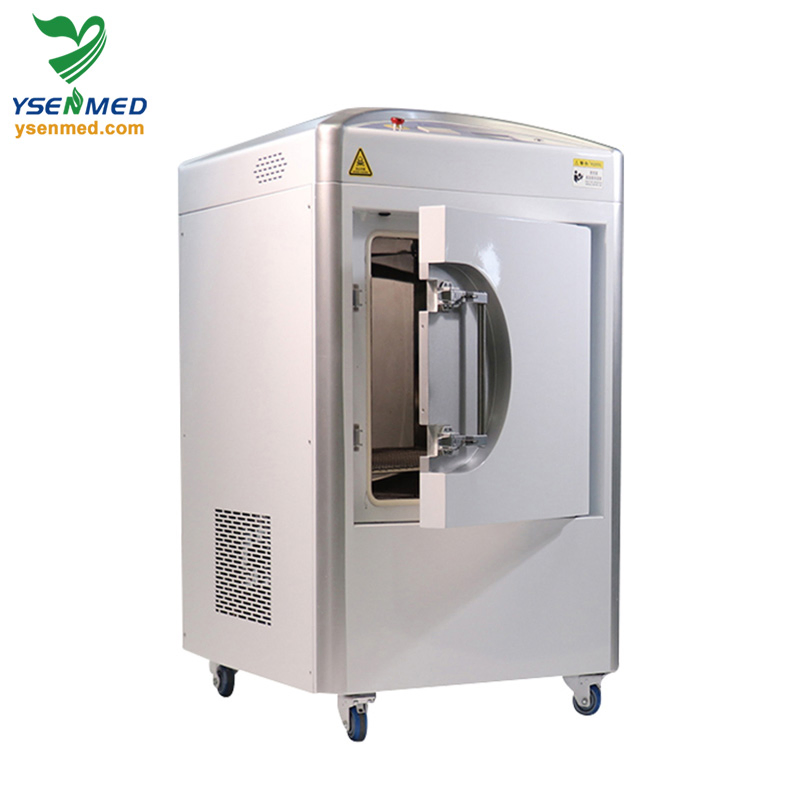

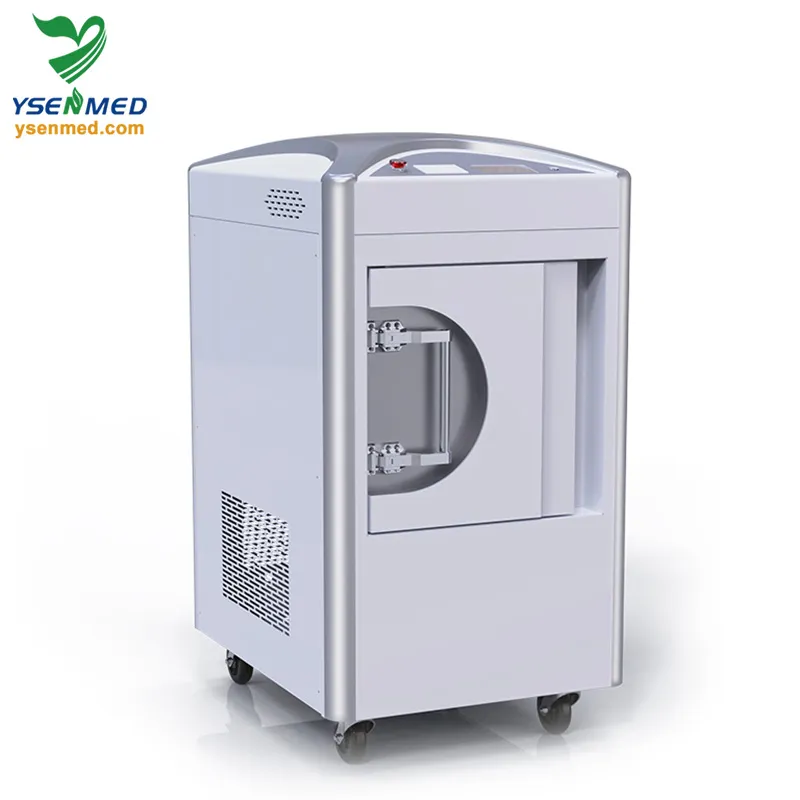

| Model | YSMJ-ETO23 | YSMJ-ETO80 | YSMJ-ETO120 | YSMJ-ETO220 |
|---|---|---|---|---|
| Capacity | 23L | 80L | 120L | 220L |
| Temperature | 36-55°C adjustable | |||
| Time | 8-10 Hours, depending on materials | |||
| Method | Low temperature, gas sterilization | |||
| Display | LCD screen, Soft touch operate key | |||
| Voltage | 220V, 50Hz | |||
| Gas Source | 100% Pure EO gas cartridge | |||
